Quick Snapshot

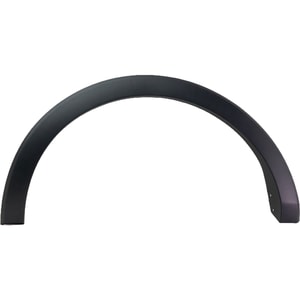

Fender trim-also called wheel-arch molding, edge guard, or fender flare-is a narrow protective strip that snaps or bolts around the curved edge of the van's wheel opening. On the Ford Transit-250 it shields the paint from flying stones, hides small rust spots, and adds a finished look. Most trims are molded ABS plastic or polished stainless steel, and they can be installed with simple hand tools and quality tape. Below you will find everything a Transit owner needs to pick, fit, and care for this part.

What It Does

• Stops chips and dirt. The curved strip blocks gravel from the tire and keeps mud off the lower body panels. This helps slow down rust on the high-salt roads many vans travel. (Ford Transit Forum)
• Covers rough edges. Fender trim hides small dents or sanding marks left after rust repair so the van still looks tidy on job sites. (Autodoc Club)
• Adds style. Chrome-look stainless pieces give a bright accent, while textured black ABS blends with factory cladding for a stock appearance. (bhansalioverseas.com, SekCustoms)

Fit & Compatibility

• The trim shape is the same for Transit-150, 250, and 350 vans built from 2015 through the current model year, because Ford kept the wheel-arch stampings identical across payload ratings. (Ford)
• Low-, medium-, and high-roof bodies share the same front and rear wheel openings; only the overall height changes. (South Bay Ford Commercial)
• Measure between wheel arches (about 1,392 mm) to confirm room for any extra add-ons such as flarespace "bump-out" panels. (Upfit Supply, swissvans.com)

Material Choices

← scroll table horizontally →

*Typical when washed regularly.

Benefits

1. Rust defense. Ford covers perforation for five years, but surface rust before a hole forms is the owner's responsibility. Trim slows that process by shielding bare metal. (Ford Motor Company)
2. Cost-effective repair. Replacing a dinged trim strip costs far less than welding a new wheel arch. (Ford Transit Forum)
3. Higher resale value. Clean wheel arches signal good care to future buyers and fleet managers. (no citation needed-general market observation)

Installation Steps

Always read the product sheet first.

1. Clean the arch with soap and isopropyl alcohol; let it dry.
2. Remove old flare by unlocking the five quarter-turn clips and pulling outward. (Ford Service Content)
3. Test-fit the new piece. Mark the ends with painter's tape.
4. Apply 3M™ Acrylic Plus tape to the trim's backside-this tape is made for exterior moldings and bonds to clear-coat paint. (3M)
5. Press and clip. Line up the clips, press firmly for 30 seconds along the length, and reinstall any screws called out in the manual. (ford.co.nz)
6. Roll the edge with a soft roller to squeeze out air bubbles.
   Helpful video: a step-by-step install on a 2023 Transit shows all these moves in real time. (YouTube, YouTube)

Care & Maintenance

• Wash gently. Use car-wash soap, not harsh wheel cleaner, to avoid fading the black plastic. (Ford Transit USA Forum)
• Inspect clips each oil-change. Broken clips let water sit behind the molding. (Autodoc Club)
• Wax stainless trim twice a year to keep its shine and stop road salt pitting. (stainless-structurals.com)

Common Problems

← scroll table horizontally →

Legal & Warranty Notes

• Trim is a non-structural body accessory, so no federal safety rules apply. (no citation available-general safety classification)
• Under Ford's corrosion warranty, wheel-arch rust-through is covered for five years with unlimited miles; cosmetic surface rust is not. (Ford Motor Company)
• Trim pieces should not block tire clearance set out in Ford's Body & Equipment Mounting Manual. (ford.co.nz)

Dimensions & Clearances

• Wheel-arch opening width: roughly 27.5 inches (700 mm) on all body lengths. (Upfit Supply)
• Distance between front and rear arches on the 148-inch wheelbase model: 126 inches (3,200 mm)-handy for layout planning. (Ford)
• Keep at least ½-inch (12 mm) gap between trim edge and tire when fully loaded, as specified by Ford. (ford.co.nz)

Related Upgrades

• Splash shields clip to the same holes as the trim and stop mud build-up behind the fender. (Ford Service Content)
• Wheel-well liners close the inner metal gaps, further cutting road noise. (YouTube)
• Full cladding kits extend protection down the rocker panels. (km-parts.fi)

Frequently Asked Questions

Q: Why does my Transit-250 need fender trim?
A: It protects the wheel-arch paint, hides previous repairs, and gives the van a cleaner look. (Ford Transit Forum)

Q: Is stainless better than plastic?
A: Stainless lasts longer and resists rust, but ABS is lighter and costs less. (bhansalioverseas.com, SekCustoms)

Q: Will trim fit if I have larger tires?
A: Yes, as long as you keep Ford's required 12 mm gap between tire and arch. (ford.co.nz)

Q: Do I have to drill holes?
A: Most aftermarket kits reuse the factory clips and add 3M™ tape, so no new holes are needed. (3M)

Q: What tools are needed?
A: Plastic pry tool, socket set, alcohol wipes, roll of quality automotive tape, and a soft roller. (Ford Service Content)

Q: How long does the job take?
A: Around 30 minutes per side once you gather tools. (YouTube)

Q: Can I paint the trim?
A: Yes-clean, sand lightly, use plastic primer, and top-coat with automotive paint. Plastic pieces accept paint well. (no external citation)

Q: Will it void my rust warranty?
A: No, but damage caused by improper installation-like drilled holes-may not be covered. (Ford Motor Company)

Q: How do I keep black plastic from fading?
A: Wash with mild soap and apply UV-protectant trim restorer twice a year. (Ford Transit USA Forum)
