2001-2003 Ranger, Explorer Sport & Mazda B-Series BCM/GEM: Solving Electrical Gremlins Caused by Water Leaks

Is it a BCM or a GEM?

For the 2001-2002 Ford Explorer Sport and Sport Trac, 2001-2003 Ford Ranger, and 2001-2003 Mazda B-Series, the terms Body Control Module (BCM) and Generic Electronic Module (GEM) are used interchangeably. These trucks use a GEM, which performs the functions of a BCM. You will see the part and the problem described using both names in repair manuals and online forums. They refer to the same component.

Symptoms of a Failing Body Control Module

A failing BCM/GEM in these trucks typically causes multiple, unrelated electrical issues to appear at once. Because the most common cause of failure is water damage, symptoms may be worse during or after heavy rain. Common signs include:

• Erratic Wipers: Windshield wipers may not turn on, may not turn off, or may operate on their own.
• Power Window and Lock Problems: Power windows may stop working, and power door locks might cycle randomly or fail to respond.
• Interior Lighting Failures: The dome light or other courtesy lights may not turn on when a door is opened.
• Parasitic Battery Drain: A faulty module can fail to shut down a circuit when the truck is off, leading to a dead battery overnight.
• Instrument Cluster Issues: The speedometer and odometer may stop working.
• 4x4 System Malfunction: On 4WD models, the four-wheel drive may not engage.
• Warning Chimes and Lights: You may lose the 'key-in-ignition' or 'headlights-on' warning chimes. The dashboard may also light up with random warning lights.
• No-Start Condition: In some cases, communication issues between the BCM/GEM and the Powertrain Control Module (PCM) can prevent the engine from starting.

Known Issues: The Windshield Leak Catastrophe

The single most common cause of BCM/GEM failure in the 2001-2003 Ranger, Explorer Sport/Sport Trac, and Mazda B-Series is water intrusion from a leaky windshield. The factory urethane seal, particularly at the upper driver's side corner, can degrade over time. Water seeps in, runs down the A-pillar behind the dash, and drips directly onto the Central Junction Box (the interior fuse panel) and the BCM/GEM mounted to its back.

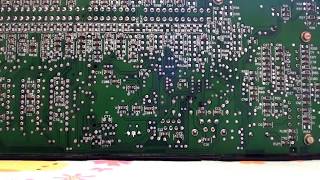

This water exposure corrodes the circuit board, pins, and connectors of the module, causing short circuits and leading to the erratic electrical behavior described above. If you are experiencing these symptoms, you should immediately check for signs of water, such as a wet driver's side floor mat, moisture on the interior of the fuse panel cover, or visible corrosion on the module itself.

Buying a Used Body Control Module: What You Must Know

Given the high cost of a new module from the dealer (if one can even be found), a quality used OEM module is the most popular and cost-effective solution. However, there are critical rules to follow when buying used.

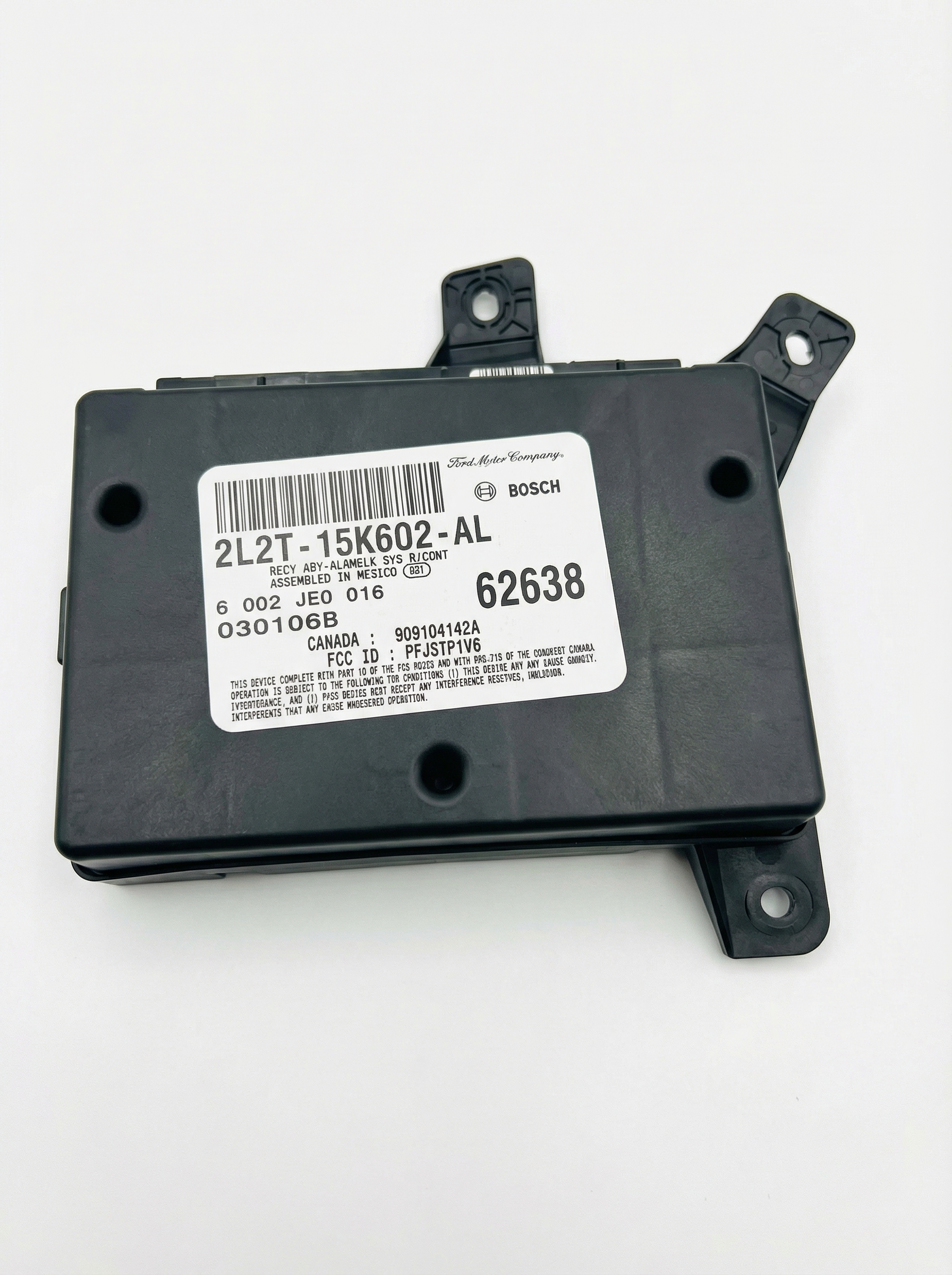

• Match the Part Number EXACTLY: The most important rule is to match the Ford engineering number on your original module. This number will be printed on a white sticker and typically looks like 1L5T-14B205-AD. The last two letters are a suffix that indicates the specific software and hardware configuration for your vehicle's options (e.g., 4x4, power windows, keyless entry). A module with a different suffix may not work correctly.
• Vehicle Specifics Matter: This module only fits the 2-door Explorer Sport and 4-door Explorer Sport Trac models from 2001-2002; it does NOT fit the standard 4-door Ford Explorer of the same years.
• Inspect for Corrosion: When buying a used module, ask the seller for clear pictures of the electrical pins and connectors. Look for any signs of green or white crusty corrosion, water stains, or rust. Do not buy a module that shows any signs of prior water damage.
• Why Used OEM is a Smart Choice: A used OEM module that is clean and has a matching part number is often more reliable than a new aftermarket part. It was designed by Ford for your specific vehicle, ensuring proper function of all body features without the compatibility headaches common with generic aftermarket electronics.

Replacement and Programming Requirements

Location

The BCM/GEM is located in the center of the dashboard, attached to the back of the interior fuse panel (Central Junction Box). To access it, you must remove the plastic radio and climate control bezel, then remove the radio itself. The module is typically held to the fuse box bracket with a 7mm screw.

Programming, Keys, and Anti-Theft

This is the most critical part of the replacement process. While the BCM/GEM itself does not store the key data—that's handled by the PCM in these models—it is a key part of the vehicle's communication network. Installing a new or used module without proper programming can lead to a no-start condition or other electrical faults.

• Parameter Reset is Recommended: To ensure the new BCM/GEM can communicate correctly with the PCM and other modules, a "Parameter Reset" procedure should be performed using a professional-grade scan tool. This synchronizes the modules.
• Two Keys are Required: The Parameter Reset and key relearn process requires that you have at least two working, programmed keys for the vehicle. If you only have one key, you will need to have a second one cut and programmed before starting this job.
• Who Can Program It?: A Ford dealership or a well-equipped independent auto repair shop can perform the programming. Some mobile locksmiths with advanced scan tools may also be able to do it. While it is possible for a DIYer with a tool like FORScan and an OBD adapter to perform the reset, it carries the risk of locking up the modules if done incorrectly.
🎬 Watch a demonstration of BCM programming using the FORScan software.
• Cloning as an Alternative: Some specialized services offer to "clone" the data from your original module to a replacement unit. If your original module is damaged but still able to be read, this can make the replacement a simple plug-and-play installation with no further programming needed.
🎬 See how a professional repair and cloning service works.

Cost of Replacing the Body Control Module

The cost can vary significantly based on the path you choose for parts and labor.
