2008-2018 BMW M3 & N55 Engine Throttle Body Failures: Actuators vs. Assemblies

Critical Distinction: Two Different Systems for Two Different Engines

Before diagnosing any issue, it's crucial to understand which system your vehicle uses. The parts, symptoms, and repair procedures are completely different.

• 2008-2018 BMW M3: Uses the 4.0L S65 V8 engine. This engine has two Throttle Actuators that control the eight individual throttle bodies. These are a very common and well-documented failure point.
• 2011-2019 BMW 135i, 335i, 435i, 535i, 640i, 740i, and ActiveHybrid 3: Use the 3.0L N55 turbocharged inline-6 engine. This engine has one conventional Throttle Body Assembly. While the N55 engine primarily uses its Valvetronic system for load control, this throttle body acts as a primary control and a critical failsafe.

This guide is divided into two parts to address each system separately.

Part 1: 2008-2018 BMW M3 (S65 V8) Throttle Actuators

Why M3 Throttle Actuators Fail

The throttle actuators on the S65 engine are a notorious weak point. The failure is almost always internal and happens in two stages. First, the original plastic gears inside the actuator wear down over time. This wear creates play and forces the internal electric motor to work harder to open and close the throttle plates. Eventually, this strain overloads and burns out the electronic circuit board within the actuator, leading to complete failure. The failure rate of the original units is considered to be 100% over the life of the vehicle.

Symptoms of a Failing M3 Throttle Actuator

Failure is often sudden and without warning, though some owners report a 'soggy' or delayed throttle response in the early stages. When the actuator fails completely, the car's computer (DME) will immediately trigger a fault.

• Limp Mode: The engine will go into a reduced power mode, often called 'limp mode'. The RPMs will be limited, typically to around 4,000 RPM, and acceleration will be extremely slow.
• Dashboard Warnings: The 'Check Engine' light will illuminate, along with DSC (Dynamic Stability Control) and EML (Electronic Throttle Control) warning lights.
• OBD-II Fault Codes: A diagnostic scan will reveal specific codes pointing to the actuator. The most common codes are:
  • 2B15: Throttle Valve Actuator Governor Monitoring/Control Bank 1
  • 2B16: Throttle Valve Actuator Governor Monitoring/Control Bank 2
  • 2B21: Throttle Valve Actuator Pre-drive Check Bank 1
  • 2B22: Throttle Valve Actuator Pre-drive Check Bank 2
  • 2B57: Safety Concept Manager Action
  • CDC0: Throttle Valve Actuator CAN Message

Part 2: N55 Engine Throttle Body (135i, 335i, 435i, 535i, & More)

Why N55 Throttle Bodies Fail

Failure of the single throttle body on the N55 engine is less common than the M3's actuator issues but can still occur. These failures are typically electronic, involving the internal position sensor or the motor that drives the throttle plate. Carbon buildup can also cause the throttle plate to stick or move sluggishly, triggering a fault.

Symptoms of a Failing N55 Throttle Body

Symptoms for the N55 are more related to general drivability issues rather than the sudden, complete limp mode seen in the M3.

• Rough or Unstable Idle: The engine may idle erratically or stall when stopped.
• Hesitation and Stumbling: The car may hesitate or stumble during acceleration.
• Reduced Power: Similar to the M3, the engine may enter a reduced power mode, though it may not be as severe.
• Check Engine Light: A fault will trigger the check engine light.
• OBD-II Fault Codes: Common codes for N55 throttle body issues include:
  • P1632: Throttle Valve Adaptation Conditions Not Met
  • P1638 / P1639: Throttle Valve Position Control; Throttle Stuck
  • 2714: Throttle valve, function: sluggish, too slow
  • 28AB / 28B0: Codes indicating an electrical fault or that the throttle has entered emergency mode.

Buying a Used BMW Throttle Body or Actuator

Purchasing a used throttle component can be a cost-effective solution, but careful inspection is key. Given the high failure rate of original M3 actuators, a used OEM part is a significant gamble unless you can verify it has been recently replaced.

What to Inspect on a Used M3 (S65) Throttle Actuator

• Ask About History: Inquire about the mileage of the donor vehicle. Lower mileage is always better, but no guarantee against failure.
• Look for Rebuilt Units: The best option for a used part is a professionally rebuilt actuator. These often come with upgraded metal gears and revised electronics 🎬 Check out this video for the ultimate long-term actuator repair solution., and sometimes even a lifetime warranty. Ask the seller if the gears have been replaced with metal ones.
• Check for Tampering: Look for signs that the housing has been opened, which might indicate a repair or rebuild.

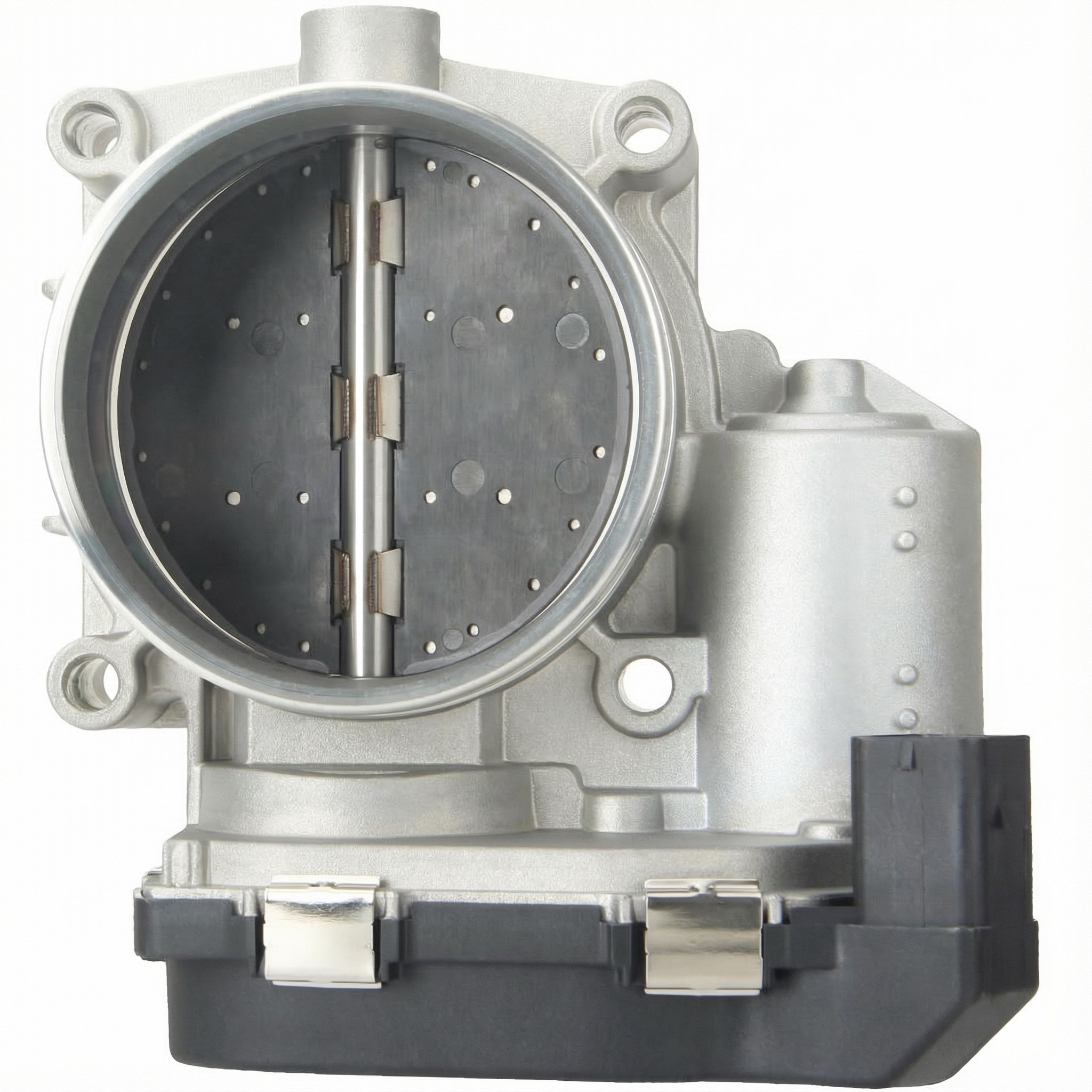

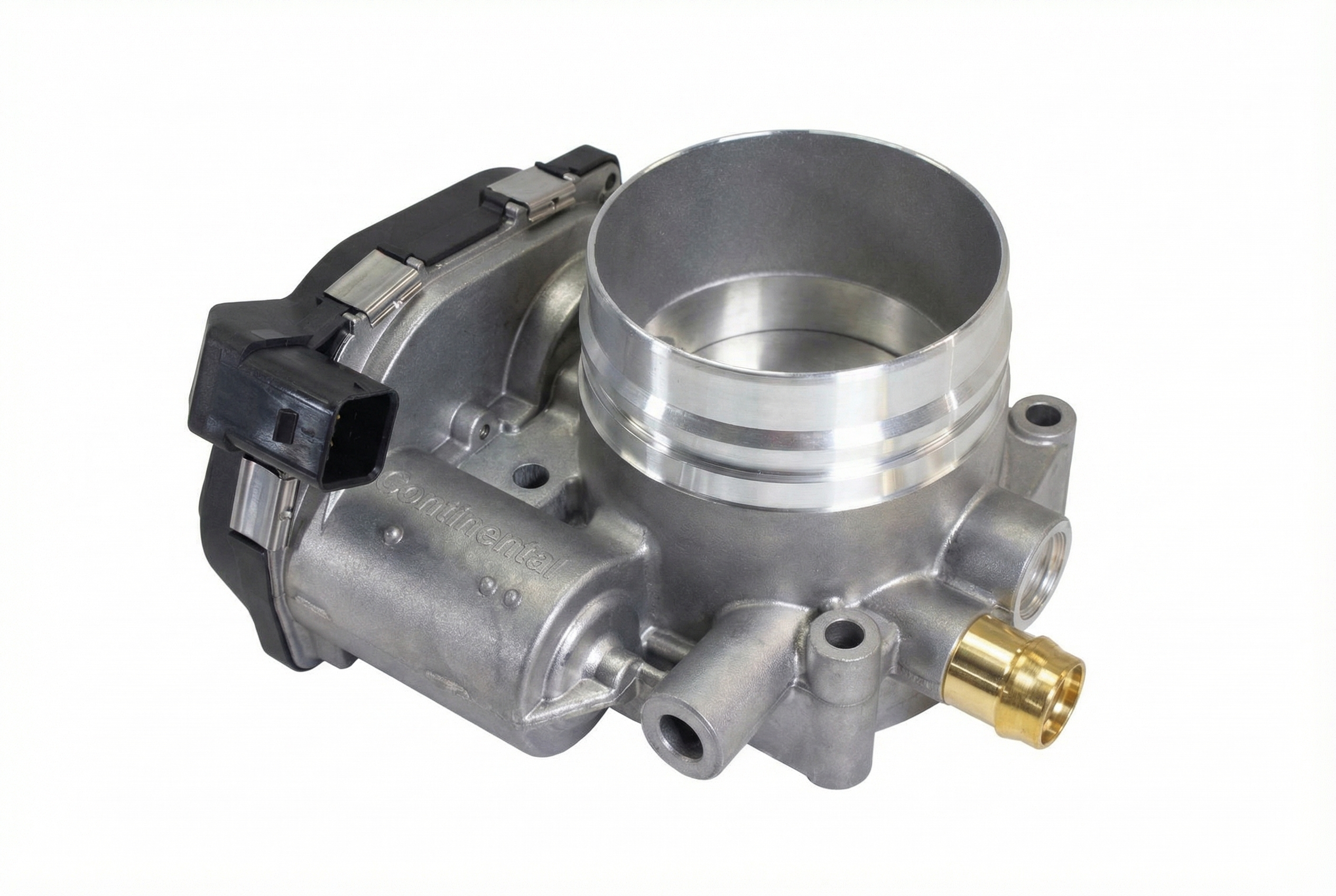

What to Inspect on a Used N55 Throttle Body

• Check the Butterfly Valve: Manually (but gently) move the throttle plate. It should move smoothly without sticking or binding.
• Inspect the Connector: Ensure the electrical connector and pins are clean, straight, and free of corrosion.
• Cleanliness: A very dirty or carbon-caked throttle body may indicate high mileage or poor engine health, but it can often be cleaned.

Cost Comparison

Prices can vary significantly between the M3 actuators and the N55 throttle body. Labor costs for the M3 are also higher due to the need to remove the intake plenum for access.

Legal and Emissions Requirements

A functioning throttle body or actuator is required to pass an emissions inspection in any state that uses OBD-II testing. When this part fails, it triggers the Check Engine Light, which results in an automatic test failure. There are no specific CARB-compliant or federal versions of this part; a functioning OEM or equivalent part is all that is required. In California, the M3's throttle actuators may be covered under the state's specific emissions warranty for 7 years or 70,000 miles, whichever comes first.
