B3060 on 2019-2025 Cadillac XT4: Security System Fault and No-Start Fixes

What's Unique About the 2019-2025 Cadillac XT4

The Cadillac XT4, like many modern GM vehicles, has a sensitive immobilizer system that is highly integrated with the Body Control Module (BCM) 🎬 Watch: What's involved in a BCM replacement. A key issue, highlighted in multiple revisions of GM Technical Service Bulletin PIC5650, is the system's susceptibility to Radio Frequency Interference (RFI). Everyday items like building access cards, other vehicle key fobs, aftermarket LED lighting, or even certain phone chargers can disrupt the 125 kHz, 315 MHz, or 433 MHz signals between the key and the car, triggering code B3060 and causing an intermittent no-start condition that can be difficult to replicate.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Vehicle will not crank or start.
• Engine starts and then immediately stalls.
• Security indicator light is illuminated or flashing on the dashboard.
• "No Remote Detected" message appears on the Driver Information Center.

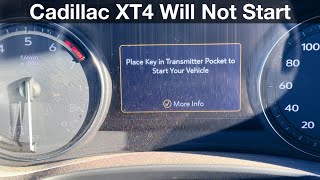

• "Place key in transmitter pocket" message on the Driver Information Center.
• Multiple unrelated warning lights may appear on the dash due to BCM communication issues.

Most Likely Causes

1. Radio Frequency Interference (RFI) 🔴 High Probability As noted in GM TSB PIC5650M, the security system is sensitive to interference from other electronic devices like other key fobs, RFID cards, toll passes, or phone chargers.
   How to confirm: Remove all other keys, cards, and electronic devices from the keychain and away from the ignition area. Unplug any aftermarket chargers. Try starting the vehicle with the isolated Cadillac key fob.
   Typical fix: Keep the vehicle key fob separate from other electronic items. No parts are required.
   Est. part cost: $0
2. Weak or Dead Key Fob Battery 🟡 Medium Probability → Shop Vehicle Battery
   How to confirm: Try starting the vehicle with the spare key fob. If it works, the primary fob's battery is the likely culprit. Alternatively, place the suspect key fob in the vehicle's transmitter pocket (located in the front cup holder) and attempt to start the engine; this often works even with a dead battery.

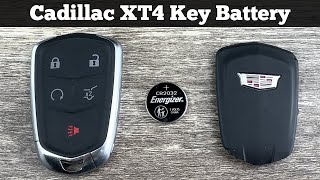

   Typical fix: Replace the CR2032 battery inside the key fob.
   Est. part cost: $2-$10
3. Faulty or Unprogrammed Key Fob 🟡 Medium Probability → Shop Keyless Entry Transmitter
   How to confirm: If the spare key works and the primary key does not (even after a battery change), the primary key fob has likely failed internally or lost its programming.
   Typical fix: The faulty key fob must be replaced and programmed to the vehicle by a dealer or a qualified automotive locksmith with GM-specific tools.
   Est. part cost: $280-$450
4. Body Control Module (BCM) Fault ⚪ Low Probability → Shop Body Control Module
   How to confirm: If no keys will start the vehicle and interference has been ruled out, a professional scan tool is needed to check for communication errors with the BCM and test its functions. This is a diagnosis of last resort after eliminating all key-related issues. Other seemingly unrelated electrical issues (windows, lights, radio) may also be present.
   Typical fix: The BCM must be replaced and programmed by a dealership or a specialized repair shop. This is an expensive repair.
   Est. part cost: $500-$800

Rare But Worth Checking

• Low Vehicle Battery Voltage: → Shop Vehicle Battery A weak main vehicle battery can cause a wide range of electronic glitches, including communication errors within the security system. Before suspecting expensive modules, ensure the vehicle's 12V battery is fully charged and healthy. Some owners have reported repeated dead batteries and electrical issues requiring dealer attention.

Diagnosis Steps

1. Check the dashboard for an illuminated security light to confirm an anti-theft issue.
2. Try to start the vehicle with your spare key fob. If it starts, the problem is isolated to your primary key fob.
3. Remove all other keys, fobs, and RFID cards from your keychain. Unplug any aftermarket phone chargers or LED lights. Try starting the vehicle again to rule out Radio Frequency Interference (RFI), as recommended in TSB PIC5650.

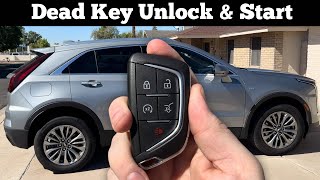

4. If the key fob is unresponsive, place it in the designated transmitter pocket (located in the front cup holder on the XT4) and attempt to start the engine. If it starts, the key fob battery is almost certainly dead or very weak.
5. Replace the key fob battery (CR2032) if suspected.
6. If the vehicle still won't start, it requires professional diagnosis with a scan tool capable of reading GM 'B' (Body) codes to confirm B3060 and analyze BCM live data.
7. Check the main vehicle 12V battery to ensure it is fully charged and healthy, as low voltage can cause various electronic module errors.

Parts You'll Likely Need

• Key Fob Battery (OEM #CR2032) — This is the most common and cheapest fix when the key fob signal is too weak for the car to recognize.
  Trusted brands: Energizer, Duracell, Panasonic
  OEM price range: $5-$10
  Aftermarket price range: $2-$5
• Keyless Entry Remote Fob (OEM #13544052, 13522879, 13510245, 13598516 (FCC ID: HYQ2ES or HYQ2EB for earlier models); 13592983 (FCC ID: YGOG20TB1 for 2024+)) — If the key fob itself has failed internally or been damaged, it will need to be replaced and programmed.
  Trusted brands: ACDelco, GM Genuine
  OEM price range: $150-$300
  Aftermarket price range: $70-$150
• Body Control Module (BCM) (OEM #13534192) — In rare cases where both keys fail to work and interference is not the issue, the BCM which controls the security system may have failed.
  Trusted brands: ACDelco, GM Genuine
  OEM price range: $500-$800

Related Codes That Often Appear With This One

• B3055 — This code means 'No Transponder Detected' and often appears with B3060. The system may first fail to see the key at all (B3055) before it sees an unrecognized one (B3060), pointing to a key, antenna, or interference issue.
• B3935 — Indicates a 'Transponder Authentication Failed'. This is part of the same security handshake process that fails during a B3060 event.
• C0750, C0755, C0760, C0765, C0775 — These are Tire Pressure Monitor Sensor (TPMS) codes. The provided TSB #PIC5650M notes they can appear alongside B3060, possibly due to widespread Radio Frequency Interference affecting multiple vehicle systems or a general BCM fault.

Technical Service Bulletins (TSBs) & Recalls

• PIC5650M: Addresses intermittent no crank, no start, or start/stall conditions with the security light on, and lists B3060 as a potential related trouble code.
• PIC5650C / PIC5650K: Later revisions of the TSB that provide an extensive list of potential sources of Radio Frequency Interference (RFI), including aftermarket LED lights, phone chargers, and toll passes, as a primary diagnostic path for intermittent key detection issues.

Platform-Specific Known Issues

• A manufacturer Technical Service Bulletin (TSB #PIC5650M) exists for an intermittent no crank, no start, or start/stall concern with the security light on. It lists B3060 as a possible diagnostic trouble code related to this condition.
• The transmitter pocket for starting the vehicle with a dead key fob is not a traditional slot or pocket, but rather the front cup holder in the center console. Placing the fob in this location allows the system to read it.
• Some owners of newer XT4s (2024+) have reported broader electrical issues, including dead batteries and infotainment problems, that could be related to BCM or software faults.

Mechanic-Grade Diagnostic Values

• Passive Entry Door Handle Switch Resistance — expected: Infinite resistance (OL) with button released, not to exceed 15 ohms with button pressed.. Failure: Resistance above 15 ohms when the button is pressed, or resistance less than infinite when released, indicates a faulty switch.

Hidden / Shadow Codes Worth Checking

• B3060 00: The '00' is a GM symptom byte for 'No Sub Type Information'. It means the primary code B3060 contains the full description of the fault, and there are no more specific details available from that code alone. This is the most common variant seen. (see via A professional scan tool like the GM GDS2 (Global Diagnostic System 2) is required to view the DTC with its symptom byte.)

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): Immobilizer Learn / Add or Replace Key Fobs — This function is required after replacing a key fob or the Body Control Module (BCM). It guides the technician through the secure process of programming new keys to the vehicle's immobilizer memory.
• GDS2 (GM Global Diagnostic System 2): Sensing & Diagnostic Module (SDM) Setup — After replacing and programming a BCM, a B1001 'SDM Configuration Error' code may set in the airbag system. This function is used to relearn the relationship between the new BCM and the existing SDM to clear the code.
• GDS2 (GM Global Diagnostic System 2): Data Bus Diagnostic Tool — If multiple modules are not communicating and a network issue is suspected, this tool can be used to analyze the vehicle's data bus, identify which modules are offline, and help pinpoint the location of a wiring fault between the last responding module and the first non-responding one.

Wiring & Ground Locations

• BCM Connectors — On the 2023 XT4, the BCM is located on the passenger side. Access requires moving the passenger seat fully rearward and removing the right side of the front floor console extension panel.. GM issued Service Update N222390510 for certain 2023 XT4s because one or more BCM connectors may not be fully seated from the factory. This can cause a wide range of electrical issues, including a no-start condition that could be misdiagnosed as a failed BCM. The fix is to physically inspect and ensure all connectors are fully engaged.
• BCM Ground Connection — General location is near the BCM, typically bolted to the chassis.. A general GM bulletin warns that the BCM can be internally damaged if a ground path is removed while the module is still supplied with battery power. It is critical to disconnect the negative battery cable *first* before servicing any BCM ground connections to prevent causing permanent damage to the module.

Real Owner Repair Stories

• Carly Community Forum (2020 Cadillac XT4, 33,188 km) — Engine refuses to start and multiple, various error codes appeared in memory.
  ❌ Tried (didn't work) Initial diagnosis was inconclusive due to the number of unrelated error codes.
  ✅ What actually fixed it A technician found a pinched wire in the main power supply harness near the battery terminal area. Previous service work had damaged the wire's insulation during reinstallation, causing intermittent voltage drops. A small section of the wiring was replaced and the harness was properly secured, which resolved all starting issues and cleared the codes.

OEM Part Supersession History

• 13592451 → 13546098 — Part has been updated by the manufacturer.
  Heads up: These are passive keyless entry antennas and do not require programming upon replacement.
• 13592452 → 13545326 — Part has been updated by the manufacturer.
  Heads up: These are passive keyless entry antennas and do not require programming upon replacement.

Model Year Variations Within This Range

• 2023: Certain 2023 Cadillac XT4s are subject to GM Service Update N222390510 for improperly seated BCM connectors from the factory, which can cause a no-start or other electrical faults.
• 2020-2023: Models built before October 19, 2022, equipped with both front and rear heated seats (RPO Y19), may experience a parasitic battery drain due to a BCM software issue. GM bulletin N222372790 corrects this by reprogramming the BCM.
