C0035 on 2007-2013 BMW X5: Left Front Wheel Speed Sensor Circuit Fault Guide

What's Unique About the 2007-2013 BMW X5

The 2007-2013 BMW X5, known as the E70 generation, relies heavily on its wheel speed sensors for the advanced xDrive all-wheel-drive and Dynamic Stability Control systems. A failure of a single sensor, as indicated by C0035, will cause a cascade of warning lights, often referred to by owners as the 'trifecta' or 'Christmas tree lights', including the '4x4', 'ABS', and 'BRAKE' lights simultaneously. The sensor's wiring is routed through the wheel well and is susceptible to damage from road debris or becoming brittle from heat and flexing with the suspension over time. The sensor itself is known to seize in the steering knuckle, often requiring significant force and penetrating oil to remove, and sometimes breaking off during extraction.

Symptoms You May Notice

• ABS warning light illuminated
• DSC or '4x4' warning light illuminated
• Brake warning light (often in yellow/amber)
• The 'trifecta' of all three lights (ABS, 4x4, Brake) appearing at once
🎬 Watch: How to clear the trifecta of warning lights
• Cruise control is inoperative
• The speedometer may work intermittently or not at all if it relies on this sensor's input
• Juddering or hesitation during slight turns as the traction control system gets confused by the bad signal

Most Likely Causes

1. Failed Front Left Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor The sensor's plastic housing can become brittle from engine and brake heat cycles, allowing moisture to get inside and cause internal failure. Constant movement and vibration from the suspension also contribute to wear. They are notoriously difficult to remove after years of service, often seizing in the steering knuckle and breaking upon removal.
   How to confirm: Use a BMW-capable scan tool to view live data from the left front wheel speed sensor while driving. If the speed reads 0 MPH or is erratic while other wheels show correct speed, the sensor or its circuit is faulty. You can also test the sensor's resistance with a multimeter; an open circuit indicates a failed sensor. Swapping the left and right front sensors (if possible and the code follows) is another definitive test.
   Typical fix: Replace the front left wheel speed sensor. The sensor is held in by a single 5mm Allen bolt. It is highly recommended to soak the sensor and bolt with penetrating oil for several hours before attempting removal. Gentle prying and twisting may be required. If the sensor breaks, the remaining piece may need to be drilled out.
   Est. part cost: $30-$125
2. Damaged Wiring Harness or Connector 🟡 Medium Probability The wiring harness runs in the exposed wheel well area and can be damaged by road debris, tire rub, or improper routing after previous repairs. The connector plug itself, located behind the wheel arch liner, can also become corroded or have its retaining clip break, leading to a loose connection.
   How to confirm: Visually inspect the entire length of the sensor's wiring from the wheel hub to where it connects to the main chassis harness inside the wheel well. Look for any cuts, chafing, or melted sections. Unplug the connector and check for corrosion (green crust) or damage on the pins.
   Typical fix: Repair the damaged section of wire with a new connector or by soldering in a new piece of wire and heat-shrinking it. If the connection was just loose, secure it properly, potentially with a zip tie if the original clip is broken.
   Est. part cost: $5-$30

Rare But Worth Checking

• Failed DSC/ABS Module: → Shop ABS Control Module While rare, the control module itself can fail. This is usually suspected only after replacing the sensor and verifying the wiring is intact. This would typically be accompanied by other fault codes related to module communication (U-codes) or power supply, or codes for multiple sensors at once.
• Damaged Reluctor Ring / Wheel Bearing Assembly: On the E70 X5, the wheel speed sensor reads a magnetic encoder ring that is integrated into the seal of the wheel bearing assembly. If this ring is damaged by rust jacking the seal, or contaminated with metallic debris, it can cause an erratic signal. This is less common than sensor or wire failure. Diagnosis often requires an oscilloscope to view the sensor's waveform. If the ring is faulty, the entire front wheel bearing assembly must be replaced.
🎬 Watch: Step-by-step guide to replacing the front wheel bearing

Diagnosis Steps

1. Connect a BMW-compatible OBD-II scanner to confirm the C0035 code and check for any other related codes.
2. Use the scanner's live data function to monitor the speed of all four wheels while driving slowly. Confirm that the front left wheel is the one not reporting speed or reporting erratically.
3. Raise and safely support the front of the vehicle. Remove the front left wheel.
4. Locate the sensor on the rear of the steering knuckle. It is held in by a single 5mm Allen bolt.
5. Visually inspect the wheel speed sensor and its wiring harness for any obvious signs of damage, such as cuts, chafing, or melting.
6. Follow the wire into the wheel well. You may need to remove some plastic 8mm and 10mm nuts to peel back the fender liner to access the electrical connector. Inspect the connector for corrosion, bent pins, or a loose connection.
7. If no visual damage is found, the most common failure is the sensor itself. Liberally apply penetrating oil to the sensor body and bolt and allow it to soak before attempting removal.
8. Replace the front left wheel speed sensor.
9. If a new sensor does not fix the issue, use a multimeter to check for continuity and voltage along the wiring harness between the sensor connector and the DSC module to find a potential break in the wire.
10. If the sensor and wiring are confirmed to be good, the issue may lie with the magnetic ring on the wheel bearing or, in rare cases, the DSC module itself.

Parts You'll Likely Need

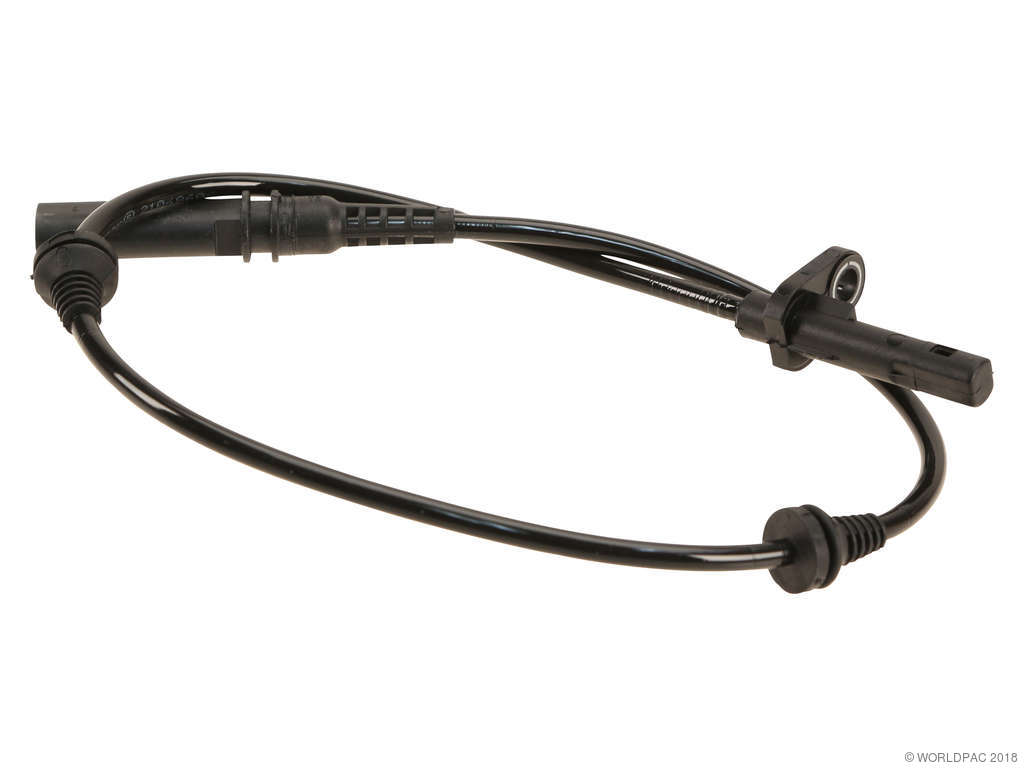

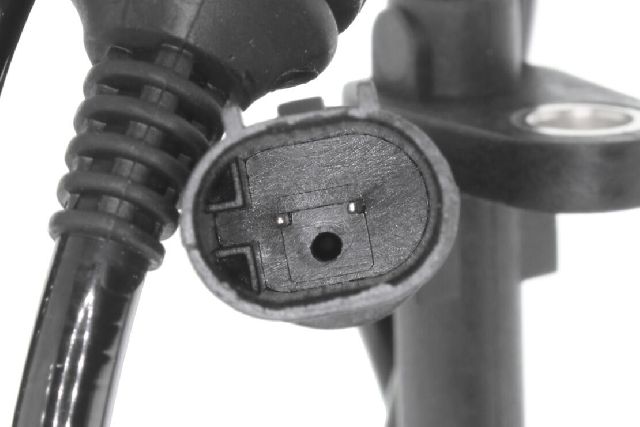

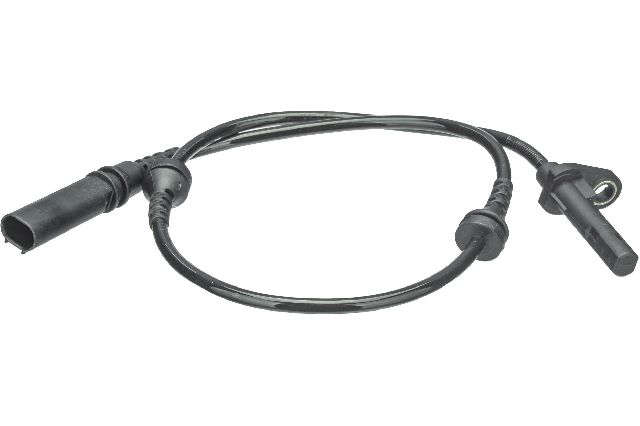

• Front Wheel Speed Sensor (OEM #34526771776) — This is the most frequent point of failure for the C0035 code. The front sensors for the E70 X5 are the same for the left and right sides.
  Trusted brands: ATE, Bosch, Vemo, Genuine BMW
  OEM price range: $120-$180
  Aftermarket price range: $30-$75
• Sensor Retaining Bolt (5mm Allen) (OEM #07119905529) — This bolt frequently corrodes and can be stripped or broken during removal of the old sensor. It is wise to have a replacement on hand.
  Trusted brands: Genuine BMW
  OEM price range: $2-$5
  Aftermarket price range: $1-$3

Platform-Specific Known Issues

• Seized Sensor Removal: Owners frequently report that the sensor seizes in the steering knuckle due to galvanic corrosion. It often breaks during removal, requiring the remaining plastic piece to be carefully drilled or chiseled out. Soaking with penetrating fluid and using gentle, persistent twisting with pliers is recommended.
• The 'Trifecta' Warning Lights: The simultaneous illumination of the 4x4, ABS, and amber BRAKE lights is the classic sign of a wheel speed sensor failure on this platform. This indicates the DSC, ABS, and xDrive systems have all been disabled due to the missing wheel speed data.

Mechanic-Grade Diagnostic Values

• Sensor Power Supply Voltage — expected: Approximately 8V-12V DC at the sensor connector with ignition on.. Failure: 0V or significantly lower voltage indicates a wiring or DSC module power supply issue.
• Sensor Signal Output (Oscilloscope) — expected: A digital square wave that alternates between a low voltage (e.g., ~0.75V) and a high voltage (e.g., ~2.5V) as the wheel is spun. The frequency of the wave should increase with wheel speed.. Failure: A flat line, a noisy/erratic waveform, or missing sections of the wave indicate a faulty sensor or a damaged magnetic encoder ring on the wheel bearing.

Hidden / Shadow Codes Worth Checking

• 5D90: DSC: Wheel-speed sensor, front left: Plausibility. This is the BMW-specific fault code that is stored in the DSC module when the generic C0035 code is triggered. (see via BMW-specific diagnostic software such as ISTA/D or a high-end scanner capable of reading manufacturer-specific codes.)
• 5D91: DSC: Wheel-speed sensor, front left: Open circuit. This code points more specifically to a break in the wiring or an internal failure in the sensor. (see via BMW-specific diagnostic software such as ISTA/D or a high-end scanner.)

Scan Tool Commands That Help

• ISTA/D: Vehicle Test / Diagnosis Scan & Test Plan — After reading the initial fault memory, ISTA will generate a 'test plan' for the 5D90/C0035 fault. This plan guides the technician through a logical diagnostic sequence, including checking live wheel speed data, sensor voltage, and wiring integrity, which is the standard dealer procedure for diagnosis.
• ISTA/D or capable scanner: DSC/ABS Bleeding Procedure — This service function is required if the hydraulic unit of the DSC module is replaced or if air is introduced into the system. It is not required for a simple wheel speed sensor replacement.

Wiring & Ground Locations

• DSC Module Connector (e.g., X18303) — The DSC hydraulic unit and control module are typically located in the engine bay on the driver's side, near the brake fluid reservoir.. This is the termination point for the wheel speed sensor wiring. Technicians may need to test for continuity and voltage at the specific pins for the front left sensor at this connector to rule out a wiring break between the sensor and the module.
• Sensor Wire Connector (e.g., X6DA1) — Behind the front left wheel arch liner, usually in a small black plastic box that houses several connectors.. This is a common point of failure due to moisture ingress and corrosion. It's the first place to check for a bad connection or wiring damage after visually inspecting the wire leading from the sensor itself.

Real Owner Repair Stories

• YouTube video by user 'bavarianmw' (2011 BMW X5 (E70)) — ABS, DSC, and Brake 'trifecta' warning lights. Scan tool showed erratic and jagged signal from one wheel speed sensor, while others were smooth.
  ❌ Tried (didn't work) Replacing the wheel speed sensor did not fix the problem; the warning lights and erratic signal returned immediately.
  ✅ What actually fixed it The magnetic encoder ring, which is integrated into the wheel bearing's dust seal, had lost its magnetism over time. Replacing the entire front wheel bearing assembly resolved the issue and provided a clean signal. The user confirmed the fix with a test drive, showing the warning lights were gone.
• Bimmerpost forum user (BMW E90 (similar DSC system to E70)) — ABS/DTC warning lights, fault code for rear wheel speed sensor.
  ❌ Tried (didn't work) Replacing the sensor did not resolve the code.
  ✅ What actually fixed it The reluctor/tone ring on the driveshaft had become distorted due to corrosion underneath it, causing it to contact and damage the tip of the new sensor and produce an implausible signal. Replacing the corroded reluctor ring (or the driveshaft assembly) was the final fix.

OEM Part Supersession History

• 34526771776 → 34526870075 — Standard part revision by BMW. The new part is a direct replacement.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Electric Water Pump & Thermostat Failure 🔴 High — Common failure, often between 60,000 and 100,000 miles. Failure can cause rapid overheating.
• Valve Cover & Oil Filter Housing Gasket Leaks 🟠 Medium — Very common oil leaks on 6-cylinder models (N52, N55) as the vehicle ages. Gaskets become brittle and leak oil onto hot engine components.
• Transfer Case Actuator Gear Failure 🟠 Medium — Causes a shudder or binding feeling during slow, tight turns. The plastic gear inside the actuator motor wears out. A common issue on xDrive models.
• Panoramic Sunroof Drain Clogging 🔴 High — Drains clog with debris, causing water to back up and leak into the cabin, often into the trunk/cargo area where sensitive electronic modules are located, causing expensive damage.
• V8 Engine (N63) Oil Consumption & Timing Chain Issues 🔴 High — Applies to V8 models (xDrive50i). These engines are known for high oil consumption, valve stem seal failure, and timing chain guide problems, which are very expensive to repair. (Ref: Multiple SIBs and a Customer Care Package were issued by BMW for these issues.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used part is generally not recommended for this repair. The primary failure items are the sensor and the wheel bearing, both of which are wear-and-tear components. The cost of a new, high-quality aftermarket sensor is low enough that the labor to install a used part with unknown remaining life is not economical.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• If considering a used wheel bearing/hub assembly, ensure it comes from a low-mileage, non-accident vehicle.
• Check the magnetic encoder ring on the bearing's seal for any physical damage, rust, or contamination.
• For a used sensor, inspect the wiring for any brittleness, cracking, or previous repairs.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', it is highly recommended to use either Genuine BMW or an OEM-supplier brand for the wheel speed sensor and wheel bearing. Cheap, unbranded electronics are a common source of repeat failures.

Aftermarket brands forum-validated for this vehicle:

• ATE (often the original OEM supplier)
• Bosch
• VDO/Continental
• NTK

Brands owners have reported issues with on this vehicle:

• Generic, unbranded sensors from online marketplaces are frequently reported on forums to be dead-on-arrival or fail prematurely.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0036 — This is the code for the Front Right Wheel Speed Sensor; it shares the same failure modes, such as brittle plastic housing and seized sensors in the steering knuckle, as the C0035 front left sensor.
• C0038 — Relates to rear wheel speed sensors which, like the front sensors, provide critical data to the DSC and xDrive systems; failure in any sensor can trigger the 'Trifecta' warning lights.
• U0121 — Lost communication with the Anti-Lock Brake System (ABS) Control Module; this may be logged if the DSC module itself fails or if there is a significant wiring break between the sensor and the module.
• P0500 — Vehicle Speed Sensor Malfunction; this code may appear if the speedometer relies on the front left wheel speed sensor input and that signal is lost or erratic.
