C0035 on 2007-2012 Dodge Caliber: Left Front Wheel Speed Sensor Fault Causes and Fixes

What's Unique About the 2007-2012 Dodge Caliber

The Dodge Caliber (2007-2012) belongs to a single generation, the PM platform, which it shares with the Jeep Compass and Jeep Patriot. A critical design characteristic for this vehicle is that the magnetic tone ring, which the wheel speed sensor reads, is integrated directly into the wheel hub and bearing assembly. This means that a worn or failing wheel bearing can directly cause the C0035 code, either by creating excessive play or by allowing debris and moisture to damage the sensitive magnetic encoder. Owners often find that replacing the sensor only provides a temporary fix if the wheel bearing itself is the true root cause. In some cases, the sensor wire breaks off flush with the bearing, making a hub replacement mandatory.

Symptoms You May Notice

• ABS warning light is illuminated
• Traction Control or Electronic Stability Control (ESC/ESP) warning light is illuminated
• Brake warning light may be illuminated
• Anti-lock braking system is disabled
• Traction and stability control are inoperative
• Brake pedal may pulse or feel unusual at low speeds
• Grinding or humming noise from the front wheel area, especially when turning (indicates a bad bearing)

Most Likely Causes

1. Failed Left Front Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor The sensor is exposed to road salt, moisture, and debris, leading to internal failure or corrosion over time. These sensors are a very common failure point.
   How to confirm: Use an ABS-capable scan tool to monitor live data; the left front wheel should show 0 MPH or an erratic reading while the other wheels report speed correctly. You can also test the sensor's internal resistance with a multimeter (specifications vary, but an open circuit indicates failure) or swap the left and right sensors to see if the code follows to the other side.

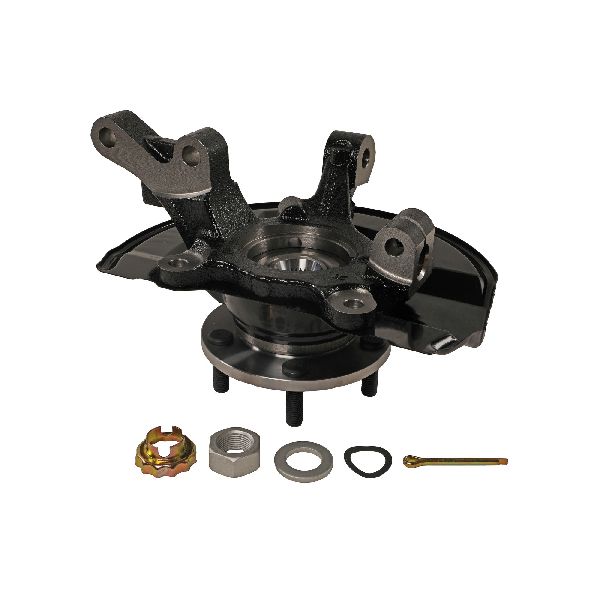

   Typical fix: Replace the left front wheel speed sensor. The sensor is held to the steering knuckle by a single bolt.
   Est. part cost: $45-$115
2. Damaged Sensor Wiring or Connector 🟡 Medium Probability The wiring harness is routed near moving suspension and steering components, making it susceptible to chafing, stretching, or impact damage. The plastic connector clip can also break, allowing the connection to come loose. Wires can also break internally near the connector from repeated flexing.
   How to confirm: Visually inspect the entire length of the wiring harness from the sensor to its connection point in the engine bay for cuts, abrasions, or corrosion. Check that the connector is securely plugged in and free of dirt or moisture. Perform a 'wiggle test' on the harness while watching live data on a scan tool to see if the signal cuts out.
   Typical fix: Repair the damaged section of wire or replace the pigtail connector. If the connector clip is broken, secure it with a zip tie after plugging it in.
   Est. part cost: $15-$40

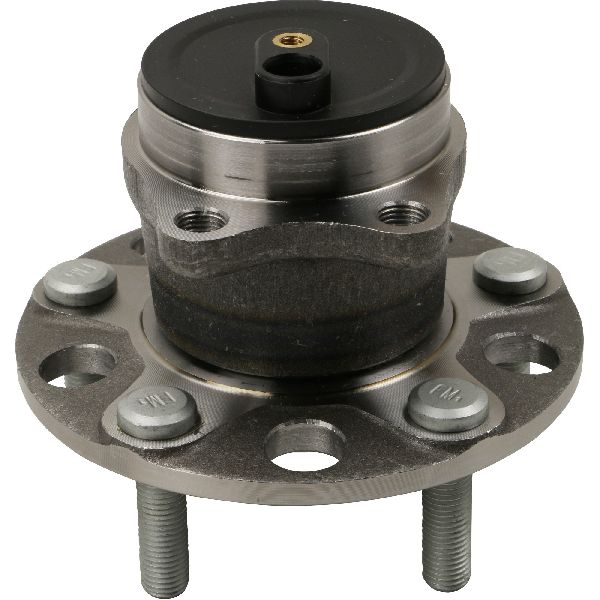

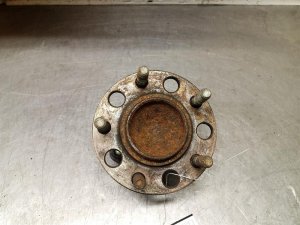

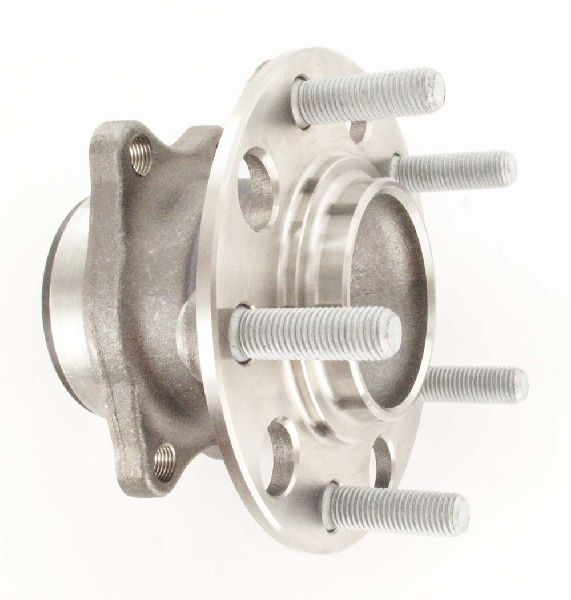

3. Failing Wheel Hub Bearing Assembly 🟡 Medium Probability → Shop Hub Assembly The magnetic tone ring is built into the hub assembly. When the bearing wears out, it can introduce play or allow contaminants to enter, damaging the magnetic ring and causing an incorrect signal. In some cases, the sensor wire, which is integrated into the bearing, can break off completely.
   How to confirm: Safely raise the front of the vehicle and check for any play or roughness in the wheel by grabbing it at the 12 and 6 o'clock positions and trying to rock it. A humming or grinding noise while driving that changes when turning is also a strong indicator. If the sensor and wiring are confirmed good, the bearing is the next logical cause.
   Typical fix: Replace the entire front wheel hub and bearing assembly. This is a more involved repair that often requires a press.
   Est. part cost: $80-$150

Rare But Worth Checking

• Faulty ABS Control Module: → Shop ABS Control Module This is uncommon and should only be considered after thoroughly ruling out the sensor, wiring, and wheel hub bearing. A faulty module will typically be accompanied by other trouble codes or communication errors.

Diagnosis Steps

1. Connect an ABS-capable OBD-II scanner to confirm the C0035 code and check for any other related codes.
2. View the live data stream for all four wheel speed sensors. While driving slowly, confirm that the left front sensor reads 0 MPH or has an erratic/inconsistent signal compared to the other three wheels.
3. Perform a thorough visual inspection of the left front wheel speed sensor and its wiring harness. Look for any signs of physical damage, chafing, corrosion at the connector, or breaks in the wire.
4. Ensure the sensor connector is fully seated and the locking tab is engaged. A loose connection is a simple but common cause.
5. Safely jack up the front of the vehicle and secure it on jack stands. Check the left front wheel for any play by attempting to wiggle it. Excessive movement indicates a bad wheel bearing.
6. Spin the wheel by hand and listen for any grinding or humming noises that would indicate a failing bearing.
7. If the wiring and bearing seem okay, remove the wheel speed sensor and inspect its tip and the mounting hole for excessive rust or debris buildup. Also inspect the magnetic encoder ring on the hub for damage or contamination.
8. If a multimeter is available, test the sensor's resistance and compare it to the manufacturer's specification. An open or shorted sensor is faulty.
9. If a new sensor does not resolve the issue, the wheel hub bearing assembly is the next most likely culprit and should be replaced.

Parts You'll Likely Need

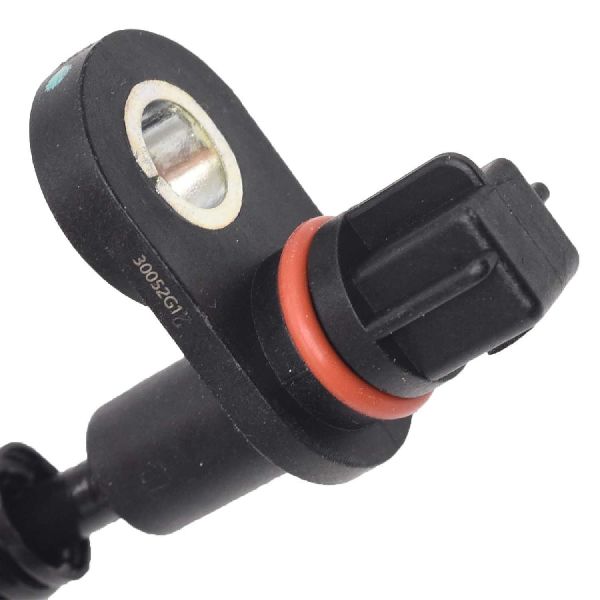

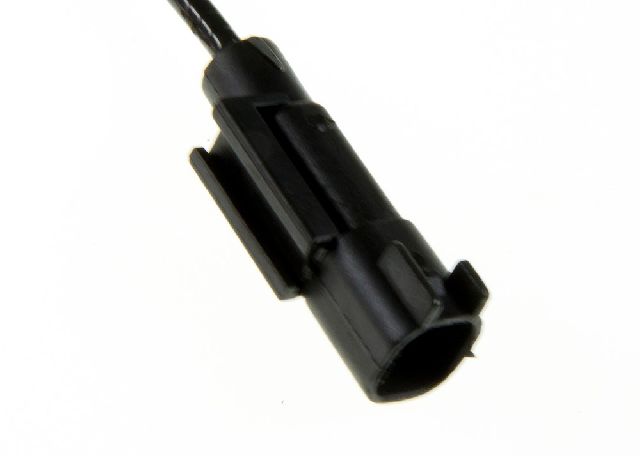

• Front Wheel Speed Sensor (OEM #05105573AB (supersedes 5105573AA)) — This is the most frequently failing component for a C0035 code due to its exposed location and electronic nature.
  Trusted brands: Mopar (05105573AB), Dorman (970-066), NTK, Delphi, Standard Motor Products (ALS2086)
  OEM price range: $60-$90
  Aftermarket price range: $45-$115

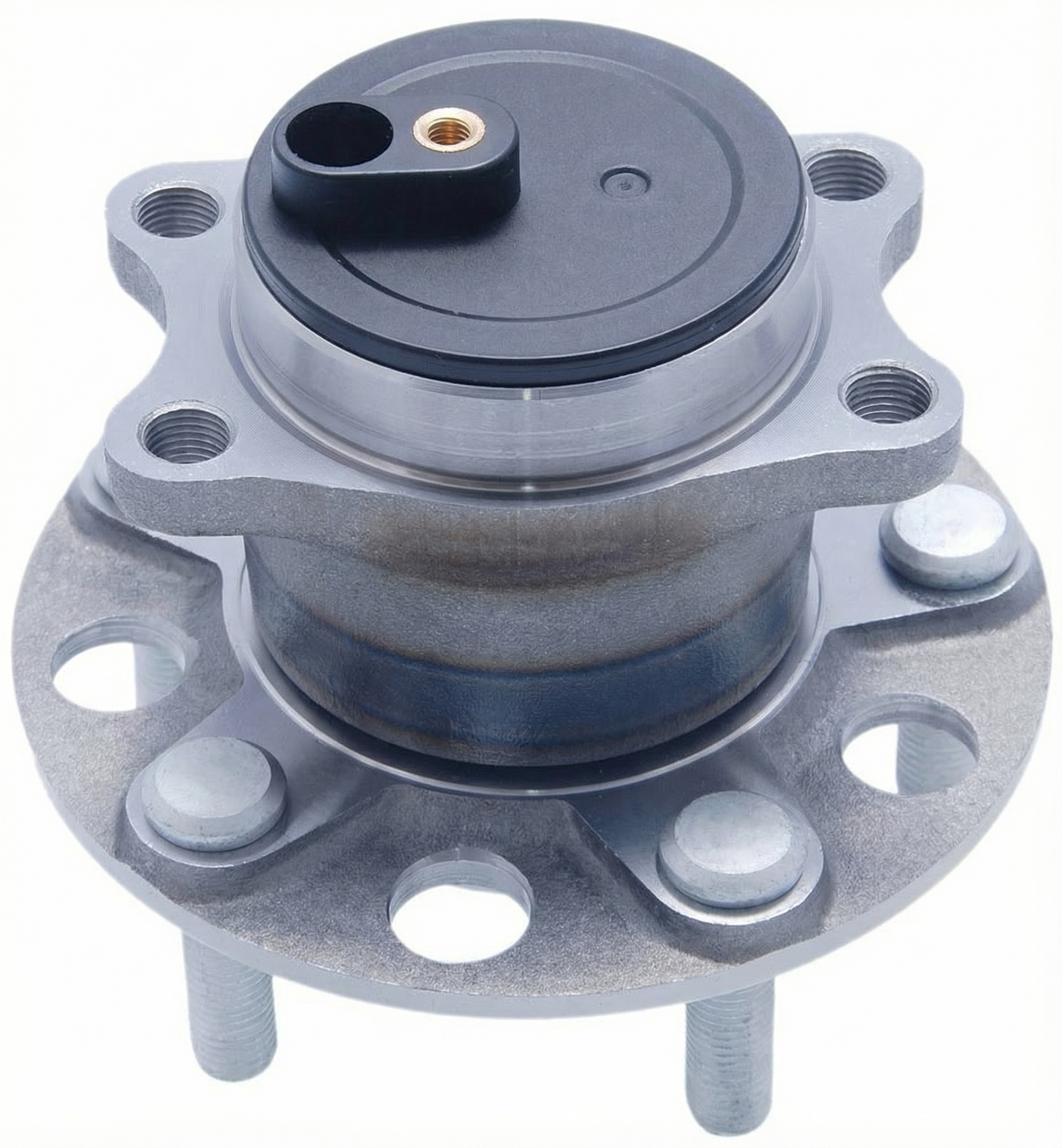

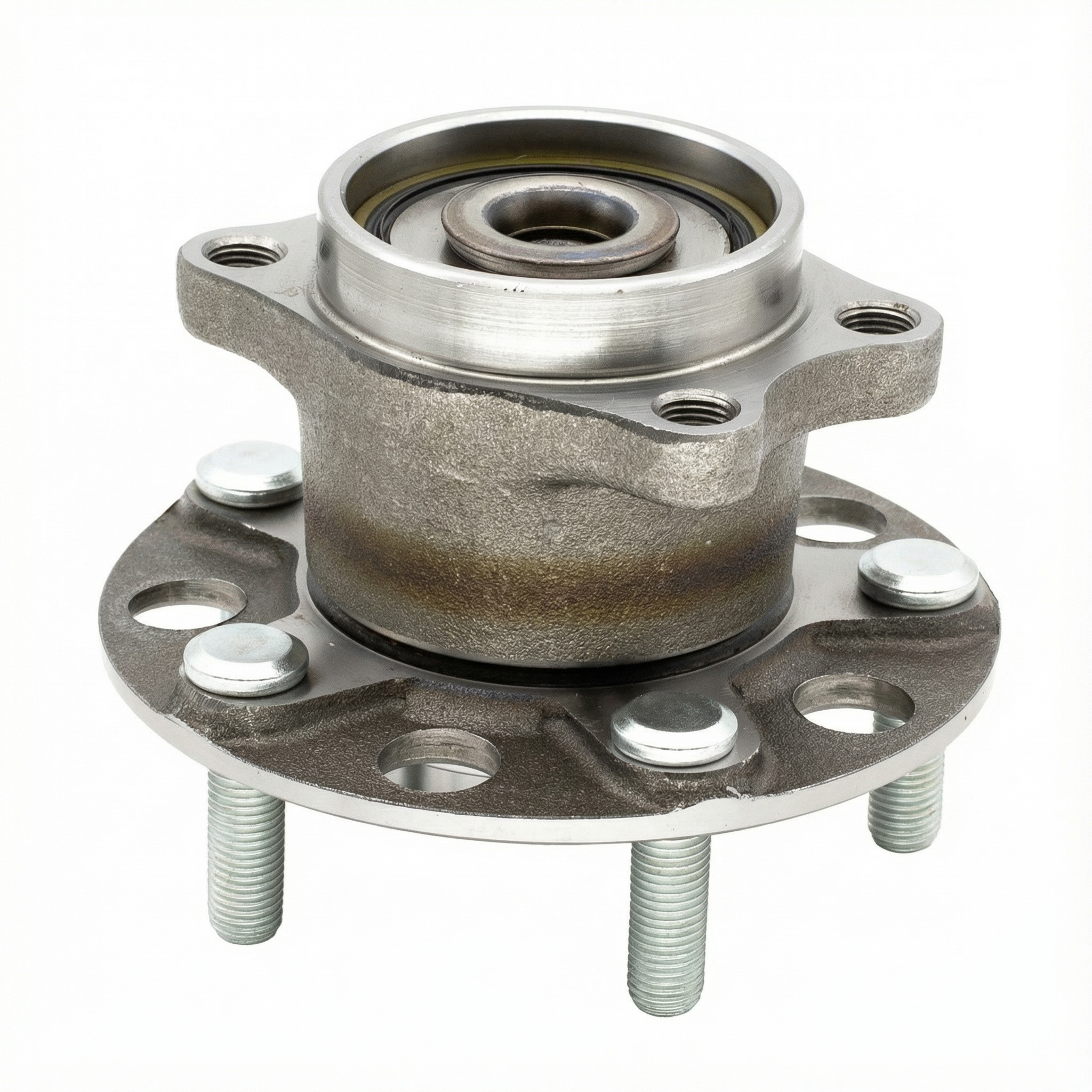

• Front Wheel Hub Bearing Assembly (OEM #5105770AD) — Because the magnetic tone ring is integrated into the hub on the Caliber, a failing bearing is a common root cause of this code and must be replaced as a unit.
  Trusted brands: Mopar (5105770AD), Timken, MOOG (513263), SKF, AC Delco (510090)
  OEM price range: $180-$270
  Aftermarket price range: $80-$150

Platform-Specific Known Issues

• NHTSA has documented cases where the loss of a wheel speed signal on the Caliber was caused by a faulty encoder ring inside the front wheel bearing. If a sensor is replaced and the code returns, the hub assembly is the likely cause.
• In some instances, the sensor wire, which is part of the bearing assembly, can break off flush with the hub, leaving no option but to replace the entire hub and bearing.

Mechanic-Grade Diagnostic Values

• Wheel Speed Sensor Internal Resistance — expected: 800 - 2000 Ohms (Ω). Failure: An open circuit (infinite resistance) or a reading significantly outside the expected range indicates a failed sensor.
• Wheel Speed Sensor AC Voltage Output (Passive Sensor) — expected: AC voltage should be generated and increase with wheel speed when spinning the wheel by hand.. Failure: No AC voltage generated while spinning the wheel indicates a dead sensor.
• Sensor Supply Voltage (at harness connector, for Active Sensor) — expected: Approximately 5V or 12V reference from the ABS module, depending on the system design.. Failure: Voltage below the specified threshold (e.g., below 4.0V) or no voltage indicates a problem with the wiring or the ABS module's supply circuit.

Scan Tool Commands That Help

• Professional ABS-capable scanner (e.g., Autel, iCarsoft): Live Data - Wheel Speed Sensors — This is the primary diagnostic step. Use this to compare the signal from the left front sensor to the other three sensors while driving or spinning the wheel. A reading of 0 MPH or an erratic signal from only the left front wheel confirms the fault is isolated to that circuit.

Wiring & Ground Locations

• Left Front Wheel Speed Sensor Wires — Running from the sensor on the steering knuckle, up the strut, and into the main harness in the engine bay.. The specific wire colors for the circuit are Green with a Blue stripe and Green with a Black stripe. A break in either of these wires between the sensor and the ABS module will cause code C0035.
• Common Chafe/Break Point — The wiring harness section behind the headlight and near the shock tower is a known area for wires to break internally from vibration and flexing.. A wire can break inside the insulation, appearing visually intact. A continuity test or a 'wiggle test' while monitoring live data is required to find this type of hidden damage.
• ABS Module Ground — The primary chassis ground for the engine compartment is G110, located on the frame rail in the right front of the engine compartment.. While not the most common cause for a single sensor fault, a poor or corroded main ground can cause various unpredictable issues with the ABS module, including phantom sensor codes.
• ABS Fuses — In the under-hood fuse box (TIPM). Fuse #33 (10A) for the ABS control module, Fuse #34 (30A) for the ABS valve feed, and Fuse #35 (40A) for the ABS pump feed.. A blown fuse, particularly for the control module, would typically cause a loss of communication or multiple codes, but it's a fundamental check for any electrical diagnosis.

Real Owner Repair Stories

• YouTube - JasmineFatherGarage4k (2007-2012 Dodge Caliber (or platform-mate Jeep)) — ABS light on, active code for a wheel speed sensor circuit.
  ❌ Tried (didn't work) Replacing the wheel speed sensor with a new part did not fix the issue.
  ✅ What actually fixed it A continuity test revealed a broken wire in the harness. Specifically, the Green with Black stripe wire was open between the main harness connector near the radiator support and the ABS module connector. The technician located the break behind the headlight near the shock tower and repaired the wire, which resolved the code.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Front and Rear Subframe Corrosion 🔴 High — Very common, especially in salt-belt regions. Can become structurally unsafe. Chrysler issued an extended warranty (X69) for some model years, but it has since expired. (Ref: Warranty Extension X69)
• CVT Transmission Overheating 🟠 Medium — Common on models equipped with the Jatco JF011E CVT, especially during long highway drives or in hilly terrain. Often presents with a whining noise and loss of power.
• Electronic Throttle Body Failure 🟠 Medium — A frequent issue causing the 'red lightning bolt' light to flash, putting the car into limp mode with no power. Often caused by stripped plastic gears inside the throttle body.
• Suspension Component Wear 🟠 Medium — Premature failure of lower ball joints, control arms, and struts is widely reported, leading to clunking noises, poor handling, and uneven tire wear.
• Sunroof Drain Tube Leaks 🟡 Low — The sunroof drain tubes can clog or become disconnected, causing water to leak into the cabin, typically in the headliner or A-pillar area.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, using used parts is generally not recommended. The only exception might be a wiring harness pigtail from a junkyard vehicle if a new one is unavailable, but it should be inspected carefully for corrosion or brittleness.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a pigtail: Check for flexible, non-cracked wire insulation.
• Ensure connector locking tabs are intact.
• Look for clean, corrosion-free pins inside the connector.

Aftermarket brands forum-validated for this vehicle:

• Wheel Hub Bearings: Timken, MOOG, SKF
• Wheel Speed Sensors: NTK, Delphi, Standard Motor Products (SMP), Dorman

Brands owners have reported issues with on this vehicle:

• Unbranded, 'white-box' wheel hub assemblies and sensors from online marketplaces should be avoided. The quality of the bearing and the magnetic encoder ring is critical, and premature failure is common with low-quality parts, leading to the code returning.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0040 — Right Front Wheel Speed Sensor Circuit — the companion code to C0035 (Left Front) often diagnosed using the same 'swap' method mentioned in common causes.
• C0036 — Left Front Wheel Speed Sensor Range/Performance — often triggered by the same failing magnetic encoder ring or debris buildup described in the hub bearing diagnosis.
• C0037 — Left Rear Wheel Speed Sensor — related as part of the same ABS/ESC system that frequently fails due to road salt and moisture exposure on this platform.
