C0035 on 2015-2020 Ford F-150: Left Front Wheel Speed Sensor Causes and Fixes

What's Unique About the 2015-2020 Ford F-150

For the 2015-2020 F-150, the C0035 code points specifically to the left front wheel speed sensor circuit. This is a manufacturer-defined code, and while some other brands or generic databases may use C0035 for the right side, Ford designates it for the left. Owners often find that the wiring harness leading to the sensor is the weak point, susceptible to corrosion from road salt and debris, or physical damage. The main harness connector C327, located on top of the driver's side wheel well, is a known area for corrosion that can cause this code.

Symptoms You May Notice

• ABS warning light is on
• Traction control or stability control warning light is on
• "Service AdvanceTrac" message on the instrument cluster
• "Hill Start Assist Not Available" message on the instrument cluster
• Loss of anti-lock braking function (wheels may lock and skid under hard braking)
• Traction control system is disabled or behaves erratically

Most Likely Causes

1. Damaged or Corroded Wiring/Connector 🔴 High Probability The sensor wiring is exposed to the elements, road salt, and potential impact from debris. The main harness runs along the driver's side frame rail and wheel well, where connectors can accumulate moisture and corrode, especially in winter climates.
   How to confirm: Visually inspect the wiring harness from the back of the wheel hub up into the engine bay for any cuts, abrasions, or swelling. Unplug the sensor and check the connector pins for green or white corrosion. 🎬 Watch: See how corrosion destroys these F-150 wheel speed sensor connectors. Pay close attention to the harness connector C327 on the driver's side wheel well, as it's a documented failure point.
   Typical fix: Clean the connector pins with electrical contact cleaner and apply dielectric grease. If the wiring is damaged, splice in a new connector pigtail using heat-shrink butt connectors.
   Est. part cost: $15-$40

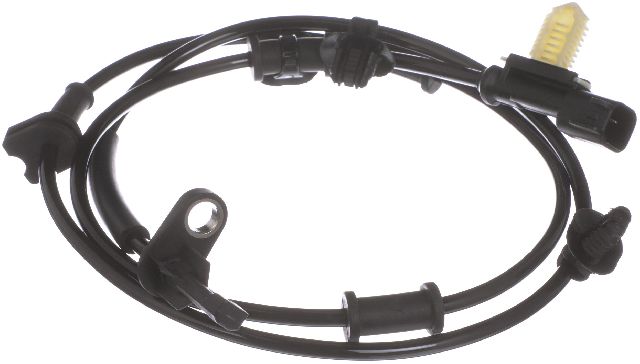

2. Faulty Left Front Wheel Speed Sensor 🟡 Medium Probability → Shop ABS Wheel Speed Sensor Sensors are electronic components that can fail over time due to heat cycles and vibration. Internal failure is a common reason for replacement.
   How to confirm: With a multimeter, check the resistance of the sensor; it should be within the manufacturer's specification (typically 800-2000Ω). Alternatively, use an advanced scan tool to monitor live data from the sensor while spinning the wheel; the speed reading should be smooth and consistent. A good diagnostic step is to swap the left and right front sensors (if they are identical part numbers) and see if the code moves to the other side (e.g., C0032 for the right front). If the code moves, the sensor is bad. WARNING: Left and right sensors are often not interchangeable, even if they appear physically similar.
   Typical fix: Replace the left front wheel speed sensor. It is typically held in by a single bolt.
   Est. part cost: $30-$175
3. Damaged/Faulty Tone Ring / Magnetic Encoder ⚪ Low Probability Unlike older toothed rings, this F-150 uses a magnetic encoder ring integrated into the wheel bearing/hub assembly. While sealed, severe impacts or a failing wheel bearing can damage this ring or cause it to lose its magnetic properties, leading to an erratic or missing signal.
   How to confirm: This is typically diagnosed after the sensor and wiring are confirmed to be good. If you swap the left and right sensors and the C0035 code does *not* move to the other side, the problem is likely in the wiring or the hub's tone ring. A visual inspection is difficult as the ring is part of the sealed hub.
   Typical fix: The wheel bearing/hub assembly must be replaced as a complete unit. The tone ring is not serviced separately.
   Est. part cost: $150-$400

Rare But Worth Checking

• Faulty ABS Control Module: → Shop ABS Control Module This is the least likely cause. It should only be considered after the sensor, wiring, and hub assembly have been thoroughly tested and ruled out. A faulty module will often be accompanied by other trouble codes or a complete loss of communication with the scan tool.

Diagnosis Steps

1. Read the code with an ABS-capable OBD-II scanner to confirm C0035 is present. Note any other codes.
2. Check for related dash warnings like 'Service AdvanceTrac' or 'Hill Start Assist Not Available'.
3. Perform a thorough visual inspection of the left front wheel speed sensor wiring harness and connector. Look for any signs of damage, chafing, or corrosion. Pay special attention to the harness path along the frame and up into the engine bay.
4. If the connector is corroded, clean it with contact cleaner, apply dielectric grease, clear the codes, and test drive.
5. Use a scan tool to view the live data stream for the left front wheel speed sensor. Compare its reading to the other three wheels while driving. A reading that is erratic, lagging, or stuck at zero indicates a problem with the sensor or its circuit.
6. If live data looks faulty, test the sensor itself. Disconnect it and measure its internal resistance with a multimeter (should be ~800-2000Ω).
7. As a practical test, if the left and right sensors are identical, swap them. Clear the codes and drive. If the code changes to the right side (C0032), the sensor you moved is faulty. If code C0035 returns, the problem is in the wiring or the hub's tone ring.
8. If the sensor tests good and the wiring shows no visible damage, perform a continuity test on the harness between the sensor connector and the ABS module connector to find hidden breaks or shorts.
9. If the sensor, wiring, and hub are all ruled out, the fault may lie with the ABS control module, which requires professional diagnosis.
🎬 Watch: Troubleshooting the ABS module and communication codes on this platform.

Parts You'll Likely Need

• Front ABS Wheel Speed Sensor (OEM #FL3Z-2C204-A) — This is the most common part to fail in the circuit. The 'FL3Z' prefix indicates a part originally designed for the 2015 F-150.
  Trusted brands: Motorcraft, Bosch, Delphi, Standard Motor Products (SMP)
  OEM price range: $35-$60
  Aftermarket price range: $30-$100
• ABS Wheel Speed Sensor Connector Pigtail (OEM #Motorcraft WPT-996 (or similar WPT-series)) — If the wiring harness connector is corroded or damaged, replacing the pigtail is often necessary to ensure a solid connection. It is critical to visually match the existing connector, as many similar-looking pigtails exist.
  Trusted brands: Motorcraft, Dorman
  OEM price range: $25-$50
  Aftermarket price range: $15-$30

Technical Service Bulletins (TSBs) & Recalls

• No specific Technical Service Bulletins (TSBs) directly addressing code C0035 for this specific cause on the 2015-2020 F-150 were identified during research. However, TSB 20-2046 addresses false ABS warnings on some 2018-2019 models due to a software glitch, which could be a related diagnostic path to consider.

Platform-Specific Known Issues

• Wiring Harness Vulnerability: The main engine wiring harness (e.g., 14A005/14405) that runs along the driver's side wheel well is a known spot for issues. Connectors in this area, specifically connector C327 on top of the wheelhouse, are susceptible to water intrusion and corrosion. The harness can also be damaged by rodents or chafing, leading to various electrical faults including ABS codes like C0035.

Mechanic-Grade Diagnostic Values

• Wheel Speed Sensor Resistance — expected: 800-2000 Ω (Note: This test is less reliable on modern magneto-resistive sensors). Failure: An open circuit (infinite resistance) or a reading significantly outside the expected range.
• Wheel Speed Sensor AC Voltage Output — expected: Voltage should start near 100mV AC and increase steadily as the wheel is spun faster.. Failure: No voltage, or an erratic/stuttering voltage reading while the wheel is spun at a constant speed.
• Continuity Test on LF Sensor Wires to ABS Module — expected: Less than 5.0 ohms of resistance on each wire between the sensor connector and the ABS module connector (C134).. Failure: Resistance greater than 5.0 ohms or an open circuit (OL) indicates a break in the wire.

Scan Tool Commands That Help

• Ford IDS / FORScan: ABS Module Self-Test — This command instructs the ABS module to perform an internal check of all its circuits and sensors. It can be used to confirm if the module itself detects an internal fault or a persistent circuit issue after a repair attempt.
• Ford IDS / FORScan: Live Data PID Graphing (WSS_LF, WSS_RF, etc.) — Graphing all four wheel speed sensors simultaneously while driving is the most effective way to diagnose an intermittent fault. A faulty sensor or circuit will show clear dropouts, erratic spikes, or a flat line compared to the other three smooth-reading sensors.
• FORScan: ABS Module Configuration (VIN Programming) — If the ABS module is replaced with a used unit, the vehicle's VIN must be written to it. FORScan can perform this function, which is necessary to resolve incompatibility codes and restore normal function.

Wiring & Ground Locations

• ABS Module Connector C134 — Located on the ABS hydraulic control unit (HCU) in the engine bay, typically on the driver's side.. This is the termination point for the wheel speed sensor harness. Testing for signal and continuity should be done at this connector's pins to confirm if the fault is in the wiring harness or the module itself.
• C134 - Pin 35 (VT-OG) & Pin 36 (GY-YE) — At the ABS module connector.. These are the specific pins for the Left Front Wheel Speed Sensor signal. Pin 35 is the signal wire (Violet/Orange) and Pin 36 is the signal return (Gray/Yellow). Probing here is essential for end-to-end circuit diagnosis.
• Ground G108 — On the right-hand side of the engine compartment, on the upper radiator support.. This is a primary engine compartment ground point. While not exclusive to the ABS, a corroded or loose G108 can cause a variety of electrical issues in chassis systems, including the ABS module, leading to intermittent and hard-to-diagnose faults.

Real Owner Repair Stories

• Ford F150 Forum (2020 F-150 XLT 2.7L EcoBoost) — ABS light on, with a cluster of warnings: Service AdvanceTrak, Park Aid N/A, Pre-Collision Assist N/A, Hill Assist N/A.
  ❌ Tried (didn't work) Took to dealer who quoted $600 for repair.
  ✅ What actually fixed it The owner found that rodents had chewed through the rear wheel sensor wiring harness. The final fix was to self-repair the chewed wires, resolving all warning messages. This highlights that harness damage is a very common cause.
• Ford F150 Forum (2015-2020 F-150 (year not specified)) — ABS and AdvanceTrac lights appeared after replacing a front wheel hub assembly.
  ❌ Tried (didn't work) Using the new ABS sensor that came pre-installed in the aftermarket (TRQ brand) hub assembly.
  ✅ What actually fixed it The problem was resolved by removing the new aftermarket sensor from the hub and reinstalling the original, factory Ford sensor. This indicates a quality or compatibility issue with the sensor supplied with the aftermarket hub.

OEM Part Supersession History

• FL3Z-2C204-A → JL3Z-2C204-A, then JL3Z-2C204-D — Standard part revision and supplier updates during the vehicle's production life.
  Heads up: The front left and right sensors are the same part number for this generation. All listed part numbers (FL3Z/JL3Z) are considered interchangeable for 2015-2020 models.

Model Year Variations Within This Range

• 2018-2019: A potential software issue within the ABS module can cause false ABS and AdvanceTrac warnings. Ford issued TSB 20-2046 to address this with a module reprogram, which may resolve the issue without any parts replacement.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used wheel speed sensor is generally not recommended due to its low cost new and high exposure to wear and weather. However, a complete used wheel knuckle/hub assembly from a low-mileage, non-corroded donor vehicle can be a cost-effective solution if the magnetic tone ring (part of the hub) is the confirmed point of failure.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check for a clean, corrosion-free connector on the sensor pigtail.
• Ensure the donor vehicle is from a region without heavy road salt use.
• Spin the hub by hand; it should be smooth with no grinding or excessive play.
• Visually inspect the wiring harness for any signs of rodent damage, chafing, or previous repairs.

OEM-only on this vehicle (don't cheap out):

• ABS Control Module: Due to VIN programming requirements, a new or professionally remanufactured module is strongly recommended. While FORScan can sometimes program used modules, it is not always successful and can be complex.

Aftermarket brands forum-validated for this vehicle:

• Motorcraft (OEM)
• Bosch
• Delphi
• Standard Motor Products (SMP)

Brands owners have reported issues with on this vehicle:

• Unbranded sensors from online marketplaces (e.g., eBay, Amazon) have a higher reported failure and incompatibility rate.
• Sensors included with some budget-tier aftermarket hub assemblies have been reported as incompatible.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0032 — Right Front Wheel Speed Sensor Circuit. This code will appear if a faulty left front sensor is swapped to the right side during diagnosis, confirming the sensor itself is the problem.
• C0038 — Left Rear Wheel Speed Sensor Circuit. A fault in any wheel speed sensor circuit can trigger similar ABS and traction control warnings. Live data from this sensor is often compared against the faulty one to confirm a problem.
• C003B — Right Rear Wheel Speed Sensor Circuit. Like other wheel speed sensor codes, this is related because diagnosing C0035 involves comparing the signal from the left front sensor to the other three wheels.
• U0121 — Lost Communication With Anti-Lock Brake System (ABS) Control Module. This may appear if the root cause is a faulty ABS module or a major wiring harness failure, which is a less common but possible cause for C0035.
• U0415 — Invalid Data Received From Anti-Lock Brake System (ABS) Control Module. Can be logged by other modules (like the PCM or BCM) when the ABS module provides erratic data, such as from a failing wheel speed sensor.
