C0035 on 2012-2016 Honda CR-V: Left Front Wheel Speed Sensor Circuit Fault Causes and Fixes

What's Unique About the 2012-2016 Honda CR-V

For the 2012-2016 Honda CR-V (fourth generation), the C0035 code is part of the integrated Vehicle Stability Assist (VSA) system. While many general OBD-II databases create confusion by listing C0035 as a right-front sensor issue for some brands (like GM), for Honda it consistently refers to the Left Front Wheel Speed Sensor circuit. This distinction is critical. The fault could be the sensor itself, the wiring harness that is exposed to the elements, or the magnetic encoder ring on the wheel bearing. A proper diagnosis should always precede parts replacement.

Symptoms You May Notice

• ABS light is on
• Traction control or VSA (Vehicle Stability Assist) light is on
• A triangular warning light with an exclamation mark may be on
• Brake system light may be illuminated
• ABS and traction control systems are disabled
• Brake pedal may feel different or pulsate unexpectedly at low speeds
• Cruise control may be disabled

Most Likely Causes

1. Failed Left Front Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor Wheel speed sensors are exposed to harsh conditions (water, road salt, debris) which can lead to internal failure or corrosion over time. They are a common failure point on many vehicles.
   How to confirm: After confirming the code with a scanner, use a multimeter to check the sensor's resistance (typically 800-2000Ω). An open circuit (infinite resistance) or a short (zero resistance) indicates a failed sensor. Alternatively, use a scan tool to monitor live wheel speed data while spinning the wheel; a reading of zero or an erratic signal from the left front wheel indicates a bad sensor.
   Typical fix: Replace the faulty left front wheel speed sensor. The sensor is held onto the steering knuckle by a single bolt.
   Est. part cost: $30-$100
2. Damaged Wiring or Connector 🟡 Medium Probability The wiring harness runs down the suspension and is susceptible to damage from road debris, chafing against suspension components, or corrosion in the connector pins from moisture and salt.
   How to confirm: Visually inspect the entire length of the sensor's wiring harness from the sensor to the connection in the wheel well. Look for any signs of chafing, breaks, or green corrosion. Unplug the connector and check for bent, broken, or corroded pins.
   Typical fix: Repair the broken section of wire or replace the damaged connector pigtail. Ensure the harness is properly routed and secured away from moving parts.
   Est. part cost: $10-$30
3. Damaged or Debris-Covered Magnetic Encoder Ring ⚪ Low Probability The sensor reads a magnetic ring integrated into the wheel bearing seal. Rust jacking or metallic debris from brake wear can accumulate on the seal, disrupting the sensor's reading. This is more common in areas with heavy road salt usage.
   How to confirm: Remove the wheel speed sensor and visually inspect the magnetic ring on the wheel bearing through the sensor mounting hole. Look for rust buildup, cracks, or metallic debris stuck to the surface.
   Typical fix: Clean the magnetic ring carefully with a soft brush or cloth. If the ring is physically damaged or the rust is too severe, the entire wheel bearing and hub assembly must be replaced as the ring is an integral part.
   Est. part cost: $150-$250

Rare But Worth Checking

• Faulty VSA Modulator-Control Unit: → Shop ABS Control Module This is the least likely cause and should only be considered after thoroughly ruling out the sensor, wiring, and wheel bearing. A failure of the ABS module itself can trigger a sensor circuit code. This is an expensive part and requires programming by a dealer or specialized shop.

Diagnosis Steps

1. Connect an advanced OBD-II scanner capable of reading ABS/VSA system codes.
2. Read the fault codes. For a 2012-2016 CR-V, C0035 confirms the fault is related to the LEFT front wheel.
3. Visually inspect the left front wheel speed sensor, its connector, and wiring harness for any obvious damage, corrosion, or loose connections.
4. Using the scan tool, monitor the live data for the left front wheel speed sensor while spinning the wheel by hand. Compare its reading to the right front wheel. A reading of '0' or an erratic signal points to a problem with the sensor or its circuit.
5. If the live data is inconclusive, disconnect the sensor and use a multimeter to test its internal resistance. Compare the value to the specifications in a service manual (typically in the 800-2000 ohm range). An open circuit or short indicates a failed sensor.
6. If the sensor tests good, check for voltage and ground at the sensor connector with the key on. This verifies the circuit's integrity back to the VSA modulator.
7. If the sensor and wiring are confirmed to be good, remove the sensor and inspect the magnetic encoder ring on the wheel bearing for debris or damage. Clean as necessary.
8. If all other components check out, the issue may rarely lie with the VSA modulator-control unit itself.

Parts You'll Likely Need

• Front Wheel Speed Sensor (Left) (OEM #57455-T0G-A01) — This is the most common failure point for a C0035 code, either due to internal failure or damage from road debris.
  Trusted brands: Honda (Genuine), Bosch, NTK, Duralast, Holstein
  OEM price range: $33-$50
  Aftermarket price range: $30-$100

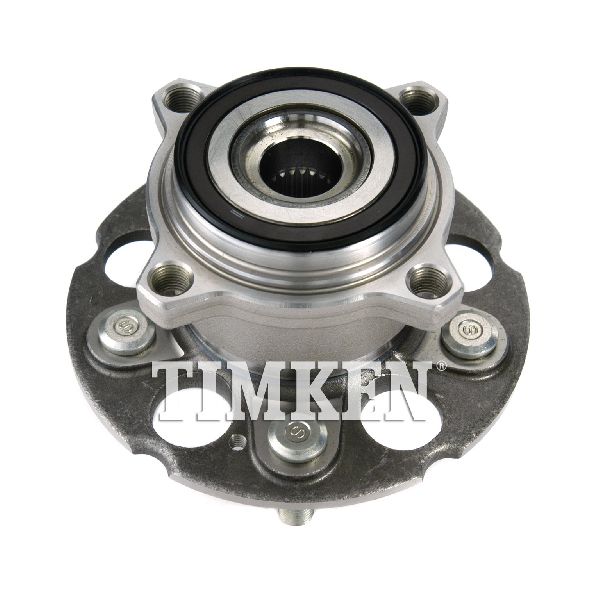

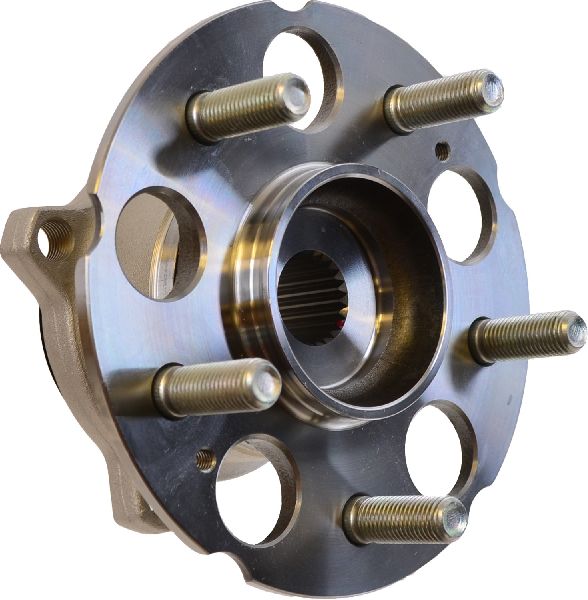

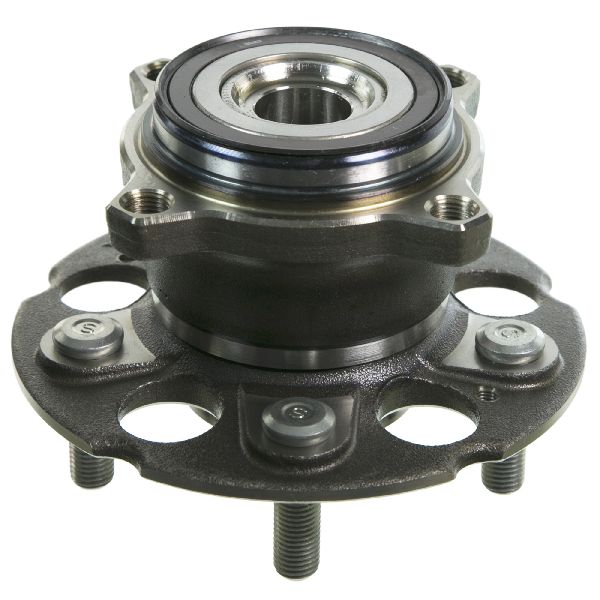

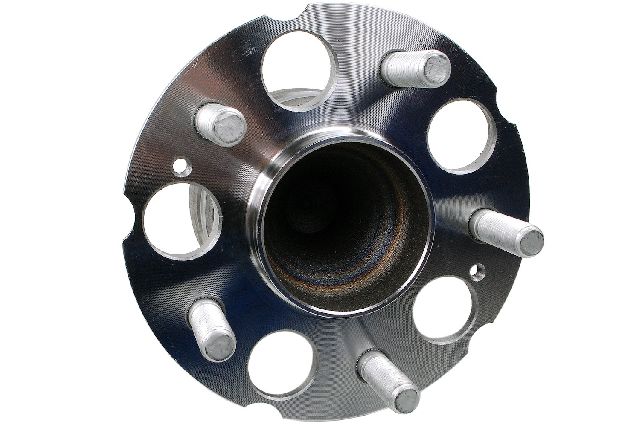

• Front Wheel Bearing and Hub Assembly — Replaced if the magnetic encoder ring, which is integrated into the bearing's seal, is damaged or contaminated with rust, preventing the sensor from getting a clear signal.
  Trusted brands: SKF, Timken, NTN, Koyo
  OEM price range: $250-$350
  Aftermarket price range: $150-$250

Mechanic-Grade Diagnostic Values

• VSA Modulator-Control Unit Ground Circuit Continuity — expected: Continuity to ground (less than 1.0 Ω). Failure: High resistance or an open circuit (OL) when testing between the VSA module's ground pin and the chassis.

Scan Tool Commands That Help

• Foxwell NT630 Plus (or similar advanced scanner): Read Codes from ABS/VSA Module — To retrieve specific VSA trouble codes without using the expensive Honda HDS. This is a cost-effective option for DIY diagnosis when standard OBD-II readers show no codes.
• Honda Diagnostic System (HDS) or equivalent: VSA Sensor Neutral Position Memorization — After certain repairs or if other VSA-related codes (like DTC 84) are present, this procedure may be required to re-calibrate the system sensors. It is not typically required for a simple wheel speed sensor replacement but can resolve persistent lights if other issues were present.

Wiring & Ground Locations

• G201 — At the right rear of the engine compartment.. This is a primary ground point for the VSA modulator-control unit. A corroded or loose connection at G201 can cause a variety of VSA faults, including erroneous sensor circuit codes like C0035, by creating an unstable voltage reference for the module.
• A12A2 — The electrical connector for the front ABS wheel speed sensor.. This is the direct connection point for the sensor. Testing for power, ground, and signal should be performed at this connector's harness-side pins. Corrosion or damage here is a common cause of C0035.
• VSA Fuses — Multiple fuses exist. In the under-dash fuse box, check fuse #24 (7.5A). In the under-hood fuse/relay box, check fuses #9, and the integrated 40A and 20A fuses in the multi-fuse block.. A blown fuse will cut power to the VSA module or its sub-circuits, leading to system failure and codes. While less common than a sensor failure, it's a critical and simple check.

Model Year Variations Within This Range

• 2012-2016: The OEM part number for the Left Front Wheel Speed Sensor is different for early and late models within this generation. This is a critical distinction, as the parts are not interchangeable. The changeover occurred for the 2014 model year, NOT the 2015 facelift year. * 2012-2013 Honda CR-V: Use part number 57455-T0G-A01. * 2014-2016 Honda CR-V: Use part number 57455-T1E-G01.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• VTC Actuator Rattle on Cold Start 🟠 Medium — Very common on 2012-2014 models with the K24 engine. Causes a loud, brief rattle for 1-2 seconds upon cold startup, especially in temperatures below 40°F. (Ref: Honda TSB 09-010, TSB 16-012)
• Vibration at Idle/Driving (2015-2016 Models) 🟠 Medium — A well-documented issue on 2015-2016 models with the Earth Dreams engine and CVT. Causes a noticeable vibration when stopped in gear or while driving. Led to a class-action lawsuit. (Ref: Honda TSB 15-046)
• Premature Starter Motor Failure 🟠 Medium — A common failure item across this generation, leading to a no-start or intermittent start condition. The starter is located behind the intake manifold, making replacement more labor-intensive.
• Transmission Judder/Vibration (2012-2014 Models) 🟡 Low — Some owners of the 5-speed automatic models experience a shudder or vibration under light acceleration. (Ref: Honda TSB 15-086 (Software update and fluid change))
• Parasitic Battery Drain 🟡 Low — Some vehicles may experience a dead battery after sitting for a few days. This has been traced to causes like a stuck AC clutch relay or issues with the VSA module not fully powering down.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, a used part from a junkyard is NOT recommended. The wheel speed sensor is an exposed, sensitive electronic component. The low cost of new aftermarket parts makes the risk of getting a used part that is near the end of its life, or already damaged, a poor value proposition.

What to inspect on the donor part:

• Not applicable, as used sensors are not advised.

OEM-only on this vehicle (don't cheap out):

• No parts for this repair are strictly OEM-only. However, for maximum reliability and guaranteed fit, the OEM sensor is the safest choice, especially given the known part number split between model years.

Aftermarket brands forum-validated for this vehicle:

• NTK
• Bosch
• Standard Motor Products (SMP)
• Holstein

Brands owners have reported issues with on this vehicle:

• No-name, unbranded sensors from online marketplaces should be avoided. Fitment issues or premature failure are common with the cheapest available options, leading to repeat repairs.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Documented NHTSA Reports

While the following records describe C0035 on other platforms, they illustrate the common diagnostic path for this code. For instance, NHTSA ODI #10440851 describes a "Left Front Wheel Sensor Circuit Malfunction" accompanied by both ABS and brake warning lights. Similarly, NHTSA ODI #10442197 notes that a dealer confirmed the C0035 code alongside a "Left Front In Release Too Long" error, resulting in a recommendation to replace both the sensor and the hub assembly. In some cases, as seen in NHTSA ODI #10287028, a bad wheel hub was identified as the root cause for the sensor fault. Furthermore, a manufacturer service bulletin mentioned in NHTSA ODI #10273914 highlights that the ABS and brake lights may illuminate intermittently when C0035 is present. Finally, NHTSA ODI #11228687 shows that C0035 can often appear alongside multiple other communication and sensor codes (such as U0126 or U0415) during a system-wide failure.

Related OBD-II Codes

• C0036 — This would likely indicate a fault with the Right Front Wheel Speed Sensor, following the same logic as the C0035 Left Front sensor fault.
• C0038 — Related wheel speed sensor code; the CR-V's VSA/ABS system monitors all four wheels, and failures are often caused by the same environmental exposure (salt/debris) described for C0035.
• U0121 — Lost communication with the ABS/VSA control module; mentioned as a potential rare failure point if the sensor and wiring for C0035 are confirmed good but the VSA modulator-control unit is failing.

Frequently Asked Questions
