C0035 on 2019-2024 Ram 1500: Wheel Speed Sensor Fault Causes and Fixes

What's Unique About the 2019-2024 Ram 1500

The 2019-2024 Ram 1500 (DT platform) is distinct from the 'Ram 1500 Classic' of the same years, which is a carryover of the previous generation (DS). Parts are not interchangeable. For the DT platform, a notable issue alongside sensor failure is damage to the wheel speed sensor wiring harness. The harness can be susceptible to chafing against suspension components or the frame, leading to an open or shorted circuit that triggers the C0035 code.

Symptoms You May Notice

• ABS warning light is on
• Traction/Stability Control (ESC) warning light is on
• "Service Antilock Brake System" or similar message on the instrument cluster
• Cruise control is disabled
• 4WD system may be temporarily disabled or show a "Service 4WD" light
• In rare cases, erratic speedometer behavior or harsh shifting if VSS data is shared

Most Likely Causes

1. Faulty Left Front Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor Wheel speed sensors are mounted in a harsh environment at the wheel hub, exposed to water, road debris, salt, and extreme temperatures, which leads to eventual failure. They are a common wear item on most modern vehicles.
   How to confirm: Use a scan tool with live data capability to monitor all four wheel speed sensors while driving. The left front sensor will likely read 0 MPH or show an erratic, jumpy signal compared to the other three. An ohmmeter can also be used to check for an internal open or short in the sensor once removed, though resistance testing is not always conclusive for active sensors.
   Typical fix: Replace the faulty left front wheel speed sensor. The sensor is typically held in by a single bolt (often a 5mm Allen head) and can be replaced independently of the hub.
   Est. part cost: $30-$150
2. Damaged Wiring Harness or Connector 🟡 Medium Probability The wiring harness that runs from the sensor up into the engine bay is a known weak point. It can rub against the frame or suspension components, causing wires to chafe and short out. The connector at the sensor is also vulnerable to corrosion and pin damage.
   How to confirm: Visually inspect the entire length of the wiring from the sensor to the main harness connection in the engine bay. Pay close attention to points where the harness is clipped to the frame or bends around suspension parts. Unplug the connector and check for green/white corrosion or bent pins. A continuity test with a multimeter can confirm a broken wire.
   Typical fix: Repair the damaged section of wire using solder and heat-shrink tubing. If the connector is damaged, it can be replaced with a new pigtail connector. In severe cases, the entire harness segment may need replacement.
   Est. part cost: $15-$75 for a pigtail, more for a full harness section.

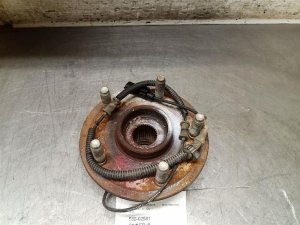

3. Failed Wheel Hub / Bearing Assembly ⚪ Low Probability → Shop Hub Assembly A worn wheel bearing can develop excessive play or 'wobble'. This changes the precise air gap between the sensor tip and the magnetic tone ring integrated into the hub, leading to a weak, erratic, or lost signal that the ABS module interprets as a fault.
   How to confirm: With the vehicle safely raised, check for play by grabbing the tire at the 12 and 6 o'clock positions and trying to rock it. Any noticeable movement indicates a bad wheel bearing. A grinding or humming noise that changes with speed or when turning is also a strong indicator.
   Typical fix: Replace the entire wheel hub and bearing assembly. The magnetic ABS tone ring is built into the hub assembly and is not serviced separately.
   Est. part cost: $150-$400

Rare But Worth Checking

• Faulty ABS Control Module: → Shop ABS Control Module This is a rare cause for a single wheel speed sensor code and should only be considered after the sensor, wiring, and hub have been definitively ruled out. A failing module often triggers multiple, nonsensical codes or communication errors.
• Debris on Sensor or Tone Ring: Metallic debris from brake wear or road grime can stick to the magnetic tip of the sensor, disrupting the signal. This is less common on newer sealed hub designs but is easy to check and clean during a sensor inspection.

Diagnosis Steps

1. Confirm Fault Location: Use an OBD-II scanner capable of reading ABS manufacturer-specific codes to confirm C0035 corresponds to the LEFT front wheel. Use the live data function to view wheel speed signals from all four wheels while driving slowly. The left front should read incorrectly.
2. Inspect Wiring and Connector: Raise and safely support the vehicle. Thoroughly inspect the left front sensor's wiring harness from the wheel well back to the engine bay. Look for chafing, melting, or breaks, especially where it's secured by clips or passes near suspension parts. Disconnect and inspect the connector for corrosion or damage.
3. Inspect Sensor and Hub Area: Remove the wheel. Remove the single bolt (often 5mm Allen) holding the ABS sensor. Carefully pull it out; it may be seized with rust. Inspect the sensor's magnetic tip for metallic debris. Look inside the hub at the tone ring (if visible) for damage, rust, or debris.
4. Test the Sensor (Optional): With a multimeter set to Ohms, check the resistance between the sensor's two pins. Compare this to a known good sensor or manufacturer specification. An open circuit (infinite resistance) or short circuit (zero resistance) indicates a bad sensor. Note: This test is not always reliable for active-type sensors used on this truck.
5. Check for Power/Ground: With the key on and sensor unplugged, use a multimeter to check for reference voltage (typically 5V or 12V) and a good ground at the harness-side connector pins. This verifies the circuit from the ABS module.
6. Check Wheel Bearing: With the wheel on, grab the tire at 12 and 6 o'clock, then 3 and 9 o'clock, and check for any play or roughness in the wheel bearing.
7. Replace Parts: Based on your findings, replace the faulty component. The most common repair is replacing the wheel speed sensor.
8. Clear Codes and Test Drive: After the repair, use a scanner to clear the trouble codes from the ABS module. Perform a test drive, exceeding 15-20 MPH to allow the system to self-test and confirm the ABS light does not return.

Parts You'll Likely Need

• Front Wheel Speed Sensor (OEM #68292050AH) — This is the most common failure point for code C0035. The part is the same for both the left and right front wheels. The part number has been superseded multiple times (from AA, AB, AC, etc.), with 68292050AH being the current version.
  Trusted brands: Mopar, NGK/NTK, Delphi, Standard Motor Products (SMP)
  OEM price range: $30-$50
  Aftermarket price range: $20-$40

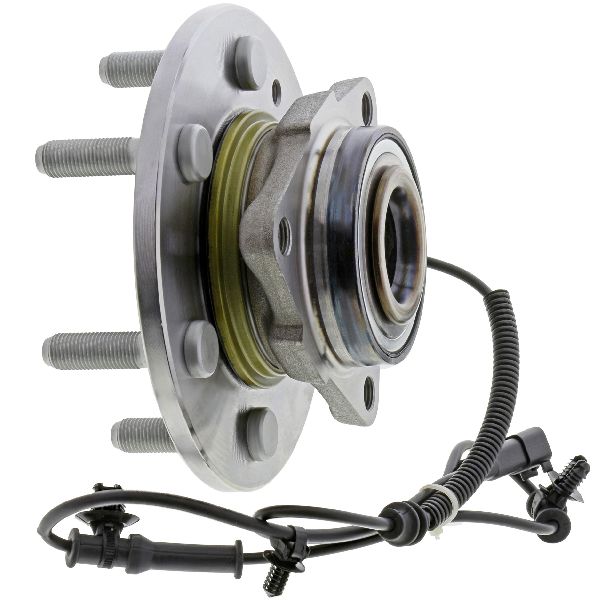

• Front Wheel Hub and Bearing Assembly (OEM #68339389AH or 1BP00252AA) — Replaced if the bearing is worn out (causing wheel play that disrupts the ABS sensor signal) or if the integrated magnetic tone ring is damaged. Part numbers can vary by 2WD/4WD and other options.
  Trusted brands: Mopar, Timken, MOOG, SKF
  OEM price range: $250-$400
  Aftermarket price range: $150-$250

Related Codes That Often Appear With This One

• C0034 — This is the corresponding code for the Right Front Wheel Speed Sensor. Seeing C0035 and C0034 together is rare but could point towards a wiring issue common to both sensors (e.g., rodent damage) or a problem with the ABS module itself.

Platform-Specific Known Issues

• Wiring Harness Chafing: Owners and technicians frequently report the front wheel speed sensor harness rubbing against the frame or suspension components. A common location is where the harness is routed near the upper control arm. Over time, vibrations and suspension movement can wear through the protective loom and insulation, causing the wires to short to each other or to ground, triggering the C0035 code even with a perfectly good sensor.

Mechanic-Grade Diagnostic Values

• Wheel Speed Sensor Supply Voltage — expected: 4.5–5.5 V or near battery voltage (~12V), depending on system design.. Failure: Voltage below the specified range (e.g., <4.0V) or no voltage at the harness connector (with key on, sensor unplugged) points to a wiring or ABS module issue.
• Wheel Speed Sensor Signal (Active Sensor) — expected: Using an oscilloscope, the sensor should produce a digital square wave that toggles between a low and high voltage as the wheel is spun.. Failure: A flat line, noisy signal, or no signal indicates a failed sensor or a problem with the tone ring/hub.
• Wheel Speed Sensor Resistance (Passive Sensor - for reference) — expected: While these trucks use active sensors, a traditional passive sensor would measure between 800-2,300 Ohms. This test is not a reliable primary diagnostic for the active sensors on a 2019+ Ram 1500.. Failure: An open circuit (OL) or a direct short (near 0 Ohms) would indicate failure on a passive sensor.

Scan Tool Commands That Help

• wiTECH or AlfaOBD: ABS Live Data Graphing — This is the most critical diagnostic step. Graphing the output of all four wheel speed sensors simultaneously during a test drive will definitively show if the left front sensor signal is dropping out, reading zero, or behaving erratically compared to the other three.
• wiTECH or equivalent professional scanner: Clear Faults — After the physical repair is completed, this function must be used to clear the C0035 code from the ABS module's memory. The warning lights will not turn off on their own.

Wiring & Ground Locations

• Sensor-to-Chassis Connector — Located in the front left wheel well, behind the plastic fender liner. The sensor's short pigtail plugs into the main chassis harness at this point.. This connector is a primary point of failure due to exposure to moisture and road spray, leading to corrosion, or physical damage from debris. A wiggle test here while monitoring live data can expose an intermittent connection.
• ABS Module Ground — Typically located on the chassis frame rail near the ABS hydraulic control unit in the engine bay.. While less common for a single sensor fault, a corroded or loose main ground for the ABS module can cause erratic behavior and various fault codes, including C0035. It's a critical check before condemning the module itself.

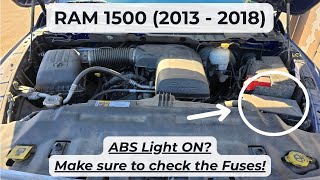

• ABS Fuses (F6, F26, F76) — In the under-hood fuse box (Power Distribution Center), located next to the battery.. Fuse F6 (40A) powers the ABS pump, F26 (30A) powers the ABS valves, and F76 (10A) powers the ABS/ESC module itself. While a blown fuse would likely cause more than just a single sensor code, checking them is a fundamental first step in any electrical diagnosis.

Real Owner Repair Stories

• Reddit user, r/ram_trucks (2018 Ram (similar platform, issue is relevant)) — While driving and hitting a bump, would get transmission communication errors (U0101) and other warnings. The fix was to get under the truck and squeeze a specific harness connector together.
  ❌ Tried (didn't work) Ignoring the problem
  ✅ What actually fixed it The underlying issue was a loose main wiring harness connector located on the frame behind the front left tire. The dealer quoted a full harness replacement, but the user was considering a more robust zip-tie solution or a connector repair, highlighting that major connectors can be a failure point.

OEM Part Supersession History

• 68292050AA → 68292050AB, ...AC, ...AD, ...AE, ...AF, ...AG, and finally 68292050AH — Incremental design revisions for improved durability, sealing, or material changes.
  Heads up: All previous versions are replaced by the latest 'AH' revision. While an older revision might work, it is best practice to use the most current part number (68292050AH) to benefit from all engineering improvements.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• 5.7L HEMI Exhaust Manifold Bolt Failure / Warped Manifold 🟠 Medium — Commonly occurs between 60,000 and 100,000 miles, causing a distinct 'ticking' noise on cold starts that often disappears as the engine warms up. (Ref: TSB 09-011-22, TSB 09-019-23)
• eTorque Mild Hybrid System Faults 🔴 High — Can occur at various mileages. Symptoms range from stop/start system unavailability to sudden stalling and loss of power, which is a major safety concern. (Ref: Recall 23V-265; TSB 18-091-22, TSB 08-093-22-A)
• Third Brake Light (CHMSL) Gasket Leak 🟠 Medium — Very common on 2019-2021 models. The foam gasket compresses and degrades, allowing water to leak into the cab, staining the headliner and potentially damaging rear electronics. (Ref: Warranty Extension XG1 (10yr/150k miles); TSB D-23-11)
• Uconnect Infotainment System Glitches 🟡 Low — Owners report issues like screen freezing, unresponsiveness, or random reboots. Often resolved with software updates from the dealer, but can be persistent.
• Rear Sliding Window Frame Leak 🟠 Medium — Less common than the third brake light leak but still a known issue. The seal around the rear sliding window frame can fail, allowing water into the back of the cab.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used wiring harness pigtail from a junkyard is a smart choice if only the connector is damaged and you can't find a new replacement pigtail. A complete used sensor harness is also viable if it's in good condition. Avoid used sensors themselves, as their remaining lifespan is unknown and a new one is inexpensive.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For wiring: check for supple, flexible insulation, not brittle or cracked plastic.
• Inspect connector pins to ensure they are straight, clean, and free of green or white corrosion.
• Ensure the connector's locking tabs and weather seals are intact.
• Avoid any harness that shows signs of prior repair (e.g., electrical tape, butt connectors).

OEM-only on this vehicle (don't cheap out):

• No parts for this specific repair are strictly 'OEM-only', but Mopar-branded sensors are generally considered the most reliable first choice.

Aftermarket brands forum-validated for this vehicle:

• NTK/NGK
• Delphi
• Standard Motor Products (SMP)
• Timken (for Hub Assemblies)
• MOOG (for Hub Assemblies)

Brands owners have reported issues with on this vehicle:

• Generic, unbranded sensors from online marketplaces often have high failure rates and may not be calibrated correctly, leading to the code returning shortly after repair.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0034 — This is the companion code for the Right Front Wheel Speed Sensor, which shares the same failure modes, hardware, and diagnostic steps as C0035.
• C0040 — Indicates a fault with the Right Rear Wheel Speed Sensor; often appears alongside C0035 if there is a shared connector issue or during hub replacements.
• U1408 — Implied related code; erratic speedometer behavior or 'Service 4WD' messages often stem from the same loss of wheel speed data (VSS) provided by the C0035 sensor.
