C0040 on 2009-2019 Ford Flex: Right Front Wheel Speed Sensor Circuit Fault Explained

What's Unique About the 2009-2019 Ford Flex

The Ford Flex, built on the D4 platform, shares its basic ABS components with other Fords of the era like the Ford Explorer and Lincoln MKT. The C0040 code is straightforward on this vehicle, almost always pointing to the wheel speed sensor circuit. 🎬 Watch: Understanding the C0040 code causes and fixes Unlike some other manufacturers where C0040 can ambiguously refer to a brake pedal switch, on the Flex it reliably indicates an issue at the right front wheel. The wiring is routed through the wheel well and is exposed to constant suspension movement and road debris, making harness damage a frequent cause of this code.

Generation note: The Ford Flex had one generation from 2009-2019, with a significant facelift for the 2013 model year. However, the underlying chassis, braking, and ABS components related to code C0040 remained fundamentally the same across the entire production run. No significant differences in causes or repairs have been noted between pre-facelift (2009-2012) and post-facelift (2013-2019) models.

Symptoms You May Notice

• ABS warning light is illuminated on the dashboard.
• Traction control or stability control (AdvanceTrac) warning light is on.
• Loss of ABS functionality, potentially causing wheels to lock up during hard braking.
• Disabled traction and stability control systems.
• In rare cases with a failing wheel bearing, a humming or grinding noise from the front right wheel that changes with speed.

Most Likely Causes

1. Damaged Wheel Speed Sensor Wiring or Connector 🔴 High Probability → Shop ABS Wheel Speed Sensor The sensor harness is exposed to road debris, moisture, and constant flexing from steering and suspension travel, which can lead to chafing, corrosion, or broken wires internally, especially near the connection points in the wheel well.
   How to confirm: Perform a close visual inspection of the wiring from the sensor to where it enters the main harness. Gently wiggle the harness while monitoring live sensor data (if possible) to see if the signal cuts out. Check for corrosion inside the connector.
   Typical fix: Repair the damaged section of wiring or replace the entire sensor pigtail/harness.
   Est. part cost: $20-$50 for a pigtail
2. Failed Right Front Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor The sensor is a magnetic electronic component located in a harsh environment behind the wheel, making it susceptible to failure from heat, vibration, and contamination over time.
   How to confirm: Test the sensor's internal resistance with a multimeter (compare to spec, often 800-2,500Ω) or swap it with the left side sensor to see if the code follows to the other side (C0045). The most definitive test is observing its signal on a capable scan tool while spinning the wheel; the reading should be zero, erratic, or not match the other wheels.
   Typical fix: Replace the right front wheel speed sensor.
   Est. part cost: $30-$90
3. Failing Wheel Hub Bearing Assembly 🟡 Medium Probability → Shop Hub Assembly As the bearing wears, it can develop excessive play or 'wobble'. This changes the critical air gap between the sensor and the tone ring, leading to an erratic or lost signal.
   How to confirm: Safely raise the front of the vehicle and check for play by grabbing the wheel at the 12 and 6 o'clock positions and attempting to rock it. A humming or grinding noise while driving that changes with speed is also a strong indicator.
   Typical fix: Replace the entire front wheel hub bearing assembly.
   Est. part cost: $100-$200
4. Damaged or Contaminated Tone Ring ⚪ Low Probability The tone ring, which is part of the hub bearing or CV axle, can crack, lose teeth, or become covered in rust or metallic debris, preventing the sensor from getting a clean reading.
   How to confirm: Visually inspect the tone ring for any missing teeth, cracks, or heavy buildup of rust or debris. This may require removing the wheel speed sensor for a clear view.
   Typical fix: Clean the tone ring thoroughly. If it is damaged, the component it is part of (usually the hub bearing or CV axle) must be replaced.
   Est. part cost: $100-$250

Rare But Worth Checking

• Faulty ABS Control Module: → Shop ABS Control Module This is the least likely cause and should only be considered after thoroughly testing the sensor, wiring, and hub bearing. A failing module typically triggers multiple wheel speed sensor codes or communication errors, not just a single one.

Diagnosis Steps

1. Connect an OBD-II scanner capable of reading ABS/Chassis codes to confirm C0040 is present. Note any sub-codes (e.g., C0040-02 for short to ground, C0040-05 for open circuit) as they can pinpoint the circuit fault.
2. Perform a detailed visual inspection of the right front wheel speed sensor, its electrical connector, and the entire visible length of its wiring harness. Look for chafing, melting, corrosion, or breaks, paying close attention to where the harness flexes near the strut.
3. Safely raise the front of the vehicle and check the right front wheel for any play by pushing and pulling at the top and bottom. Excessive movement indicates a bad wheel bearing.
4. Using a scan tool, monitor the live data for all four wheel speed sensors while driving slowly or spinning the wheel by hand. The right front sensor's reading should be erratic, zero, or inconsistent compared to the others.
5. If no signal is present, disconnect the sensor and use a multimeter to check for the correct reference voltage and ground at the harness connector coming from the ABS module.
6. Test the resistance of the wheel speed sensor itself with a multimeter. Typical resistance for Ford sensors is between 800 and 2,500 ohms, but consult a service manual for exact specifications.
7. If wiring and sensor test okay, carefully inspect the tone ring for damage, debris, or excessive rust buildup.

Parts You'll Likely Need

• Front ABS Wheel Speed Sensor (OEM #AE9Z2C204A / BRAB273 (for 2010-2012 models), check VIN for specific application) — This is the most common component to fail, either internally or due to damage to its integrated wiring pigtail.
  Trusted brands: Motorcraft, Dorman, Delphi
  OEM price range: $70-$100
  Aftermarket price range: $30-$60

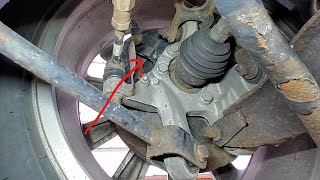

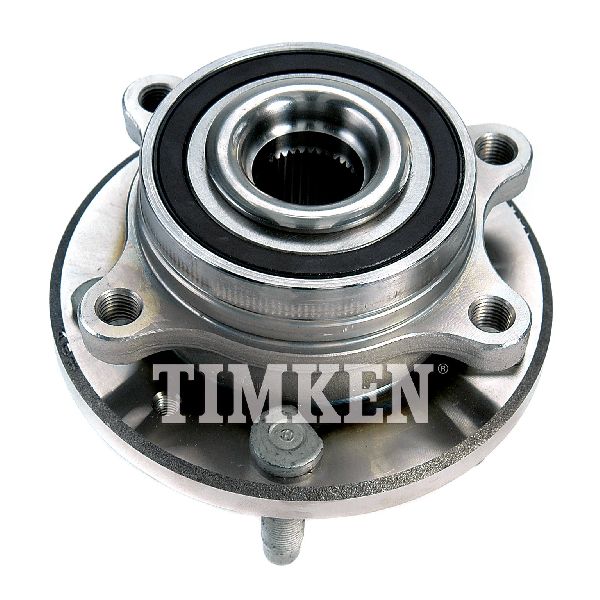

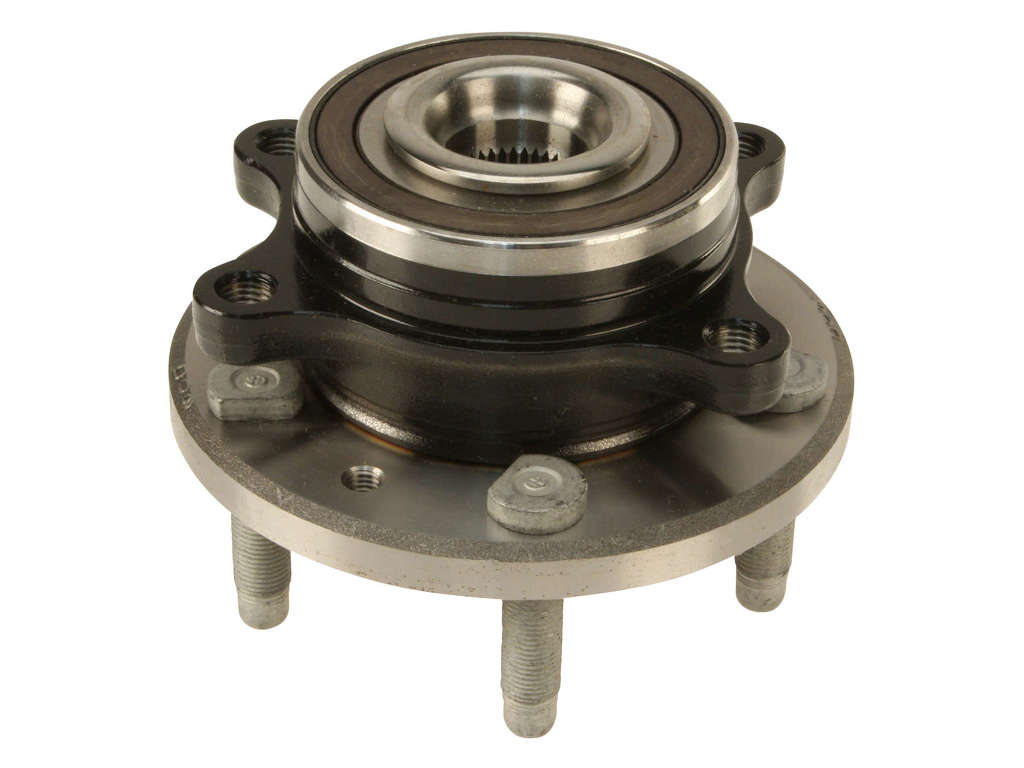

• Front Wheel Hub Bearing Assembly — If the wheel bearing has failed, it will cause the C0040 code and must be replaced. The tone ring is often integrated into this assembly. 🎬 Watch: How to replace the front wheel hub bearing
  Trusted brands: Motorcraft, Timken, SKF, MOOG
  OEM price range: $180-$250
  Aftermarket price range: $100-$170

Platform-Specific Known Issues

• source — A user on Reddit with a 2011 Ford Flex experienced persistent ABS and AdvanceTrac lights for a similar rear wheel speed sensor code (C1165). Even after replacing the sensor, the issue remained, highlighting the importance of checking wiring and live data, as the signal pattern on the faulty wheel was slightly different from the others. This suggests that a simple part swap may not always be the fix.

Mechanic-Grade Diagnostic Values

• Wheel Speed Sensor Resistance — expected: 1200 - 2700 Ohms (1.2 - 2.7 kOhms). Some sources suggest a wider range of 800-2500 Ohms is acceptable.. Failure: A reading of infinite resistance (open circuit) or near-zero resistance (short circuit).
• Wheel Speed Sensor AC Voltage Output — expected: Minimum of 0.25 Volts AC when spinning the wheel by hand at about half a revolution per second. Some technicians look for a range of 0.5V to 2V AC.. Failure: Voltage reading is zero or does not increase consistently as the wheel is spun.
• Brake Pedal Input to ABS Module — expected: Approximately 10 Volts at pin 6 of the ABS module connector when the brake pedal is pressed, and 0 Volts when it is not.. Failure: No voltage change when the pedal is pressed, which could indicate a brake pedal switch issue rather than a wheel speed sensor fault.

Hidden / Shadow Codes Worth Checking

• C0040:02: Indicates the ABS module has detected a short to ground in the right front wheel speed sensor circuit. (see via A professional scan tool like Ford IDS or a high-end OBD-II scanner capable of reading manufacturer-specific chassis codes.)
• C0040:05: Indicates the ABS module has detected a short to power or an open circuit in the right front wheel speed sensor circuit. (see via A professional scan tool like Ford IDS or a high-end OBD-II scanner capable of reading manufacturer-specific chassis codes.)
• C0040:0F: Indicates the ABS module has detected an erratic signal from the right front wheel speed sensor. This often points to a mechanical issue like a bad wheel bearing or damaged tone ring. (see via A professional scan tool like Ford IDS or a high-end OBD-II scanner capable of reading manufacturer-specific chassis codes.)
• C0040:18: Indicates the signal amplitude from the sensor is below the minimum threshold. This can be caused by an excessive air gap between the sensor and tone ring, often due to a loose wheel bearing. (see via A professional scan tool like Ford IDS or a high-end OBD-II scanner capable of reading manufacturer-specific chassis codes.)

Scan Tool Commands That Help

• FORScan: ABS Service Bleed — After replacing hydraulic components of the ABS system, like the module or HCU, to ensure all air is purged from the internal passages. This function cycles the ABS pump and valves.
• Ford IDS: Self Test - All Continuous Memory DTCs — To retrieve all stored fault codes from every module on the vehicle, which can reveal related issues in other systems that may be contributing to the C0040 code.
• Ford IDS: Datalogger - Wheel Speed Sensors — To monitor and graph the live data from all four wheel speed sensors simultaneously while driving. This is the most effective way to identify an erratic or dropping signal from the right front sensor compared to the others.

Wiring & Ground Locations

• Right Front Wheel Speed Sensor Connector — Located in the right front wheel well, where the pigtail from the sensor connects to the main body harness.. This connector is a primary point of failure due to exposure to moisture, road debris, and physical stress from suspension and steering movement. Corrosion or damage here will directly cause a C0040 code.
• ABS Module Connector — Typically mounted to the ABS hydraulic control unit (HCU) in the engine bay, near the brake master cylinder.. This is the termination point for the wheel speed sensor circuit. Technicians test for signal continuity and voltage here to determine if a wiring break exists between the sensor and the module.

Real Owner Repair Stories

• YouTube user 'BelkinEco' (High-mileage Ford Flex (over 200,000 miles)) — ABS and traction control lights on, with intermittent ABS activation at low speeds on dry pavement.
  ❌ Tried (didn't work) Initially, the problem was intermittent, making it hard to diagnose.
  ✅ What actually fixed it Using FORScan to monitor live data, the owner observed the right rear wheel speed sensor reporting 39 MPH while the other three wheels were at zero. This confirmed the sensor was faulty. Replacing the right rear wheel speed sensor (Part No. AE9Z-2C190-B) resolved the issue.

OEM Part Supersession History

• AE9Z-2C204-A (also listed as BRAB-273) → BRAB-400 (or equivalent aftermarket like Standard Motor Products ALS2592) — Part update for facelifted models.
  Heads up: The sensor for 2010-2012 models (AE9Z-2C204-A) is different from the sensor for 2013-2019 models. While they may look similar, the wiring length and potentially the internal electronics are different. Using the wrong year part can result in a persistent code.

Model Year Variations Within This Range

• 2009-2012: Uses front ABS wheel speed sensor part number AE9Z-2C204-A / BRAB-273.
• 2013-2019: Uses a different front ABS wheel speed sensor, part number BRAB-400 or aftermarket equivalents. A part lookup for a 2012 model shows a fitment date cutoff of Feb 29, 2012 for the earlier sensor.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Internal Water Pump Failure (3.5L V6) 🔴 High — Common after 80,000-120,000 miles. A leak can contaminate the engine oil with coolant, leading to catastrophic engine failure if not addressed immediately.
• Power Transfer Unit (PTU) Failure (AWD Models) 🔴 High — The PTU fluid can overheat due to proximity to the exhaust, leading to breakdown and failure. Symptoms include a burning oil/propane smell, whining/grinding noises, and fluid leaks. Preventative fluid changes every 30,000 miles are recommended. (Ref: TSB 19-2017 (for fluid leaks))
• Defective Door Latches / 'Door Ajar' Light 🟠 Medium — A faulty pawl spring tab or door ajar switch inside the latch can cause the 'door ajar' light to stay on, interior lights to remain on, and prevent doors from locking or cause them to unlatch while driving. (Ref: Recall 23S36, Customer Satisfaction Program 19N09)
• Electronic Power Steering (EPAS) Failure 🔴 High — Some owners report a sudden loss of power steering assist while driving, making the vehicle very difficult to steer. This is a significant safety concern.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used wiring harness pigtail from a junkyard can be a cost-effective repair if the original connector is damaged, provided the donor part is clean, free of corrosion, and shows no signs of wire fatigue.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check for flexibility; brittle wires are a bad sign.
• Inspect connector pins for any green or white corrosion.
• Ensure the locking tabs on the connector are intact.
• Avoid parts from vehicles with obvious front-end collision damage.

OEM-only on this vehicle (don't cheap out):

• ABS Control Module - Due to the need for precise VIN programming and calibration, a new or professionally remanufactured module from the dealer or a specialist is highly recommended over a used one.

Aftermarket brands forum-validated for this vehicle:

• Motorcraft (OEM)
• Delphi
• Standard Motor Products (SMP)
• Timken (for Hub Bearings)
• SKF (for Hub Bearings)

Brands owners have reported issues with on this vehicle:

• Unbranded, 'white-box' sensors from online marketplaces should be avoided, as they often have higher failure rates and can produce erratic signals that complicate diagnosis.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0045 — This is the code for the Left Front Wheel Speed Sensor; it is often used for diagnostic comparison or 'swapping' sensors to see if the fault moves to the opposite side.
• C1165 — A similar wheel speed sensor fault code (specifically for the rear) that frequently appears alongside ABS and AdvanceTrac warning lights on the Ford Flex platform.
• C0040-02 — A specific sub-code of C0040 indicating a short to ground within the right front wheel speed sensor circuit.
• C0040-05 — A specific sub-code of C0040 indicating an open circuit, often caused by broken wiring or a disconnected harness.
