C0040 on 2007-2012 Hyundai Santa Fe: Right Front Wheel Speed Sensor Fixes

What's Unique About the 2007-2012 Hyundai Santa Fe

On the 2007-2012 Santa Fe (CM generation), failure of the wheel speed sensors is a common issue due to their exposed location near the wheels, where they are subjected to water, salt, and road debris. While the C0040 code itself points directly to the sensor or its wiring, owners of 2007 models should be aware of a critical, separate safety recall (NHTSA Campaign ID: 18V137000) for the main ABS module, which can short circuit and pose a fire risk even when the vehicle is parked. This generation of Santa Fe is also known for issues with faulty fuel level sensors and valve cover gaskets that can leak oil onto the alternator.

Generation note: The 2007-2012 range covers the second generation (CM) Santa Fe, but there was a model facelift for 2010. This resulted in a different part number for the front ABS sensor. The 2007-2009 models use a different sensor than the 2010-2012 models. It is crucial to order the correct part for your specific model year.

Symptoms You May Notice

• ABS warning light is illuminated
• Electronic Stability Control (ESC) or Traction Control (TCS) warning light is illuminated
• Cruise control may be disabled
• Intermittent, low-speed ABS activation or brake pedal pulsation.

Most Likely Causes

1. Failed Right Front Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor The sensors are located in a harsh environment behind the wheel, exposed to water, dirt, and temperature extremes, which leads to internal failure over time. Corrosion can also cause the sensor to seize in the steering knuckle, making removal difficult.
   How to confirm: Use an ABS-capable scan tool to monitor live data from all four wheels while driving. The right front sensor reading will be erratic, zero, or will not match the other sensors. A multimeter can also be used to check the sensor's resistance against OEM specifications.
   Typical fix: Replace the right front wheel speed sensor. The sensor is typically held in by a single 10mm bolt on the wheel hub/knuckle assembly. Soaking the old sensor with penetrating oil before removal is highly recommended.
   Est. part cost: $40-$120
2. Damaged Wiring or Connector 🟡 Medium Probability The wiring harness that runs from the sensor up into the fender well can be damaged by road debris, improper routing after previous repairs, or corrosion in the connector. The constant movement of the suspension and steering can also cause wires to break internally over time, even if the outer insulation looks intact.
   How to confirm: Visually inspect the entire length of the wire from the sensor to its first connection point in the engine bay. Check for chafing, breaks, or green corrosion in the connector pins. Gently tug on the wires near the connector, as they can break internally at this stress point.

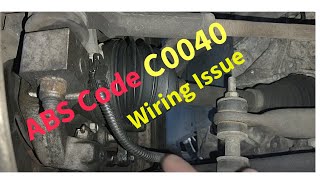

   Typical fix: Repair the damaged section of wire with solder and heat shrink, or replace the pigtail connector. 🎬 See how to diagnose and fix ABS wiring issues In some cases, the entire front harness section may need to be replaced.
   Est. part cost: $15-$40
3. Damaged Tone Ring or Worn Wheel Bearing ⚪ Low Probability Rust and debris can build up on the tone ring (the toothed ring the sensor reads), or a worn wheel bearing can cause excessive play, creating an incorrect air gap for the sensor. This prevents the sensor from getting a clean reading.
   How to confirm: After removing the sensor, inspect the tone ring through the mounting hole for broken teeth or heavy rust. Check the right front wheel for any play by trying to rock it from the top and bottom. A humming or grinding noise while driving is also a strong indicator of a bad wheel bearing.
   Typical fix: The tone ring is integrated into the wheel hub/bearing assembly on this vehicle. Therefore, the entire front wheel hub and bearing assembly must be replaced.
   Est. part cost: $150-$300

Rare But Worth Checking

• Faulty ABS Control Module: → Shop ABS Control Module This is very rare. Before condemning the module, all other possibilities (sensor, wiring, tone ring) must be exhaustively ruled out. A faulty module will typically set multiple wheel speed sensor codes, not just one.

Diagnosis Steps

1. Connect an ABS-capable OBD-II scanner to the vehicle.
2. Confirm C0040 is the active code. Note any sub-codes (e.g., C0040-05 for an open circuit, C0040-02 for a short to ground) which can help pinpoint the issue.
3. Access the live data stream for all four wheel speed sensors.
4. Safely drive the vehicle while an assistant monitors the data. Confirm that the Right Front (RF) sensor's speed reading is erratic, stuck at zero, or does not match the other three sensors.
5. Raise and secure the front of the vehicle on jack stands.
6. Visually inspect the RF wheel speed sensor and its wiring harness for any obvious damage, such as breaks, chafing, or loose connections. Pay close attention to the area where the harness flexes with suspension travel.
7. Disconnect the sensor and inspect the connector for corrosion or bent pins.
8. If no visual damage is found, use a multimeter to test the sensor's resistance (if it's a passive sensor) or check for voltage and ground at the connector (if it's an active sensor), comparing the readings to the vehicle's service manual.
9. If the sensor and wiring test good, remove the sensor and inspect the tone ring (integrated into the wheel hub) for damage or debris and check the wheel bearing for excessive play.

Parts You'll Likely Need

• Front Right ABS Wheel Speed Sensor (2007-2009) (OEM #95671-2B000) — This is the most common failure point for the C0040 code on pre-facelift models. 🎬 Watch: Step-by-step Hyundai ABS sensor replacement guide
  Trusted brands: Hyundai (Genuine), Mando, Beck/Arnley, Duralast, Standard Motor Products
  OEM price range: $190-$280
  Aftermarket price range: $40-$120
• Front Right ABS Wheel Speed Sensor (2010-2012) (OEM #95670-2B210) — This is the most common failure point for the C0040 code on post-facelift models. Note the part number change from the earlier models.
  Trusted brands: Hyundai (Genuine), Holstein, API, Duralast, WVE
  OEM price range: $180-$250
  Aftermarket price range: $35-$100

Platform-Specific Known Issues

• Recall on 2007 Models: A critical safety recall (NHTSA 18V137000) exists for the ABS module on some 2007 Santa Fe models. Moisture can enter the module, creating a fire risk. This is unrelated to the C0040 code's cause but should be checked and addressed immediately by a dealer.
• Corroded Tone Rings: In regions that use road salt, the tone ring integrated into the wheel hub can become heavily corroded, causing an erratic signal even with a new sensor. In these cases, the wheel hub/bearing assembly must be replaced.

Mechanic-Grade Diagnostic Values

• Passive Wheel Speed Sensor Resistance — expected: 800 - 2,500 Ohms (Ω). Failure: A reading of OL (open circuit), less than 800Ω, or a wildly fluctuating value indicates a bad sensor.
• Passive Wheel Speed Sensor AC Voltage Output — expected: Greater than 0.25 Volts AC (250mV AC). Failure: A voltage reading below 0.25V AC while spinning the wheel by hand (at least a half revolution per second) indicates a weak or failed sensor.

Scan Tool Commands That Help

• Hyundai GDS (Global Diagnostic System): Live Data / Data Analysis — To monitor and graph the wheel speed signals from all four sensors in real-time while driving. This is the most effective way to confirm an erratic or missing signal from the right front sensor compared to the others.
• Hyundai GDS (Global Diagnostic System): Actuation Test — Can be used to command the ABS pump and solenoids to operate, helping to rule out a faulty ABS control module after the sensor and wiring have been verified as good.
• Hyundai GDS (Global Diagnostic System): Vehicle S/W Management (Special Function) — Used for functions like resetting adaptive values if required after a major component replacement, though typically not necessary for a simple wheel speed sensor swap.

Wiring & Ground Locations

• ABS Control Module Ground — A common ground point for the ABS system is G07, located behind the left front kick panel inside the cabin.. While a bad ground typically causes multiple system faults, a poor connection at this point could potentially cause erratic behavior in the ABS module, leading to sensor codes. It should be checked if sensor and wiring tests are inconclusive.
• Wiring Harness Flex Point — The section of the sensor harness that runs from the steering knuckle up into the fender well.. This area is subject to constant movement with steering and suspension travel. Wires in this section are known to break internally, even when the outer protective sheathing looks perfectly fine. A 'tug test' or a continuity test while wiggling the wire is crucial for diagnosis.

Real Owner Repair Stories

• YouTube channel 'Cars and Service' (2012 Chevrolet Impala (demonstrates identical failure mode common to many vehicles, including the Santa Fe)) — ABS light was on intermittently, sometimes triggered by turning the steering wheel. Code C0040 was present.
  ❌ Tried (didn't work) The previous owner had replaced the entire right front wheel hub assembly (which included a new sensor) in an attempt to fix the problem, but the code and symptoms persisted.
  ✅ What actually fixed it The technician identified an internal break in the sensor's wiring harness. By stretching the wires by hand, they could feel one was 'flimsy' and had separated inside the insulation. They cut out the bad section of wire and spliced in a new piece, which permanently resolved the C0040 code.
• NHTSA ODI #10629708 — In a similar failure mode on another vehicle, an owner reported that the front wheel hub had to be replaced because the right front hub was dropping the signal, triggering code C0040.
• NHTSA ODI #11228687 — A vehicle was taken to an independent mechanic where C0040 appeared alongside multiple other codes including C0035, C0050, and several communication codes (U-codes).

Model Year Variations Within This Range

• 2007-2009 vs. 2010-2012: The front ABS wheel speed sensor part number is different for pre-facelift (2007-2009) and post-facelift (2010-2012) models. The earlier models use OEM part number 95671-2B000, while the later models use 95670-2B210. The parts are not interchangeable.

Diagnostic Flowchart

Documented NHTSA Reports

• NHTSA ODI #10440851: A diagnostic report noted that code C0040 appeared alongside C0035, indicating a wheel speed sensor circuit malfunction.
• NHTSA ODI #11191073: An owner reported that after brakes became extremely heated with smoke, a technician found code C0040-12 present, indicating a brake switch stuck on.
• NHTSA ODI #11645269: A report describes a vehicle that was hard to steer, where a technician found code C0040-62 indicating a brake lamp switch failure (stuck).

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Faulty Fuel Level Sensors 🟠 Medium — Very common on 2007-2009 models, typically appearing around 80,000-100,000 miles. Can cause an inaccurate fuel gauge and a P0463 trouble code.
• Leaking Valve Cover Gaskets (V6 Engines) 🔴 High — A well-documented issue where the front valve cover gasket leaks oil directly onto the alternator, causing alternator failure and potential stalling while driving. (Ref: A service campaign was issued, but some owners report recurring leaks after the fix.)
• Engine Failure (2012 Theta II & 3.3L Lambda II) 🔴 High — The 2012 model year with the Theta II engine can suffer from connecting rod bearing failure. Later models with the 3.3L V6 also had issues leading to a warranty extension. (Ref: Recalls and class-action lawsuits have been issued for various Hyundai engine problems.)
• Transmission Hesitation and Hard Shifting 🟠 Medium — Owners of 2007-2009 models have reported issues with sluggish gear engagement and jerky shifting.
• Corroding Front Coil Springs 🔴 High — Common in salt-belt states, the front coil springs can corrode and fracture, potentially puncturing the tire. (Ref: NHTSA Campaign ID: 14V435000)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, a used part is generally not recommended. The ABS sensor is an electronic component exposed to harsh elements and prone to failure from age and heat cycles. The cost of a new aftermarket sensor is low enough that the risk and labor of installing a used part with unknown remaining life is not worthwhile.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• If considering a used part, inspect the wiring for any signs of brittleness, cracking, or previous repairs.
• Ensure the connector is free of corrosion and the locking tab is intact.
• Check that the mounting bracket is not bent or damaged.

OEM-only on this vehicle (don't cheap out):

• ABS Control Module

Aftermarket brands forum-validated for this vehicle:

• Mando (often the OEM supplier)
• Beck/Arnley
• Standard Motor Products (SMP)
• Holstein
• WVE

Brands owners have reported issues with on this vehicle:

• No-name, unbranded sensors from online marketplaces should be avoided, as their signal accuracy and longevity can be questionable.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C1204 — Often appears alongside other wheel speed sensor codes during ABS/ESC system failures on this platform.
• C1205 — A companion code frequently discussed in Hyundai forums regarding wheel speed sensor circuit malfunctions.
• P0463 — A common unrelated code for this vehicle caused by faulty fuel level sensors, which often fail around 80,000-100,000 miles.
• C0040-05 — A specific sub-code of C0040 indicating an open circuit in the right front wheel speed sensor wiring.
• C0040-02 — A specific sub-code of C0040 indicating a short to ground in the right front wheel speed sensor circuit.
