C0045 on 2002-2007 Buick Rendezvous: Left Rear Wheel Speed Circuit Causes and Fixes

What's Unique About the 2002-2007 Buick Rendezvous

On the Buick Rendezvous and its platform mates (like the Pontiac Aztek), the wheel speed sensor is not a separately replaceable component. It is integrated into the sealed wheel hub and bearing assembly, which also contains the magnetic encoder ring (tone ring) that the sensor reads. This design means that if the sensor fails internally, or if the magnetic ring becomes cracked, brittle, or contaminated with metallic debris, the entire hub assembly must be replaced. This is a very common failure mode for this code on this specific vehicle platform.

Symptoms You May Notice

• ABS warning light is on
• "AWD Disabled" message or warning light is on
• Traction Control/Stabilitrak warning light may be on
• In rare cases, the speedometer may act erratically or the vehicle may hesitate on acceleration as a result of the faulty speed signal.

Most Likely Causes

1. Failed Left Rear Wheel Hub & Bearing Assembly 🔴 High Probability → Shop Hub Assembly The magnetic encoder ring integrated into the hub is exposed to the elements. Over time, especially in rust-belt regions, it can become brittle, crack, delaminate, or accumulate metallic debris, leading to a corrupted or lost signal. The sensor itself is also sealed within this non-serviceable unit and can fail from age and vibration.
   How to confirm: Using a scan tool with live data, monitor all four wheel speeds while driving. If the left rear sensor reads 0 MPH, shows erratic values, or lags behind the others while they read correctly, and the wiring is confirmed to be good, the hub assembly is faulty. A visual inspection from behind the wheel may reveal a visibly cracked, rusted, or debris-covered encoder ring on the inboard side of the hub.
   Typical fix: Replace the entire left rear wheel hub and bearing assembly. 🎬 Watch: Step-by-step guide to replacing the rear wheel hub assembly. It is critical to purchase the correct part for your vehicle's drivetrain (FWD or AWD), as they are different.
   Est. part cost: $80-$250
2. Damaged Wiring Harness or Connector 🟡 Medium Probability The wiring leading to the wheel hub is subject to constant movement, flexing with the suspension, and exposure to road debris, water, and salt. This can cause wires to chafe, break internally (often with no visible damage to the insulation), or for pins to corrode inside the connector. One owner reported the harness was too short and pulled apart during a sharp turn.
   How to confirm: Visually inspect the wiring harness from the wheel well back to the main vehicle body for any signs of physical damage, chafing, or corrosion. Unplug the connector and check for corroded, bent, or pushed-out pins. A multimeter can be used to check for continuity and shorts between the EBCM connector and the sensor connector. 🎬 See how to test wheel speed sensors for resistance and voltage.
   Typical fix: Repair the damaged section of wire or, more commonly, splice in a new pigtail connector. The Dorman 970-040 is a commonly cited replacement pigtail for this vehicle.
   Est. part cost: $20-$60

Rare But Worth Checking

• Failed Electronic Brake Control Module (EBCM): → Shop ABS Control Module This is the least likely cause. The EBCM is the computer that controls the ABS. It should only be considered after definitively ruling out the hub assembly and all related wiring. Failure of the EBCM often triggers multiple wheel speed sensor codes (e.g., C0045 and C0050 together) or communication codes.

Diagnosis Steps

1. Connect an OBD-II scanner capable of reading ABS codes to confirm C0045 is the active code. Professional scanners may show a sub-code, like '5A' for Plausibility Failure or '0F' for Erratic Signal, which can help pinpoint the cause.
2. Use the scanner's live data function to view the output from all four wheel speed sensors. Drive the vehicle slowly (under 10 MPH) and compare the readings. The Left Rear (LR) sensor will likely read 0 MPH or have an erratic/inconsistent reading compared to the other three.
3. Safely raise and support the vehicle. Remove the left rear wheel.
4. Thoroughly inspect the visible wiring harness leading to the hub assembly. Look for any cuts, chafing against suspension components, or signs of melting. Pay close attention to the area where the harness flexes.
5. Disconnect the sensor's electrical connector. Inspect the pins on both the harness side and the hub side for corrosion, moisture, or damage. Clean with electrical contact cleaner if necessary.
6. If the wiring and connector appear intact, the next step is to inspect the magnetic encoder ring on the inboard side of the hub assembly. Use a light and mirror to look for rust buildup, metallic debris stuck to the ring, or any visible cracks or missing sections. GM issued TSBs for similar vehicles noting that cleaning debris off this ring can sometimes fix the issue without part replacement.
7. If a wiring fault is suspected, use a multimeter to test for continuity from the wheel-end connector back to the EBCM connector. A broken wire may exist inside the insulation with no outward signs of damage.
8. If the encoder ring is damaged or the wiring tests good with no faults found, the wheel hub assembly has failed and must be replaced.

Parts You'll Likely Need

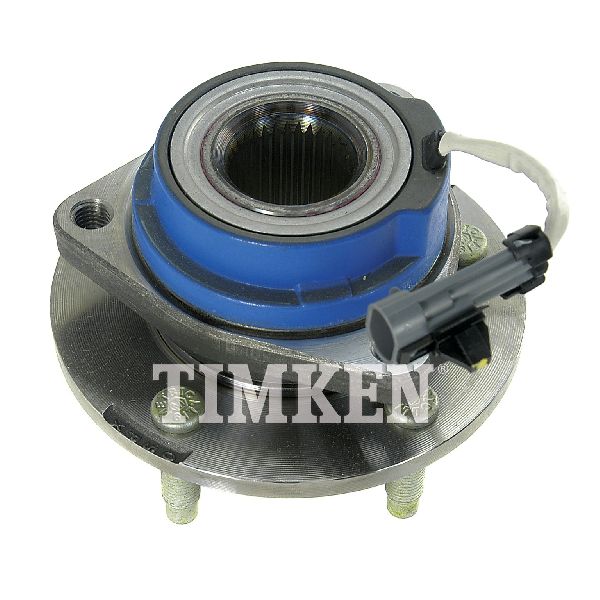

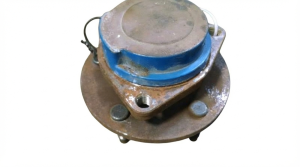

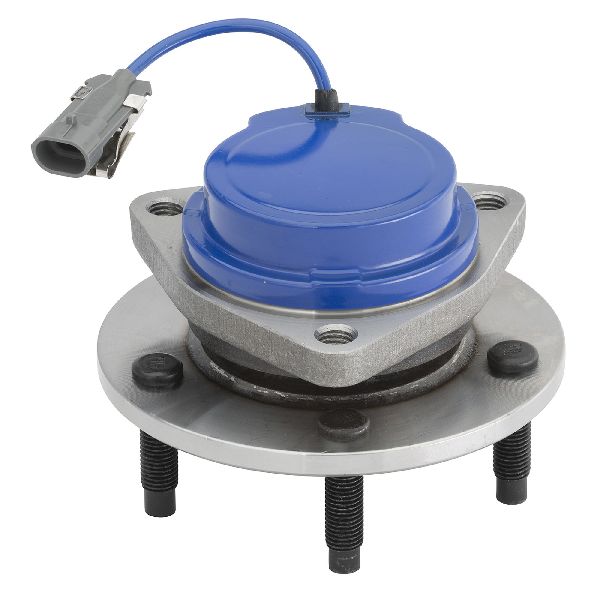

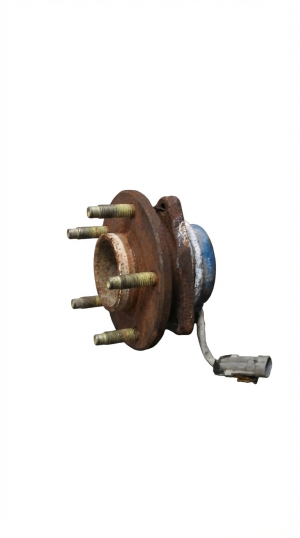

• Rear Wheel Hub and Bearing Assembly — This assembly contains the integrated wheel speed sensor and magnetic encoder ring, which are the most common failure points for code C0045 on this vehicle. It is critical to verify the correct part for FWD vs. AWD models, as they are different. For example, MOOG part 513179 is for AWD models, while 512222 is for FWD models 🎬 Watch: Detailed walkthrough of the hub assembly replacement process. with ABS.
  Trusted brands: ACDelco, MOOG, Timken, SKF, Mevotech
  OEM price range: $140-$250
  Aftermarket price range: $80-$160

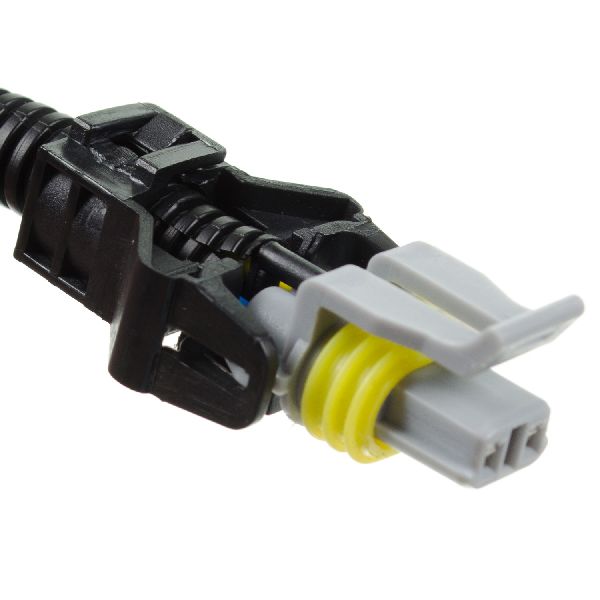

• ABS Wheel Speed Sensor Wiring Harness Pigtail (OEM #Dorman 970-040) — If a diagnostic inspection reveals the fault is in the connector or the wiring immediately attached to it, splicing in a new pigtail is a cost-effective repair instead of replacing the entire hub. The Dorman 970-040 is a widely available aftermarket solution confirmed to fit the Rendezvous.
  Trusted brands: Dorman, ACDelco
  OEM price range: $35-$60
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• C0050 — This is the code for the Right Rear Wheel Speed Sensor. If C0045 and C0050 appear together, it strongly suggests a problem with shared wiring (like a corroded main connector) or a faulty EBCM, rather than two hubs failing simultaneously.
• U0415 — This code means 'Invalid Data Received From EBCM'. Other modules in the vehicle may set this code because the EBCM is broadcasting that its wheel speed data is unreliable due to the C0045 fault. Manufacturer TSB Bulletin #16-NA-248 notes that U0415 can set alongside C0045 when sensors become internally shorted due to moisture.

Technical Service Bulletins (TSBs) & Recalls

• PIC5428F / PIC5428E / PIC5428D: While not directly for the Rendezvous, these TSBs address C0045 on other GM vehicles and describe how metallic debris on the magnetic encoder ring can cause the fault, recommending inspection and cleaning before replacement.
• PIT5171: For 2010-2012 Equinox/Terrain, but highly relevant. Details intermittent C0045/C0050 codes caused by an internal wire break within the harness near the X411 connector in the left rear of the vehicle. The wire can break inside the insulation, requiring a careful pull test to find.
• TSB Bulletin #16-NA-248: Describes a condition where Stabilitrak, Traction, and AWD Disabled messages appear intermittently with DTC C0045 because sensors become internally shorted due to moisture.
• TSB Bulletin #PIC5837: Notes that a "Service Stability" message may be displayed with C0045 and C0800 sym 07; technicians are advised to follow standard diagnostics for the wheel speed sensor code first.

Platform-Specific Known Issues

• A GM Technical Service Bulletin (PIC5428 series) for slightly newer models with the same technology notes that ferrous metallic debris can accumulate on the magnetic encoder ring, causing this code. While the Rendezvous is not explicitly listed, the bulletin suggests that cleaning the ring thoroughly may resolve the fault without needing to replace the hub assembly.
• Another TSB for similar GM platforms (PIT5171) points to internal wire breaks near a large harness connector (X411) under the rear of the vehicle as a cause for C0045 and C0050, often with no visible damage to the wire's insulation.

Mechanic-Grade Diagnostic Values

• Wheel Speed Sensor Resistance (Passive Sensor) — expected: 800 - 2000 Ohms (Varies by manufacturer, but should be similar to the opposing wheel's sensor).. Failure: An open circuit (infinite resistance) or a reading significantly different from the sensor on the other side of the axle.
• Wheel Speed Sensor AC Voltage Output (Passive Sensor) — expected: At least 100-200 mV AC when spinning the wheel by hand at about one revolution per second.. Failure: No AC voltage produced, or a very weak/erratic signal, indicates a failed sensor or a problem with the magnetic encoder ring.

Hidden / Shadow Codes Worth Checking

• C0045 06: Indicates Left Rear Wheel Speed Sensor Circuit Low Voltage/Open. This points specifically to an open wire, poor connection, or a short to ground. (see via A professional scan tool like the GM Tech2 or GDS2 that can read ABS symptom bytes (also known as sub-codes).)
• C0045 0F: Indicates Left Rear Wheel Speed Sensor Circuit Signal Erratic. This often points to a damaged magnetic encoder ring on the hub, debris on the sensor, or signal interference. (see via A professional scan tool like the GM Tech2 or GDS2 that can read ABS symptom bytes.)
• C0045 5A: Indicates Left Rear Wheel Speed Sensor Circuit Not Plausible. The EBCM is receiving a signal that doesn't make sense compared to the other wheel speeds, often caused by a damaged encoder ring or incorrect part. (see via A professional scan tool like the GM Tech2 or GDS2 that can read ABS symptom bytes.)

Wiring & Ground Locations

• Electronic Brake Control Module (EBCM) — Under the hood, attached to the ABS hydraulic pump assembly, typically on the driver's side.. This module receives the signal from the wheel speed sensor. The wiring harness from the sensor ultimately terminates here, making its connector a key test point for continuity checks from the wheel.
• Body Control Module (BCM) — Located under the center console, between the front seats. Access requires removing the console.. While not a primary cause, a faulty BCM can cause a wide range of electrical issues. It was noted as being replaced incorrectly in one documented case of misdiagnosis for C0045.
• Connector X411 — Under the vehicle, located in the left rear area, often near the fuel tank.. This is a large intermediate harness connector. TSBs for similar GM platforms (like PIT5171 and PIT5427B) identify corrosion or internal wire breaks within or near this specific connector as a cause for rear wheel speed sensor codes.

Real Owner Repair Stories

• 2CarPros.com Forum User (2004 Buick Rendezvous) — ABS and AWD disabled lights on, code C0045 present.
  ❌ Tried (didn't work) Replaced Electronic Brake Control Module (EBCM), Replaced Body Control Module (BCM), Replaced Powertrain Control Module (PCM)
  ✅ What actually fixed it The final cause was not explicitly stated by the original poster, but an expert technician on the forum stated it is "very common for the wiring before the sensor to brake internally from flexing" and that the fix is typically splicing in a new wiring pigtail, strongly implying a wiring issue was the root cause after the expensive modules failed to fix it.
• Edmunds Forums User (Buick Rendezvous (year not specified)) — Service Traction System and Anti-Lock warning lights.
  ❌ Tried (didn't work) Initial inspection
  ✅ What actually fixed it While replacing brake pads, the owner found the right front sensor wire had come loose from its bracket, was rubbing on the transaxle, and had worn through the insulation, causing it to ground out. This highlights the importance of checking the entire wire routing for chafing.

Model Year Variations Within This Range

• 2002-2003: The base engine was a 185-hp 3.4L V6. ABS was optional on FWD CX models in 2003.
• 2004-2005: A more powerful 245-hp 3.6L LY7 V6 became available on CXL and standard on the new Ultra trim. A touchscreen navigation system became an option.
• 2006: The base engine was upgraded to a 195-hp 3.5L LX9 V6.
• 2007: For its final model year, the optional 3.6L V6 and the All-Wheel Drive (AWD) system were discontinued. All 2007 models are FWD with the 3.5L V6.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, using a used part is NOT recommended for the wheel hub assembly. It is a wear-and-tear component with a finite lifespan, and the primary failure points (bearing and integrated magnetic ring) are subject to age, mileage, and environmental exposure. A used hub carries a high risk of premature failure. A used EBCM or wiring harness from a low-mileage, non-corroded donor vehicle could be a viable option if those parts are confirmed to be the cause.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For wiring harnesses: Check for any signs of corrosion on pins, brittleness in the plastic loom, or previous repairs (splices).
• For EBCM: Ensure the donor vehicle did not have ABS-related codes. Look for a clean unit with no signs of water intrusion or physical damage to the case or connectors.

Aftermarket brands forum-validated for this vehicle:

• Timken
• SKF
• MOOG
• ACDelco (Professional or Gold series)

Brands owners have reported issues with on this vehicle:

• No-name, unbranded, or 'white-box' hub assemblies are frequently reported to fail prematurely, sometimes causing the same code to return within months. One case study noted an intermittent failure on a recently replaced, but defective, aftermarket hub.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0050 — Right Rear Wheel Speed Sensor Circuit. This code is frequently related because the wiring for both rear sensors follows a similar path. GM TSB PIT5171 specifically mentions that an internal wire break near the X411 harness connector can cause both C0045 and C0050 codes to appear intermittently.
• C0035 — Front Left Wheel Speed Sensor Circuit. As part of the same ABS and Traction Control system, this sensor's reading is used as a baseline to diagnose C0045. A key diagnostic step is to compare the faulty left rear sensor's live data reading against the other three, including the C0035 sensor.
• C0040 — Front Right Wheel Speed Sensor Circuit. Similar to C0035, this code is for another sensor in the same system. Its live data is essential for diagnosis, as a properly functioning front right sensor helps confirm that the C0045 fault is isolated to the left rear corner of the vehicle.
