C0045 on 2005-2007 Ford Freestyle: Left Rear Wheel Speed Sensor Circuit Causes and Fixes

What's Unique About the 2005-2007 Ford Freestyle

The Ford Freestyle was a single-generation vehicle built on the D3 platform, sharing its core components with the Ford Five Hundred and Mercury Montego. For this platform, the C0045 code is a straightforward circuit fault. A notable and frequently-reported issue by owners is that the ABS sensor body becomes seized by galvanic corrosion in the rear aluminum knuckle, making removal extremely difficult without breaking the old sensor. This often requires drilling out the old plastic sensor body after removing the retaining bolt.

Symptoms You May Notice

• ABS warning light is on
• Traction control or stability control warning light is on
• ABS and traction control systems are disabled
• In rare cases with an erratic signal, unwanted ABS activation may be felt at low speeds

Most Likely Causes

1. Failed Left Rear Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor The sensor is exposed to harsh environmental conditions like water, road salt, and debris, which can lead to internal failure or corrosion over time. Owners across multiple forums have confirmed the sensor frequently seizes in the aluminum knuckle due to corrosion, complicating replacement.
   How to confirm: Use a scan tool with live data to observe the wheel speed from the left rear sensor; if it reads 0 MPH or is erratic while the other wheels show speed, the sensor is likely bad. Alternatively, test the sensor's internal resistance with a multimeter (a Freestyle-specific video suggests a good sensor is around 30 ohms, while general specs are often higher). Or, scope its signal waveform.
   Typical fix: Replace the left rear wheel speed sensor. The sensor is held in by a single bolt. Be prepared to drill out the old sensor if it is seized in the knuckle.
   Est. part cost: $30-$80
2. Damaged Wiring or Connector 🟡 Medium Probability The wiring harness runs along the chassis and suspension and is vulnerable to chafing, breaking from road debris, or corrosion at the connector pins. The short pigtail from the sensor to the first connector is a common point of failure.
   How to confirm: Visually inspect the entire length of the wiring harness from the left rear wheel to the main chassis harness. Check the connector for pushed-out pins, corrosion, or moisture. A YouTube video for the Freestyle shows how to check for ~10.5 volts at the connector with the key on.
   Typical fix: Repair the damaged section of wire or replace the connector pigtail. Clean any corrosion from the connector and apply dielectric grease.
   Est. part cost: $15-$50
3. Damaged or Contaminated Tone Ring ⚪ Low Probability The tone ring is integrated into the rear wheel hub and bearing assembly as a magnetic encoder. While durable, severe rust can cause it to crack or delaminate. More commonly, metallic debris can stick to the magnetic encoder ring, disrupting the sensor's reading and causing an erratic signal.
   How to confirm: Visually inspect the tone ring by removing the wheel speed sensor. Look for cracks, missing teeth, or heavy rust/debris. On magnetic encoder types, wipe the ring clean and check for stuck-on metallic particles.
   Typical fix: If the tone ring is physically damaged (cracked, broken), the entire rear wheel hub and bearing assembly must be replaced as the ring is integrated. If it's just contaminated, cleaning the debris off may resolve the issue.
   Est. part cost: $70-$150

Rare But Worth Checking

• Faulty ABS Control Module: → Shop ABS Control Module This is the least likely cause. The ABS module typically fails in a way that generates multiple wheel speed sensor codes or communication codes, not just a single one. Only consider this after definitively ruling out the sensor, wiring, and tone ring.

Diagnosis Steps

1. Connect an ABS-capable OBD-II scanner to confirm the C0045 code is present and active.
2. Use the scanner's live data function to monitor the speed of all four wheels while driving. Confirm that the left rear wheel speed sensor reads 0 or has an erratic signal compared to the others.
3. Raise and safely support the vehicle. Perform a thorough visual inspection of the left rear wheel speed sensor, its connector, and its wiring harness for any signs of damage, chafing, or corrosion.
4. Disconnect the sensor and inspect the connector pins for corrosion or damage. Clean as necessary and apply dielectric grease upon reassembly.
5. If a live data scanner is not available, use a multimeter to test the vehicle-side harness connector. With the key in the 'ON' position, you should have voltage (a Freestyle-specific video suggests around 10.5 volts). Check for a 🎬 Watch: How to test the ABS sensor and voltage good ground as well.
6. Test the sensor itself. You can check its internal resistance with a multimeter. A Freestyle-specific video measured good sensors around 28-32 ohms, while general specifications for passive sensors can be much higher (800-2000 ohms). An open circuit (infinite resistance) indicates a failed sensor.
7. If the sensor and wiring test good, remove the sensor and inspect the tone ring on the wheel hub for cracks, damage, or heavy debris/contamination.
8. If all other components are confirmed to be working correctly, the final step would be to diagnose the ABS control module, which may require a professional.

Parts You'll Likely Need

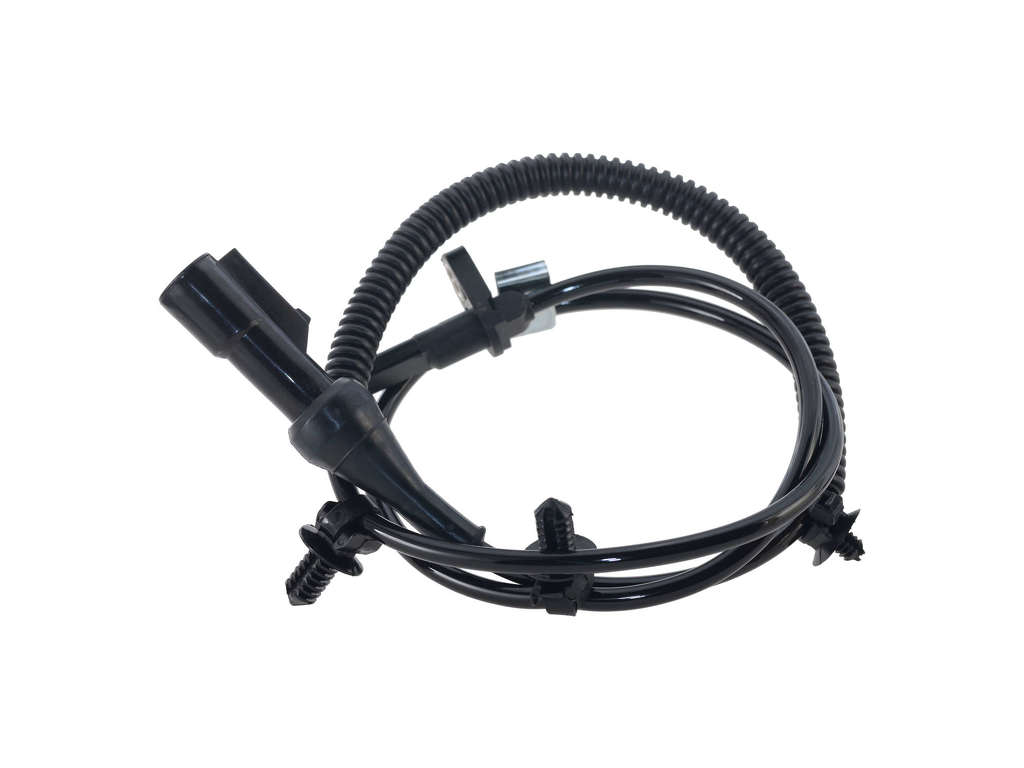

• Left Rear ABS Wheel Speed Sensor (OEM #7F9Z2C190A (supersedes 5F9Z-2C190-AA)) — This sensor is the most common failure point for the C0045 code due to its exposure to the elements and a high rate of internal failure or seizure in the knuckle.
  Trusted brands: Motorcraft, Dorman, Bosch, Standard Motor Products (SMP), Delphi, TRQ, Duralast
  OEM price range: $60-$100
  Aftermarket price range: $30-$80

Technical Service Bulletins (TSBs) & Recalls

• TSB 07-5-9: Addresses rear brake drag, noise, and premature wear, a related common issue for this platform.

Documented NHTSA Reports

While the following reports involve different manufacturers, they illustrate how the C0045 code manifests across various platforms using similar ABS architectures:

• NHTSA ODI #11219167 describes a case where the C0045 code was triggered by a broken left rear wheel speed sensor encoder ring, requiring the replacement of both the sensor and the rear hub assembly.
• NHTSA ODI #11165895 notes a service center report for code C0045 that recommended replacing the left rear hub bearing assembly to resolve intermittent warning lights.
• NHTSA ODI #10382746 details an instance where C0045 appeared alongside other codes (C0057, C0231, C0232, C0282), leading a manufacturer to recommend a software re-program.
• NHTSA ODI #11399819 highlights a complex diagnostic scenario where C0045 was present simultaneously with fuel level sensor codes P0463 and P069E.

Platform-Specific Known Issues

• A very common complaint is that the wheel speed sensor becomes seized in the aluminum knuckle due to galvanic corrosion, making it very difficult to remove without destroying it. Applying penetrating oil generously and allowing it to soak is highly recommended before attempting removal. Often, the retaining bolt will come out, but the plastic sensor body will break off, requiring the remains to be carefully drilled or chiseled out.
🎬 Watch: How to remove a seized or broken ABS sensor

Mechanic-Grade Diagnostic Values

• ABS Wheel Speed Sensor Internal Resistance — expected: 28-32 Ohms (Ω). Failure: A reading of infinity (open circuit) or near zero (short circuit). Note: This vehicle-specific value is much lower than the generic 800-2000 Ω range for many passive sensors.
• Voltage at Sensor Harness Connector (Key On) — expected: ~10.5 Volts DC. Failure: No voltage or significantly lower voltage, indicating a wiring or fuse issue upstream.
• AC Voltage Output from Sensor (while spinning wheel) — expected: Voltage should fluctuate and drop from the 10.5V baseline as the wheel is spun by hand.. Failure: No change in voltage while spinning the wheel indicates a non-responsive sensor.

Scan Tool Commands That Help

• Ford IDS (Integrated Diagnostic Software): Self Test — To command the ABS module to perform a comprehensive internal check and retrieve any specific fault codes beyond the generic C0045.
• Ford IDS / FORScan: Data Logger / Live Data — This is the primary diagnostic step to monitor and compare the speed readings from all four wheels in real-time to confirm the left rear sensor is the one failing to report.

Wiring & Ground Locations

• ABS Control Module — In the engine compartment, typically located near the master cylinder and brake booster on the driver's side.. This is the destination for the wheel speed sensor signal. Advanced wiring diagnostics (continuity/short tests) would require accessing the module's main connector.
• ABS Module Fuses — In the under-hood fuse box (Battery Junction Box). Specifically, fuses F9 (40A) and F12 (20A) provide main power to the ABS module.. While a single sensor code is unlikely to be a main fuse, checking these is a fundamental step if there are multiple ABS codes or no communication with the module.

OEM Part Supersession History

• 5F9Z-2C190-AA → 7F9Z-2C190-A — Standard part number update/revision by Ford.
  Heads up: The new part number is a direct replacement and is compatible with all 2005-2007 Ford Freestyle models.

Model Year Variations Within This Range

• 2005-2007: There are no significant documented changes to the ABS system, sensors, or related wiring for the C0045 code across the 2005, 2006, and 2007 model years of the Ford Freestyle. The diagnostic and repair procedures are identical.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• CVT Transmission Failure 🔴 High → Shop Transmission Assembly — A widely reported issue, with failures sometimes occurring at low mileage (under 50,000 miles). Symptoms include whining, surging, or complete loss of forward motion.
• Electronic Throttle Body (ETB) Malfunction 🔴 High — Very common problem causing sudden loss of power ('limp mode'), surging, or stalling. Often accompanied by a wrench light on the dash. (Ref: Ford Customer Satisfaction Program 13N03 extended the warranty for this part to 10 years/150,000 miles. TSB 05-20-5 also addresses this for early 2005 models.)
• Front Subframe/Crossmember Corrosion 🔴 High — Significant rust perforation can occur in the front subframe, particularly in salt-belt regions, potentially leading to lower control arm separation. (Ref: Safety Recall 14S02 was issued to inspect and install a reinforcement brace. Subframe replacement was generally not covered unless separation had already occurred.)
• Premature Rear Brake Wear 🟠 Medium — Many owners report abnormally fast wear of rear brake pads and rotors, sometimes requiring replacement in as little as 20,000-30,000 miles. (Ref: TSB 07-5-9 was issued for rear brake drag, noise, and premature wear.)
• Failing Upper Engine Mount 🟡 Low — The passenger-side upper engine mount (torque strut) is known to fail, causing engine vibration. A common fix is to use a more durable bushing from a Volvo S40.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, obtaining a used wiring harness pigtail from a junkyard is a very sensible option if your issue is a damaged connector. This avoids complex wire splicing and is much cheaper than a new harness. A used ABS module could also be an option, but it's a rare failure and may require programming.

Donor-vehicle mileage cap: roughly under 120000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a wiring pigtail, inspect for any cuts, brittleness, or corrosion on the connector pins.
• Ensure the locking tab on the connector is intact.
• If sourcing from a salt-belt vehicle, be extra cautious about corrosion hidden inside the connector housing.

OEM-only on this vehicle (don't cheap out):

• While not strictly required, using an OEM (Motorcraft) ABS sensor is often recommended for best fit and longevity, though reputable aftermarket brands are generally reliable for this part.

Aftermarket brands forum-validated for this vehicle:

• Dorman (specifically their OE Solutions line)
• Bosch
• Standard Motor Products (SMP)
• Delphi

Brands owners have reported issues with on this vehicle:

• No-name, unbranded sensors from online marketplaces should be avoided as their internal resistance and signal quality can be inconsistent, potentially leading to the code returning.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0046 — Right rear wheel speed sensor circuit fault; follows the same failure mode and diagnostic path as the C0045 left rear sensor.
• C0035 — Left front wheel speed sensor circuit fault; related as part of the same ABS/Traction Control monitoring system.
• C0040 — Right front wheel speed sensor circuit fault; shares the same diagnostic procedures and potential for sensor/wiring failure.
• U0415 — Invalid Data Received from Anti-Lock Brake System Control Module; often triggered when the ABS module cannot process the erratic signal from a failed wheel speed sensor.
