C0045 on 2008-2009 Pontiac G8: Left Rear Wheel Speed Sensor Circuit Fixes

What's Unique About the 2008-2009 Pontiac G8

The Pontiac G8, based on the Australian Holden Commodore, uses a simple and accessible rear wheel speed sensor design. Unlike many other GM vehicles of the era that integrate the sensor and tone ring into the wheel hub assembly, the G8 has a separate sensor that can be replaced independently. This makes diagnosis and repair much simpler and more affordable, as you typically do not need to replace the entire wheel hub to fix a sensor issue.

Symptoms You May Notice

• ABS warning light is on
• Traction Control (TC) or StabiliTrak/ESC warning light is on
• "Service Traction Control" or "Service StabiliTrak" message on the driver information center
• ABS and stability control systems are disabled

Most Likely Causes

1. Failed Left Rear Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor The sensor is exposed to road debris, water, and heat from the brakes, which can cause it to fail over time. It is the most common failure point for this code.
   How to confirm: Use a scan tool with live data to observe the wheel speed signals. While driving slowly, confirm that the left rear sensor reads 0 or an erratic value while the other three sensors show the correct speed. A multimeter can be used to check the resistance between the two pins of the sensor; compare the reading to a new sensor to see if it's open or has high resistance.

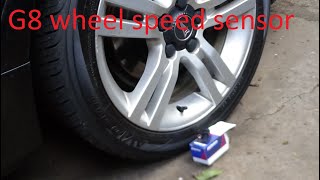

   Typical fix: Replace the left rear wheel speed sensor. It is held in by a single E8 external Torx bolt and is easily accessible after removing the wheel. 🎬 Watch this step-by-step guide on replacing the rear sensor.
   Est. part cost: $25-$60
2. Damaged Wiring Harness or Connector 🟡 Medium Probability The wiring harness runs down the suspension to the wheel hub and is susceptible to damage from road debris, improper routing, or corrosion in the connector. This is a very common cause if a new sensor does not fix the code.
   How to confirm: Visually inspect the wiring from the sensor connector up into the wheel well for any signs of chafing, breaks, or corrosion. Wiggle the connector and harness while watching live data on a scan tool to see if the signal returns. Check for corrosion inside the connector pigtail.
   Typical fix: Repair the damaged section of wire or replace the pigtail connector (ACDelco PT2307). If the issue persists, the entire rear ABS harness (GM Part #92257573) may need replacement, as this is a known failure point. 🎬 See how to troubleshoot and fix a persistent C0045 code.
   Est. part cost: $15-$40 (Pigtail), $50-$80 (Full Rear Harness)
3. Damaged Tone Ring / Reluctor Ring ⚪ Low Probability While less common than sensor or wire failure, the toothed ring on the axle shaft can become cracked or covered in heavy rust or debris, causing an erratic signal. As a cross-manufacturer reference, NHTSA ODI #11219167 notes a case where a broken left rear wheel speed sensor encoder ring triggered this specific code.
   How to confirm: With the sensor removed, visually inspect the toothed ring on the axle shaft for damage, debris, or severe corrosion.
   Typical fix: Clean the tone ring. If it is cracked or damaged, the axle shaft may need to be replaced.
   Est. part cost: $5 (cleaner) - $300+ (axle)

Rare But Worth Checking

• Failed Electronic Brake Control Module (EBCM): → Shop ABS Control Module This is very rare. The EBCM should only be suspected after all other possibilities (sensor, wiring, tone ring) have been thoroughly tested and ruled out. An EBCM failure may also present with a failure to communicate with the scan tool or multiple wheel speed sensor codes.
🎬 Watch a mechanic demonstrate ABS and TPMS diagnostic repairs.
• Mismatched Tire Sizes or Wear: A significant difference in rolling diameter between the tires (e.g., one new tire and three worn tires) can cause the EBCM to see an implausible speed difference and set a fault code. This is uncommon but has been noted by owners after exhausting other options.

Diagnosis Steps

1. Connect a scan tool capable of reading ABS codes and live data.
2. Confirm C0045 is the active code. Note if any symptom bytes are present (e.g., C0045 00 for 'No Signal' or C0045 0F for 'Erratic Signal'), as this can help differentiate a dead sensor from a wiring issue.
3. View the live data stream for all four wheel speed sensors. Be aware that some scan tools may mislabel the rear sensor data streams.
4. Drive the vehicle slowly (5-10 mph) and observe the sensor readings. Confirm the Left Rear sensor reads 0 MPH or has an erratic signal compared to the other three.
5. Safely lift and support the vehicle and remove the left rear wheel.
6. Visually inspect the wheel speed sensor and its wiring harness for any obvious damage, corrosion, or loose connections.
7. If no visual damage is found, the most probable cause is a failed sensor. Replace the left rear wheel speed sensor.
8. Clear the code and perform another test drive. If the code returns, perform a continuity and resistance check on the wiring harness between the sensor connector and the EBCM.
9. For intermittent faults, especially in wet weather, consider spraying the harness and connector with a 5% saltwater solution to see if the fault can be triggered, indicating water intrusion.
10. If wiring tests good and the sensor is new, inspect the tone ring on the axle for damage.
11. If the code still returns after replacing the sensor and checking the pigtail, the next most likely cause is a failure in the main rear ABS wiring harness (GM #92257573).
12. If all other components test good, the EBCM may be at fault, though this is highly unlikely.

Parts You'll Likely Need

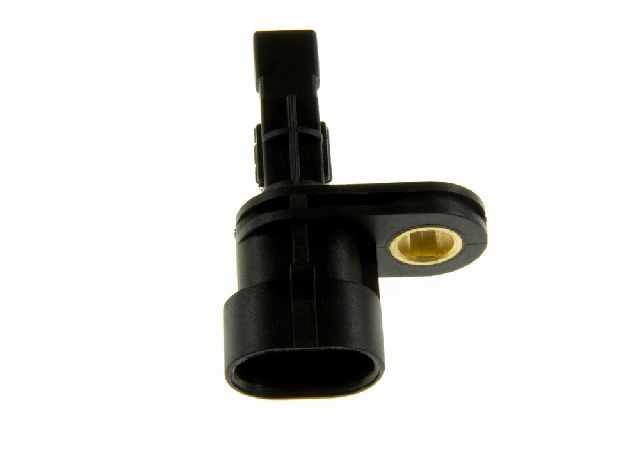

• Rear Wheel Speed Sensor (OEM #92211237) — This is the most common failure point for code C0045. It is a standalone electronic component that fails from age and exposure to the elements.
  Trusted brands: ACDelco, Delphi, Standard Motor Products (ALS2106), Wells (5S11266), Holstein (2ABS1829)
  OEM price range: $50-$75
  Aftermarket price range: $25-$60
• Rear ABS Wiring Harness (OEM #92257573) — This harness connects both rear wheel speed sensors to the main body harness. It can fail due to broken internal wires, causing a persistent C0045 even after the sensor is replaced. It is the second most common fix.
  Trusted brands: GM Genuine
  OEM price range: $50-$80
• Rear Wheel Speed Sensor Connector (Pigtail) (OEM #PT2307) — The connector at the sensor is a common point for corrosion or wire damage. Splicing in a new pigtail is often easier than repairing the old connector.
  Trusted brands: ACDelco, Standard Motor Products (S-575, HP4720), Wells (1P1362)
  OEM price range: $25-$40
  Aftermarket price range: $15-$25

Technical Service Bulletins (TSBs) & Recalls

• No specific TSB for C0045 on the Pontiac G8 was found during research. However, related GM bulletins for other models (e.g., PIT4648D, PI0934) frequently point to issues with wiring harness routing, chafing, and poor terminal connections in connectors as the root cause for this code, reinforcing the need for a thorough wiring inspection.

Documented NHTSA Reports

• NHTSA ODI #11165895 describes a situation where a service center reported code C0045 and recommended replacing the L/R hub bearing assembly, although the owner noted that various online references indicated solutions for others were "all over the place."
• In a cross-manufacturer instance, NHTSA ODI #10382746 reports that a dealer was instructed to erase codes including C0045 and re-program the software after the vehicle experienced powertrain issues.
• NHTSA ODI #11399819 mentions C0045 appearing alongside fuel system codes P0463 and P069E, illustrating how this code can sometimes manifest in conjunction with unrelated electronic faults.

Mechanic-Grade Diagnostic Values

• Wheel Speed Sensor Resistance — expected: No official value is published, but a good sensor's resistance should be compared to a known-good new sensor. A reading of 'OL' (Open Loop) or 0 ohms indicates a failed sensor.. Failure: A reading that is infinite (open) or zero (shorted) strongly suggests a bad sensor.
• Sensor Signal Circuit Voltage (at EBCM connector) — expected: Less than 1 volt with the ignition on and sensor connected.. Failure: Voltage significantly higher than 1 volt could indicate a short to voltage in the harness.

Hidden / Shadow Codes Worth Checking

• C0045 00: No Signal / Circuit Malfunction. This typically indicates a completely failed (dead) sensor, a total wire break, or a disconnected plug. (see via A professional scan tool like a GM Tech2 or high-end scanner capable of reading manufacturer-specific symptom bytes.)
• C0045 0F: Erratic Signal. This often points to a wiring issue with intermittent connection, a poor ground, a damaged tone ring, or debris on the sensor tip causing inconsistent readings. (see via A professional scan tool like a GM Tech2 or high-end scanner capable of reading manufacturer-specific symptom bytes.)
• C0045 5A: Signal Plausibility Failure. The EBCM is receiving a signal, but it doesn't logically match the signals from the other wheel speed sensors. This can be caused by a severely damaged tone ring, incorrect tire sizes, or an intermittent wiring fault. (see via A professional scan tool like a GM Tech2 or high-end scanner capable of reading manufacturer-specific symptom bytes.)

Scan Tool Commands That Help

• GM Tech2 / GDS2: EBCM Live Data Display — This is the primary diagnostic step. Observing the live data for all four wheel speed sensors while driving allows a technician to confirm that the Left Rear sensor is the one providing no signal or an erratic signal compared to the others.
• GM Tech2 / GDS2: Clear DTCs — Used after a repair is completed to erase the stored C0045 code. If the code immediately returns without driving, it indicates a 'hard fault' (a persistent open or short circuit) is still present.
• GM Tech2 / GDS2: EBCM Programming/Setup — This function is only required if the entire Electronic Brake Control Module (EBCM) is replaced, which is a very rare fix for this code.

Wiring & Ground Locations

• EBCM (Electronic Brake Control Module) — The EBCM is the black plastic module attached to the aluminum ABS hydraulic block (BPMV). This assembly is located on the passenger's side of the engine bay, near the strut tower and underhood fuse block.. This module receives the signal from the left rear wheel speed sensor. All circuit testing ultimately leads back to the EBCM connector.
• Left Rear WSS Connector — Directly on the wheel speed sensor, located on the rear of the driver's side wheel hub assembly.. This is the primary point of failure due to exposure. The two wires are typically Gray and Brown with a Black tracer.
• G103 (Engine Block Ground) — On the passenger side (RH) front cylinder head, grounding to the ABS bracket.. A poor engine or main chassis ground can introduce electrical noise or voltage drops that affect various modules, including the EBCM. While not a direct cause, checking main grounds is good practice for any electrical fault.
• G401 (Rear Ground) — In the trunk (rear compartment), on the driver's side (left) rear beam, behind the battery.. This is a major ground point for components in the rear of the vehicle. A loose or corroded G401 could potentially affect the rear ABS harness.

Real Owner Repair Stories

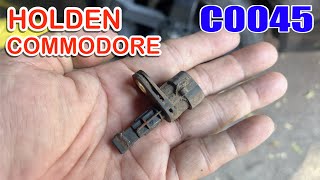

• YouTube video on Holden VE Commodore (G8 platform-mate) (Holden VE Commodore) — ABS and Stability Control warning lights on the dash.
  ❌ Tried (didn't work) The owner was aware that the sensor itself is a common failure but was advised by others that the harness is an equally likely culprit.
  ✅ What actually fixed it The owner pre-emptively replaced the entire rear ABS wiring sub-harness (GM Part #92257573) instead of just the sensor, which resolved the C0045 code.
• GRRRR8.net forum user (2009 Pontiac G8 GXP) — ABS light on, dealership diagnosed a bad ABS module.
  ❌ Tried (didn't work) The dealership quoted $1200 to replace the entire ABS module/pump assembly.
  ✅ What actually fixed it The owner found a blown fuse related to the ABS system. Replacing the $0.99 fuse fixed the problem completely, proving the expensive dealership diagnosis was incorrect.

OEM Part Supersession History

• 92211237 → 92211237 (current) — No supersession. This part number remains the current OEM part for the rear wheel speed sensor.
  Heads up: This sensor fits both left and right rear positions. It also fits the platform-mate Chevrolet Caprice PPV.
• 92257573 → 92257573 (current) — No supersession. This part number remains the current OEM part for the rear axle wiring harness.
  Heads up: This harness is for the VE Commodore Series 1 platform, which corresponds to the 2008-2009 Pontiac G8. Later VE Series 2 and VF models may use a different harness.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used rear ABS wiring harness (GM #92257573) from a low-mileage, non-corrosion-belt donor car can be a cost-effective alternative to a new OEM part. Since it's just wiring, its function isn't typically degraded by age alone, but by physical damage or corrosion.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Inspect the entire length of the harness for any cuts, abrasions, or evidence of prior repairs (e.g., splices wrapped in electrical tape).
• Check the connectors at both ends for any green or white crusty corrosion on the pins.
• Ensure the plastic connector housings and locking tabs are not cracked or broken.
• Bend the harness in several places to feel for internal stiffness, which could indicate internal corrosion or broken wires.

OEM-only on this vehicle (don't cheap out):

• Rear ABS Wiring Harness

Aftermarket brands forum-validated for this vehicle:

• ACDelco (for OEM sensor)
• Delphi
• Standard Motor Products (SMP)
• Wells

Brands owners have reported issues with on this vehicle:

• No-name, unbranded sensors from online marketplaces should be avoided, as their signal quality and durability can be questionable, leading to repeat failures.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0050 — Refers to the Right Rear Wheel Speed Sensor circuit. This code is a direct companion to C0045 and would have the exact same diagnostic procedure (sensor, wiring, tone ring) but for the opposite side of the rear axle.
• C0040 — Refers to the Right Front Wheel Speed Sensor circuit. A fault here will also trigger the ABS and Traction Control lights, as the system requires input from all four wheels to function.
• C0035 — Refers to the Left Front Wheel Speed Sensor circuit. Like C0045, this is a critical input for the ABS and StabiliTrak systems, and a failure will disable them.
