C0045 on 2007-2010 Saturn Outlook: Left Rear Wheel Speed Sensor Circuit Causes and Fixes

What's Unique About the 2007-2010 Saturn Outlook

The Saturn Outlook and its GM Lambda platform siblings (GMC Acadia, Buick Enclave, Chevy Traverse) are highly prone to this specific code due to a design weakness. The magnetic encoder ring, which the sensor reads, is integrated into the rear wheel hub assembly and is exposed to the elements. Over time, this ring corrodes, cracks, or collects metallic brake dust, leading to a distorted or missing signal that the EBCM interprets as a fault. This is so common that GM issued a Technical Service Bulletin (PIC5428H) detailing the issue and recommending inspection before part replacement.

Symptoms You May Notice

• ABS warning light is on
• StabiliTrak / Traction Control warning light is on
• "Service StabiliTrak" or "Service Traction Control" message displayed
• Potential for grinding or clicking noises from the ABS pump at low speeds (false ABS activation).
• Wheels may lock up during hard braking
• A roaring or humming noise from the rear that changes with speed, indicating the wheel bearing itself is also failing.

Most Likely Causes

1. Cracked or Contaminated Magnetic Encoder Ring on Wheel Hub 🔴 High Probability This is a well-documented, widespread issue on the GM Lambda platform. The encoder ring is part of the hub assembly and is susceptible to rust, cracking, and collecting metallic debris from brake wear, which disrupts the sensor signal.
   How to confirm: Remove the 10mm bolt for the left rear wheel speed sensor and pull the sensor out of the knuckle. Use a light and mirror to visually inspect the magnetic ring on the hub for visible cracks, missing chunks, or a fuzzy coating of metallic debris. A scan tool showing an erratic signal (symptom byte 0F) also points strongly to this. A YouTube video by 'kz Guy 2' shows this exact failure on a GMC Acadia, clearly displaying the broken ring. Reports such as NHTSA ODI #11219167 for similar GM designs confirm that a broken encoder ring often requires replacing both the sensor and the hub assembly.
   Typical fix: Replace the entire left rear wheel hub and bearing assembly. If the ring is only covered in debris, cleaning it with a brush may be a temporary fix, but replacement is the permanent solution for a damaged ring. 🎬 Watch this step-by-step guide to replacing the rear wheel bearing.
   Est. part cost: $100-$250
2. Faulty Left Rear Wheel Speed Sensor 🟡 Medium Probability → Shop ABS Wheel Speed Sensor
   How to confirm: After confirming the hub's magnetic ring and wiring are good, test the sensor. Use a multimeter to check for resistance (if it's a passive sensor) or use a scan tool to view the live data stream from the sensor while spinning the wheel. A complete lack of signal points to a failed sensor. Swapping the left and right sensors (if possible) and seeing if the code follows to C0050 is another diagnostic step.
   Typical fix: Replace the left rear wheel speed sensor. The sensor can often become seized in the steering knuckle and may break during removal, so be prepared for a difficult extraction.
   Est. part cost: $30-$70
3. Damaged Wiring or Corroded Connector ⚪ Low Probability The wiring harness is exposed under the vehicle and can be damaged by road debris or corrosion over time.
   How to confirm: Visually inspect the wiring harness from the sensor to the main connector for any signs of chafing, breaks, or corrosion. Disconnect the connectors and check for bent, loose, or corroded pins. A user on the Camaro5 forum with a C0045 code found a cut wire in the harness after replacing both the hub and sensor to no avail.
   Typical fix: Repair the broken section of wire using solder and heat-shrink tubing or replace the damaged connector pigtail.
   Est. part cost: $10-$30

Rare But Worth Checking

• Failed Electronic Brake Control Module (EBCM): → Shop ABS Control Module This is extremely rare and should only be considered after all other possibilities (hub, sensor, wiring) have been exhaustively ruled out. An EBCM failure typically sets multiple codes, not just a single wheel speed sensor fault.
• Software and Cross-System Interference: In some instances, such as described in NHTSA ODI #10382746 for other manufacturers, multiple codes including C0045 appeared and the manufacturer recommended erasing codes and re-programming software. Additionally, NHTSA ODI #11399819 notes C0045 appearing alongside fuel system codes P0463 and P069E on platform-related vehicles.

Diagnosis Steps

1. Connect a scan tool capable of reading ABS codes and confirm C0045 is present. Check for specific symptom bytes like '0F' (Erratic Signal) or '5A' (Plausibility Failure).
2. Use the scan tool's live data function to monitor all four wheel speeds while driving slowly. Confirm that the left rear wheel speed signal is erratic, dropping to zero, or not matching the other wheels.
🎬 See how a wheel speed signal drops out on a scan tool.
3. Raise and safely support the rear of the vehicle. Remove the left rear wheel.
4. Locate the left rear wheel speed sensor on the back of the steering knuckle. It is held in by a single 10mm bolt.
5. Inspect the wiring harness leading to the sensor for any obvious damage, chafing, or corrosion.
6. Remove the 10mm bolt and carefully extract the wheel speed sensor. It may be seized. Be prepared to use penetrating oil and gentle twisting.
7. With the sensor removed, use a light to visually inspect the magnetic encoder ring on the face of the wheel hub assembly. Look for cracks, missing sections, or a build-up of metallic 'fuzz'.
8. If the ring is damaged, the hub assembly must be replaced. If it's just dirty, you can attempt to clean it with a non-metallic brush and brake cleaner, then re-test.
9. If the ring appears perfect, the next step is to test the sensor and wiring. Check for proper voltage and ground at the sensor connector and test for continuity on the signal wires back to the EBCM.
10. Replace parts based on your findings. The most likely part needed is the wheel hub assembly.

Parts You'll Likely Need

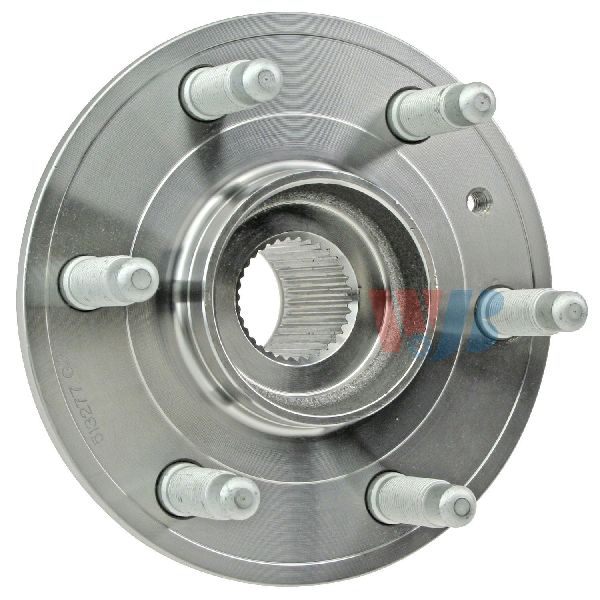

• Rear Wheel Hub and Bearing Assembly (Left) (OEM #25902382) — This is the most common cause of code C0045 on the Saturn Outlook. The integrated magnetic encoder ring fails due to cracking or contamination, requiring replacement of the entire hub unit.
  Trusted brands: ACDelco (Gold FW421 or Silver 512350), MOOG (512350), Timken (HA590158), SKF (BR930638)
  OEM price range: $180-$280
  Aftermarket price range: $100-$200
• Rear Wheel Speed Sensor (Left) (OEM #15233109) — While less common than the hub, the sensor itself can fail electrically. It is a separate part from the hub on this vehicle.
  Trusted brands: ACDelco (GFE1024), Standard Motor Products (ALS1469), Delphi (SS11431), Dorman (970-074)
  OEM price range: $50-$80
  Aftermarket price range: $30-$60

Related Codes That Often Appear With This One

• C0035, C0040, C0050 — These are the codes for the other three wheel speed sensors. If multiple codes are present, it could suggest a systemic issue like a problem with the EBCM or a wiring harness common to multiple sensors.
• C0045 0F — This is a GM-specific symptom byte meaning 'Signal Erratic'. It strongly points to a physical problem with the magnetic ring (cracks, debris) rather than an electrical open/short.

Technical Service Bulletins (TSBs) & Recalls

• PIC5428H (supersedes G, F, E): Addresses DTCs C0035, C0040, C0045, C0050 with specific symptom bytes. It identifies metallic debris on the wheel speed sensor magnetic encoder ring as a primary cause and recommends inspection and cleaning before parts replacement.

Platform-Specific Known Issues

• The magnetic encoder ring on the wheel hub is a known weak point on the entire GM Lambda platform, leading to frequent C0035, C0040, C0045, and C0050 trouble codes.
• Owners on forums frequently advise new owners with this code to inspect the hub's magnetic ring before wasting money on a sensor that is likely not the problem.
🎬 Watch: Why you shouldn't just fire the parts cannon at C0045.

Mechanic-Grade Diagnostic Values

• Wheel Speed Sensor Type — expected: Active, 2-wire, Hall Effect sensor that generates a DC square wave signal.. Failure: Testing with methods for a passive (AC voltage generating) sensor will yield incorrect results.
• Sensor Power Supply Voltage (at sensor connector, key on) — expected: Approximately 12V (battery voltage) on one wire.. Failure: No voltage indicates a wiring problem or issue from the EBCM.
• Sensor Signal Voltage (at sensor connector, key on, wheel stationary) — expected: A DC voltage that toggles between two states (e.g., ~0.7V and ~1.8V) as the wheel is slowly turned, indicating the sensor is switching.. Failure: Voltage that is stuck high, stuck low, or does not change when the wheel is rotated points to a bad sensor or damaged tone ring.

Hidden / Shadow Codes Worth Checking

• C0045 00: No Signal / Circuit Malfunction. Indicates a dead sensor, complete wire break, or disconnected plug. (see via GM GDS2 or other high-end professional scan tool.)
• C0045 06: Circuit Low Voltage/Open. Points to an open wire, short to ground, or high resistance in the circuit. (see via GM GDS2 or other high-end professional scan tool.)
• C0045 18: Circuit Low Signal Amplitude. The signal from the sensor is too weak, often due to an excessive air gap or a failing sensor. (see via GM GDS2 or other high-end professional scan tool.)
• C0045 5A: Signal Plausibility Failure. The EBCM receives a signal, but it doesn't logically match the other wheel speeds. (see via GM GDS2 or other high-end professional scan tool.)

Wiring & Ground Locations

• EBCM (Electronic Brake Control Module) — Located on the left side of the engine compartment, near the brake master cylinder.. This module receives the signal from the left rear wheel speed sensor. The connector is a 38-pin sealed connector and is the central point for testing the circuit from the module side.
• EBCM Connector: Pin 29 — On the 38-pin EBCM connector.. This is the pin for the Left Rear Wheel Speed Sensor Signal. A wiring diagram shows this as a Yellow/Violet wire. This is the specific pin to backprobe to test for the square wave signal arriving at the module.
• G102 — On the right side of the engine compartment, on the inner fender panel.. This is a primary ground point for the Electronic Brake Control Module (EBCM). A loose or corroded ground here can cause erratic behavior and false codes for any of the ABS sensors.
• G401 — Near the base of the left 'D' pillar (rear of the vehicle).. This is a major chassis ground in the rear of the vehicle. While not directly for the EBCM, it can affect components in the rear harness and is a potential source of electrical noise or poor ground reference for circuits in that area.

Real Owner Repair Stories

• YouTube channel 'OldGuyDIY' (2013 Chevy Impala LTZ (similar GM design)) — ABS and Traction Control lights on, code C0045 would not clear.
  ❌ Tried (didn't work) Replacing the entire left rear hub assembly.
  ✅ What actually fixed it The plastic connector plug for the wheel speed sensor had been deformed and was not making a solid connection to the new hub's pins. The fix was to insert small strands of copper wire into the female side of the plug to ensure a tight connection with the male pins on the sensor, which immediately cleared the lights. The long-term fix was to get a replacement pigtail from a junkyard.
• YouTube channel 'Beer Wrench' (2012 Cadillac CTS (similar GM design)) — ABS and Traction Control lights on, codes C0045 and C0050 (both rear sensors).
  ❌ Tried (didn't work) Initial diagnosis pointed to the sensors, but having both fail simultaneously was unlikely.
  ✅ What actually fixed it The magnetic rings on BOTH rear wheel hub assemblies had broken apart. Replacing both rear hubs resolved the codes. The video highlights that if you swap sensors from side-to-side and the code does NOT follow the sensor, the hub is the most likely culprit.
• NHTSA ODI #11165895 (Chevrolet Equinox (similar GM design)) — An owner reported the "Service Stabilitrak" message duration varied from seconds to minutes. A service center confirmed code C0045 and recommended replacing the left rear hub bearing assembly.

Model Year Variations Within This Range

• 2007-2010: For the Saturn Outlook and its Lambda siblings in this year range, the same wheel hub assembly part is used for both the front and rear positions, and it also fits both FWD and AWD models. This simplifies ordering the correct part.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Stretched Timing Chains (3.6L V6) 🔴 High — Very common, often occurring between 70,000 and 120,000 miles. Triggers codes like P0008, P0016, P0017. (Ref: Special Coverage Adjustment #11340C (expired), TSB #12-06-01-009F)
• Broken 3-5-R Wave Plate (6T70/6T75 Transmission) 🔴 High — Common failure leading to loss of reverse and/or harsh shifting in 3rd/5th gears. Often occurs after 60,000 miles. (Ref: Special Coverage #14404 (expired), TSB PIP-4327A)
• Power Steering Pump/Gear Failure 🟠 Medium — Widespread issue causing whining noises, difficulty steering, or complete loss of power assist. (Ref: Special Coverage #14329 (expired))
• Water Leaks 🟡 Low — Leaks from the sunroof drains, windshield, or rear liftgate seal are common, potentially damaging interior electronics. (Ref: TSB #PIC5234D)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used wheel hub assembly is generally NOT recommended for this repair. The magnetic encoder ring is a known high-failure item due to age and environmental exposure. A used part from a junkyard carries a high risk of having the same defect or failing shortly after installation. A used sensor pigtail/connector, however, is a very smart and cost-effective choice if the original connector is damaged.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a used hub: Spin the bearing by hand; it must be perfectly smooth and silent with zero play.
• Visually inspect the magnetic encoder ring on the hub for any cracks, chips, or signs of rust bubbling underneath the magnetic strip. Any imperfection means the part is bad.
• Check the donor vehicle's history if possible; avoid parts from vehicles in the salt belt, as corrosion is the primary killer of these hubs.
• For a used pigtail: Ensure the plastic isn't brittle, the locking tab is intact, and the internal pins are clean and straight.

Aftermarket brands forum-validated for this vehicle:

• Timken
• SKF
• MOOG

Brands owners have reported issues with on this vehicle:

• Unbranded, 'white box' parts from online marketplaces are a gamble, as bearing and seal quality is unknown.
• Some forum users have reported premature failures with store brands or lower-tier lines from otherwise reputable manufacturers, suggesting sticking to premium lines is worth the extra cost.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0035 — Left front wheel speed sensor circuit; shares the same failure mode involving the magnetic encoder ring on the GM Lambda platform.
• C0040 — Right front wheel speed sensor circuit; shares the same failure mode involving the magnetic encoder ring on the GM Lambda platform.
• C0050 — Right rear wheel speed sensor circuit; the direct counterpart to C0045, often used for diagnostic swapping to see if the fault follows the sensor.
• P0008 — Engine positions system performance; a common Saturn Outlook code related to stretched timing chains, which may appear alongside unrelated ABS issues in high-mileage vehicles.
• P0016 — Crankshaft Position - Camshaft Position Correlation; another common code for the 3.6L V6 engine's timing chain issues mentioned in the vehicle's known issues.
