C0045 on 2007-2009 Suzuki XL7: Left Rear Wheel Speed Sensor Circuit Explained

What's Unique About the 2007-2009 Suzuki XL7

The 2007-2009 Suzuki XL7 is built on the General Motors (GM) Theta platform, sharing its chassis and electronics with vehicles like the Chevrolet Equinox, Pontiac Torrent, and Saturn Vue. For this reason, GM's design patterns apply. Specifically, the wheel speed sensor and the magnetic encoder ring it reads are integrated directly into the rear wheel hub and bearing assembly. This means that a failure of either the sensor or the magnetic ring requires replacing the entire wheel hub assembly, not just a small, separate sensor. This design is a well-documented failure point on these GM models.

Symptoms You May Notice

• ABS warning light is on
• Traction Control or Stability Control (e.g., StabiliTrak) warning light is on
• "Service Stability Control", "Service Traction Control", or "All Wheel Drive Off" message may appear on the dash.
• ABS system is disabled (wheels may lock up during hard braking)
• Traction control is disabled (wheels may spin on slippery surfaces)
• In rare cases, the speedometer may behave erratically or stop working.

Most Likely Causes

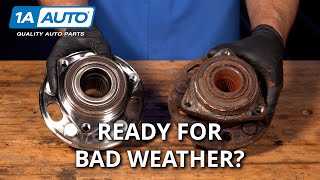

1. Failed Rear Wheel Hub Assembly 🔴 High Probability → Shop Hub Assembly The wheel speed sensor and its magnetic encoder ring are integrated into the hub assembly, a common failure point on this GM platform. The internal sensor can fail, or the external magnetic ring can crack from rust or become contaminated with metallic debris, which interferes with the sensor's reading. An owner report in NHTSA ODI #11219167 specifically noted a broken left rear wheel speed sensor encoder ring as the cause for this code.
   How to confirm: Using a scan tool, observe the live data for the left rear wheel speed. If it reads 0 MPH or shows an erratic signal while the other wheels report speed, the hub is the likely culprit. Visually inspect the magnetic ring on the back of the hub for cracks or metallic debris stuck to its surface.

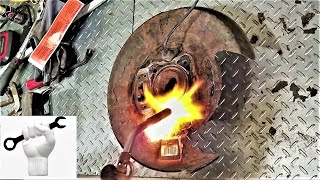

   Typical fix: Replace the entire left rear wheel hub 🎬 See this step-by-step walkthrough for replacing the rear hub assembly. and bearing assembly.
   Est. part cost: $100-$250
2. Damaged Wiring Harness or Connector 🟡 Medium Probability The wiring harness leading to the wheel hub is exposed to road debris, water, and ice, which can cause wires to break, fray, or corrode over time. The connector pins can also become corroded or damaged. GM has issued service bulletins for platform mates regarding harness connectors not being fully seated or terminals backing out.
   How to confirm: Visually inspect the entire length of the wiring from the wheel well to the main harness. Unplug the connector at the hub and check for corrosion, moisture, or backed-out pins. Check for continuity and for shorts to power or ground using a multimeter.
   Typical fix: Repair the broken/corroded section of wire or replace the pigtail connector. However, replacement of the harness section is often recommended over splicing to prevent future corrosion issues.
   Est. part cost: $20-$60
3. Faulty Electronic Brake Control Module (EBCM) ⚪ Low Probability → Shop ABS Control Module
   How to confirm: This is a diagnosis of exclusion. If the wheel hub assembly and wiring have been tested and confirmed to be good, the EBCM is the remaining possibility. This requires advanced diagnostics and should be confirmed by a professional.
   Typical fix: Replace and program the EBCM. A replacement module MUST be programmed to the vehicle with GM-specific software.
   Est. part cost: $200-$600

Rare But Worth Checking

• Fretting Corrosion at EBCM or BCM Connector:
• Software/Programming Issues: In some instances, as seen in NHTSA ODI #10382746 for other manufacturers, software reprogramming has been used to address multiple communication and sensor codes including C0045.

Diagnosis Steps

1. Connect an OBD-II scanner capable of reading ABS codes to confirm C0045 is the active fault.
2. Use the scanner to view live data. Monitor the wheel speed of all four wheels while driving in a straight line above 15 MPH. Confirm that the Left Rear wheel speed sensor reads 0 or has an erratic/incorrect value compared to the others.
3. Safely raise and support the vehicle. Remove the left rear wheel.
4. Visually inspect the wiring harness leading to the wheel hub assembly. Look for any signs of chafing, breaks, melting, or corrosion. Pay close attention to where the harness is clipped to the control arm or subframe.
5. Disconnect the wiring connector at the wheel hub. Inspect the pins for corrosion, moisture, or damage. Check that the terminal pins are fully seated and locked in the connector body.
6. If the wiring appears damaged, repair or replace the affected section or pigtail.
7. If wiring is intact, remove the brake caliper and rotor to access the hub assembly. Inspect the magnetic encoder ring on the inboard side of the hub. Clean it and check for cracks or an accumulation of metallic 'fuzz' that can disrupt the signal.
8. If the wiring and encoder ring appear intact, the most probable cause is an internal failure of the wheel hub assembly itself. Replacement of the hub is the standard repair.
9. After the repair, clear the code with the scan tool and perform a test drive to ensure the warning lights do not return.

Parts You'll Likely Need

• Left Rear Wheel Hub and Bearing Assembly (OEM #GM 15871030 (verify by VIN)) — This assembly contains the integrated wheel speed sensor and magnetic tone ring, which are the most common failure points for code C0045 on this platform.
  Trusted brands: ACDelco (FW411, 512358), Timken (512358), MOOG (512358), SKF (BR930643), Mevotech (H512358)
  OEM price range: $250-$400
  Aftermarket price range: $100-$250
• Rear Wheel Speed Sensor Harness Connector Pigtail (OEM #ACDelco PT2298 (GM 13586115) (verify by VIN)) — The connector at the wheel hub is a common failure point due to corrosion or terminals backing out, as noted in GM service bulletins for platform mates.
  Trusted brands: ACDelco, Dorman
  OEM price range: $30-$50
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• C0050 (Right Rear Wheel Speed Sensor Circuit): If both C0045 and C0050 are present, the problem is highly likely to be in the shared wiring or a connector upstream from the wheels, not two failed hubs at once.
• P0463 and P069E: As noted in NHTSA ODI #11399819, C0045 can sometimes appear alongside fuel system codes on related GM-designed platforms, though the systems are typically independent.

Technical Service Bulletins (TSBs) & Recalls

• GM TSB PI0934 / #13-03-08-001: Although for the 2013 Equinox/Terrain, this TSB is highly relevant as it describes the exact same failure mode: C0045/C0050 caused by rear wheel speed sensor harness terminals not being fully seated in the connector on the control arm. It advises connector replacement, not just reseating the terminal.
• GM TSB PIT5427B: Points to corrosion in the large X411 connector under the rear of the vehicle as a potential cause for multiple sensor codes, including C0045, on the Equinox/Terrain platform. This highlights the importance of checking upstream wiring.
• GM TSB 08-05-22-009C: Discusses fretting corrosion in the BCM connector as a root cause for various electrical issues on platform mates like the Pontiac G6 and Chevy Malibu. While not specific to C0045, it establishes the precedent for this type of failure on GM vehicles of the era.

Platform-Specific Known Issues

• Owner Experience: Successful DIY Fix: A user on 2CarPros.com with a 2008 XL7 reported the 'Service Stability Control' and 'Service Traction Control' messages. After watching a diagnostic video, they identified a bad right rear wheel speed sensor (code C0050, the counterpart to C0045), replaced it for $87, and the warning lights went out. This confirms the sensor/hub assembly is a common and effective fix for these symptoms.

Mechanic-Grade Diagnostic Values

• Wheel Speed Sensor Resistance — expected: 850 - 1500 Ohms (Ω). Note: specifications vary slightly by source, but readings should be similar to other wheels and not an open or short circuit.. Failure: A reading of infinite resistance (open circuit) or near-zero resistance (short circuit). A significant deviation from the other wheel sensors also indicates a problem.
• Wheel Speed Sensor AC Voltage Output — expected: Minimum of 0.25 Volts AC (250mV AC) while spinning the wheel by hand at about half a revolution per second.. Failure: Voltage below 0.25V AC or no voltage generated while spinning the wheel indicates a failed sensor or excessive air gap.

Hidden / Shadow Codes Worth Checking

• C0045 00: No Signal / Circuit Malfunction. This symptom code indicates a complete loss of signal, pointing to a dead sensor, a fully broken wire, or a disconnected plug. (see via GM-specific scan tool (Tech2, GDS2) or high-end professional scanner capable of reading manufacturer symptom bytes.)
• C0045 0F: Erratic Signal. This points towards an intermittent wiring issue, a poor connection, a contaminated magnetic encoder ring, or a cracked tone ring rather than a complete sensor failure. (see via GM-specific scan tool (Tech2, GDS2) or high-end professional scanner capable of reading manufacturer symptom bytes.)
• C0045 5A: Signal Plausibility Failure. The EBCM is receiving a signal, but it is illogical compared to the other wheel speed sensors (e.g., it doesn't change when others do). This often points to a damaged magnetic encoder ring or wiring issues causing signal corruption. (see via GM-specific scan tool (Tech2, GDS2) or high-end professional scanner capable of reading manufacturer symptom bytes.)

Scan Tool Commands That Help

• Tech2 / GDS2: Live Data Monitoring (Wheel Speed Sensors) — This is the primary diagnostic step. Use it to view the speed readings from all four wheels simultaneously while driving. A reading of 0 MPH or an erratic signal from only the left rear wheel, while the others report speed accurately, confirms the fault is isolated to the C0045 circuit.

Wiring & Ground Locations

• Left Rear Wheel Speed Sensor — Mounted on the left rear wheel hub/bearing assembly.. This is the component that generates the wheel speed signal. Its connector is a primary point of failure due to exposure.
• Connector X411 — Under the rear of the vehicle, located behind and to the left of the fuel tank.. This is a large, intermediate connector for the rear chassis harness. GM TSB PIT5427B identifies corrosion within this specific connector as a known cause for C0045 and C0050, often before the pigtail at the wheel fails.
• EBCM Pins 33 & 34 — At the main connector for the Electronic Brake Control Module (EBCM).. According to GM EBCM pinouts, Pin 33 is the 'Left Rear Wheel Speed Sensor Signal' and Pin 34 is the 'Low Reference' (ground). These are the specific pins to test for continuity and shorts back from the sensor connector to verify the integrity of the wiring harness.
• G401 — Under the left side of the luggage compartment/cargo area.. This is a major chassis ground point for various rear components. A loose or corroded ground here could potentially cause intermittent issues with modules and sensors in the rear of the vehicle, including the EBCM or its inputs.

Model Year Variations Within This Range

• 2009: For the 2009 model year, the 5-speed automatic transmission was replaced with a new 6-speed automatic. This change does not directly affect the ABS wheel speed sensor circuit but is a notable mechanical difference within the 2007-2009 generation.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used wiring harness connector/pigtail from a junkyard is a perfectly acceptable repair if it is clean and not brittle. A used Electronic Brake Control Module (EBCM) can be a cost-effective option, but it absolutely REQUIRES professional programming to the vehicle's VIN.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For Hub Assembly: Strongly advise against used. If you must, confirm there is zero play in the bearing and it spins smoothly. Critically, inspect the magnetic encoder ring on the inboard side for any cracks, chips, or metallic debris. A damaged ring will not work.
• For Wiring Connectors: Check for the absence of green/white corrosion. Ensure the plastic isn't brittle and the locking tabs are intact.
• For EBCM: Look for a donor vehicle from a dry climate to minimize the chance of internal corrosion. Ensure the part number matches exactly.

OEM-only on this vehicle (don't cheap out):

• While the EBCM part can be used, the programming MUST be done with GM-specific software (Techline Connect), effectively making it a dealer or specialized shop task. It is not plug-and-play.

Aftermarket brands forum-validated for this vehicle:

• For Wheel Hub Assembly: ACDelco (OEM supplier), Timken, MOOG, SKF, Mevotech are all reputable brands with a long history of producing quality bearings.

Brands owners have reported issues with on this vehicle:

• Avoid unbranded, 'white-box' hub assemblies from online marketplaces. These often use inferior bearings and magnetic encoder rings that can fail prematurely or provide an erratic signal out of the box.
