C0050 on 2007-2009 Pontiac Torrent: Right Rear Wheel Speed Sensor Fault Causes and Fixes

What's Unique About the 2007-2009 Pontiac Torrent

The first-generation Pontiac Torrent (and its Chevrolet Equinox sibling) has separately replaceable ABS sensors, unlike many later GM vehicles where the sensor is integrated into the wheel hub assembly. However, a very common and well-documented issue on this platform is the sensor body seizing inside the cast iron steering knuckle due to rust and corrosion. This can turn a simple sensor replacement into a much more difficult job that may require drilling, heating, or even removing the entire hub assembly to punch the old sensor out from behind. DIY mechanics should be prepared for this significant challenge.

Symptoms You May Notice

• ABS warning light is on
• Traction Control warning light is on
• "Service StabiliTrak" or "Service Traction Control" message on the driver information center
• Unwanted or incorrect ABS activation at low speeds (pulsating brake pedal or grinding noise)
• Cruise control may be disabled

Most Likely Causes

1. Failed Right Rear Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor The sensor is exposed to water, road salt, and debris at the wheel hub, leading to internal electronic failure or severe corrosion over time.
   How to confirm: Use a scan tool that can read live ABS data. Observe the right rear wheel speed signal while driving. If the signal is zero, erratic, or doesn't match the other wheels, the sensor has likely failed. You can also test the sensor's internal resistance with a multimeter after disconnecting it, comparing the reading to the manufacturer's specification. While specific values for the Torrent are not published, a general rule for passive sensors is to compare the resistance to the sensor on the opposite side; they should be within 10% of each other. An open circuit (OL) or short (0 ohms) indicates a bad sensor.
   Typical fix: Replace the right rear wheel speed sensor. This often requires removing the brake caliper and rotor for access. The old sensor is very likely to be seized and require significant effort, and potentially destructive methods, to remove.
   Est. part cost: $20-$60
2. Debris on Magnetic Encoder Ring 🟡 Medium Probability The hub assembly uses a magnetic encoder ring instead of a traditional toothed tone ring. This magnetic surface can attract and accumulate ferrous metallic debris (like brake dust and rust particles), which disrupts the signal read by the sensor.
   How to confirm: After removing the wheel and sensor, visually inspect the brown, rubberized magnetic ring on the inboard side of the wheel hub. Look for a buildup of metallic shavings or 'fuzz'. This is a very common cause for this code, as noted in GM TSB PIC5428G. 🎬 See why cleaning the magnetic ring often fixes this code.
   Typical fix: Gently clean the debris from the magnetic encoder ring using a dry, soft nylon bristle brush. Do not use harsh chemicals or a wire brush, as this can damage the magnetic surface. After cleaning, clear the codes and test drive. In many cases, this resolves the fault without replacing any parts.
   Est. part cost: $0
3. Damaged Wiring or Corroded Connector 🟡 Medium Probability The wiring harness runs near the wheel and suspension, making it vulnerable to damage from road debris, chafing, or corrosion from water and salt intrusion. GM Preliminary Information bulletin PIT5171 notes that for similar models, internal wire breaks can occur near the X411 connector in the left rear of the vehicle. NHTSA ODI #11228687 notes a case where C0050 appeared alongside several other communication and sensor codes (C0035, C0040, U0077), which can sometimes indicate broader harness or grounding issues.
   How to confirm: Visually inspect the wiring harness from the sensor to its connection point on the vehicle body. Look for breaks, chafing, melted sections, or green/white corrosion inside the connector pins. Wiggle the harness while monitoring live data on a scan tool to check for intermittent dropouts. A voltage drop test can also be performed on the power and ground wires between the EBCM and the sensor connector to find high resistance.
   Typical fix: Repair the damaged section of wire or replace the sensor pigtail connector. Ensure the repair is sealed against moisture. If the X411 connector is corroded, it may need to be cleaned or replaced.
   Est. part cost: $15-$30
4. Damaged Reluctor Ring / Wheel Hub Assembly ⚪ Low Probability → Shop Hub Assembly The magnetic reluctor ring, which is integrated into the wheel hub assembly, can become cracked or physically damaged, creating a gap in the magnetic signal.
   How to confirm: After removing the wheel speed sensor, visually inspect the magnetic reluctor ring inside the hub for cracks, missing chunks, or delamination from the hub body. A cracked ring will cause a 'plausible but incorrect' signal.
   Typical fix: If the magnetic ring is cracked or damaged, the entire wheel hub bearing assembly must be replaced. Cleaning will not resolve a physically damaged ring.
   Est. part cost: $80-$200

Rare But Worth Checking

• Failed Electronic Brake Control Module (EBCM): → Shop ABS Control Module This is rare. Before condemning the expensive EBCM, you must exhaustively test the sensor, wiring, and hub assembly. A module failure would typically involve checking for power and ground at the sensor connector; if absent, and the wiring is confirmed good, the fault may lie with the EBCM. Note that on some other GM models, as described in NHTSA ODI #10763888, a C0050 code has been used to identify a faulty Power Steering Control Module (PSCM) involving the entire steering column, though this is less common for the Torrent platform.

Diagnosis Steps

1. Connect a scan tool capable of reading ABS codes to confirm C0050 is the active code. Check for any specific symptom bytes (e.g., 18, 5A, 0F).
2. Use the scan tool to monitor live data from all four wheel speed sensors while driving. Confirm that the Right Rear (RR) sensor reads 0 MPH, shows an erratic signal, or has a reading inconsistent with the other three wheels.
3. Raise and secure the vehicle on jack stands. Remove the right rear wheel.
4. Visually inspect the wheel speed sensor wiring for any obvious damage, chafing, or corrosion. Pay attention to the harness routing and the main connector (X411 area).
5. Remove the brake caliper and rotor to access the wheel speed sensor.
6. IMPORTANT FIRST CHECK: Per GM TSB PIC5428G, inspect the magnetic encoder ring on the hub for metallic debris. If debris is present, clean it off with a soft nylon brush, reinstall the sensor, clear codes, and test drive before proceeding.
7. If cleaning the ring does not work, proceed to remove the 10mm bolt holding the sensor. Attempt to remove the sensor. Be prepared for it to be seized.
8. If sensor is seized: Use penetrating oil, gentle twisting with pliers, or other methods. If it breaks, common removal techniques include: a) Carefully drilling out the plastic center of the sensor; b) Heating the broken plastic with a torch, driving a coarse-thread screw into it, letting it cool, and using a pry bar on the screw to pull it out; c) Removing the entire 4-bolt hub assembly to punch the sensor out from the back.
🎬 Watch: Pro tips for removing a stuck or seized sensor.
9. Once the old sensor is out, clean the mounting hole in the knuckle thoroughly to ensure the new sensor fits properly.
10. Install the new sensor, apply a small amount of anti-seize compound to the body (not the tip) to aid future removal. Reassemble brakes and wheel.
11. Clear the codes with the scan tool and perform a test drive to ensure the warning lights do not return.

Parts You'll Likely Need

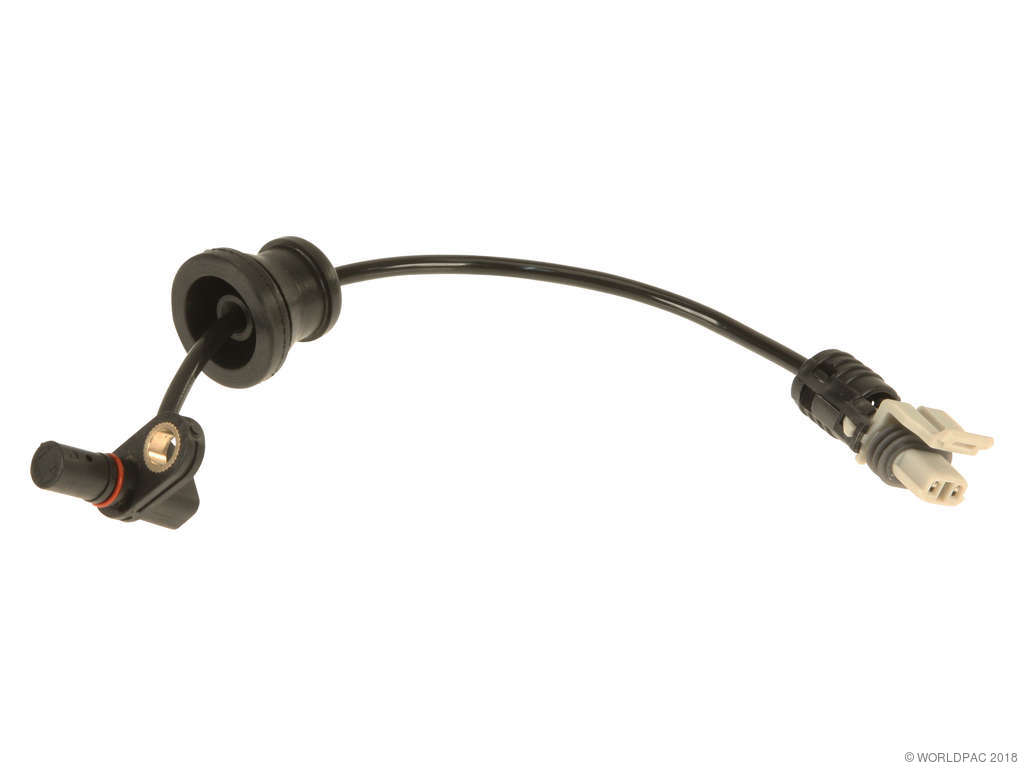

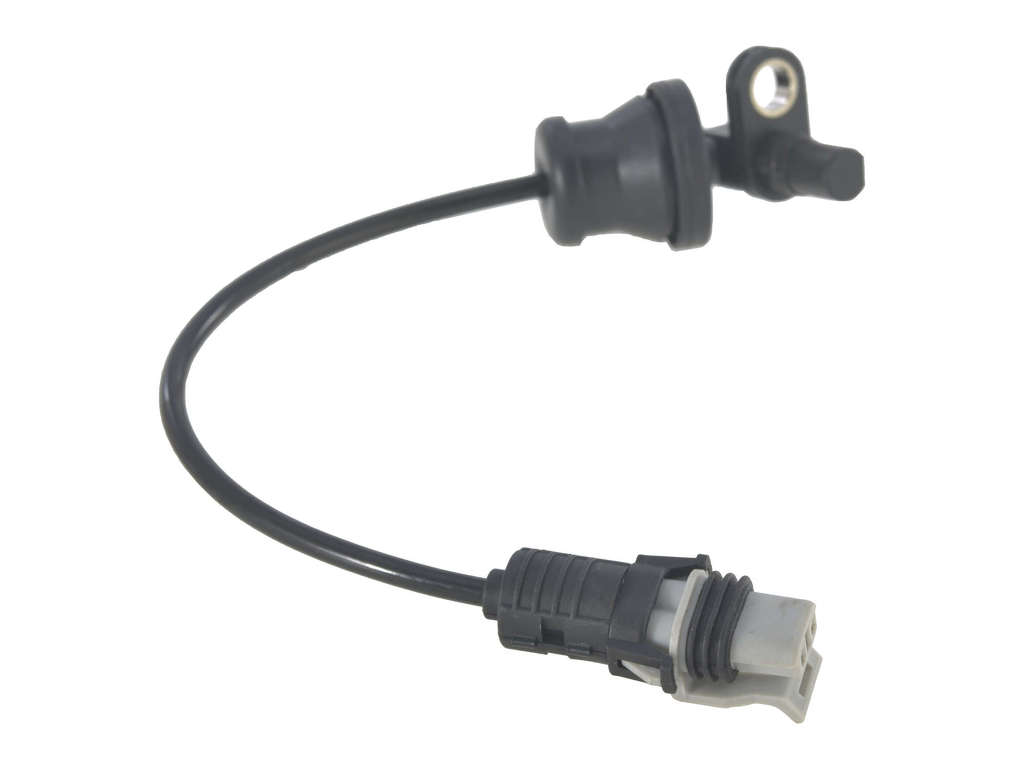

• ABS Wheel Speed Sensor (Rear) (OEM #96626080) — This is the most common failure point for a C0050 code, due to its exposure to the elements and internal electronics failing.
  Trusted brands: ACDelco (GM Original Equipment), Delphi, Standard Motor Products (SMP), Dorman
  OEM price range: $50-$70
  Aftermarket price range: $20-$50
• ABS Sensor Pigtail Connector (OEM #12101932 (example, verify fitment)) — The connector or its wiring can corrode or break, causing an open or short in the circuit. This is a common alternative to a failed sensor.
  Trusted brands: ACDelco, Dorman
  OEM price range: $25-$40
  Aftermarket price range: $15-$30

Technical Service Bulletins (TSBs) & Recalls

• GM PIC5428B / PIC5428G: Highly relevant bulletin for C0035-C0050 codes. States that the cause is often ferrous metallic debris stuck to the magnetic encoder ring on the hub. Recommends inspecting and cleaning the ring with a soft brush before replacing any parts, as this often resolves the issue.
• GM PIT5171: A bulletin for slightly newer (2010+) Equinox/Terrain models that identifies a known issue of internal wire breaks in the harness near the X411 connector (left rear of vehicle) causing C0045/C0050 codes. While for a different generation, it points to a known wiring problem area relevant to this fault.

Documented NHTSA Reports

While the C0050 code is most commonly a sensor or debris issue on the Torrent, other manufacturers use this code in different ways. For example, NHTSA ODI #11649367 describes a situation where the vehicle disables ABS and sets code C0050 after brake service, which the technician attributed to extra brake fluid required to return caliper piston contact to the brake pad. Additionally, NHTSA ODI #11693418 reports a C0050-00 code appearing when rotors, rear brake pads, and adapter plates required replacement. These records highlight that while the sensor is the primary suspect, mechanical brake components should also be inspected.

Platform-Specific Known Issues

• The ABS wheel speed sensor is notorious for seizing in the wheel hub/knuckle due to rust, making removal extremely difficult. Penetrating oil and patience are required, but often fail.
• Real-world removal often requires destroying the old sensor. A common technique is to drill out the center of the plastic sensor body.
• Another successful method shown by mechanics involves heating the broken plastic sensor remnant with a torch, screwing a self-tapping screw into the molten plastic, and then using a pry bar or pliers to extract it after it cools.
• Some owners find it easier to remove the entire 4-bolt hub assembly to gain access to punch the seized sensor out from the back side.

Mechanic-Grade Diagnostic Values

• Passive Wheel Speed Sensor Resistance — expected: Typically 800 - 1,700 Ohms. A more practical test is to compare the resistance of the suspect sensor to the known-good sensor on the other side of the axle; readings should be within 10% of each other.. Failure: A reading of 'OL' (Open Loop) or 0 Ohms indicates a failed sensor. A reading that deviates more than 10% from the opposing sensor also suggests a fault.
• Passive Wheel Speed Sensor AC Voltage Output — expected: At least 100-200 millivolts (0.1-0.2 VAC) when the wheel is spun by hand at about one revolution per second.. Failure: No AC voltage produced while the wheel is spinning indicates a failed sensor.

Hidden / Shadow Codes Worth Checking

• C0050 0F: Erratic Signal. The EBCM sees a signal, but it is inconsistent or drops out, often caused by debris on the magnetic encoder or a loose connection. (see via GM-specific scan tool (Tech2, GDS2, or high-end aftermarket).)
• C0050 18: Signal Amplitude Less Than Minimum. The signal from the sensor is too weak, which can be caused by an excessive air gap (due to rust jacking or improper installation), internal sensor failure, or high resistance in the wiring. (see via GM-specific scan tool (Tech2, GDS2, or high-end aftermarket).)
• C0050 5A: Signal Not Plausible. The sensor's reading is illogical compared to the other wheel speed sensors (e.g., three wheels report 30 MPH and one reports 0 MPH). This is a classic indicator of a failed sensor, broken wire, or complete signal loss. (see via GM-specific scan tool (Tech2, GDS2, or high-end aftermarket).)

Wiring & Ground Locations

• EBCM Ground — The primary ground for the Electronic Brake Control Module (EBCM) on a 2006 Torrent is G105, located at the lower right front of the engine. A bad ground here can cause various and intermittent ABS faults.. A poor ground connection for the EBCM can cause low voltage conditions, leading to erratic module behavior and potentially setting false trouble codes for sensors that are actually working correctly.
• Connector X411 — This is a main body harness connector located in the rear of the vehicle, often cited in GM bulletins for being a source of corrosion and wire breaks for rear-mounted components.. The circuit for the right rear wheel speed sensor passes through this connector. Corrosion or a broken pin within X411 can cause an open or high-resistance fault, triggering C0050 even if the sensor and its pigtail are good.

OEM Part Supersession History

• 15274844 → 22723890 — Standard part lifecycle replacement.
  Heads up: This is for the Electronic Brake Control Module (EBCM), not the sensor. If replacing the module, ensure the new part number is compatible with your vehicle's specific year and options.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used wheel hub assembly from a low-mileage, non-salt-belt donor vehicle can be a cost-effective option if your magnetic encoder ring is damaged and you need to replace the entire hub. A used wiring harness pigtail is also a viable repair for a damaged connector.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a hub assembly, check for zero play or roughness when spinning the bearing by hand.
• Inspect the magnetic encoder ring on the used hub for any cracks, chips, or signs of delamination.
• For wiring, ensure the connector pins are clean, straight, and free of corrosion. The wire insulation should be flexible and not brittle.

OEM-only on this vehicle (don't cheap out):

• Electronic Brake Control Module (EBCM) - Due to the need for programming and high failure rate of used electronics, a new or professionally remanufactured OEM module is the only reliable choice.

Aftermarket brands forum-validated for this vehicle:

• ACDelco (Professional or GM Original Equipment)
• Delphi
• Standard Motor Products (SMP)
• Dorman (for sensors and connectors)

Brands owners have reported issues with on this vehicle:

• Unbranded, 'white-box' sensors from online marketplaces often have high failure rates and may not meet OEM specifications for signal quality, leading to the code returning.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0045 — Refers to the Left Rear Wheel Speed Sensor circuit. This code shares all the same common causes as C0050 (dirty reluctor ring, bad sensor, wiring issues) and is mentioned in the same GM service bulletins (PIC5428G, PIT5171). It will trigger the same ABS and StabiliTrak warnings.
• C0040 — Refers to the Right Front Wheel Speed Sensor circuit. It is a companion code to C0050, covered by the same TSB (PIC5428G) regarding debris on the magnetic encoder ring. The diagnostic process is identical, just performed on the right front wheel.
• C0035 — Refers to the Left Front Wheel Speed Sensor circuit. Like the other wheel speed sensor codes, this is often caused by the same issues of sensor failure or debris on the hub's magnetic ring, as noted in GM TSB PIC5428G.

Frequently Asked Questions
