C0131 on 2012-2019 Chevrolet Sonic: Brake Pressure Sensor Circuit Causes and Fixes

What's Unique About the 2012-2019 Chevrolet SONIC

For the Chevy Sonic and its platform-mates (like the Buick Encore and Chevy Trax), this code has a well-documented and unique cause related to repairs. A series of Technical Service Bulletins (TSBs), most recently PIC5704H, highlight a common installation error where technicians fail to remove protective shipping caps from a new Brake Pressure Modulator Valve (BPMV). This mistake blocks the sensor port, immediately triggers code C0131 with a reading stuck at 5 volts, and can permanently damage the new module, making it a critical point of awareness for this specific vehicle family.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• ABS warning light is illuminated
• StabiliTrak or Traction Control warning light is illuminated
• "Service StabiliTrak" or "Service ESC" message on the instrument cluster
• Brakes may feel different, either hard or soft
• In some related GM vehicles, this fault can lead to the transmission not shifting when the brake pedal is depressed

Most Likely Causes

1. Faulty Brake Pressure Sensor / BPMV Assembly 🔴 High Probability The brake pressure sensor is integrated into the Brake Pressure Modulator Valve (BPMV) and is not sold separately. Over time, the internal diaphragm or electronic components of the sensor can fail, leading to an incorrect or fixed voltage signal.
   How to confirm: Using a capable scan tool (like a GM GDS2), monitor the live data for the brake pressure sensor. If the value is stuck at a fixed voltage (e.g., at 5 volts) and does not change when the brake pedal is pressed and released, the sensor/module has failed.

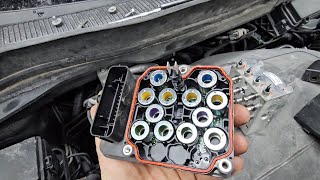

   Typical fix: Replace the entire Brake Pressure Modulator Valve (BPMV) and Electronic Brake Control Module (EBCM) assembly. The new module must be programmed and the brake system must be bled using a scan tool's automated bleed procedure. 🎬 See how to perform an automated ABS brake bleed A brake pressure sensor calibration may also be required.
   Est. part cost: $200-$611
2. Improper Installation of New BPMV (Shipping Caps Not Removed) 🟡 Medium Probability This is a known issue documented in GM Technical Service Bulletins PIC5704 through PIC5704H. New BPMV units are shipped with protective plastic caps over the sensor ports that must be removed before installation. Failure to do so is a common mistake.
   How to confirm: This cause should be the primary suspect if code C0131 appears immediately after the BPMV was replaced. A scan tool will show the brake pressure sensor voltage reading a constant 5 volts. The only way to physically confirm is to remove the BPMV and inspect it for leftover shipping materials.
   Typical fix: Remove the BPMV, remove the forgotten shipping caps, and reinstall it correctly. This may also require replacing the BPMV and/or EBCM if the incorrect installation caused electronic or physical damage to the new parts.
   Est. part cost: $0 if no damage occurred, otherwise the cost of a new module ($200-$611).
3. Wiring or Connector Damage ⚪ Low Probability
   How to confirm: Visually inspect the wiring harness and connector at the EBCM for any signs of corrosion, frayed wires, or loose pins. Perform continuity and resistance checks on the brake pressure sensor circuit between the sensor and the EBCM. A loose connection between the EBCM and the hydraulic unit can also cause this code. Check grounds G103, G104, and G105 for corrosion or looseness.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the connector. Ensure the EBCM is securely mounted to the hydraulic unit with the correct torque. Clean and tighten affected ground points.
   Est. part cost: $10-$50

Diagnosis Steps

1. Connect a professional scan tool capable of reading chassis codes and live data from the EBCM.
2. Confirm that C0131 is the active or stored code. Note if it is C0131 SYM00, as mentioned in TSBs.
3. Navigate to the EBCM live data and monitor the 'Brake Pressure Sensor' parameter.
4. Press and release the brake pedal. The pressure/voltage reading should increase and decrease smoothly from its baseline. A normal reading is near 0V with the pedal released and should increase to over 1V when pressed.
5. If the reading is stuck at a fixed value (often 5 volts), it confirms a sensor/module fault or an installation error.
6. If the code appeared immediately after a BPMV replacement, stop and assume the cause is the shipping cap issue described in TSB PIC5704H. The module must be removed for inspection.
7. If the original module is still installed, inspect the wiring harness and connector going to the EBCM/BPMV for any visible damage, corrosion, or moisture. Check that the module is securely mounted. Inspect grounds G103, G104, and G105 for integrity.
8. If the wiring is confirmed to be good and the sensor signal is faulty, the BPMV/EBCM assembly requires replacement.
9. After replacement, perform the 'Automated Bleed' and 'Brake Pressure Sensor Calibration' procedures using the scan tool.

Parts You'll Likely Need

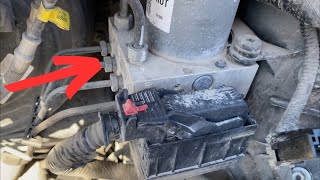

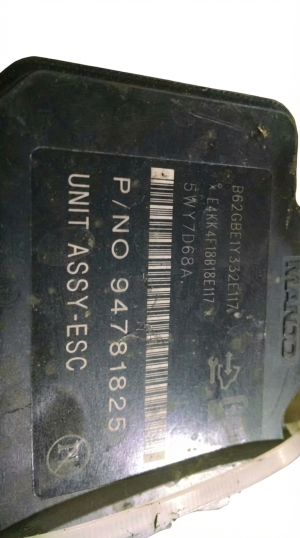

• Brake Pressure Modulator Valve (ABS Module) (OEM #94552161) — This assembly contains the non-serviceable brake pressure sensor that fails and causes code C0131. It is the primary fix for the issue. This part number supersedes 95230592. 🎬 Watch: Chevrolet Sonic ABS module location and replacement walkthrough
  Trusted brands: ACDelco (GM Genuine)
  OEM price range: $350-$611
  Aftermarket price range: $200-$400
• Electronic Brake Control Module (EBCM) (OEM #42353833) — This is the computer that attaches to the BPMV. It is often replaced with the BPMV as a complete assembly and may require programming. It can also be damaged if a new BPMV is installed incorrectly with shipping caps left on.
  Trusted brands: ACDelco
  OEM price range: $200-$380
  Aftermarket price range: $150-$250

Technical Service Bulletins (TSBs) & Recalls

• PIC5704H (Feb 2024): The most recent version, covering 2012-2022 Sonic, 2013-2022 Spark, and 2013-2022 Trax. Warns technicians to remove all shipping material from the new BPMV to prevent C0131 and a 5-volt stuck sensor reading.
• PIC5704G (June 2020): Previous version of the TSB, covering model years up to 2020 for Sonic, Spark, Trax, and Encore.
• PIC5704C (Oct 2016): An earlier version that also includes the Buick Encore and Chevy Trax, highlighting the same installation error.
• PIC5704A (Apr 2013) & PIC5704 (Jul 2012): The earliest versions of the bulletin, showing this has been a known issue since the vehicle's first model year.

Platform-Specific Known Issues

• A common installation error, as documented in TSBs PIC5704 through PIC5704H, involves leaving plastic shipping caps on a new BPMV, which causes code C0131 to set immediately and can damage the new parts.

Mechanic-Grade Diagnostic Values

• Brake Pressure Sensor Voltage (Pedal Released) — expected: ~0 V. Failure: A reading stuck at 5V indicates a failed sensor or, more commonly, an installation error (shipping caps left on). A reading below 0.12V can also set the code.
• Brake Pressure Sensor Voltage (Pedal Applied) — expected: Greater than 1.0 V. Failure: Voltage does not increase when the pedal is pressed, or is greater than 3.2V.
• Brake Pressure Sensor Supply Voltage — expected: 4.75 - 5.25 V. Failure: Voltage is less than 4.5V or greater than 5.3V for more than 1 second.

Hidden / Shadow Codes Worth Checking

• C0131 SYM00: This is the specific variant of the code noted in GM TSBs when the brake pressure sensor voltage is stuck at 5V, often due to the shipping cap installation error. (see via GM GDS2 or equivalent professional scan tool.)
• C0131 5A: Indicates the EBCM has detected an invalid, erratic, or implausible brake pressure sensor signal compared to vehicle acceleration or the brake switch signal. (see via GM GDS2, Tech 2, or equivalent professional scan tool.)
• C0131 3A or 4B: Indicates the EBCM has been replaced but the required brake pressure sensor calibration has not been performed or the learned value is out of range. (see via GM Tech 2 or equivalent professional scan tool.)

Scan Tool Commands That Help

• GDS2 / Tech 2: Brake Pressure Sensor Calibration — This function is required after replacing the EBCM or BPMV to teach the module the new sensor's baseline reading. Failure to perform this calibration can set code C0131 3A or 4B.
• GDS2 / Tech 2: Automated Bleed — This procedure is mandatory after replacing the BPMV or opening any hydraulic lines connected to it. It cycles the internal ABS pump and valves to purge trapped air that cannot be removed with a manual bleed.

Wiring & Ground Locations

• G103 — On a 2013 Sonic, this is located on the left front corner of the engine compartment. On other GM platforms, it's often on the cowl above the brake booster.. This is a major ground point for the Electronic Brake Control Module (EBCM). A poor connection here can cause erratic behavior and various ABS-related codes, including C0131.
• G104 / G105 — On the 2012 Sonic, G104's location was initially mis-documented in service info. G105 is located under the battery tray on the frame rail.. These grounds are critical for module communication. A TSB for the 2012 Sonic notes that loose connections or poor surfaces at these grounds can cause multiple communication codes and no-start issues, which could potentially accompany an ABS fault.
• EBCM Connector — The main electrical connector on the Electronic Brake Control Module, which is attached to the aluminum ABS hydraulic block (BPMV) in the engine compartment.. This is the connection point for the brake pressure sensor's power, ground, and signal wires. Corrosion or loose pins in this 38-pin connector can directly cause code C0131.
