P0012 on 2005-2015 BMW 3 Series: VANOS Causes and Fixes

What's Unique About the 2005-2015 BMW 3 Series

The 2005-2015 3 Series spans two distinct generations, the E9x and F3x, with different engine families that have unique weak points for this code. The earlier E9x models with N52 and N54 engines are susceptible to a serious internal problem where camshaft sealing rings wear grooves into the cylinder head's bearing ledges, causing an oil pressure loss that starves the VANOS system. Later F3x models with the N20 engine are known for premature failure of plastic timing chain guides, which causes the chain to go slack and throws off cam timing, leading to this code and potentially catastrophic engine damage.

Generation note: This range covers the E90/E91/E92/E93 generation (approx. 2005-2013) and the F30/F31/F34 generation (approx. 2012-2015). The most probable causes differ significantly. E9x models (N52/N54/N55 engines) are prone to VANOS solenoid failure and camshaft bearing ledge wear. F3x models with the N20 engine are known for timing chain guide failures.

Symptoms You May Notice

• Check Engine Light is on
• Rough or unstable idle
• Hesitation or loss of power, especially at low RPM
• Reduced fuel economy
• Engine stalling in severe cases
• Rattling or whining noise from the front of the engine (especially on N20 engines, indicating timing chain issues)

Most Likely Causes

1. Low or Dirty Engine Oil 🔴 High Probability The VANOS system is hydraulic and highly sensitive to oil volume, pressure, and cleanliness. Extended oil change intervals can lead to sludge that clogs small passages in the solenoids and non-return valves.
   How to confirm: Check the engine oil level and condition using the dipstick or electronic oil level sensor. Note the date/mileage of the last oil change. Dirty oil can lose its lubricity, accelerating wear on timing components.
   Typical fix: Perform an oil and filter change using a BMW-approved synthetic oil of the correct viscosity. Ensure the oil filter cap's inner cage is intact, as a broken cage can cause oil pressure issues.
   Est. part cost: $70-$120

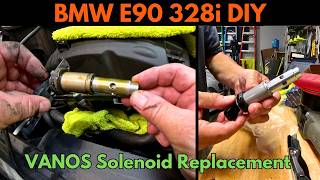

2. Faulty Intake VANOS Solenoid 🔴 High Probability These solenoids are a very common failure point on N51, N52, and N54 engines. They get clogged with oil sludge or fail electronically, preventing them from directing oil to the VANOS actuator. They are identical for intake and exhaust.
   How to confirm: Swap the intake solenoid (top) with the exhaust solenoid (bottom) and clear the codes. If the code changes to P0015 (Exhaust Camshaft), the solenoid is bad. This is a very common and effective diagnostic step discussed widely in owner forums.
   Typical fix: Replace the intake VANOS solenoid. It is located on the front of the engine and held by a single 10mm bolt. 🎬 Watch this walkthrough on replacing and cleaning your VANOS solenoids. Cleaning the solenoid with brake or carb cleaner can be a temporary fix, but replacement is recommended.
   Est. part cost: $40-$150
3. Failing Timing Chain Guides (N20/N26 Engine) 🟡 Medium Probability → Shop Engine Timing Chain N20 engines produced before 2015 used plastic timing chain guides that become brittle and break apart, causing the timing chain to lose tension. This is a well-documented factory defect.
   How to confirm: Listen for a distinct high-pitched whining or whirring sound from the front of the engine, often compared to a dentist's drill, especially between 1,500-2,500 RPM. A visual inspection after removing the oil cap may show a discolored (dark brown) top guide or slack in the chain.
   Typical fix: This is a major repair that involves replacing the timing chain, all guides, and the tensioner with updated parts. It is recommended to also replace the oil pump chain and guides at the same time. BMW released an updated timing chain kit to address this.
   Est. part cost: $300-$700
4. Worn Camshaft Bearing Ledges (N52/N54/early N55 Engines) ⚪ Low Probability → Shop Engine Camshaft Metal sealing rings (called Rectangrings) on the camshafts wear grooves into the aluminum cylinder head or cam tray, causing a loss of oil pressure to the VANOS units. This is a known design flaw on higher-mileage engines and a common cause of persistent, difficult-to-diagnose VANOS codes.
   How to confirm: After ruling out solenoids and oil issues, this is the next logical step. Diagnosis requires removing the valve cover and camshafts to physically inspect the bearing surfaces for grooves. This is often misdiagnosed as a bad solenoid or VANOS gear.
   Typical fix: This is a very intensive and expensive repair. On N54 engines, the cam trays can be replaced. On N52/N55 engines, a grooved intake ledge requires cylinder head replacement as the ledge is integrated into the head.
   Est. part cost: $1000-$4000+
5. Faulty Camshaft Position Sensor ⚪ Low Probability → Shop Engine Camshaft Position Sensor
   How to confirm: Swap the intake and exhaust camshaft position sensors. If the code changes to P0015, the sensor is faulty. A scan tool can also monitor the sensor's live data. This is less common than a solenoid failure.
   Typical fix: Replace the intake camshaft position sensor. The OEM part number is 13627525014 for many of these engines.
   Est. part cost: $50-$135

Rare But Worth Checking

• Clogged VANOS Non-Return Valves: These small check valves are located in the cylinder head behind the VANOS solenoids. They contain small filters that can become clogged with debris, restricting oil flow to the solenoids. They are relatively inexpensive to replace and a good 'while you're in there' item when replacing solenoids.
• Broken VANOS Adjuster Bolts: A recall (NHTSA 23V-707, BMW SI B11 09 23) was issued for certain 2010-2012 models with N51, N52, and N55 engines where the aluminum bolts securing the VANOS adjuster unit to the camshaft could loosen or break, causing a sudden timing change and potential engine stall.

Diagnosis Steps

1. Check Engine Oil: Verify the oil level is correct and the oil is clean. If in doubt, perform an oil and filter change with BMW-approved oil (e.g., LL-01 5W-30). A low oil level is a very common cause.
2. Scan for Codes: Use a BMW-capable scanner to read all fault codes. Note the BMW-specific code (e.g., 2A82) and any other related codes, as they provide more specific diagnostic information.
3. Swap VANOS Solenoids: Unplug and remove the intake (top) and exhaust (bottom) VANOS solenoids. Swap their positions, reinstall them, clear the codes, and drive the vehicle. If the code returns as P0015 (exhaust) or 2A87, the solenoid you moved is faulty. This is the most definitive test for a bad solenoid.
4. Inspect Solenoids and Non-Return Valves: If swapping doesn't isolate the issue, remove the intake solenoid and the non-return valve behind it. Inspect their filter screens for sludge or debris. Clean or replace as necessary.
5. Swap Camshaft Position Sensors: As a next step, swap the intake and exhaust camshaft position sensors. If the code migrates to P0015, the sensor is bad. This is less likely than a solenoid failure.
6. Mechanical Inspection (Advanced): If the above steps do not resolve the issue, a more serious mechanical fault is likely. For N20 engines, this involves listening for the characteristic timing chain whine and inspecting for chain slack. For N52/N54/N55 engines, this involves inspecting the camshaft bearing ledges for wear, which requires valve cover removal. This level of diagnosis is best left to a professional.

Parts You'll Likely Need

• VANOS Solenoid (OEM #11367585425) — This is the most common part to fail, causing P0012 on N51/N52/N54/N55 engines. It gets clogged or fails electronically. Both intake and exhaust solenoids use the same part number.
  Trusted brands: Genuine BMW, VDO (OEM), Febi Bilstein, Pierburg

Related Codes That Often Appear With This One

• 2A82 — This is the BMW-specific fault code for 'VANOS intake stiff; mechanically jammed,' which is the direct equivalent of the generic P0012 code and often appears alongside it.
• P0015 — This code indicates an over-retarded exhaust camshaft. It can appear with P0012 if there is a systemic oil pressure problem (low/dirty oil, bearing ledge wear) affecting both VANOS units. It will also appear after swapping a faulty intake solenoid to the exhaust position for diagnosis.
• 2A98 — BMW-specific code for 'Crankshaft - intake camshaft, correlation'. This code points to a timing discrepancy between the crank and cam, often seen with P0012, especially when mechanical timing is off (e.g., timing chain or bearing ledge issues).

Technical Service Bulletins (TSBs) & Recalls

• BMW SI B11 09 23 (NHTSA Recall 23V-707): Addresses aluminum VANOS adjuster unit bolts that can loosen or break on 2010-2012 models with N51, N52, and N55 engines.
• BMW SI B11 03 17: References the dealer procedure for replacing the timing chain, guides, and oil pump chain components on affected N20/N26 engines.

Platform-Specific Known Issues

• N20 Timing Chain Whine: → Shop Engine Timing Chain The most critical issue for F3x 3 Series with the N20 engine is the timing chain guide failure. The primary symptom is a high-pitched whine from the front of the engine that rises with RPM. Ignoring this can lead to the chain skipping time or breaking, causing catastrophic piston-to-valve contact. The issue was addressed with updated parts in engines produced from 2015 onwards.
• N52/N54 Camshaft Bearing Ledge Wear: → Shop Engine Camshaft A significant design flaw on higher mileage E9x models with N52 and N54 engines. The camshaft's sealing rings wear grooves into the soft aluminum of the cylinder head (or cam tray), causing an internal oil pressure leak that starves the VANOS actuators. This leads to persistent P0012/P0015 codes that cannot be fixed by replacing solenoids or sensors and requires major engine work.
• VANOS Bolt Recall (N51/N52/N55): A safety recall was issued for 2010-2012 models because the aluminum bolts holding the VANOS cam gears could shear off. This would cause an immediate and severe timing fault, likely triggering P0012 and other codes, and could lead to the engine stalling.

Mechanic-Grade Diagnostic Values

• VANOS Solenoid Resistance — expected: Approximately 10.5 - 11.5 Ohms at room temperature.. Failure: A reading of 0 Ohms (short circuit), infinite/OL (open circuit), or a value significantly different from the other solenoid indicates a failure.
• VANOS Solenoid Actuation Test — expected: When 12V is briefly applied to the two pins, the internal plunger should audibly 'click' and visibly move.. Failure: No movement or a sluggish, sticky movement indicates a faulty solenoid.
• N54 Engine Oil Pressure (for reference) — expected: Warm idle: ~40-50 psi. Under acceleration: ~80-105 psi. Cold start: ~90-100 psi.. Failure: Significantly lower pressures, especially at warm idle, can indicate systemic issues like bearing wear that starve the VANOS system.

Hidden / Shadow Codes Worth Checking

• 2A82: BMW-specific code for 'VANOS intake; stiff, mechanically jammed'. This is the direct equivalent of P0012 and the most common code seen with a BMW-specific scanner. (see via BMW-specific scan tools like ISTA, INPA, or higher-end aftermarket scanners (Autel, Foxwell, etc.).)
• 2A98: BMW-specific code for 'Crankshaft - intake camshaft, correlation'. Often appears with 2A82 when there is a significant mechanical timing deviation, such as from a stretched timing chain or bearing ledge wear. (see via BMW-specific scan tools.)

Scan Tool Commands That Help

• ISTA (BMW Dealer Software): VANOS System Test — This is a primary diagnostic function. It commands the VANOS units through their range of motion at idle and compares the setpoint (requested angle) to the actual angle, providing a pass/fail result for each camshaft. It's used to verify if the system is mechanically capable of reaching its targets.
• ISTA, Autel, other advanced scanners: Clear/Reset VANOS Adaptations — This is a critical step that MUST be performed after replacing any VANOS component (solenoids, gears, sensors). It deletes the old learned values from the engine computer (DME), forcing it to re-learn the operational characteristics of the new parts. Failure to do this can cause the code to return even with good parts.
• ISTA: VANOS Ventilation / Bleed Procedure — This is a service function used to purge air from the VANOS hydraulic system. It should be run if the system has been opened for major repairs, such as timing chain replacement or after an oil line was replaced. It can take from 18 to 90 minutes to complete.

Wiring & Ground Locations

• Main Engine Ground Strap (N52/N54) — Located on the driver's side (LHD) of the vehicle, running from the engine mount arm to the chassis frame rail, underneath the car.. While not a direct cause, a corroded or failed main ground strap can cause a host of unpredictable electrical faults and poor sensor readings. Ensuring this ground is intact is a fundamental step in diagnosing any electrical issue on these cars.
• VANOS Solenoid Connectors — Front of the engine cylinder head. The intake solenoid is on top, exhaust is on the bottom.. The wiring harness is often routed in a way that the connectors can only reach their respective solenoids. On the N54, the intake connector wire typically routes from the left, while the exhaust wire routes downwards. Ensuring these are not mixed up after service is crucial.

Real Owner Repair Stories

• YouTube user / E90Post forum thread (E90 3-Series with N52/N54 engine) — Check engine light with code 2A82 (P0012) appeared immediately after an oil change. Rough idle and loss of low-end power.
  ❌ Tried (didn't work) Initial thought was to clean or replace the VANOS solenoids.
  ✅ What actually fixed it The root cause was a broken or missing inner basket cage from the oil filter cap. This allowed oil to bypass the filter and/or caused a drop in oil pressure to the VANOS system. Replacing the entire oil filter cap (BMW P/N 11427525334) resolved the code. This is documented in BMW TSB SI B11 02 08.
• Bimmerpost forum user (2006 325i (E90)) — Persistent 2A82 VANOS intake code.
  ❌ Tried (didn't work) Replaced the intake VANOS solenoid., Cleaned the exhaust VANOS solenoid.
  ✅ What actually fixed it The issue was resolved after replacing the VANOS non-return valves (also called check valves or anti-reflux valves). These small, filtered valves are located in the cylinder head behind the solenoids and had become clogged with debris, restricting oil flow.
• Bimmerpost forum user (2008 335xi (E90 N54) with 153,000 miles) — Intermittent limp mode and 2A82 code, happening at low throttle after extensive maintenance and performance mods.
  ❌ Tried (didn't work) Replaced both VANOS solenoids with new parts., Performed an oil change with high-quality oil and additives., Verified good oil pressure with an aftermarket gauge (40-50 psi warm idle).
  ✅ What actually fixed it The user's story and community feedback strongly pointed to the classic N54 failure: worn camshaft bearing ledges. Though the final repair wasn't posted in the thread, this scenario (new solenoids, good oil pressure, but persistent code) is the textbook symptom of the bearing ledge issue, which requires cylinder head removal to inspect and repair.
• NHTSA ODI #11605604 — An owner reported a timing error with code P0012: Intake Camshaft Position Timing- Over-Retarded (Bank 1). A visual inspection with a bore scope verified that the Intake VANOS bolts were damaged.

"I Checked Everything" — The Actual Cause

• A classic scenario for P0012 is replacing the VANOS solenoids and changing the oil, only for the code to persist. The root cause is often found to be a broken inner cage of the oil filter cap. This part can break during an oil change and get discarded, leading to an internal oil pressure leak that starves the VANOS system but won't be found with external checks. A BMW TSB (SI B11 02 08) specifically addresses this failure mode.

When the Usual Fixes Don't Work

• While replacing the VANOS solenoid is the most common fix, a significant number of owners report that this does not solve the problem. In many of these cases, the issue is not the solenoid itself, but the conditions it operates under. The two most common 'counter-evidence' scenarios are: 1) A broken oil filter housing cage causing an internal oil pressure drop, which is fixed with a new ~$30 cap, not a solenoid. 2) Worn camshaft bearing ledges on higher-mileage N52/N54 engines, which cause a localized loss of oil pressure that no new solenoid can overcome. This is an expensive, engine-out repair.

OEM Part Supersession History

• Various older plastic timing chain guides → Updated timing chain guide kit (various PNs) — The original plastic guides on pre-2015 N20 engines were made of a material that became brittle and would break, causing chain slack and catastrophic engine failure.
  Heads up: Vehicles produced before this date are considered at high risk and should have the timing chain assembly replaced with the updated parts as a preventative measure. There was likely a transition period, so a definitive cutoff by date is not 100% reliable.
• 11367516293 → 11367585425 — Standard part evolution and potential design improvements for the VANOS solenoid.
  Heads up: 11367585425 is the commonly accepted and widely available part number for N52/N54/N55 engines in this range. There are reports of a '2nd generation' solenoid design that is more robust than the originals.

Model Year Variations Within This Range

• 2012 - Early 2015: Models with the N20 engine built during this period used defective plastic timing chain guides. A P0012 code accompanied by a whining noise from the front of the engine is a strong indicator of this issue. Models built after Feb 2015 received updated, more durable parts from the factory.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific code, buying used parts is generally not recommended due to the high failure rate of the primary components. A used VANOS solenoid or camshaft sensor from a very low-mileage, verified donor car could be a short-term budget fix, but it's a significant gamble.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the donor vehicle's mileage and service history if possible.
• For solenoids, inspect the screens for any metal debris or sludge.
• Avoid any parts from an engine that shows signs of oil sludge or neglect.

OEM-only on this vehicle (don't cheap out):

• Timing Chain Kit (for N20 engines): Always buy a new, complete kit with the latest revised parts. A used timing chain is never a good idea.
• Camshaft Bearing Ledges / Cylinder Head: Due to the precision and high cost of failure, using new or professionally refurbished parts is the only reliable option.

Aftermarket brands forum-validated for this vehicle:

• VDO: Often the original equipment (OE) manufacturer for BMW electrical parts, including VANOS solenoids. Generally considered the safest bet next to Genuine BMW.
• Pierburg: A reputable OEM supplier for many BMW parts. Their VANOS solenoids are a common alternative, though some users note they may be manufactured in a different facility/country than the Genuine/VDO parts.
• Febi Bilstein: A known aftermarket brand that offers a more budget-friendly option.

Brands owners have reported issues with on this vehicle:

• Unbranded 'no-name' solenoids from online marketplaces (Amazon, eBay). Forum consensus is that these have a very high rate of being dead-on-arrival or failing prematurely.
• URO Parts: Mentioned with hesitation by some users, though some retailers offer a lifetime warranty which can mitigate the risk of premature failure.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0015 — Exhaust Camshaft Position Timing Over-Retarded. This is the direct counterpart to P0012 for the exhaust camshaft. It will often appear if you swap a faulty intake VANOS solenoid or cam sensor to the exhaust side during diagnosis.
• 2A82 — This is the BMW-specific fault code that corresponds directly to the generic P0012. A BMW-capable scan tool will show this code, which can provide more detailed diagnostic information.
• 2A87 — This is the BMW-specific fault code for the exhaust camshaft timing (equivalent to P0015). It is the companion code to 2A82 and is used in the solenoid swap diagnostic procedure.
• P0011 — Intake Camshaft Position Timing Over-Advanced. This code indicates the opposite problem on the same camshaft. It shares the same root causes as P0012, such as a faulty VANOS solenoid getting stuck, or oil pressure issues.
• P0340 — Camshaft Position Sensor 'A' Circuit Malfunction. While a faulty sensor is a low-probability cause for P0012, a complete failure of the sensor or its wiring could trigger P0340 alongside the timing correlation code.
• P052B — Cold Start 'A' Camshaft Position Timing Over-Retarded. This code can appear with P0012 if the timing issue is most pronounced during cold starts, often pointing specifically to sludged or dirty oil that is too thick to operate the VANOS system correctly when cold.
