P0012 on 2005-2015 BMW X3: Causes and Fixes for Over-Retarded Camshaft Timing

What's Unique About the 2005-2015 BMW X3

The 2005-2015 BMW X3 spans two generations, the E83 (with the N52 engine) and the F25 (with N52, N55, and N20 engines). While all are prone to VANOS solenoid failures due to oil contamination, the F25 models with the 4-cylinder N20 engine (2013-2015 xDrive28i) have a well-documented, serious issue with premature timing chain guide failure. For an N20 engine, P0012 accompanied by a rattling or whining noise is a major red flag that requires immediate attention to avoid catastrophic engine damage. BMW acknowledged this with TSB SIB 11 03 17, extending the warranty on these parts. A separate issue exists on 2010-2012 models with the N52 engine, where aluminum VANOS gear bolts can shear off, also causing timing faults.

Generation note: This guide covers two generations of the BMW X3: - E83 (2005-2010): Primarily equipped with the N52 inline-6 engine. Common causes for P0012 are faulty VANOS solenoids and oil service issues. - F25 (2011-2015): Equipped with the N52 (2011-12), N55 (35i), and N20 (2013-15 28i) engines. While VANOS issues are still common across all engines, the N20 is highly susceptible to timing chain guide failure, which is a much more severe problem. The N52 engines in this range (2010-2012) are subject to a recall for shearing VANOS gear bolts.

Symptoms You May Notice

• Check Engine Light is on
• Rough or unstable idle, sometimes fluctuating on startup
• Loss of power and sluggish acceleration
• Decreased fuel economy
• Engine hesitation or stalling at low speeds
• Long crank during startup
• Rattling or whining noise from the front of the engine (especially on N20 engines)

Most Likely Causes

1. Low, Dirty, or Incorrect Viscosity Engine Oil 🔴 High Probability The VANOS system is entirely dependent on clean oil at the correct pressure to function. Small oil passages in the solenoids can easily become clogged by sludge or debris from extended oil change intervals.
   How to confirm: Check the oil level and condition. Review the vehicle's service history. An oil and filter change is the first and cheapest diagnostic step.
   Typical fix: Perform an oil and filter change using a BMW-approved synthetic oil (e.g., LL-01) and a quality filter (e.g., Mann, Mahle).
   Est. part cost: $70-$120
2. Faulty Intake VANOS Solenoid 🔴 High Probability These solenoids are a very common failure item on modern BMW engines like the N52 and N20. They get clogged with oil sludge or fail electrically over time, causing them to stick.
   How to confirm: Swap the intake solenoid with the identical exhaust solenoid. They are located on the front of the engine head. Clear the codes and run the engine. If the code changes to P0015 (Exhaust Camshaft Position Timing), the solenoid is confirmed to be faulty.

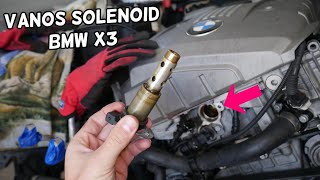

   Typical fix: Replace the faulty VANOS solenoid. 🎬 Watch: How to locate and replace solenoids on your X3. Many owners replace both intake and exhaust solenoids (Part No. 11367585425) at the same time as a preventative measure.
   Est. part cost: $80-$180

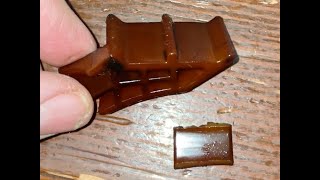

3. Worn or Failed Timing Chain Guides (N20 Engine) 🟡 Medium Probability → Shop Engine Timing Chain The N20 engine used in 2013-2015 X3s has plastic timing chain guides that are known to become brittle and break apart prematurely. This causes the timing chain to lose tension, leading to timing faults. BMW issued a warranty extension for this issue (TSB SIB 11 03 17).
   How to confirm: Listen for a distinct whining or high-pitched sound from the front of the engine, which may be compared to sound files on BMW's TIS website. A professional diagnosis is needed, often involving inspection of the oil filter for plastic debris or partial engine disassembly.
   Typical fix: Complete replacement of the timing chain, plastic guides, tensioner, and associated sprockets. This is a major and expensive repair. 🎬 See how to diagnose N20 timing chain noise and failure.
   Est. part cost: $400-$800 for a full kit
4. Faulty Intake Camshaft Position Sensor ⚪ Low Probability → Shop Engine Camshaft Position Sensor These sensors can fail due to heat and oil contamination, sending incorrect data to the DME. However, they are less likely to fail than the VANOS solenoids.
   How to confirm: The sensor can be tested or swapped with the exhaust sensor (they are the same part, Part No. 13627525014 for N52/N20) to see if the fault code follows. This should only be done after the VANOS solenoids have been tested.
   Typical fix: Replace the intake camshaft position sensor.
   Est. part cost: $60-$150

Rare But Worth Checking

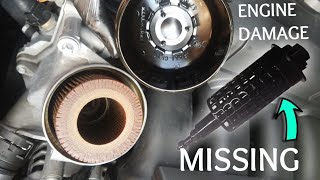

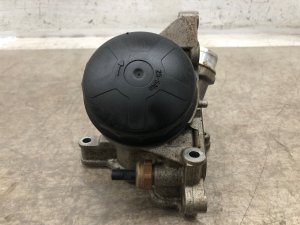

• Damaged or Missing Oil Filter Housing Cage: → Shop Engine Oil Filter Adapter During an oil change, the plastic center cage of the oil filter cap can be broken or inadvertently discarded. 🎬 Watch: Why this missing oil filter cage causes timing codes. This prevents the filter from sealing correctly, causing an internal oil pressure drop that starves the VANOS system and triggers the P0012 code. This is a very common cause if the code appears shortly after an oil service.
• Clogged VANOS Non-Return Check Valves: There are small, filtered check valves screwed into the cylinder head near the VANOS solenoids. These can become clogged with debris and restrict oil flow to the VANOS gears. They can be removed with a T40 Torx bit and cleaned with brake cleaner as a diagnostic step.
• Worn VANOS Camshaft Gear (Phaser): → Shop Engine Camshaft Less common than solenoid failure, the mechanical VANOS gear itself can wear out, become clogged internally, or have its mounting bolts shear off (a known issue on some N52 engines from 2010-2012). This prevents it from adjusting timing correctly and is typically a last resort after all other components have been verified.

Diagnosis Steps

1. Read the fault codes with a BMW-capable scanner to confirm P0012 and the presence of the specific 2A82 code.
2. Check the engine oil level and condition. If low, top it off. If old or dirty, perform an oil and filter change with BMW-approved oil.
3. Inspect the oil filter cap to ensure the inner plastic cage is present and not broken. This is a very common failure point, especially after a recent oil change.
4. Locate the two VANOS solenoids on the front of the engine head. Unplug both and swap their positions (intake is usually top, exhaust is bottom).
5. Clear the fault codes and drive the vehicle. Re-scan for codes. If P0015 ('B' Camshaft) and/or 2A87 (BMW exhaust VANOS code) appear, the original intake solenoid is bad and needs replacement.
6. If the code P0012/2A82 returns, the issue is not the solenoid. The next step could be to remove and clean the VANOS non-return check valves located near the solenoids.
7. Inspect the wiring and connector for the intake VANOS solenoid and camshaft position sensor for any damage or oil contamination.
8. Test the intake camshaft position sensor, potentially by swapping it with the exhaust sensor (if they are the same part number). If the code follows the sensor, replace it.
9. If all the above steps fail to resolve the code, especially if you hear engine noises on an N20 model or have a 2010-2012 N52, seek a professional diagnosis for a potential mechanical timing issue (timing chain, guides, or VANOS gear bolts).

Parts You'll Likely Need

• Intake/Exhaust VANOS Solenoid (Oil Control Valve) (OEM #11367585425) — This is the most common cause of P0012. It gets clogged or fails electrically, preventing proper camshaft adjustment. Both intake and exhaust solenoids are identical.
  Trusted brands: BMW (OEM), Pierburg (OEM Supplier), VDO
  OEM price range: $150-$200
  Aftermarket price range: $60-$130
• Timing Chain Kit (for N20 Engine) (OEM #11318648732 (Main Chain), Full kit P/N 11315A19AA2) — For 2013-2015 X3 models with the N20 engine, this code is a strong indicator of failing timing chain guides, requiring a full kit replacement.
  Trusted brands: Iwis (OEM supplier), Febi Bilstein
  OEM price range: $600-$800
  Aftermarket price range: $350-$500
• Oil Filter Housing Cap (OEM #11427525334) — The inner cage can break or be discarded during an oil change, causing a loss of oil pressure to the VANOS system. This is a common fix if the P0012 code appears after an oil service.
  Trusted brands: BMW (OEM), Mahle, Mann-Filter
  OEM price range: $25-$40
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• 2A82 — This is the BMW-specific fault code for 'VANOS intake, sluggish' or 'VANOS intake, stiff'. It is the manufacturer equivalent of the generic P0012 and will almost always be present when read with a BMW-specific scanner.
• P0015 — If oil sludge or low oil pressure is the root cause, it can affect both the intake and exhaust VANOS systems, potentially triggering the exhaust-side timing code as well. If P0015 appears after swapping solenoids, it confirms the original intake solenoid was faulty.
• P0016 / P0017 — On N20 engines, these crankshaft-camshaft correlation codes often appear alongside P0012 when the timing chain has jumped a tooth due to guide failure.
• Misfire codes (P0300-P0306) — Incorrect camshaft timing can lead to poor combustion, causing the engine to misfire on one or more cylinders.

Technical Service Bulletins (TSBs) & Recalls

• SIB 11 03 17: This BMW Service Information Bulletin details a warranty extension for the timing chain and oil pump drive components on N20 and N26 engines. The warranty was extended to 7 years or 70,000 miles for defects in materials or workmanship due to premature guide wear and chain stretching. The repair involves replacing the timing chain, guides, tensioner, and oil pump chain module.

Platform-Specific Known Issues

• N20 Engine Timing Chain Failure: Models from 2013-2015 with the N20 engine are subject to premature failure of the plastic timing chain guides. BMW North America acknowledged this with TSB SIB 11 03 17, extending the warranty to 7 years or 70,000 miles on these components for affected vehicles. A P0012 code, especially with a whining noise, is a primary symptom.
• Missing Oil Filter Cage: It is a common mistake for technicians or DIYers to accidentally discard the plastic center cage from the oil filter housing cap during an oil change. This leads to a loss of oil pressure for the VANOS system and will set timing codes like P0012.

Mechanic-Grade Diagnostic Values

• VANOS Solenoid Electrical Test — expected: A 'click' sound when 12V power is briefly applied to the two pins.. Failure: No clicking sound indicates the solenoid is seized or electrically failed.
• VANOS Solenoid Resistance — expected: Approximately 6 to 12 Ohms, though this can vary.. Failure: A reading significantly outside this range, or an open circuit (infinite resistance), indicates a failed coil.

Hidden / Shadow Codes Worth Checking

• 2A82: The BMW-specific code for 'VANOS intake; sluggish, mechanically stuck'. This is the primary code that corresponds to the generic P0012. (see via A BMW-specific scan tool like ISTA, INPA, or a high-end aftermarket scanner (Foxwell, Autel, etc.).)
• 2A98: Corresponds to P0016, 'Crankshaft - intake camshaft, correlation'. Often appears with 2A82 if the timing has jumped. (see via A BMW-specific scan tool.)
• 2A87: The exhaust-side equivalent of 2A82. If this code appears after swapping the intake and exhaust solenoids, it confirms the original intake solenoid was faulty. (see via A BMW-specific scan tool.)

Scan Tool Commands That Help

• ISTA/D: Delete engine adaptation values — This function should be run after replacing VANOS components like solenoids or cam sensors to force the DME to relearn the new parts' operational characteristics. The path is Vehicle management > Service function > Power train > Engine Electronics > Adjustment functions > Delete engine adaptation values.
• ISTA/D: Variable camshaft control test — This is a guided diagnostic test plan within ISTA that will command the VANOS system to move and measure the response, helping to determine if the issue is electrical, mechanical, or hydraulic.
• ISTA/D: Learn valvetronic limit positions — While not directly for VANOS solenoids, this procedure is often run when doing major engine work in this area. It calibrates the eccentric shaft sensor and valvetronic motor stops and is required if any of those components are disturbed.

Wiring & Ground Locations

• Main Engine Ground Strap — Connects the driver's side engine mount arm to the vehicle's chassis, underneath the car.. A corroded or broken ground strap can cause a host of electrical issues, including erratic sensor readings and insufficient voltage to solenoids, potentially triggering false codes. Slow engine cranking is a common symptom of a bad ground strap.
• X60002, Pin 5 — This is the connector for the DME (engine computer). Pin 5 is the specific pin that sends the activation signal to the intake VANOS solenoid valve.. If a VANOS solenoid tests good and swapping it doesn't solve the problem, a technician would test for a signal at this pin to diagnose a wiring break or a faulty DME driver.

Real Owner Repair Stories

• Bimmerpost user GORDON.M3 (BMW E90 with N52 engine) — Persistent 2A82 (P0012) VANOS code.
  ❌ Tried (didn't work) Replaced both VANOS solenoids.
  ✅ What actually fixed it The oil filter cage inside the cap was damaged. Replacing the oil filter cap resolved the code and restored power.
• Reddit user Brilliant-Writer-233 (2011 BMW 528i with N52 engine) — P0012 code, very long crank during startup, and occasional rough idle.
  ❌ Tried (didn't work) Oil and filter change, Replaced both intake and exhaust camshaft position sensors, Replaced both VANOS solenoids, Cleaned the VANOS non-return check valves
  ✅ What actually fixed it The issue was identified as sheared VANOS gear bolts, a known problem for 2009-2011 N52 engines. This requires valve cover removal and replacement of the VANOS adjuster units with updated parts.
• Bimmerpost user (BMW E90 with N52B25 engine) — P0012 and 2A82 codes with heavy power loss immediately after an oil change at a shop.
  ❌ Tried (didn't work) Replaced camshaft sensor, Replaced crankshaft sensor
  ✅ What actually fixed it The problem was a missing plastic center cage from the oil filter cap, which was inadvertently thrown away by the shop during the oil service. Replacing the cap and filter fixed the issue.

Documented NHTSA Reports

• NHTSA ODI #11605604: An owner of a vehicle with a similar engine platform reported a timing error where the Intake VANOS bolts were found to be damaged upon visual inspection with a bore scope. The vehicle exhibited code P0012: Intake Camshaft Position Timing- Over-Retarded (Bank 1).

OEM Part Supersession History

• 11367516293 → 11367585425 — Updated design for improved reliability and resistance to clogging.

Model Year Variations Within This Range

• 2013-2015 (F25 X3 with N20 engine): These models are highly susceptible to premature timing chain guide failure, which is a primary cause of P0012, often accompanied by a whining or rattling sound. This is less of a concern on the 6-cylinder N52/N55 engines.
• 2010-2012 (Models with N52 engine): These specific years were part of a recall and extended warranty program for aluminum VANOS adjuster gear bolts that could loosen and shear off, causing timing faults like P0012. The replacement bolts are steel and typically black, while the original faulty bolts were silver-colored aluminum.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific fault, using used parts is generally not recommended for the most common failure items. A camshaft position sensor could potentially be sourced from a low-mileage donor vehicle, but solenoids and mechanical timing parts should be new.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify donor vehicle mileage.
• Inspect electrical connectors for corrosion or oil contamination.
• Check plastic components for brittleness or cracks.

OEM-only on this vehicle (don't cheap out):

• VANOS Solenoids: Aftermarket solenoids are notoriously unreliable and can fail quickly, leading to the same code returning.
• Oil Filter Cap: Aftermarket caps may have poorly manufactured inner cages that do not seal correctly, causing the very oil pressure drop you are trying to fix.
• Timing Chain Components: Given the critical nature and high labor cost, using anything other than OEM or OEM-supplier (Iwis) parts is a significant risk.

Aftermarket brands forum-validated for this vehicle:

• Pierburg (OEM supplier for VANOS solenoids)
• Mann-Filter (OEM supplier for oil filters)
• Mahle (OEM supplier for oil filters and gaskets)
• Iwis (OEM supplier for timing chains)

Brands owners have reported issues with on this vehicle:

• Unbranded solenoids from eBay or Amazon are a gamble.
• URO Parts has a mixed reputation in forums for electronic components; while some parts are fine, they are often considered a budget option not suitable for critical systems like VANOS.

Related OBD-II Codes

• P0015 — Exhaust Camshaft Position Timing - Over-Retarded. This code will often appear after swapping a faulty intake VANOS solenoid with the exhaust solenoid during diagnosis, confirming the solenoid is the problem.
• 2A82 — This is the BMW-specific manufacturer code that corresponds directly to the generic P0012 fault. A BMW-capable scanner will typically show both.
• 2A87 — This is the BMW-specific manufacturer code for the exhaust VANOS system, corresponding to P0015. It will appear if a faulty intake solenoid is moved to the exhaust position for testing.
• P0011 — Intake Camshaft Position Timing - Over-Advanced. This code points to the same set of components (VANOS solenoid, oil pressure, camshaft sensor) as P0012, but indicates the timing is too far advanced instead of retarded. A sticking solenoid can cause either fault.
• P052B — Cold Start 'A' Camshaft Position Timing Over-Retarded. This is a more specific version of P0012 that indicates the fault is most prominent during cold starts, often pointing to sludgy oil or a slow-to-react VANOS solenoid.
• P0340 — Camshaft Position Sensor 'A' Circuit Malfunction. While a less common cause, a failing intake camshaft position sensor can send incorrect data to the DME, leading to a P0012 code. This code indicates a direct electrical fault with the sensor itself.
