P0022 on 2018-2024 Lexus LC 500 5.0L V8: Over-Retarded Cam Timing Causes and Fixes

What's Unique About the 2018-2024 Lexus LC 500

The Lexus 2UR-GSE 5.0L V8 features a sophisticated dual Variable Valve Timing system co-developed with Yamaha. It uses an electric motor-driven system (VVT-iE) to control the intake camshafts and traditional oil pressure (VVT-i) for the exhaust camshafts. Since P0022 relates to the intake cam, diagnosis must include not only the typical oil-related components (OCV, filters, phaser) but also the VVT-iE electric motor, its controller, and wiring, which is a key distinction for this high-performance engine.

Symptoms You May Notice

• Check Engine Light is on
• Engine hesitates or stumbles on acceleration
• Rough idle, car may shake
• Reduced engine power or performance (limp mode)
• Decreased fuel economy
• Engine is hard to start or hesitates before turning over
• Stalling when coming to a stop
• Engine bogging or stuttering shortly after startup

Most Likely Causes

1. Low, Incorrect, or Dirty Engine Oil 🔴 High Probability The VVT system is highly dependent on oil pressure and cleanliness to function. Sludge or contaminants from extended oil change intervals can clog the small passages in the Oil Control Valve (OCV) and its filter, leading to a stuck or slow response.
   How to confirm: Check the oil level on the dipstick and inspect its condition. If it's low, dark, or sludgy, it needs to be changed. This is the first and most crucial step.
   Typical fix: Perform an oil and filter change using the manufacturer-specified oil (e.g., 0W-20 or 5W-30 synthetic) and a quality OEM filter (e.g., Toyota P/N 04152-YZZA4). In many cases, simply changing the oil can resolve 🎬 Watch: Two simple DIY methods to fix the P0022 code the issue if it was caused by contamination.
   Est. part cost: $70-$120
2. Faulty Camshaft Timing Oil Control Valve (OCV) 🟡 Medium Probability → Shop Engine Variable Valve Timing (VVT) Solenoid The OCV is a solenoid that can become clogged with debris from the oil or fail electrically over time, preventing it from properly directing oil flow to the VVT components. It's a common failure point on many Toyota/Lexus VVT systems.
   How to confirm: A mechanic can command the solenoid on and off with a scan tool to check its response. It can also be removed and tested for resistance (typically 6.9-7.9 ohms at 68°F/20°C) or by applying 12V to see if it actuates. Swapping the Bank 2 OCV with the Bank 1 OCV and seeing if the code changes to P0012 is a common and effective diagnostic trick.
   Typical fix: Replace the Bank 2 intake oil control valve. The OEM part is recommended.
   Est. part cost: $100-$190
3. Clogged Oil Control Valve Filter Screen 🟡 Medium Probability → Shop Engine Variable Valve Timing (VVT) Solenoid There is a small, fine mesh filter screen that protects the OCV from debris. This screen can become clogged with sludge, starving the VVT system of oil pressure even if the OCV itself is functional.
   How to confirm: The filter is typically located in the cylinder head, underneath the OCV. It must be removed and visually inspected for blockage.
   Typical fix: Clean or replace the small filter screen. It is often recommended to replace it as it is inexpensive and can be difficult to clean perfectly.
   Est. part cost: $5-$20
4. Failed Camshaft Phaser (VVT Actuator) ⚪ Low Probability → Shop Engine Camshaft The mechanical phaser on the end of the camshaft can fail internally or get stuck due to sludge or wear, preventing it from changing the cam timing as commanded.
   How to confirm: This is typically diagnosed after all other possibilities (oil, OCV, filter, VVT-iE motor) have been ruled out. It requires significant labor to access and inspect.
   Typical fix: Replace the Bank 2 intake camshaft phaser assembly. This is a labor-intensive job.
   Est. part cost: $300-$500

Rare But Worth Checking

• Failed VVT-iE Electric Motor: Unique to the 2UR-GSE's intake cams, the electric motor that drives the VVT-iE system can fail. A common diagnostic on the related IS F platform is to remove the motor and attempt to spin the gear by hand. A new, healthy motor spins freely, while a failing one will be very stiff or seized. This is a known failure point on high-mileage 2UR-GSE engines.
• Stretched Timing Chain or Worn Guides: → Shop Engine Timing Chain While the 2UR-GSE uses a robust timing chain, significant wear over very high mileage could affect the base timing enough to trigger a VVT code. This is usually accompanied by rattling noises.
• Faulty ECM (Engine Control Module): In very rare cases, the computer itself can be the source of the problem, failing to properly control or read the VVT system. This should be the last consideration after all other components and wiring have been verified.

Diagnosis Steps

1. Verify the engine oil level is correct and the oil is clean. If in doubt, perform an oil and filter change with manufacturer-recommended 0W-20 or 5W-30 oil. Clear codes and test drive.
2. Use an OBD-II scanner to view live data. Observe the commanded vs. actual intake camshaft position for Bank 2. A significant, persistent difference confirms the issue.
3. Listen for any unusual engine noises like clicking or rattling that could indicate a timing chain or phaser problem.
4. Inspect the wiring and connector for the Bank 2 intake Oil Control Valve (OCV) for any damage or corrosion.
5. Swap the Bank 2 (driver's side) intake OCV with the Bank 1 (passenger's side) intake OCV. Clear the codes and drive the vehicle. If the code returns as P0012 (Bank 1), the OCV is faulty and needs to be replaced.
6. If the code remains P0022, inspect and clean or replace the small OCV filter screen located in the cylinder head.
7. If the OCV and filter are good, inspect the VVT-iE motor for Bank 2. On related platforms, a known test is to remove the motor and check if it spins freely. A seized or very stiff motor is faulty and needs replacement.
8. If all other components are verified to be working, the issue may lie with the cam phaser itself or the timing chain. These are more complex repairs and may require professional diagnosis.

Parts You'll Likely Need

• Camshaft Timing Oil Control Valve (OCV) (OEM #15330-0S010 (supersedes 15330-38010)) — This solenoid is a frequent failure point. It gets clogged with oil sludge or fails electrically, preventing it from controlling cam timing correctly. This part is shared across many Lexus V8 engines.
  Trusted brands: Lexus (Genuine), Aisin, Denso
  OEM price range: $120-$190
  Aftermarket price range: $70-$120
• Oil Control Valve Filter (OEM #15678-46020 or 15678-37010) — This small screen protects the OCV and can become clogged with debris, restricting oil flow and causing timing issues. It's a cheap and easy part to replace during diagnosis.
  Trusted brands: Lexus (Genuine)
  OEM price range: $5-$20
  Aftermarket price range: $5-$15

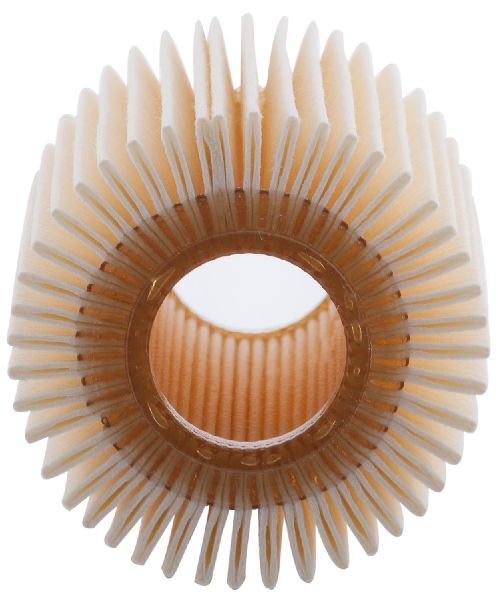

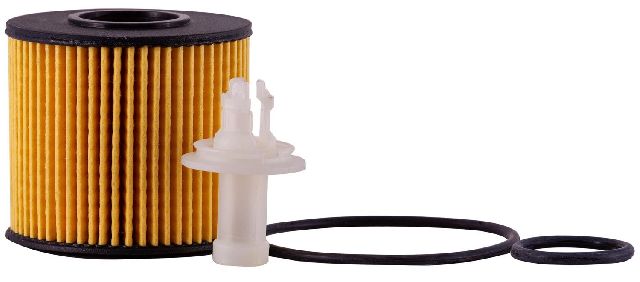

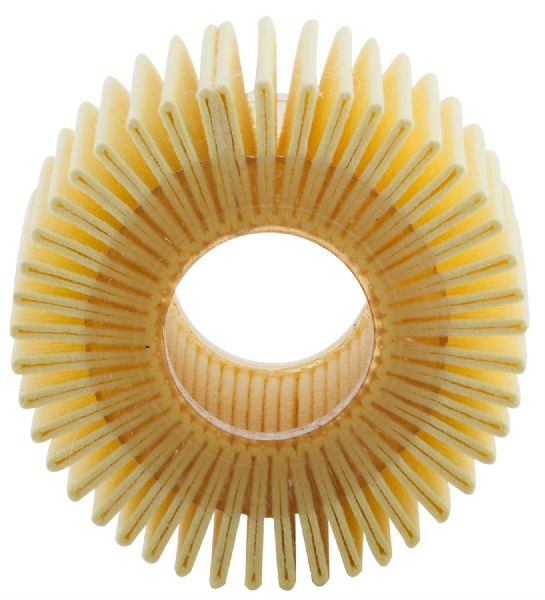

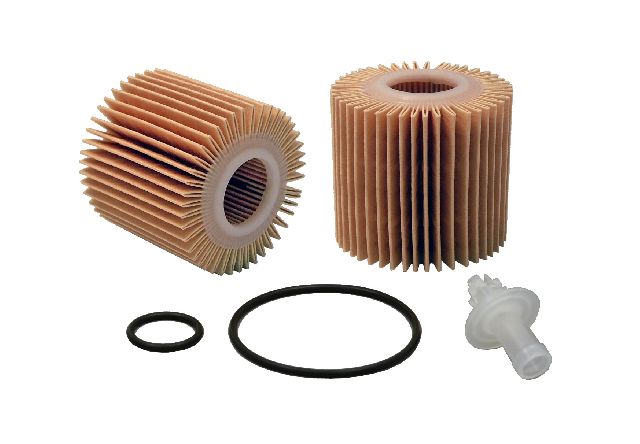

• Engine Oil Filter (OEM #04152-YZZA4) — A fresh, high-quality oil filter is essential when addressing any oil-pressure related fault code. A clogged or poor-quality filter can cause or contribute to the problem.
  Trusted brands: Toyota (Genuine)
  OEM price range: $10-$20
  Aftermarket price range: $5-$15
