P0102 on 2005-2010 Pontiac G6 3.5L V6: Causes, Fixes, and MAF Sensor Diagnosis

What's Unique About the 2005-2010 Pontiac G6

The Pontiac G6 uses a common GM "hot wire" MAF sensor design that is generally reliable but can be sensitive to contamination from dirt or oil, especially if an aftermarket oiled air filter is used. While there are no major widespread design flaws specific to the G6, owner experiences strongly suggest that these cars are sensitive to non-OEM replacement sensors, sometimes causing the code to return even after replacement. Real-world repair stories indicate that wiring problems, such as a broken ground wire in the harness, can be the root cause even after a new sensor is installed. The issue is most frequently related to the sensor itself, its wiring, or upstream airflow restrictions rather than a unique problem with the LZ4 engine's control system.

Symptoms You May Notice

• Check Engine Light is on.
• Engine runs rough or idles poorly.
• Hesitation or lack of power during acceleration.
• Engine may stall, sometimes when coming to a stop or decelerating.
• Reduced fuel economy.
• Black smoke from the exhaust, indicating a rich fuel mixture.
• Engine is hard to start.

Most Likely Causes

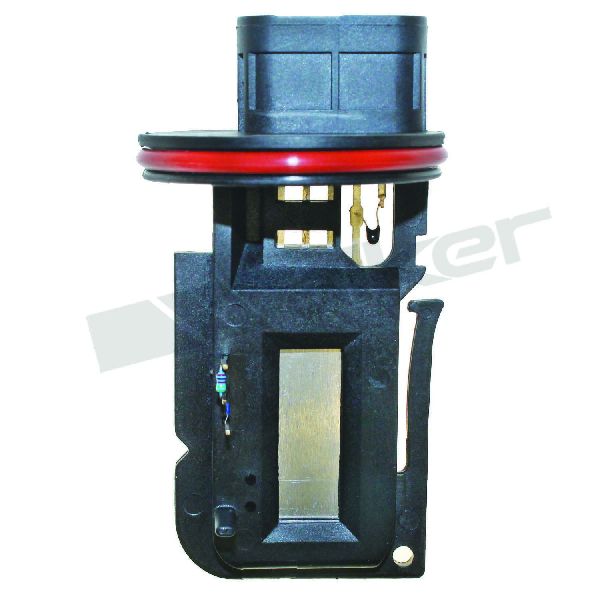

1. Dirty or Contaminated MAF Sensor 🔴 High Probability → Shop Fuel Injection Air Flow Meter The hot wire element is sensitive to oil and dirt buildup from the intake air, which insulates it and causes incorrect readings. This is a very common first point of failure.
   How to confirm: Visually inspect the MAF sensor wires (located in the intake tube after the air filter box). If they appear dirty or coated, cleaning is warranted.

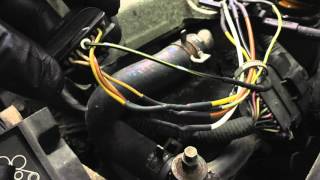

   Typical fix: Remove the sensor and clean it carefully using only dedicated MAF sensor spray cleaner. 🎬 Watch this detailed guide on how to clean your sensor properly. Do not touch the delicate wires and allow it to air dry completely before reinstalling.
   Est. part cost: $8-$15 for a can of MAF cleaner.

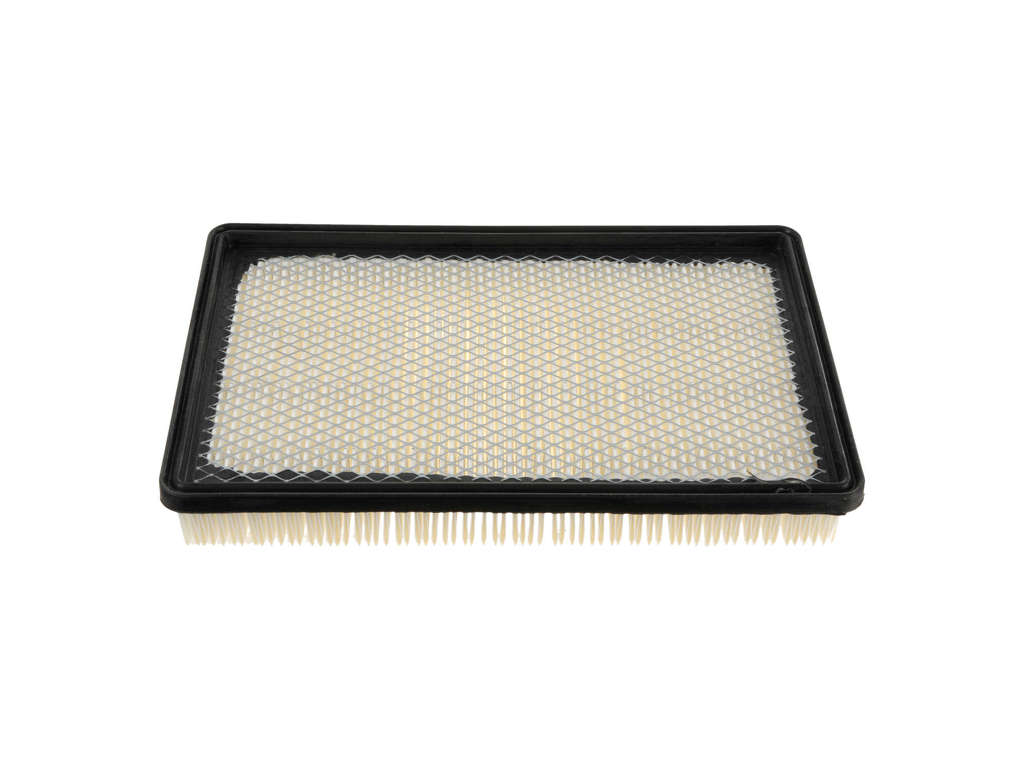

2. Clogged or Dirty Engine Air Filter 🟡 Medium Probability → Shop Air Cleaner Assembly A neglected air filter directly leads to restricted airflow, which is exactly what P0102 measures. It can also cause the MAF sensor to become dirty faster.
   How to confirm: Remove and inspect the engine air filter. If it is visibly dirty, clogged with debris, or wet, it is restricting airflow.
   Typical fix: Replace the engine air filter. This is a simple and inexpensive maintenance item that should be checked first.
   Est. part cost: $15-$30

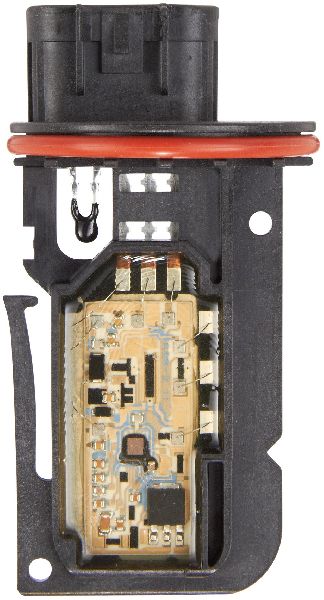

3. Faulty MAF Sensor 🟡 Medium Probability → Shop Fuel Injection Air Flow Meter Aftermarket sensors have been reported by owners to fail prematurely or not work correctly out of the box. Standard electronic component failure can also occur over time, sometimes with the internal resistors breaking.
   How to confirm: After cleaning the sensor and checking the air filter, if the code persists, the sensor itself may have failed. A diagnostic scan tool can monitor the sensor's output (grams/sec) to see if it responds correctly to changes in engine RPM. A reading that is flatlined at or near zero while the engine is running indicates a failed sensor. 🎬 See how to test and replace a faulty MAF sensor.
   Typical fix: Replace the MAF sensor. It is often recommended to use an OEM part from a brand like ACDelco (Part No. 213-4251) to ensure compatibility.
   Est. part cost: $55-$115
4. Damaged Wiring or Loose Connector ⚪ Low Probability Wiring can become brittle over time. A documented case for the G6 involved a broken ground wire within the harness, causing a persistent P0102 code even with a new sensor. The MAF sensor connector is a 5-pin round connector.
   How to confirm: Inspect the MAF sensor's electrical connector for corrosion or loose pins. Wiggle the harness while the engine is running and monitoring live data to see if it affects the reading. Use a multimeter to check for proper power (12V), ground, and signal voltage at the connector.
   Typical fix: Repair the damaged section of wiring or replace the connector pigtail (e.g., ACDelco PT2187).
   Est. part cost: $15-$40 for a new connector pigtail.
5. Vacuum Leak in the Intake System ⚪ Low Probability The plastic and rubber components of the intake system can crack or become brittle with age. On similar GM V6 engines, leaking intake manifold gaskets are a known issue that can allow unmetered air to enter the engine after the MAF sensor.
   How to confirm: Visually inspect all intake hoses and boots between the MAF sensor and the engine for cracks or loose clamps. Listen for a hissing sound at idle. A smoke test is the most effective way to find hidden leaks.
   Typical fix: Replace the cracked or leaking intake hose or gasket.
   Est. part cost: $20-$100 depending on the specific hose.

Rare But Worth Checking

• Clogged Catalytic Converter: A severely clogged catalytic converter can create excessive backpressure, restricting airflow through the engine and causing the MAF to report an abnormally low value. This would typically be accompanied by other codes (like P0420) and more severe performance loss.
• Faulty Powertrain Control Module (PCM): This is extremely rare. The PCM itself can fail, but all other potential causes, especially wiring and sensor issues, must be definitively ruled out before considering PCM replacement.

Diagnosis Steps

1. Read the code with an OBD-II scanner and check for any other accompanying codes.
2. Visually inspect the engine air filter. If it's dirty or clogged, replace it, clear the code, and test drive.
3. Inspect the air intake tube between the air filter housing and the throttle body for any cracks, loose clamps, or disconnections.
4. Carefully remove the MAF sensor. Inspect the sensing elements (small wires) for any dirt, oil, or debris.
5. Clean the MAF sensor using only dedicated MAF sensor cleaner spray. Let it air dry completely before reinstalling. Do not touch the wires.
6. Clear the code and perform a test drive to see if the code returns.
7. If the code returns, connect a scan tool with live data capabilities. Monitor the MAF sensor reading in grams per second (g/s) at idle. A healthy LZ4 3.5L engine should read approximately 2-4 g/s at idle.
8. While monitoring live data, gently increase engine RPM. The g/s reading should increase smoothly and proportionally with RPM. A reading that is stuck, erratic, or flatlined near zero indicates a problem.
9. Inspect the MAF sensor connector and wiring harness for any signs of damage, corrosion, or loose connections. Pay close attention to the ground wire. Wiggle the harness while watching the live data for any dropouts or spikes.
10. With the key on and engine off, use a multimeter to verify power (typically 12V on the pink wire for this GM platform) and ground at the MAF sensor connector.
11. If live data shows a dead sensor (0 g/s) but power and ground at the connector are good, the MAF sensor is almost certainly faulty and should be replaced, preferably with an OEM part.
🎬 Watch this walkthrough for replacing the sensor on a G6.
12. If all of the above steps fail to resolve the issue, perform a smoke test to check for hard-to-find vacuum leaks, such as from the intake manifold gaskets.

Parts You'll Likely Need

• Mass Air Flow (MAF) Sensor (OEM #ACDelco 213-4251) — This is the most common part to fail or require replacement if cleaning does not resolve the issue.
  Trusted brands: ACDelco, Delphi, Hitachi
  OEM price range: $90-$120
  Aftermarket price range: $45-$80
• Engine Air Filter (OEM #ACDelco A3085C (example)) — A clogged air filter is a common cause of restricted airflow that triggers P0102 and is a simple, inexpensive first step in diagnosis.
• Mass Air Flow Sensor Connector Pigtail (OEM #ACDelco PT2187 (example)) — If the connector itself is corroded or the wires are broken at the connector body, replacing the pigtail is the standard repair.

Related Codes That Often Appear With This One

• P0171 — System Too Lean (Bank 1). If there is a large vacuum leak, the MAF sensor will report low airflow (P0102), but the oxygen sensor will detect the excess unmetered air in the exhaust, triggering a lean code.
• P0101 — Mass Air Flow (MAF) Circuit Range/Performance. This code often appears with P0102 and indicates the sensor's readings are out of the expected range, which can happen for the same reasons (dirt, failure, leaks).
• P0172 — System Too Rich (Bank 1). If the MAF sensor is failing and under-reporting airflow, the PCM may still inject a default amount of fuel that is too much for the actual air entering, causing a rich condition.

Technical Service Bulletins (TSBs) & Recalls

• TSB 18-NA-217: While for newer GM trucks (2014-2019), this bulletin addresses P0102 caused by a short in the wiring harness, showing a known pattern of wiring failures causing this code on GM vehicles.
• TSB 24-NA-158: Pertains to newer GM models (2023+) but is relevant as it identifies water intrusion into the MAF sensor connector as a cause for P0102, highlighting the connector and harness as a weak point.

Mechanic-Grade Diagnostic Values

• MAF Sensor Signal (Frequency) at Idle — expected: Approximately 2,300 Hz. Failure: A flatline signal, a signal that does not change with RPM, or a signal significantly outside the expected range.
• MAF Sensor Signal (Frequency) at ~2500 RPM — expected: Approximately 5.2 KHz (5,200 Hz). Failure: Reading does not increase smoothly with RPM or is significantly lower than expected.
• MAF Sensor Power Supply Voltage (Key On, Engine Off) — expected: 12 Volts (Battery Voltage). Failure: Voltage is significantly lower than 12V or is absent. A voltage drop when the sensor is plugged in indicates high resistance in the power feed wire.
• MAF Sensor Ground Circuit Check — expected: 10-12 Volts DC. Failure: Low or no voltage indicates a poor or open ground connection.

Scan Tool Commands That Help

• Tech 2 / GDS2: Idle Relearn / Throttle Idle Relearn — After cleaning the throttle body or replacing the MAF sensor, the PCM may need to relearn idle airflow values. While the system can self-learn over time, a manual reset using a dealer-level scan tool can immediately restore a stable idle.

Wiring & Ground Locations

• MAF Sensor Connector (5-pin) — On the air intake tube, between the air filter box and the throttle body.. This is the primary connection point for the sensor. Pins can become corroded or loose, and wires can break, causing a P0102. The pinout for a similar 3.5L engine is: Pin A (Yellow): MAF Signal, Pin B (Tan): IAT Signal, Pin C (Black/White): Ground, Pin D (Pink): Ignition 1 Voltage (12V), Pin E (Tan): Low Reference.
• G105 — On a transmission case stud, located on the left rear side of the engine compartment, often found below the upper coolant hose.. This is a critical ground splice pack for the Engine Control Module (ECM) and other components. A poor connection here can cause unstable sensor readings and false codes, including P0102.
• G107 — On the right front of the engine.. This ground point is used by multiple sensors, including the Mass Air Flow (MAF) sensor. A loose or corroded connection here can directly impact the MAF sensor's ground circuit integrity.

Real Owner Repair Stories

• CarKiller Forum User (2009 Pontiac G6 GT 3.5L V6) — P0102 code that appears when outside temperatures are above 40°F.
  ❌ Tried (didn't work) Installed a new air filter., Cleaned the throttle body., Installed a new, non-OEM MAF sensor from an auto parts store.
  ✅ What actually fixed it The community consensus was that the persistent code was due to the non-OEM sensor, with the strong recommendation to only use OEM sensors to resolve the issue.
• iATN Technician Forum (2002 Chevrolet Impala 3.8L (Similar GM platform)) — P0102 code, MAF reading would change dramatically on scan tool when wiggling the connector.
  ❌ Tried (didn't work) Initial diagnosis pointed to the sensor.
  ✅ What actually fixed it The technician soldered in a new connector pigtail, which resolved the radical changes in the MAF reading, confirming the fault was in the connector/wiring.

When the Usual Fixes Don't Work

• In one documented case on a similar GM vehicle, a persistent P0102 code was traced to a high-resistance power feed (pink wire) to the MAF sensor. The wire showed 13V with the sensor unplugged, but the voltage dropped significantly when the sensor was connected, indicating the wire could not supply sufficient current. The fix was to run a new power wire, after which the code was resolved and the MAF began reading correctly. This highlights that even if a simple voltage check seems to pass, a loaded circuit test may be necessary to find the true electrical fault.

Model Year Variations Within This Range

• 2007: The wire colors for the MAF sensor connector on the 2007 3.5L model are reported to be different from the 2006 and 2008 models. A 2007 owner reported colors as pink/black, black/white, yellow/white, tan/white, and tan/black. Technicians should rely on pin location and function (Power, Ground, Signal) rather than just wire color when diagnosing a 2007 model.
• 2005: The 2005 model year primarily used the LX9 3.5L V6, while 2006-2010 models used the LZ4 3.5L V6. While they share similar MAF sensor designs and the same P0102 code applies, technicians should verify the correct part number for the specific engine if replacement is needed.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, buying a used MAF sensor is generally not recommended. It is a sensitive electronic component prone to contamination and age-related failure. A used part carries a high risk of being just as faulty as the one being replaced. A used connector pigtail or a section of wiring harness from a junkyard can be a viable option if the donor vehicle is clean and shows no signs of corrosion or harness damage.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a wiring pigtail, inspect for any brittleness, cracking, or corrosion on the connector pins.
• Ensure the locking tab on the connector is intact.
• Verify the donor vehicle has not been in a front-end collision that could have stressed the harness.

OEM-only on this vehicle (don't cheap out):

• Mass Air Flow (MAF) Sensor

Aftermarket brands forum-validated for this vehicle:

• Delphi (often the Original Equipment Manufacturer)
• Hitachi
• ACDelco (GM's official brand)

Brands owners have reported issues with on this vehicle:

• Unbranded or generic 'white box' sensors from online marketplaces or budget auto parts stores are frequently reported to be poorly calibrated or fail quickly, causing the P0102 code to return.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0101 — MAF Circuit Range/Performance. Often appears alongside P0102 if the sensor is dirty or failing, as its signal may be not only low but also erratic or out of the expected range for a given engine RPM.
• P0171 — System Too Lean (Bank 1). A MAF sensor that incorrectly reports low airflow (causing P0102) will cause the ECU to inject too little fuel, resulting in a lean condition. This code can also be triggered by a vacuum leak, which is another potential cause of P0102.
• P0174 — System Too Lean (Bank 2). On a V6 engine like the LZ4, a faulty MAF sensor or a significant vacuum leak will affect both cylinder banks, often triggering lean codes for both Bank 1 (P0171) and Bank 2.
• P0300 — Random/Multiple Cylinder Misfire. The incorrect air-fuel mixture resulting from a bad MAF sensor reading can lead to poor combustion, causing the engine to run rough, hesitate, and trigger misfire codes.
• P0103 — MAF Circuit High Input. This is the opposite of P0102 but is related as it points to a failure within the same sensor or its electrical circuit, just a different failure mode (e.g., a short to power instead of a broken ground).
