P0202 on 2013-2018 Ford C-Max Hybrid: Injector Circuit Malfunction Causes and Fixes

What's Unique About the 2013-2018 Ford C-Max

The 2.0L Hybrid engine, shared across the Ford C-Max, Fusion, and Lincoln MKZ, has a specific vulnerability that can cause a P0202 code. The fuel injectors are located directly below the oil filter and oil fill cap. It is very common for engine oil to spill during an oil change and seep into the injector electrical connectors. This oil contamination disrupts the electrical connection and is a frequent cause of this code, often leading to a misdiagnosis of a failed injector when only a cleaning with electrical contact cleaner is needed.

Symptoms You May Notice

• Check Engine Light is on
• Rough or shaking idle
• Engine misfire, which may feel like a stumble or pop
• Hesitation and lack of power during acceleration
• Reduced fuel economy
• Engine stalling

Most Likely Causes

1. Failed Cylinder 2 Fuel Injector 🔴 High Probability → Shop Fuel Injector Injectors can fail electrically over time due to an internal open circuit in the coil winding. This is a common failure part on many modern vehicles.
   How to confirm: Swap the cylinder 2 fuel injector with an adjacent one (e.g., cylinder 3). Clear the codes and run the engine. If the code changes to P0203, the injector is faulty. Alternatively, test the injector's resistance with a multimeter; a good injector for this engine should read between 11 and 16 ohms. An open circuit (OL) or a reading far outside this range indicates a bad injector. 🎬 See these simple DIY methods for testing your fuel injectors.
   Typical fix: Replace the faulty fuel injector. It's often wise to replace them as a set on higher-mileage vehicles to ensure balanced performance and prevent future failures.
   Est. part cost: $30-$70
2. Contaminated or Damaged Injector Connector 🔴 High Probability Engine oil commonly spills onto the injector harness during oil changes, contaminating the #2 injector connector and causing a poor connection. The plastic locking tabs on the connectors can also become brittle and break, leading to a loose connection.
   How to confirm: Visually inspect the injector's electrical connector for oil, dirt, or corrosion. Check if the locking tab is broken. If a 'noid light' flashes when connected to the harness plug while cranking the engine, the computer and wiring are sending a signal, pointing to a bad connection at the pins or a bad injector.
   Typical fix: Thoroughly clean the oil or corrosion from the connector and injector pins using electrical contact cleaner. Use compressed air to dry. Apply a small amount of dielectric grease to the connector seal to prevent future moisture intrusion. If the connector is damaged, replace the pigtail (Motorcraft part WPT-1302).
   Est. part cost: $5-$30
3. Open or Short in Wiring Harness 🟡 Medium Probability Vibration and heat can cause wires to chafe or break over time, creating an open or short circuit. There is a known issue on some Ford engines where the harness can chafe on a PVC hose clamp near the crankcase pressure regulator.
   How to confirm: If an injector swap does not move the code and a noid light does not flash, the problem is in the wiring. Perform a continuity test on the two wires from the cylinder 2 injector connector back to the PCM connector. Inspect the harness for any visible damage, especially near clamps and sharp edges.
   Typical fix: Repair the broken or shorted section of the wiring harness and protect it from future damage using loom or tape.
   Est. part cost: $1-$10

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is the least likely cause. The internal driver for the injector circuit can fail, but all other possibilities (injector, connector, wiring) should be exhaustively ruled out before considering PCM replacement. On some Fords, a shorted injector can damage the PCM driver circuit, so it's critical to fix the root cause before replacing the PCM.

Diagnosis Steps

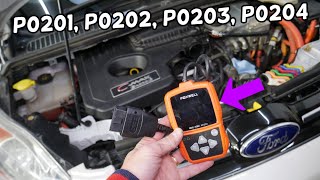

1. Confirm the code P0202 is present using an OBD-II scanner. Note any other codes, like P0302.
2. Locate cylinder #2. On the 2.0L engine, the cylinders are numbered 1-2-3-4 from passenger side to driver side.
3. Visually inspect the electrical connector and wiring for the #2 fuel injector. Look carefully for signs of oil saturation, corrosion, or physical damage.
4. Disconnect the connector. If oil is present, clean both the harness connector and the injector pins thoroughly with electrical contact cleaner and let it dry completely. Reconnect, clear codes, and re-test.
5. To quickly test the signal from the computer, plug a 'noid light' into the harness connector. Crank the engine; a rhythmic flashing light indicates the PCM and wiring are likely good. No light points to a wiring or PCM issue.
6. The most definitive test: Swap the #2 fuel injector with the #3 fuel injector. This requires removing the fuel rail. Clear the codes with your scanner, start the car, and let it run for a minute.
7. Re-scan for codes. If the code has moved and is now P0203 ('Injector Circuit / Open - Cylinder 3'), the fuel injector you moved is faulty and must be replaced.
8. If the code remains P0202 after the swap, the injector is good, and the problem lies in the wiring harness or, rarely, the PCM. Perform a continuity test on the wires between the injector connector and the PCM.

Parts You'll Likely Need

• Fuel Injector (OEM #CM-5148) — This is the most common part to fail internally, causing an electrical open circuit that triggers the P0202 code.
  Trusted brands: Motorcraft, Bosch, Standard Motor Products
  OEM price range: $55-$70
  Aftermarket price range: $30-$50
• Fuel Injector Connector Pigtail (OEM #WPT-1302) — Needed if the original connector's locking tab is broken or the terminals are too corroded or oil-soaked to be cleaned effectively.
  Trusted brands: Motorcraft
  OEM price range: $20-$30
  Aftermarket price range: $10-$20
• Electrical Contact Cleaner — Essential for cleaning oil contamination from the injector connector, which is a very common cause of P0202 on this vehicle.
  Trusted brands: CRC, WD-40 Specialist
  Aftermarket price range: $5-$10

Related Codes That Often Appear With This One

• P0302 — This code means 'Cylinder 2 Misfire Detected'. A P0202 fault directly causes the cylinder to misfire because it isn't receiving the proper amount of fuel, so these two codes almost always appear together.
🎬 Watch: Common causes and fixes for the Ford P0302 misfire code.

Platform-Specific Known Issues

• The location of the oil filter above the fuel injectors makes the injector wiring harness susceptible to oil contamination during routine oil changes. This is a well-documented cause for P0201-P0204 codes on this platform.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #SSM 49759 — While issued for the Ford Expedition, this manufacturer bulletin highlights that an illuminated MIL with codes P0201 through P0206 requires following specific Pinpoint Tests in the Powertrain Control/Emissions Diagnosis Manual to address the injector circuit condition.

Mechanic-Grade Diagnostic Values

• Fuel Injector Coil Resistance — expected: 11 - 16 Ohms. Failure: A reading of infinity (Open Loop) or significantly outside the expected range.
• Injector Circuit Voltage (at connector, key on) — expected: ~12V (Battery Voltage). Failure: Significantly lower voltage or no voltage indicates a problem with the power supply wire or the injector fuse.
• Wiring Harness Continuity (from injector connector to PCM) — expected: Near 0 Ω. Failure: A reading above 5 Ω suggests high resistance or a break in the wire.

Scan Tool Commands That Help

• Ford IDS (Integrated Diagnostic System): Power Balance Test — To graphically identify a weak or non-contributing cylinder in real-time. The test disables each injector one by one and measures the drop in RPM. A cylinder with a P0202 fault will show little to no RPM drop when its injector is disabled, confirming it wasn't contributing.
• Ford IDS (Integrated Diagnostic System): KOEO Injector Electrical Self Test (Injector Buzz Test) — This Key-On-Engine-Off test commands the PCM to energize each injector solenoid sequentially, creating an audible 'buzz'. If cylinder #2 does not produce a buzz while others do, it confirms an electrical fault in the injector or its immediate wiring, without the engine needing to run.

Wiring & Ground Locations

• Fuse F34 — In the engine compartment fuse box (also called Battery Junction Box). It is a 10-amp mini fuse.. This fuse supplies power to the fuel injectors. If it's blown, none of the injectors will have power, likely causing multiple P020x codes and a no-start condition. While a single P0202 is less likely to be this fuse, it's a critical and easy check.
• G104 — On the rear of the transmission.. This is a major powertrain ground. A loose or corroded connection here can cause erratic behavior in various engine sensors and actuators, including the fuel injectors, by creating an unstable ground reference for the PCM.
• G105 — On the left side of the engine compartment.. This is a primary chassis ground in the engine bay. The PCM and its related circuits rely on clean grounds. A fault at G105 could introduce electrical noise or voltage drops that might trigger false injector circuit codes.
• PCM Connector — At the front of the left front wheel well.. This is the termination point for the injector wiring. When diagnosing a persistent P0202 where the injector and connector are good, a continuity test must be performed between the injector #2 connector pins and the corresponding pins at this PCM connector to rule out a harness break.

Real Owner Repair Stories

• Ford Truck Enthusiasts Forums (Ford F450 Super Duty Diesel (Note: While not a C-Max, the diagnostic process for a P0202 code is identical and the user's outcome is valuable)) — Rough idle and poor acceleration.
  ❌ Tried (didn't work) Initially just checking wiring visually.
  ✅ What actually fixed it The user tested the resistance of all injectors and found the #2 injector's reading was significantly different from the others. They replaced the #2 fuel injector and the injector wiring harness pigtail, which resolved the code and the drivability issues.
• NHTSA ODI #10405277 — An owner of a Ford Fusion (which shares the C-Max engine platform) reported that after pulling over due to a sudden failure, the dealer found codes P0201 through P0204. The technician checked the electrical connections and reassembled them to address the issue.
• NHTSA ODI #10944544 — In a report involving a Ford vehicle that would turn over but not start, the owner found P0201 and P0202 codes indicating an open circuit for every injector, requiring a tow to the dealership for electrical diagnosis.

Model Year Variations Within This Range

• 2017-2018: For the 2017 model year, Ford renamed the top-tier 'SEL' trim to 'Titanium'. This was purely a cosmetic and packaging change and did not affect the 2.0L hybrid powertrain, causes, or fixes for a P0202 code.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• HF35 Transmission Bearing Failure 🔴 High — Common on vehicles built on or before August 15, 2015. Presents as a thumping, rubbing, or grinding noise that occurs while the vehicle is in motion. (Ref: TSB 19-2391, TSB 16-0105)
• Parasitic 12V Battery Drain 🟠 Medium — A widely reported issue where the 12V battery dies unexpectedly, even after a few days of sitting. Often linked to software glitches in the Sync system or other modules not shutting down properly. (Ref: Multiple software-related TSBs exist, but owners often report continued issues. TSB 13-4-22 is one example of a PCM reprogram for early models.)
• Electronic Power Steering (EPAS) Failure 🔴 High — Can cause a sudden and complete loss of power steering assist. Often requires replacement of the entire steering gear assembly at significant cost. (Ref: No specific recall for C-Max, but a well-documented problem across similar Ford platforms.)
• Shift Cable Bushing Degradation 🟠 Medium — The bushing on the transmission shift cable can degrade, which may prevent the vehicle from being placed in the correct gear or from starting. (Ref: TSB 21-2152 addresses incorrect shifter lever position indication.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, sourcing a used fuel injector is generally not recommended. The risk of receiving a clogged, partially functioning, or near-end-of-life injector is high. The cost of a new aftermarket injector is low enough ($30-$50) that the potential labor savings of a DIY repair are not worth risking by installing a used part of unknown quality.

Donor-vehicle mileage cap: roughly under 40000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• If you must buy used, source from a vehicle with the lowest possible mileage.
• Visually inspect the injector tip for carbon buildup or damage.
• Check the electrical connector for any signs of corrosion, melting, or physical damage.
• Ask the seller if they can provide a resistance reading (should be 11-16 ohms).

OEM-only on this vehicle (don't cheap out):

• Powertrain Control Module (PCM) - If the PCM is the confirmed cause, a new or professionally refurbished OEM unit is the only reliable option. Used PCMs often have security/immobilizer conflicts that are difficult and expensive to resolve.

Aftermarket brands forum-validated for this vehicle:

• Bosch
• Standard Motor Products (SMP)

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name injectors from online marketplaces should be avoided due to inconsistent quality control and high failure rates.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0302 — Cylinder 2 Misfire Detected; this often appears alongside P0202 because the circuit fault prevents the injector from delivering fuel, causing a misfire.
• P0201 — Injector Circuit / Open - Cylinder 1; shares the same root cause of oil contamination from the oil filter location above the harness.
• P0203 — Injector Circuit / Open - Cylinder 3; this code will appear if you swap the suspected bad injector from cylinder 2 to cylinder 3 to confirm a failure.
• P0204 — Injector Circuit / Open - Cylinder 4; part of the same injector circuit group susceptible to harness damage or oil saturation on this engine platform.
