P0206 on 2008-2009 Ford Taurus 3.5L: Injector Circuit Malfunction Fixes

What's Unique About the 2008-2009 Ford Taurus

On the 2008-2009 Ford Taurus with the transversely mounted 3.5L V6, the cylinder layout is a key factor for diagnosis. This engine is part of Ford's 'Cyclone' family, used across many models like the Edge and Flex. Cylinders 1-2-3 are on the rear bank against the firewall, while cylinders 4-5-6 are on the front bank, closest to the radiator. This is a significant advantage for a P0206 code, as cylinder 6 is located on the front bank (driver's side), making the injector and its wiring much easier to access for testing and replacement compared to the rear bank injectors, which require removing the upper intake manifold.

Symptoms You May Notice

• Check Engine Light is on
• Rough idle and engine vibration
• Engine misfire (may feel like a stumble or shake)
• Poor acceleration and reduced engine power
• Decreased fuel economy
• Hard starting
• Smell of gasoline from the exhaust

Most Likely Causes

1. Failed Cylinder 6 Fuel Injector 🔴 High Probability → Shop Fuel Injector Fuel injectors are a common wear item, and electrical failure of the internal coil is a frequent cause for this specific code. The coil winding can develop an open circuit from age and heat cycles.
   How to confirm: Disconnect the injector and measure the resistance across its two terminals with a multimeter. It should be between 11-18 ohms. An 'OL' or infinite reading indicates an open circuit and a bad injector. The most definitive test is to swap the cylinder 6 injector with an adjacent one (like cylinder 5), clear the codes, and see if the fault follows the injector (i.e., a P0205 code appears). If it does, the injector is faulty.

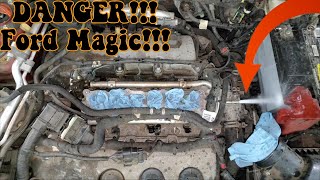

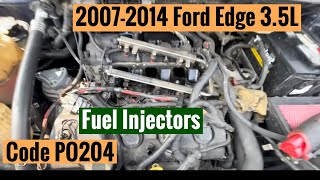

   Typical fix: Replace the failed fuel injector. It is often recommended to replace all injectors on a high-mileage engine, but it is not strictly necessary. 🎬 See this step-by-step 3.5L injector replacement walkthrough
   Est. part cost: $35-$60
2. Wiring Harness or Connector Issue 🟡 Medium Probability Engine vibration and heat can cause wiring to chafe, break, or corrode over time, leading to an open or short circuit. The plastic connector itself can become brittle and fail.
   How to confirm: Visually inspect the wiring harness leading to the cylinder 6 injector for any signs of damage, melting, or corrosion. Check the connector for bent or corroded pins. Use a noid light to confirm that the PCM is sending a pulse signal to the injector connector. If the noid light doesn't flash while cranking the engine, the problem is in the wiring or the PCM.
   Typical fix: Repair the damaged section of the wiring harness or replace the injector pigtail connector.
   Est. part cost: $10-$30

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is the least likely cause. The internal driver circuit for the injector can fail, but all other possibilities (injector, wiring) must be exhaustively ruled out before condemning the PCM. On this platform, a failed ignition coil can sometimes short and damage the PCM, so if you have a history of ignition coil codes (P035x), the PCM becomes a slightly higher possibility.
• Blown Fuse: A blown fuse supplying power to the injector circuit can cause this code. Ford TSB 15-0137 for F-150s (which also use the Cyclone engine family) notes that a problem with fuse 27 in the battery junction box can cause a host of injector codes, including P0206, due to excessive heat. While for a different model, it highlights the possibility of a fuse-related issue.

Diagnosis Steps

1. Verify the P0206 code is present using an OBD-II scanner. Check for any other codes, especially P0306.
2. Locate cylinder 6. On the 3.5L V6 in the Taurus, it is on the front bank (near the radiator) on the driver's side.
3. Visually inspect the wiring harness and connector for the cylinder 6 fuel injector. Look for any obvious signs of damage, chafing, or corrosion.
4. Listen to the injector. With the engine running, use a mechanic's stethoscope or a long screwdriver placed on the injector body to listen for a distinct clicking sound. Compare the sound from injector #6 to a neighboring injector like #5.
5. If no clicking is heard, test the circuit. Disconnect the injector and plug a noid light into the connector. Crank the engine. The noid light should flash, indicating the PCM is sending a signal. If it doesn't flash, there is a problem with the wiring or the PCM.
6. If the noid light flashes, test the injector itself. Turn the engine off. Set a multimeter to measure resistance (Ohms). Measure across the two pins of the fuel injector. A normal reading is typically 11-18 ohms. If the reading is infinite (OL), the injector's internal coil is open, and the injector must be replaced.
7. If the resistance is within spec but the injector is still suspected, perform an injector swap. Swap the injector from cylinder 6 with the one from cylinder 5. Clear the codes, run the engine, and re-scan. If the code changes to P0205, the injector is confirmed to be faulty. If P0206 returns, the problem lies in the wiring or PCM.

Parts You'll Likely Need

• Fuel Injector (OEM #CM-5165 (Motorcraft), 7T4Z-9F593-B (Ford)) — This is the most common failure point for a P0206 code. The internal electrical coil of the injector fails, creating an open circuit.
  Trusted brands: Motorcraft, Bosch, Standard Motor Products (SMP)
  OEM price range: $50-$60
  Aftermarket price range: $35-$50
• Fuel Injector Connector Pigtail (OEM #Motorcraft WPT-159 (also cross-references to Ford 1U2Z-14S411-BPA)) — If the wiring inspection reveals a damaged, melted, or corroded connector at the injector, the pigtail will need to be spliced in as a replacement.
  Trusted brands: Motorcraft, Dorman
  OEM price range: $20-$30
  Aftermarket price range: $10-$20

Related Codes That Often Appear With This One

• P0306 — P0306 means 'Cylinder 6 Misfire Detected'. Since a P0206 fault prevents the injector from firing, the cylinder will not have proper combustion, which the PCM detects as a misfire. A P0206 will almost always be accompanied by a P0306.
• P0300 — This code for 'Random/Multiple Cylinder Misfire' can appear if the injector issue is intermittent or if the resulting imbalance affects other cylinders.

Technical Service Bulletins (TSBs) & Recalls

• TSB 15-0137: While issued for 2009-2014 F-150s, this TSB addresses a crank no-start or stall condition with multiple DTCs including P0201-P0208. The cause is excessive heat at fuse F27 in the battery junction box. This is a rare but possible wiring-related cause for the injector circuit fault.

Platform-Specific Known Issues

• Real World Repair: 2008 Taurus X P0206: A YouTube video from 'pull start Stables' documented a 2008 Ford Taurus X (same engine) with P0206 and P0306 codes. After initial suspicion of rodent damage to wires, testing with a multimeter revealed the cylinder 6 injector had a completely open circuit (infinite resistance), while all other injectors tested correctly at 14 ohms. Replacing the single failed injector resolved the issue.

Mechanic-Grade Diagnostic Values

• Fuel Injector Coil Resistance — expected: 11 - 18 Ohms. Failure: A reading of infinity (OL) indicates an open circuit. A reading near zero indicates a short. A reading significantly outside the 11-18 ohm range also indicates failure.
• Injector Connector Power Supply Voltage (KOEO) — expected: > 10.5 Volts DC (should be close to battery voltage). Failure: Voltage below 10.5V points to an open or high resistance in the power supply (VPWR) wire from the power relay or a fuse issue.
• Injector Pulse Width (at idle, via scan tool) — expected: 0.8 ms to 2.5 ms. Failure: A pulse width for cylinder 6 that is zero or significantly different from the other cylinders indicates a control or injector issue.
• PCM Injector Driver Circuit Resistance — expected: Approximately 10,000 ohms (10kΩ). Failure: A reading significantly different from other cylinders when testing the harness lead back to the PCM can indicate a faulty driver circuit within the PCM.

Scan Tool Commands That Help

• Ford IDS, FORScan: KOEO Injector Electrical Self Test (Buzz Test) — This is a key-on, engine-off test that commands the PCM to individually 'buzz' each injector. A weak or silent click from injector #6 compared to the others is a strong indicator of an electrical failure in the injector's coil or its wiring, helping to confirm the fault without the engine running.
• Ford IDS, high-end scanners: Power Balance Test — This running test graphically displays the power contribution of each cylinder. For a P0206, the graph will show a clear drop or zero contribution from cylinder #6, confirming it is not firing. This is useful to verify the symptom before starting disassembly.
• Ford IDS, FORScan: KOER (Key On, Engine Running) Self-Test — This test can help identify intermittent faults. The PCM actively tests circuits under load and may flag a fault that doesn't appear during a simple key-on test or at idle.

Wiring & Ground Locations

• S128 — In the engine control & fuel charge harness, near the breakout to the fuel injector 6 connector.. This is a factory splice point in the wiring harness. Splices can be a point of failure due to corrosion or vibration over time. If the injector and connector are good, but a noid light test fails, checking the integrity of this splice is a critical next step before testing continuity all the way back to the PCM.
• Main Engine Ground Strap — On the transmission case, located below the brake booster.. While less likely to cause a single injector code, a loose or corroded main ground can cause a host of bizarre, intermittent electrical issues, including erratic sensor readings and module behavior. It's a foundational check for any electrical diagnosis.
• PCM Connector C175B — One of the main connectors at the Powertrain Control Module (PCM), typically located in the engine bay near the firewall.. The control wire for the cylinder 6 injector originates here. Testing for continuity between the injector connector pin and the corresponding pin at C175B is the definitive way to rule out a wiring harness break or short.

OEM Part Supersession History

• 7T4Z-9F593-A → 7T4Z-9F593-B — Standard part revision by the manufacturer, likely for improved reliability or manufacturing process.
  Heads up: The parts are interchangeable. 7T4Z-9F593-B is the current replacement for the original part.

Model Year Variations Within This Range

• 2008-2009: There are no significant mechanical or electrical differences between the 2008 and 2009 model year Ford Taurus with the 3.5L V6 that would affect the diagnosis or repair of a P0206 code. The primary change for 2009 was making electronic stability control standard and adding a base SE trim level.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Internal Water Pump Failure 🔴 High — Widespread failure, typically between 80,000 and 150,000 miles. A major design flaw of the transverse Cyclone V6. (Ref: No specific recall, but the subject of class-action lawsuits. Related TSBs like SSM 47170 and SSM 48423 discuss oil contamination which can be a result of pump failure.)
• 6F50 Transmission Shudder/Harsh Shifts 🟠 Medium — Common issue involving shift flares, hesitation, or rough shifts, particularly the 2-3 shift. (Ref: TSB 10-9-9 was issued for some 2010 models for harsh engagements and DTC P0751, but similar issues are reported on 2008-2009 models. Often resolved by a Transmission Adaptive Tables Reset or, in more severe cases, solenoid body replacement.)
• Electronic Throttle Body (ETB) Failure 🟠 Medium — A widespread issue on many Ford models of this era, causing the vehicle to suddenly enter a low-power 'limp mode' with the wrench light on.
• PCM Failure due to Ignition Coils 🟡 Low — A shorted ignition coil can feed voltage back into the PCM, damaging the driver for that cylinder. This is a known issue for this PCM, though more commonly associated with ignition coil fault codes (P035x).

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used fuel injector from a low-mileage donor vehicle is a reasonable choice for a DIY repair to save money, especially since the part is easily accessible on the front bank. It is not recommended for a professional repair where a warranty is expected. A used wiring harness pigtail is also a viable option if the connector is in good condition.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check the injector's plastic body for cracks or heat damage.
• Ensure the electrical connector pins are straight and free of corrosion.
• Verify the O-rings are present and not flattened or brittle, although they should be replaced with new ones before installation regardless.
• If possible, ask the seller to test the resistance with a multimeter; it should be within the 11-18 ohm range.

OEM-only on this vehicle (don't cheap out):

• Powertrain Control Module (PCM) - Due to the need for specific VIN programming, a used PCM is not a simple plug-and-play solution and can cause more problems. If the PCM is condemned, a new or professionally refurbished unit programmed to the vehicle is the only reliable fix.

Aftermarket brands forum-validated for this vehicle:

• Bosch
• Standard Motor Products (SMP)
• Motorcraft (OEM)

Brands owners have reported issues with on this vehicle:

• No-name, unbranded injectors from online marketplaces are a gamble. They often have inconsistent flow rates or fail prematurely, even if they initially clear the code.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0306 — Cylinder 6 misfire detected; this is the most common companion code as the electrical failure of the injector (P0206) prevents fuel delivery, causing the misfire.
• P0205 — Injector circuit fault for cylinder 5; often mentioned during diagnostic 'swap tests' to confirm if a fault follows a specific injector.
• P035X — Ignition coil primary/secondary circuit codes; related because shorted ignition coils on this platform are known to potentially damage the PCM drivers.
• P0751 — Shift solenoid performance code; while transmission-related, it is part of the known issues for the 6F50 transmission paired with this engine.
• P0201-P0208 — A range of injector circuit codes that can appear simultaneously if there is a shared power issue, such as the heat-damaged fuse F27 mentioned in TSB 15-0137.
