P0354 on 2011-2018 Ford Focus 2.0L: Ignition Coil 'D' Circuit Causes and Fixes

What's Unique About the 2011-2018 Ford Focus

The 2011-2018 Ford Focus (MK3 generation) uses a reliable coil-on-plug ignition system. While generally robust, these individual coils are a common wear item. The P035x series of codes are straightforward on this platform, almost always pointing to a failed coil itself rather than more complex wiring or computer issues. The accessibility of the coils on the 2.0L engine makes this a particularly common and easy DIY repair for owners.

Symptoms You May Notice

• Solid Check Engine Light is on
• Flashing Check Engine Light (indicating a severe misfire)
• Rough idle or engine shaking
• Engine hesitation or stumbling during acceleration
• Noticeable loss of engine power
• Reduced fuel economy

Most Likely Causes

1. Failed Ignition Coil 🔴 High Probability → Shop Ignition Coil Ignition coils are a common wear-and-tear component. Heat cycles and vibration eventually lead to internal failure. Given the age of this vehicle range, original coils are at the end of their service life.
   How to confirm: Swap the ignition coil from cylinder #4 with an adjacent cylinder (e.g., cylinder #3). Clear the codes and run the engine. If the code changes to P0353 (Ignition Coil 'C'), the coil is definitively bad.
   Typical fix: Replace the failed ignition coil. It is held on by a single 8mm bolt.
   Est. part cost: $25-$100
2. Worn or Defective Spark Plug 🟡 Medium Probability → Shop Spark Plug A worn spark plug with an excessive gap can strain the ignition coil, causing it to overheat and fail. While not the direct cause of the P0354 circuit code, it's often a contributing factor and can cause a misfire on its own.
   How to confirm: After confirming the coil is good, inspect the spark plug for cylinder #4. Look for wear, fouling, or cracks. Compare it to the other plugs. You can also swap the spark plug with another cylinder to see if the misfire code (P0304) follows.
   Typical fix: Replace the spark plug. It is highly recommended to replace all four spark plugs at the same time if they are near the end of their service interval (typically 60,000-100,000 miles).
   Est. part cost: $5-$15 per plug
3. Damaged Wiring or Connector ⚪ Low Probability The plastic connector or wiring harness can become brittle over time from engine heat. A loose connection or broken wire can interrupt the signal from the PCM.
   How to confirm: Visually inspect the electrical connector and wiring going to the ignition coil on cylinder #4. Check for cracked plastic, corrosion on the pins, or any signs of melted or frayed wires. Ensure the connector clicks securely into place. Pay close attention to the small locking tab, which can become brittle and break.

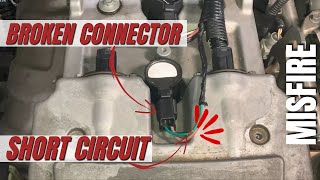

   Typical fix: If the connector lock is broken or the housing is damaged, replace the connector pigtail. 🎬 See how to replace brittle coil connectors These are readily available as aftermarket parts (e.g., a '3-pin coil plug pigtail harness'). If a wire is damaged, it will need to be repaired or spliced.
   Est. part cost: $15-$30 for a new pigtail connector

Rare But Worth Checking

• Failed Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is very rare. Before suspecting the PCM, all other possibilities (coil, plug, wiring) must be exhaustively ruled out. A PCM failure would typically involve testing the driver signal with an oscilloscope, which is a job for a professional technician.

Diagnosis Steps

1. Read the trouble codes with an OBD-II scanner to confirm P0354 and check for any other codes like P0304.
2. Locate cylinder #4. On the 2.0L engine, the cylinders are numbered 1-2-3-4, starting from the passenger side (belt side) and moving to the driver's side (transmission side). Cylinder #4 is the one on the far left when you are facing the engine.
3. Swap the ignition coil from cylinder #4 with the coil from cylinder #3. This involves unplugging the electrical connector (slide the red tab back first) and removing one 8mm bolt per coil. Be gentle with the connector's locking tab, as it can be brittle.
4. Clear the trouble codes with the scanner.
5. Start the engine and let it run for a minute. Re-scan for codes.

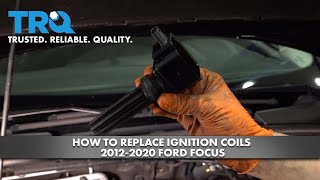

6. If the code has changed to P0353 ('Ignition Coil C'), the ignition coil you moved is faulty 🎬 Watch: How to diagnose and fix P035x codes and needs to be replaced. This is the most likely outcome.
7. If the code P0354 returns, the problem is not the coil. The next step is to inspect the spark plug and the wiring connector for cylinder #4.
8. If the coil, plug, and wiring all appear to be in good condition, the issue may be more complex and require professional diagnosis of the PCM driver circuit.

Parts You'll Likely Need

• Ignition Coil (OEM #CM5Z-12029-K) — This is the component that most commonly fails and directly causes the P0354 code.
  Trusted brands: Motorcraft, NGK, Bosch, Delphi, Denso
  OEM price range: $75-$100
  Aftermarket price range: $25-$50
• Spark Plugs (OEM #SP-535 or SP-535-X) — It is best practice to replace spark plugs when replacing ignition coils, especially if they are old. A worn plug can cause a new coil to fail prematurely. The '-X' suffix on SP-535-X is a packaging designator but refers to the same part.
  Trusted brands: Motorcraft, NGK, Denso
  OEM price range: $8-$12 per plug
  Aftermarket price range: $5-$10 per plug

Related Codes That Often Appear With This One

• P0304 — P0304 means 'Cylinder 4 Misfire Detected'. P0354 is the cause (the coil circuit fault), and P0304 is the effect (the cylinder isn't firing correctly). They almost always appear together.

Technical Service Bulletins (TSBs) & Recalls

• No specific TSBs are commonly associated with an isolated P0354 code. However, numerous recalls and TSBs exist for this vehicle generation, including for the canister purge valve (Recall 18S32) and PowerShift transmission. Owners should always check their VIN for open campaigns on the NHTSA website or with a Ford dealer.
• Manufacturer service bulletin TSB #24-2406 notes that other Ford vehicles with EcoBoost engines may exhibit an illuminated MIL with ignition system DTCs including P0354 set in the PCM.
• Additionally, manufacturer bulletin SSM 52455 describes instances where various Ford gas engines may set DTC P0354 along with other ignition circuit codes in the powertrain control module.

Platform-Specific Known Issues

• Brittle Ignition Coil Connector Tabs: → Shop Ignition Coil Due to numerous heat cycles, the plastic locking tabs on the ignition coil electrical connectors can become very brittle. It is common for the tab on the cylinder #4 connector (or any other) to break off when attempting to unplug it during diagnosis or replacement. If this happens, the connector may not seat securely, leading to a persistent or intermittent P0354 code. The fix is to replace the connector with a new pigtail harness.

Mechanic-Grade Diagnostic Values

• Ignition Coil Primary Winding Resistance — expected: 0.4 to 2.0 ohms. Failure: A reading of OL (open circuit) or a value significantly outside the expected range indicates a faulty primary winding. However, this test may not catch intermittent, heat-related failures.
• Ignition Coil Secondary Winding Resistance — expected: 6,000 to 10,000 ohms (6kΩ - 10kΩ). Failure: A reading outside this range suggests a fault in the secondary winding.
• Ignition Coil Trigger Signal (at connector) — expected: 5 to 20 Hz on a multimeter set to AC Hertz scale while engine is idling.. Failure: A lack of signal (0 Hz) points towards a wiring break or a faulty driver in the PCM. A stable signal with a persistent misfire strongly indicates a bad coil.
• Ignition Coil Power Supply (at connector) — expected: 10-12 Volts DC with key on, engine off.. Failure: No voltage indicates a problem with the power supply wire or fuse.

Scan Tool Commands That Help

• FORScan: Live Data Monitoring (Misfire Counts) — While not a bidirectional command, using FORScan to monitor Mode $06 data, specifically the misfire count per cylinder (Test ID $A2 to $AD), can help confirm if the misfire is isolated to cylinder 4, corroborating the P0354 code.

Wiring & Ground Locations

• Ignition Coil Connector C1684 (Cylinder 4) — On top of the valve cover, plugged into the ignition coil for the leftmost cylinder when facing the engine.. This is the direct connection point for the component flagged by P0354. Pin 1 is the control signal from the PCM, Pin 2 is the power supply (12V+), and Pin 3 is the ground. Testing for power and signal at these pins is a critical diagnostic step.
• Main Engine Ground G101 — Typically located on the chassis rail near the battery tray or on the transmission bell housing.. A poor engine ground can cause a wide range of bizarre electrical issues, including intermittent ignition problems. While not a direct cause of an isolated P0354, ensuring this ground is clean and tight is a fundamental step in diagnosing any electrical fault.

Real Owner Repair Stories

• easyautodiagnostics.com Reader Case Study (Ford Focus (year not specified, but relevant to coil-on-plug system)) — Recurring ignition coil failure on the same cylinder, even after replacement.
  ❌ Tried (didn't work) Replacing the ignition coil multiple times.
  NHTSA ODI #11131030 describes a similar situation where a vehicle shop diagnosed a P0354 code alongside other ignition coil codes and a PCM failure, noting multiple claims of this occurring.
  ✅ What actually fixed it The PCM was found to be faulty, keeping the 12V power feed to the ignition coil live even when the ignition was off. This constant power supply was burning out the primary windings of the new coils. Replacing the PCM resolved the root cause.

OEM Part Supersession History

• CM5Z-12029-A / DG-546 → CM5Z-12029-K / DG-562 — Standard part revision and supplier updates for improved reliability or manufacturing efficiency.

Model Year Variations Within This Range

• 2011-2018: The primary engine for the North American 2012-2018 Ford Focus is the 2.0L GDI (Gasoline Direct Injection), also known as Duratec Ti-VCT. While other engines were available in different markets or trims (like the 1.0L EcoBoost), the ignition system components and P0354 diagnosis for the mainstream 2.0L engine are consistent across this generation. The performance ST model uses a 2.0L EcoBoost turbocharged engine, which also uses similar coil-on-plug technology.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• DPS6 "PowerShift" Automatic Transmission Failure 🔴 High — Extremely common on 2012-2018 models with automatic transmission. Symptoms include shuddering, hesitation, jerky shifts, and complete failure to engage gears. (Ref: Subject of multiple class-action lawsuits and extended warranty programs.)
• Canister Purge Valve Failure 🟠 Medium — Very common issue causing CEL codes P0456 and P1450, engine stalling after refueling, and rough idle. (Ref: Ford Recall 18S32 and Customer Satisfaction Program 24N07 were issued for this problem.)
• Premature Engine Mount Wear 🟠 Medium — The passenger-side hydraulic engine mount is known to fail prematurely, causing excessive engine vibration felt in the cabin, especially at idle.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used OEM (Motorcraft) ignition coil from a low-mileage donor vehicle can be a viable, budget-friendly option for a temporary fix or if a new part is unavailable. However, it is generally not recommended as a long-term solution.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check for cracks, melting, or swelling on the coil's plastic housing.
• Ensure the rubber boot is pliable and not dry-rotted or torn.
• Look for clean electrical pins with no signs of green or white corrosion.
• If possible, check the donor vehicle's VIN for its manufacturing date; a newer car is preferable.

OEM-only on this vehicle (don't cheap out):

• Powertrain Control Module (PCM) - A used PCM will not work as it is programmed to the original vehicle's VIN and security system (PATS). It requires professional programming.

Aftermarket brands forum-validated for this vehicle:

• NGK
• Bosch
• Delphi
• Denso

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name coils from online marketplaces are frequently reported to have high premature failure rates.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Documented NHTSA Reports

NHTSA ODI #11131030 describes a failure where an owner experienced an inability to control the vehicle and get it off the road; after being towed, the shop diagnosed P0354, P0351, P0355, P0352 ignition coils, and a PCM failure.

Related OBD-II Codes

• P0304 — Cylinder 4 Misfire Detected — this code often accompanies P0354 when the ignition coil circuit failure prevents the spark plug from firing.
• P0353 — Ignition Coil 'C' Primary/Secondary Circuit — this code will appear during diagnosis if you swap the faulty coil from cylinder #4 to cylinder #3 to confirm a failure.
• P2310 — Ignition Coil 'D' Primary Control Circuit High — specifically relates to the control circuit for the cylinder #4 coil and can appear alongside P0354 if there is a wiring short.
• P0456 — Evap System Leak Detected (Very Small) — a common code on this vehicle platform related to the canister purge valve failure (Recall 18S32).
• P1450 — Unable to Bleed Bleed Fuel Tank Vacuum — often seen with P0456 on this vehicle, indicating a failed canister purge valve which causes rough idling similar to a misfire.
