P0462 on 2007-2017 Mercedes-Benz C-Class: Fuel Gauge Problems and Fixes

What's Unique About the 2007-2017 Mercedes-Benz C-Class

The Mercedes-Benz C-Class of this era (W204 and W205 generations) uses a saddle-shaped fuel tank that straddles the driveshaft tunnel. This design requires two fuel level senders to get an accurate reading across the entire tank. Code P0462 refers to an issue with the primary sender ('Sensor A'), typically located on the same side as the main fuel pump (right side). A related code, P2066, would indicate a fault with the secondary ('Sensor 2' or 'B') sender. The repair requires accessing the top of the fuel tank from under the rear seat, and due to the dual-sender setup, proper diagnosis is key to replacing the correct unit.

Generation note: The 2007-2017 range covers two C-Class generations: the W204 (2008-2014) and the W205 (2015-2017). The fundamental cause and repair procedure for P0462 are very similar for both generations, as they both use a saddle tank with fuel senders accessed from under the rear seat. However, specific part numbers for the fuel sending unit will differ between the W204 and W205, and even within model years based on options like PZEV (Partial Zero Emissions Vehicle) status.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge is inaccurate, erratic, or stuck on empty.
• Fuel gauge needle jumps around, especially after hitting a bump or when the tank is below half full.
• Distance-to-empty calculation is incorrect or shows dashes.
• Low fuel warning light stays on, even with fuel in the tank.

Most Likely Causes

1. Faulty Fuel Level Sending Unit 🔴 High Probability → Shop Fuel Tank Sending Unit The variable resistor tracks inside the sensor can wear out over time from the float arm's constant movement. They can also become contaminated by fuel additives, sulfur content, or debris, leading to an internal short or open circuit that causes the low voltage reading.
   How to confirm: Access the sender unit and measure its resistance with a multimeter while moving the float arm. The resistance should change smoothly through its range. If it's open (infinite resistance), shorted (near-zero resistance), or has dead spots, it has failed. A wiring diagram is needed to identify the correct pins.

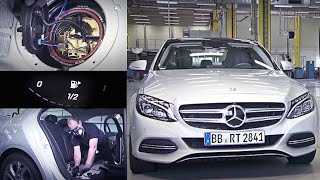

   Typical fix: Replace the fuel level sending unit. 🎬 Watch: Step-by-step fuel level sensor replacement for W204 models. On many C-Class models, the sender is integrated with the fuel filter or is part of the fuel pump assembly. The entire assembly is replaced. It is critical to order the correct part for the specific side of the tank (left or right) and for the vehicle's specific configuration (e.g., PZEV or not).
   Est. part cost: $150 - $300
2. Wiring Harness Issue 🟡 Medium Probability The wiring harness runs from the fuel tank to a control module, often passing under carpets and trim. The connector at the top of the fuel tank can corrode due to moisture ingress. In some cases, the harness can be damaged or melt if it comes into contact with hot exhaust components.
   How to confirm: Visually inspect the wiring and connector at the top of the fuel tank for any signs of corrosion, chafing, melted insulation, or loose pins. Perform a continuity test on the signal and ground wires between the sender and the Rear SAM (Signal Acquisition Module) or relevant control module to check for breaks or shorts. 🎬 Watch: How to inspect and test W205 fuel module wiring.
   Typical fix: Repair the damaged section of the wire or replace the corroded connector. If the connector is damaged, a new pigtail may need to be spliced in.
   Est. part cost: $20 - $100

Rare But Worth Checking

• Faulty Instrument Cluster: → Shop Instrument Cluster In some cases, the fault is not with the sender but with the instrument cluster that processes and displays the signal. This can be due to failed solder joints or internal component failure within the cluster. A diagnostic scan showing other cluster-related faults or erratic behavior of other gauges would point in this direction. Some owners report that pressing on the cluster housing can temporarily affect the gauge, indicating a bad connection.
• Faulty SAM (Signal Acquisition Module) or ECM: The Rear SAM is often responsible for processing the input from the fuel level senders before sending it to the instrument cluster. A failure in this module is rare but possible. This should only be considered after the sender, wiring, and instrument cluster have been ruled out as the cause.

Diagnosis Steps

1. Confirm the code P0462 is present using an OBD-II scanner.
2. Check the fuel gauge. Note its behavior (stuck on E, fluctuating, etc.). A user on MBWorld for a W205 noted the gauge would jump around once it reached half empty.
3. Remove the rear seat bottom cushion to gain access to the fuel tank service ports. This usually involves pulling up firmly on the front edge of the cushion.
🎬 See how to safely remove the rear seat bottom cushion.
4. Remove the circular black access cover(s). There is one on the left and one on the right side.
5. Visually inspect the wiring and connectors for any obvious damage, corrosion, or loose connections.
6. With the key on, disconnect the sensor and use a multimeter to check for reference voltage and ground at the connector. A wiring diagram for your specific model is essential here.
7. If power and ground are good, the issue is likely the sender. To confirm, measure the resistance across the sensor's pins while manually moving the float arm up and down. The resistance should change smoothly without any dropouts (open circuit) or spikes.
8. If the sender tests good, the next step is to perform continuity tests on the wiring harness between the tank connector and the Rear SAM or instrument cluster to find any shorts or open circuits.

Parts You'll Likely Need

• Fuel Level Sending Unit (Left or Right) (OEM #W204: A2045400917 (Left), A2044700794 (Right, part of pump assembly). W205: A2059052910, A2055400017.) — This is the most common point of failure for code P0462. The internal resistor fails, causing the low voltage reading. Part numbers are highly specific.
  Trusted brands: Genuine Mercedes-Benz, VDO, Bosch
  OEM price range: $250-$400
  Aftermarket price range: $150-$250
• Fuel Tank Seal / Gasket — The large rubber seal for the access port should always be replaced whenever the sending unit is removed to prevent fuel leaks and vapor smells. Reusing an old, swollen seal is a significant safety risk.
  Trusted brands: Genuine Mercedes-Benz, Elring
  OEM price range: $20-$40
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0463 (Fuel Level Sensor 'A' Circuit High)
• P2066 (Fuel Level Sensor 'B' Circuit Performance)
• P2067 (Fuel Level Sensor 'B' Circuit Low)
• P2068 (Fuel Level Sensor 'B' Circuit High)

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Signal Voltage at Rear SAM — expected: 0.5V (Empty) to 4.5V (Full) on a 5V reference circuit.. Failure: A voltage reading consistently below 0.5V, often near 0V, indicates a short or failed sensor and will trigger P0462.
• Fuel Level Sensor Resistance (W205) — expected: Approximately 100 Ohms (Full) to 1,000 Ohms (Empty).. Failure: A reading near zero ohms indicates an internal short. An infinite reading (OL) indicates an open circuit. The reading should sweep smoothly as the float is moved.
• Fuel Level Sensor Resistance (General/Comparative) — expected: Ranges vary significantly by model. Some are ~40 Ohms (Empty) to ~250 Ohms (Full). Others are inverted, e.g., ~18 Ohms (Full) to ~190 Ohms (Empty).. Failure: Any reading that is open (infinite), shorted (near zero), or does not change smoothly when moving the float arm indicates a failure.

Scan Tool Commands That Help

• XENTRY/DAS (Mercedes Dealer Tool): Read real-time data from Rear SAM — To view the raw voltage or resistance values being reported by both the left and right fuel level senders independently. This is the primary method to confirm which sender ('A' or 'B') is faulty without multimeter testing.
• XENTRY/DAS (Mercedes Dealer Tool): Instrument Cluster Actuation Test — To command the fuel gauge to sweep through its full range of motion. If the gauge moves correctly during the test, it confirms the instrument cluster is working, pointing the fault back toward the sender, wiring, or SAM.
• XENTRY/DAS (Mercedes Dealer Tool): Check/Adapt SAM Coding — If the Rear SAM has been replaced, this function is used to verify it is coded correctly for the vehicle's specific fuel tank and sender configuration. Incorrect coding can cause this fault code.

Wiring & Ground Locations

• Rear SAM (W204) — Located in the trunk on the right side (passenger side for LHD), behind the trunk liner panel.. The Rear SAM processes the signals from both fuel level senders. All diagnostic wiring tests for the sender circuit will terminate at this module.
• Rear SAM (W205) — Located in the trunk on the right side, under the trunk floor and liner.. Similar to the W204, this module is the central processing unit for the fuel level signals. It is a key location for checking signal integrity from the sensor.
• Fuel Pump / Sender 'A' Assembly — Under the rear seat cushion, on the right side (passenger side for LHD), beneath a black circular access cover.. This is the physical location of the sensor that triggers P0462. The wiring connector on top of this unit is a common point for corrosion and damage.

Real Owner Repair Stories

• MBWorld.org Forums user 'garretml' (Mercedes-Benz S-Class (W220) - Note: Different model, but illustrates identical failure principle.) — Fuel gauge was 'all over the place'.
  ❌ Tried (didn't work) Cleaning the contacts on the original sender provided a temporary fix, but the problem returned.
  ✅ What actually fixed it The user measured the resistance of the old float and found it was only reading in 20% of its range. Replacing the sending unit with a used one from eBay resolved the issue completely.

OEM Part Supersession History

• 2054707801, 205470159428 → A2054701594 — Part revision and consolidation for W205 fuel pump and sender assembly.
• 204-470-04-94, 204-470-14-94 → 204-470-44-94 — Part revision for W204 suction jet pump / sender unit.

Model Year Variations Within This Range

• 2008-2014 (W204) vs 2015-2017 (W205): The part numbers for the fuel pump and sender assemblies are entirely different between the two generations. The Rear SAM modules are also different parts with different internal layouts, though they are in a similar location (right side of trunk).
• 2008-2010 vs 2011-2014 (W204): The front and rear pre-fuse boxes (which supply power to the SAM modules) had layout changes around the 2010 model year, which can affect which fuse number corresponds to the fuel system components during diagnosis.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Rear Subframe Corrosion/Rust 🔴 High — Widespread on W204 models, particularly in regions with road salt. Can occur as early as 5-7 years old. Less common on W205. (Ref: Mercedes-Benz extended the warranty on the rear subframe to 20 years/unlimited miles in the US, covering replacement if perforation occurs.)
• 7G-Tronic (722.9) Conductor Plate Failure 🔴 High — Very common issue on models equipped with the 7-speed automatic transmission, typically occurring between 60,000 and 120,000 miles. (Ref: No recall, but it is a widely known failure. Common fault codes include 0717, 0718, and 2767 related to speed sensor signals.)
• M272 V6 Balance Shaft Sprocket Wear 🔴 High — Affects M272 engines produced before engine number 2729..30 468993 (approx. pre-2007). Failure can occur between 60,000-100,000 miles. (Ref: A class-action lawsuit addressed this issue for early models. It is a known, catastrophic engine failure if not addressed.)
• M274 4-Cylinder Piston Cracking 🔴 High — Affects early W205 C300 models (approx. 2015-2017) with the M274 engine. Can lead to catastrophic engine failure. (Ref: No recall, but covered under warranty. A known issue discussed widely in owner forums.)
• Front Suspension Bushing and Ball Joint Wear 🟡 Low — Common on higher-mileage W204 models (over 100k miles), causing creaking and groaning noises from the front suspension, especially in cold weather. (Ref: No TSB, considered normal wear and tear. Owners often use silicone spray as a temporary fix.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used Rear SAM module can be a cost-effective option if the part number matches exactly, but it may require dealer-level programming or coding to function correctly with the car's specific options.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a fuel sender: Ask the seller to confirm the float arm moves freely without binding. Inspect photos for heavy discoloration or wear on the visible resistor card.
• For a Rear SAM: Inspect all connector pins for any signs of green or white corrosion, which indicates water damage. Avoid any units that show signs of having been wet.

OEM-only on this vehicle (don't cheap out):

• Fuel Level Sending Unit

Aftermarket brands forum-validated for this vehicle:

• VDO
• Bosch

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name senders from online marketplaces are a significant risk, as their resistance ranges often do not match OEM specifications, leading to persistent inaccurate gauge readings.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0463 — Indicates Fuel Level Sensor 'A' Circuit High input, the opposite of P0462. It's often caused by an open circuit or break in the same wiring harness or a failure within the same sending unit.
• P0461 — Indicates Fuel Level Sensor 'A' Circuit Range/Performance issue. This code can be set if the sensor's signal is erratic or irrational, which aligns with the common symptom of the fuel gauge needle jumping around.
• P2067 — Indicates Fuel Level Sensor 'B' Circuit Low. The C-Class uses a dual-sender system in its saddle tank. This code is the equivalent of P0462 but for the secondary sensor on the other side of the tank.
• P2066 — Indicates Fuel Level Sensor 'B' Circuit Range/Performance. This code is mentioned in the article context as being related to 'the other sensor' in the C-Class's dual-sender fuel system. A problem with either sensor can affect the overall gauge accuracy.
