P0463 on 2007-2014 Chevrolet Suburban: Fuel Level Sensor Circuit High Causes and Fixes

What's Unique About the 2007-2014 Chevrolet Suburban

This generation of GM trucks and SUVs, known as the GMT900 platform, is notorious for fuel level sensor failures. Over time, the electrical contacts on the sensor card inside the tank corrode or wear out. This wear is often attributed to the sulfur content in gasoline, which degrades the resistive material on the sender. This wear creates an open circuit, sending the abnormally high voltage signal that triggers the P0463 code. While the code is generic, the root cause on these Suburbans is a very specific and frequent component failure.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge reads empty, full, or fluctuates erratically.
• "Low Fuel" warning message appears on the driver information center, even with a full tank.
• Fuel range display shows "---" or an inaccurate distance to empty.
• Fuel gauge remains on 'E' immediately after a repair, with the P0463 code returning.
• Remote start may be disabled, as the system believes the fuel tank is empty.

Most Likely Causes

1. Failed Fuel Level Sensor (Sending Unit) 🔴 High Probability → Shop Fuel Tank Sending Unit The material on the sensor's resistor card is known to wear down or corrode from exposure to fuel additives (like sulfur), causing the wiper contact to lose connection. This failure is a very common wear-and-tear item on GMT900 platform vehicles and is the primary cause of P0463. Often, the small metal fingers on the wiper arm physically break off.
   How to confirm: With a scan tool, observe the fuel level sensor voltage; it will likely be stuck at or near 5 volts, indicating an open circuit. A definitive test involves dropping the tank, removing the sensor, and testing its resistance sweep with a multimeter. The resistance should change smoothly as the float arm is moved. An infinite (OL) reading confirms failure. The typical range is approximately 40 ohms (empty) to 250 ohms (full).

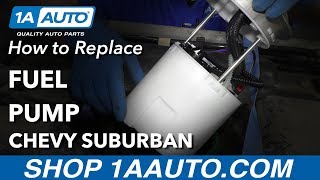

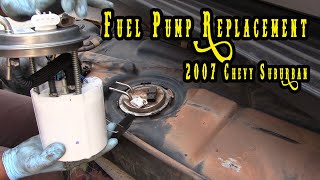

   Typical fix: Replace the fuel level sensor. 🎬 See how to swap the sensor without replacing the whole pump. Since the sensor is part of the fuel pump module, the fuel tank must be removed for access. Most owners and technicians choose to replace the entire fuel pump module assembly at the same time, as the labor is identical and the fuel pump is also a high-wear item. 🎬 Follow this step-by-step guide to replace the entire fuel pump module.
   Est. part cost: $75-$150 for the sensor kit; $200-$500 for a complete aftermarket fuel pump module assembly.

Rare But Worth Checking

• Damaged Wiring or Connectors: An open in the signal wire (typically purple) or ground wire between the PCM and the fuel tank can cause a high voltage reading. Check the harness where it passes over the frame for chafing or corrosion. The main connector on top of the fuel tank is a common point of failure, sometimes breaking during removal.
• Poor Ground Connection: The fuel pump module relies on a solid ground to the chassis. Rust or corrosion at the ground point (often a strap on the fuel tank) can introduce high resistance into the circuit, mimicking a sensor failure.
• Faulty Instrument Panel Cluster (IPC): → Shop Instrument Cluster While rare for this specific code, GM trucks of this era can suffer from failed stepper motors in the instrument cluster, causing erratic gauge behavior. However, a faulty cluster typically won't set a P0463 code, which originates from the PCM's reading, not the gauge itself.
• Faulty Powertrain Control Module (PCM): In very rare cases, the internal circuit within the PCM that reads the fuel level sensor voltage can fail. This should only be considered after all other possibilities, especially the sensor and wiring, have been exhaustively ruled out.

Diagnosis Steps

1. Connect an OBD-II scanner and confirm P0463 is the active code. 🎬 Watch this diagnostic video to see how to confirm the code. Check for any other related fuel system codes like P0461.
2. Use the scanner's live data function to view the 'Fuel Level Sensor Voltage'. If it is stuck at a high value (e.g., near 5.0 volts) regardless of the fuel in the tank, it strongly suggests an open circuit.
3. Perform a visual inspection of the wiring harness leading to the fuel tank. Look for any visible signs of damage, corrosion, or loose connections. Pay close attention to the large connector on top of the tank and the chassis ground strap.
4. If wiring appears intact, the next step is to test the sensor itself, which requires lowering the fuel tank to access the fuel pump module.
5. Before removing the pump, test the circuit at the tank connector. With the key on and connector unplugged, the signal wire (purple) should read 5V from the PCM. Check for a good ground on the corresponding ground wire.
6. If the wiring and power/ground are good, remove the fuel pump module from the tank.
7. With the module removed, connect a multimeter set to Ohms to the fuel level sensor pins. Slowly move the float arm from empty to full. The resistance reading should change smoothly and consistently. For these models, the typical range is around 40 ohms at empty to 250 ohms at full. If the reading is infinite (OL), jumps erratically, or is out of spec, the sensor is bad.
8. If the sensor tests good but the code persists after reassembly, the problem is likely in the wiring harness between the tank and PCM or, in very rare cases, the PCM itself.

Parts You'll Likely Need

• Fuel Level Sensor Kit (OEM #19257106) — This is the direct cause of the P0463 code in the vast majority of cases. The original sensor fails due to wear on its resistive contacts. This part allows for replacement of just the sensor on the fuel pump module.
  Trusted brands: ACDelco, Delphi
  OEM price range: $100-$150
  Aftermarket price range: $75-$120
• Fuel Pump Module Assembly (OEM #19299715 (example for 2011 3/4 Ton w/ 6.0L), 22954396 (example for 2010-2014 models)) — Since dropping the fuel tank is a labor-intensive job, it is highly recommended to replace the entire fuel pump module, which includes the fuel pump, pressure regulator, and a new fuel level sensor. This prevents having to do the same job again if the original high-mileage fuel pump fails later. Part numbers vary significantly by year, engine, and wheelbase.
  Trusted brands: ACDelco, Delphi, Bosch, Spectra Premium, Continental
  OEM price range: $400-$550
  Aftermarket price range: $200-$400

Related Codes That Often Appear With This One

• P0461 — Stands for 'Fuel Level Sensor 'A' Circuit Range/Performance'. This code often appears alongside P0463 as the sensor's signal may become erratic or irrational before it fails completely into a 'high' (open) state.
• P0462 — Stands for 'Fuel Level Sensor 'A' Circuit Low'. This can appear intermittently if the wiring is shorting to ground, though P0463 (high/open) is far more common for a failed sensor on this platform.

Technical Service Bulletins (TSBs) & Recalls

• 01-06-04-008C: Discusses inaccurate fuel gauge readings on GM trucks due to corrosive effects of fuel on the sender contacts and recommends replacement with an improved part. Though for an older generation, it establishes the history of the problem.
• 17-NA-204: Addresses P0463 on dual-tank models where a failed sender can cause tank over-expansion and potential contact with the driveshaft, creating a fuel leak risk.

Platform-Specific Known Issues

• A GM Technical Service Bulletin (01-06-04-008C, later superseded) for older trucks acknowledged that corrosive fuel blends could damage the fuel tank sender contacts, leading to erratic gauge readings. This indicates a long-standing design sensitivity that continued into the GMT900 platform.
• For models equipped with dual fuel tanks (often found on 2500/3500 chassis cabs), TSB 17-NA-204 notes that a failed front level sender can cause the transfer pump to continuously run. This can overfill the main tank, causing it to expand and potentially contact the driveshaft, leading to a fuel leak. This is a more severe issue associated with P0463 on specific configurations.
• Owner Experience: A user on ChevroletForum.com reported getting a P0463 code even after replacing the fuel level sensor. The problem was ultimately traced back to a wiring or connection issue, highlighting the importance of checking the full circuit and not just assuming the new part is good or that the sensor was the only problem.

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Resistance Sweep — expected: Approximately 40 ohms (empty) to 250 ohms (full), with a smooth, linear change as the float is moved.. Failure: A reading of infinite resistance (OL), erratic jumps, or readings outside the 40-250 ohm range.
• Fuel Level Sensor Signal Voltage (at PCM) — expected: Varies with fuel level, typically between ~0.5V (empty) and ~2.5-3.0V (full).. Failure: A voltage stuck at or near 5.0V indicates an open circuit, which is the classic failure mode for P0463.
• Fuel Pump Module Ground Circuit Voltage Drop — expected: Less than 100mV (0.1V) when measured between the ground pin at the connector and a clean chassis ground.. Failure: A reading significantly higher than 0.1V, or a reading of 5V on the ground wire, indicates a bad ground connection, which can cause the P0463 code.

Scan Tool Commands That Help

• Tech2/GDS2: Fuel Pump Relay Command — This bidirectional control allows a technician to command the fuel pump relay ON and OFF to verify the control circuit from the PCM to the relay is functioning correctly. This helps isolate a wiring problem from a faulty relay or PCM.
• Tech2/GDS2: Live Data - Fuel Level Sensor Voltage — This is the primary data PID to monitor. A reading stuck at 5 volts is the key symptom of the open circuit that triggers P0463. Observing this data point is the first step before performing any physical tests.

Wiring & Ground Locations

• Fuel Pump Relay — Located in the underhood fuse block, on the driver's side of the engine compartment.. While not a direct cause of P0463 (which is a sensor circuit code), the fuel pump relay and its associated wiring are part of the same overall system and are accessed in the same area for testing.
• G401 — On the left side frame rail, near the fuel tank. This is a common ground point for multiple rear components.. This is a potential ground point for the fuel pump module. A corroded or loose G401 can cause high resistance in the ground circuit, leading to incorrect voltage readings and potentially triggering a P0463 code.
• Fuel Tank Module Connector — On top of the fuel tank, accessible after lowering the tank or lifting the vehicle's body/bed.. This is the main electrical interface for the entire fuel pump assembly. The signal wire (typically purple) and ground wire (typically black) for the fuel level sensor are in this connector. It is a critical test point and a common source of corrosion or damage.

Real Owner Repair Stories

• YouTube user comment (2008 Chevrolet Silverado (GMT900 platform)) — Fuel gauge read empty, P0463 code present.
  ❌ Tried (didn't work) The owner first replaced the entire fuel pump assembly, but the code and symptoms remained.
  ✅ What actually fixed it Upon re-inspection, the owner found a broken wire for the sending unit *inside* the fuel tank, between the main connector on the top of the module and the sensor itself. Repairing this internal wire resolved the issue.
• Forum user on GM-Trucks.com (GMT900 series truck) — P0463, fuel gauge reads empty.
  ✅ What actually fixed it Replaced only the fuel level sensor (not the whole pump assembly) with an ACDelco sensor kit. This fixed the problem, confirming that in many cases, the much cheaper sensor-only replacement is sufficient if the pump is still healthy.
• NHTSA ODI #11399819 — An owner reported that even after having two fuel level sensors installed, the check engine light would return with codes P0463, P069E, and C0045.
• NHTSA ODI #11615682 — A report describes a situation where a repair shop replaced the fuel pump module to address codes P0452 and P0463, but the replacement did not fix the problem.

OEM Part Supersession History

• 19168708, 19206479 → 19257106 — Part consolidation and potential minor revisions for durability.
  Heads up: Part 19257106 is the current OEM replacement sensor kit for many 2008-2014 5.3L Flex Fuel models. Always verify fitment with VIN, as variations exist.

Model Year Variations Within This Range

• 2007-2008: These years used the 4L60-E 4-speed automatic transmission.
• 2009-2014: These years were equipped with the 6L80 6-speed automatic transmission, which improved fuel economy but did not change the fuel sending unit design.
• 2007-2014: Multiple V8 engines were available (5.3L, 6.0L, 6.2L), with some being Flex Fuel (E85) capable. Fuel pump and sensor part numbers can vary based on engine and fuel type, so VIN verification is critical when ordering parts.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Cracked Dashboard 🟠 Medium — Extremely common, especially on 2007-2009 models. Cracks often appear near the passenger airbag and on the driver's side. (Ref: No recall was ever issued; GM considered it a cosmetic issue. A class-action lawsuit was unsuccessful.)
• Active Fuel Management (AFM) Lifter Failure 🔴 High — Common at higher mileage (typically over 80,000 miles). Affects 5.3L and 6.2L V8 engines. Can lead to misfires, ticking noises, and eventually camshaft damage. (Ref: Multiple TSBs exist, such as 15-06-01-002F and 10-06-01-007, which detail diagnosis and replacement of lifters.)
• Excessive Oil Consumption 🔴 High — Widespread on 2010-2014 models with the 5.3L V8. Can be as high as 1 quart per 2,000 miles. Caused by issues with piston rings and the PCV system related to AFM operation. (Ref: TSB 10-06-01-008G (and later revisions) provides procedures to install an updated valve cover and clean pistons to mitigate the issue.)
• Transmission Failure 🔴 High — Reported with some frequency, particularly in the 2007 model year. Can be costly to repair.
• Power Door Lock Actuator Failure 🟡 Low — A common annoyance where one or more door lock actuators fail, preventing locking/unlocking via the remote or switch.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: It is almost never a smart choice to use a junkyard fuel pump module or sensor. The fuel level sensor is a high-wear item, and the labor to access it by dropping the tank is significant. The risk of premature failure of a used part outweighs any initial cost savings.

What to inspect on the donor part:

• Not applicable, as used parts are not recommended for this repair.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', using a reputable OEM supplier like ACDelco or Delphi for the fuel level sensor or the complete pump module is very strongly recommended. The reliability of these brands is consistently cited as being worth the extra cost over store-brand or no-name online parts.

Aftermarket brands forum-validated for this vehicle:

• Delphi (often the original OEM supplier)
• ACDelco (GM's official parts brand, may be a reboxed Delphi or other supplier)
• Bosch

Brands owners have reported issues with on this vehicle:

• Spectra Premium (multiple forum and Reddit threads report high rates of premature failure for their fuel pump assemblies on this platform)
