P0463 on 2003-2008 Infiniti FX35/FX45: Fuel Level Sensor Causes and Fixes

What's Unique About the 2003-2008 Infiniti FX35/FX45

The first-generation Infiniti FX35/FX45 is built on Nissan's FM (Front Midship) platform, which it shares with the Infiniti G35 and Nissan 350Z. This platform uses a saddle-style fuel tank with two separate fuel level sending units to accommodate the driveshaft tunnel. P0463 typically points to a failure of the primary sensor (Sensor 'A'), which is part of the main fuel pump module on the passenger side. A very common and well-documented issue on these vehicles is the failure of the sensor's internal resistor contacts. Fortunately, the repair is easier than on many vehicles, as both sending units can be accessed through service panels under the rear seat, eliminating the need to drop the entire fuel tank.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge is inaccurate, stuck on empty, or stuck on full
• Fuel gauge needle fluctuates randomly or reads higher than the actual fuel level
• Low fuel warning light stays on even with fuel in the tank

Most Likely Causes

1. Faulty Fuel Level Sending Unit ('A' / Primary) 🔴 High Probability → Shop Fuel Tank Sending Unit The variable resistors on the sending units used in this generation of Nissan/Infiniti FM platform vehicles are a known high-failure item. The sweeper contacts on the resistor card wear out over time, creating an open circuit that the ECM interprets as a 'High Input' voltage.
   How to confirm: Access the sending unit via the service panel under the passenger-side rear seat. Disconnect the electrical connector and measure the resistance between the sensor pins with a multimeter while moving the float arm. The resistance should change smoothly. An infinite resistance reading (O.L.) confirms a failed, open sensor.
   Typical fix: Replace the failed fuel level sending unit. 🎬 Watch this step-by-step guide on replacing the fuel sending unit. It can be purchased separately from the fuel pump assembly. The lock ring and o-ring seal should also be replaced to ensure a proper seal.
   Est. part cost: $150-$320
2. Damaged Wiring or Corroded Connector ⚪ Low Probability
   How to confirm: Visually inspect the wiring harness and connector at the fuel sending unit for any signs of corrosion, breaks, or loose pins. Check for 5V reference and good ground at the connector using a multimeter.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the connector.
   Est. part cost: $10-$50

Rare But Worth Checking

• Faulty Instrument Cluster: → Shop Instrument Cluster This is a rare cause, but documented on platform mates like the G35. Cold or cracked solder joints on the cluster's main circuit board can disrupt the signal from the sending units, causing an incorrect gauge reading and triggering P0463 or P0462. This should only be considered after the sending units and wiring have been confirmed to be good.
• Faulty Powertrain Control Module (PCM/ECM): ECM failure is extremely rare and should only be considered after all other possibilities, including wiring and the instrument cluster, have been exhaustively tested.

Diagnosis Steps

1. Verify the code P0463 is present using an OBD-II scanner.
2. Use the trip odometer to track mileage and avoid running out of fuel.
3. Perform an instrument cluster self-test. On many models, this is done by holding the trip reset button while turning the ignition to 'ON' (do not start), then pressing the trip button three times. The gauges should sweep. If the fuel gauge moves during this test, the gauge itself is likely functional, pointing towards the sensor or wiring.
4. Remove the rear seat cushion to access the fuel pump and sending unit service panels.
🎬 See how to access and remove the fuel pump assembly.
5. Identify the primary sending unit (usually on the passenger side). Disconnect the battery.
6. Remove the service panel cover and disconnect the electrical connector.
7. Using a multimeter, test the resistance of the sending unit across the appropriate pins. Manually move the float arm up and down.
8. A healthy sensor will show a smooth change in resistance (e.g., ~4-6 ohms full, ~78-82 ohms empty). A reading of infinite resistance (O.L.) at any point indicates an open circuit and confirms the sensor is bad.
9. If the sensor tests good, check the wiring harness for a 5-volt reference signal and a good ground connection.
10. If wiring and sensor are good, the problem may lie with the instrument cluster, but this is highly unlikely.

Parts You'll Likely Need

• Fuel Level Sensor (Sending Unit, Primary/Passenger Side) (OEM #25060-CG00B, superseded by 25060-CG00E) — This is the component that fails in over 90% of cases for this code on this vehicle. The internal variable resistor wears out and creates an open circuit.
  Trusted brands: Genuine Infiniti, Bosch, Delphi, Spectra Premium
  OEM price range: $230-$330
  Aftermarket price range: $80-$180

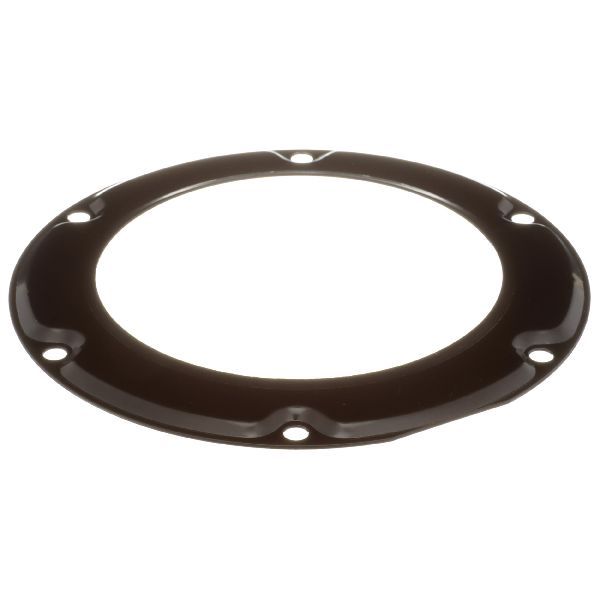

• Fuel Tank O-Ring / Seal (OEM #17342-CE800 (example, verify for specific pump)) — This seal is removed to access the sending unit and should always be replaced to prevent fuel leaks and vapor smells. It is a cheap preventative measure.
  Trusted brands: Genuine Infiniti
  OEM price range: $15-$25
  Aftermarket price range: $10-$20

Related Codes That Often Appear With This One

• P0462 — P0462 is 'Fuel Level Sensor 'A' Circuit Low Input'. It can appear intermittently if the sensor's internal contacts are failing and shorting out, though P0463 (open circuit) is the more common failure mode for a completely dead gauge.
• U1000 or U1001 — These are CAN communication line error codes. If P0463 is present with either of these codes, the communication issue must be diagnosed first, as it can be the root cause of the incorrect fuel level signal being reported to the ECM.

Technical Service Bulletins (TSBs) & Recalls

• While Nissan has issued TSBs for similar fuel gauge issues on other models (e.g., NTB07-069a for the Versa), a specific, publicly available TSB for P0463 on the 2003-2008 FX35/FX45 was not located during research. The repair procedure is well-established in the service manual and community forums regardless.
• Manufacturer TSB Bulletin #ITB22-015, while issued for a different model (QX60), reinforces the manufacturer's stance that for codes P0460, P0461, P0462, and P0463, the fuel level sensor can be replaced separately from the entire fuel pump assembly.

Platform-Specific Known Issues

• The fuel sending units on the first-generation FX platform are a widely acknowledged weak point that commonly fails, leading to P0463 or related codes. This issue is shared across other vehicles on the Nissan FM platform.

Mechanic-Grade Diagnostic Values

• Primary Fuel Level Sensor Resistance — expected: Approximately 4-6 Ohms at Full, and 78-82 Ohms at Empty. The resistance should change smoothly when moving the float arm.. Failure: A reading of infinite resistance (O.L. - Open Loop) at any point in the float's travel, or values that are drastically outside the expected range.
• Fuel Level Sensor Signal Voltage (at ECM/Unified Meter) — expected: A smooth voltage transition, typically between ~0.5V (Empty) and ~4.5V (Full).. Failure: A signal voltage stuck at or near 5.0V, which indicates an open circuit and triggers the P0463 code.

Scan Tool Commands That Help

• Nissan CONSULT-II / CONSULT-III: Data Monitor for 'FUEL LEVEL SENSOR' — To view the raw voltage or resistance value the ECM is receiving from the fuel level sensor. This helps confirm if the ECM is seeing the same high-input value that is triggering the code, isolating the issue to the sensor/wiring side.
• Nissan CONSULT-II / CONSULT-III: Active Test for 'Combination Meter' — Some advanced scan tools may have an active test to command the fuel gauge needle to sweep or move to specific positions (e.g., 1/4, 1/2, 3/4). This is useful for definitively ruling out a faulty instrument cluster gauge motor if the needle responds correctly to the command.

Wiring & Ground Locations

• Fuel Pump / Sending Unit Assembly Connector — Located on top of the fuel pump module, accessible by removing the service panel under the passenger-side rear seat cushion.. This is the primary connection point for the fuel level sensor. The signal wire, power, and ground all pass through this connector. Corrosion or a loose pin here is a common cause of failure.
• Ground Points M35, M45, M85 — These are body ground points located under the dash area that the Unified Meter and A/C Amplifier (which processes the fuel level signal) uses.. While a failure here is less common than the sensor itself, a poor ground at the control unit can cause a floating voltage and incorrect readings, potentially leading to a P0463 code. This should be checked if the sensor and its direct wiring test good.
• Unified Meter and A/C Amplifier — This control unit is typically located in the center dash stack, often behind the radio/HVAC controls.. On this platform, the fuel level sensor signals do not go directly to the instrument cluster. They are first processed by this 'Unified Meter' control unit, which then sends the information to the cluster via CAN bus. A fault within this unit can cause the code.

Real Owner Repair Stories

• Reddit user on r/infiniti (2010 Infiniti FX35 (Slightly newer model, but same platform architecture and a highly relevant failure pattern)) — Fuel gauge was stuck on Full, would not go down.
  ❌ Tried (didn't work) Replaced the fuel sending unit., Replaced the fuel pump.
  ✅ What actually fixed it Replaced the AC Control Module (Unified Meter). The user discovered that the fuel sending unit circuits pass through this module. Upon opening the old module, they found that resistor circuits had broken solder joints and had physically come loose from the board.

OEM Part Supersession History

• 25060-CG000, 25060-CG00B → 25060-CG00E — Likely an updated design to improve the longevity of the variable resistor contacts, which are the common failure point.

Model Year Variations Within This Range

• 2006-2008: The Infiniti FX series received a facelift for the 2006 model year. While the fundamental saddle-tank fuel system and P0463 failure mode remained the same, there were updates to interior electronics and wiring harnesses. Part numbers for the instrument cluster and Unified Meter may differ between 2003-2005 and 2006-2008 models. Always verify part numbers with a VIN when diagnosing or replacing electronic modules.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Bubbling or Cracking Dashboard 🟠 Medium — Extremely common, especially in warmer climates. A warranty enhancement program existed but has since expired for most vehicles.
• VQ35DE Engine Oil Consumption 🟠 Medium — Widespread on higher-mileage (100k+) VQ35DE engines. Consumption of 1 quart per 1,000-2,000 miles is often considered 'normal' by Nissan standards but can be alarming to owners.
• Premature Front Wheel Bearing Failure 🟠 Medium — A frequently reported problem, causing a humming or growling noise that changes with vehicle speed and while turning.
• Timing Chain Tensioner & Guide Wear 🔴 High — Presents as a rattling noise from the front of the engine, especially on cold starts. If ignored, it can lead to catastrophic engine damage. Typically occurs at higher mileage (100k+ miles).
• Door Lock Actuator Failure 🟡 Low — A common annoyance where one or more door locks stop responding to the remote or interior lock switch.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used part only makes sense for the Instrument Cluster or the Unified Meter/AC Amplifier, and only if they have been definitively diagnosed as the fault. Buying a used fuel level sending unit is a significant gamble and not recommended, as it is a known high-failure wear item.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For an instrument cluster: Check for a clear, unscratched lens and no visible sun fading or damage.
• For a Unified Meter: Ensure all connectors and pins are straight and free of corrosion.
• If possible, source from a vehicle with lower mileage and from a climate with less extreme heat, which can stress electronic components.

OEM-only on this vehicle (don't cheap out):

• Fuel Level Sensor (Sending Unit): While some top-tier aftermarket brands are acceptable, cheap, unbranded sensors are notorious for premature failure. Sticking with Genuine Infiniti or a trusted OEM supplier like Bosch or Delphi is strongly advised to avoid doing the job twice.

Aftermarket brands forum-validated for this vehicle:

• Bosch
• Delphi
• Spectra Premium

Brands owners have reported issues with on this vehicle:

• Unbranded or 'white-box' parts from online marketplaces are highly likely to fail quickly or be inaccurate out of the box.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0462 — Fuel Level Sensor 'A' Circuit Low Input. This is the direct counterpart to P0463, indicating a short circuit in the sending unit or wiring, whereas P0463 indicates an open circuit. Both point to a failure of the same component.
• P0461 — Fuel Level Sensor 'A' Circuit Range/Performance. This code is set when the sensor's signal is erratic or doesn't correlate with expected fuel consumption, often caused by the same wear on the sensor's resistor that eventually leads to P0463.
• P0464 — Fuel Level Sensor 'A' Circuit Intermittent. This indicates the fault that causes P0463 is happening sporadically, which is common as the sending unit's contacts begin to fail and lose connection intermittently before failing completely.
• P0460 — Fuel Level Sensor 'A' Circuit. A more generic fault code for the fuel level sending unit circuit that can be triggered by the same root causes as P0463.
