P0463 on 2010-2016 Mercedes-Benz E-Class: Fuel Level Sensor 'A' Circuit High Causes and Fixes

What's Unique About the 2010-2016 Mercedes-Benz E-Class

The 2010-2016 E-Class (W212, S212, C207/A207 generations) uses a 'saddle' style fuel tank that straddles the driveshaft tunnel. To measure fuel accurately, it requires two separate fuel level sensors. The P0463 code specifically refers to the primary sensor, designated 'A', which is integrated with the fuel pump on the right (passenger) side of the tank. Failures often occur suddenly, with many owners on forums like MBWorld.org reporting the fuel gauge dropping to empty immediately after filling the tank, accompanied by the P0463 code.

Generation note: The 2010-2016 period covers the W212 (Sedan), S212 (Wagon), C207 (Coupe), and A207 (Cabriolet) generations. All utilize a similar saddle tank and dual fuel-sender design, so the causes and repairs for P0463 are consistent across these models.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge reads empty, full, or fluctuates erratically (most commonly drops to empty and stays there)
• Low fuel warning light is on, even with a full tank
• Inaccurate 'distance to empty' calculation on the trip computer
• Unexpectedly running out of fuel despite the gauge showing fuel is present

Most Likely Causes

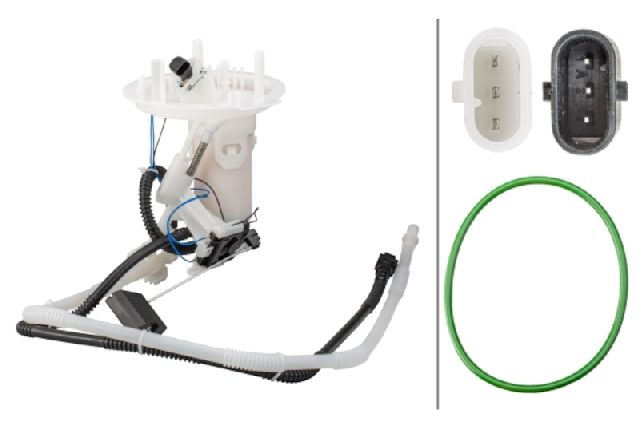

1. Faulty Right-Side Fuel Level Sensor 🔴 High Probability → Shop Fuel Tank Sending Unit The fuel level sensor is integrated with the main fuel pump assembly. The internal electronic components of the sensor, specifically the variable resistor contacts, are a very common failure point on this platform. The failure often manifests as an open circuit.
   How to confirm: Use a Mercedes-specific scan tool (like XENTRY/DAS) to monitor live data from the right-side fuel level sensor. The reading will be out of range or stuck at a maximum value. Alternatively, after gaining access to the unit by removing the rear seat, test the sensor's resistance with a multimeter; it will likely show an open circuit (infinite resistance). A good sensor should show a changing resistance value as the float arm is moved.
   Typical fix: Replace the entire right-side (passenger) fuel pump and sending unit assembly. It is critical to also replace the large fuel tank seal/gasket to prevent dangerous fuel leaks and vapor smells. The locking ring that holds the assembly in place can be difficult to remove without a special tool.
   Est. part cost: $300-$500
2. Wiring Harness or Connector Issue ⚪ Low Probability Less common than sensor failure, but the connector on top of the fuel tank can be exposed to dirt or moisture if the access cover is not sealed properly. Wires under the rear seat can also be damaged.
   How to confirm: Visually inspect the wiring harness and the 4-pin connector going to the fuel pump assembly for any signs of damage, chafing, or corrosion at the pins. Perform a continuity and ground check on the sensor circuit from the Rear SAM to the fuel tank connector.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the corroded connector.
   Est. part cost: $10-$50

Rare But Worth Checking

• Faulty Rear Signal Acquisition Module (SAM): This is very rare. The SAM is the control unit that reads the sensor's input. In some cases, a faulty SAM can misinterpret the sensor's signal. Before suspecting the SAM, all sensor and wiring issues must be definitively ruled out with thorough testing.
• Instrument Cluster Fault: → Shop Instrument Cluster An internal fault in the instrument cluster could theoretically cause an incorrect gauge reading, but it is extremely unlikely to be the root cause of a P0463 code, which is generated by the Rear SAM based on the sensor's electrical input.

Diagnosis Steps

1. Connect an OBD-II scanner and confirm that P0463 is the primary code stored.
2. Using a more advanced, Mercedes-compatible scanner, access the live data stream for the fuel tank level sensors in the Rear SAM module. Observe the voltage or resistance value for the right-side sensor ('Sensor A'). A static, abnormally high reading confirms the fault lies in that circuit.
🎬 See how to diagnose and fix the P0463 code
3. Gain access to the top of the fuel tank by removing the rear passenger-side seat cushion. This typically involves pulling up firmly on the front edge of the seat.
4. Unscrew the round metal access cover (usually held by 10mm nuts).
5. Disconnect the electrical connector for the right-side fuel pump/sender assembly.
6. Visually inspect the connector pins on both the harness and the unit for corrosion, moisture, or damage.
7. Using a digital multimeter set to Ohms, measure the resistance across the two sensor pins on the unit itself. If the reading is infinite (Open Loop/OL), the sensor has failed internally.
8. If the sensor tests okay, check the wiring harness for a proper ground and for a short to power on the signal wire leading back to the Rear SAM.
9. If the sensor has failed, the entire fuel pump/sender assembly must be replaced. Use a specialized locking ring tool to remove the large plastic ring securing the unit. Replace the large rubber tank seal with a new one.

Parts You'll Likely Need

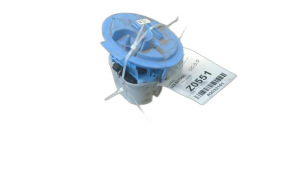

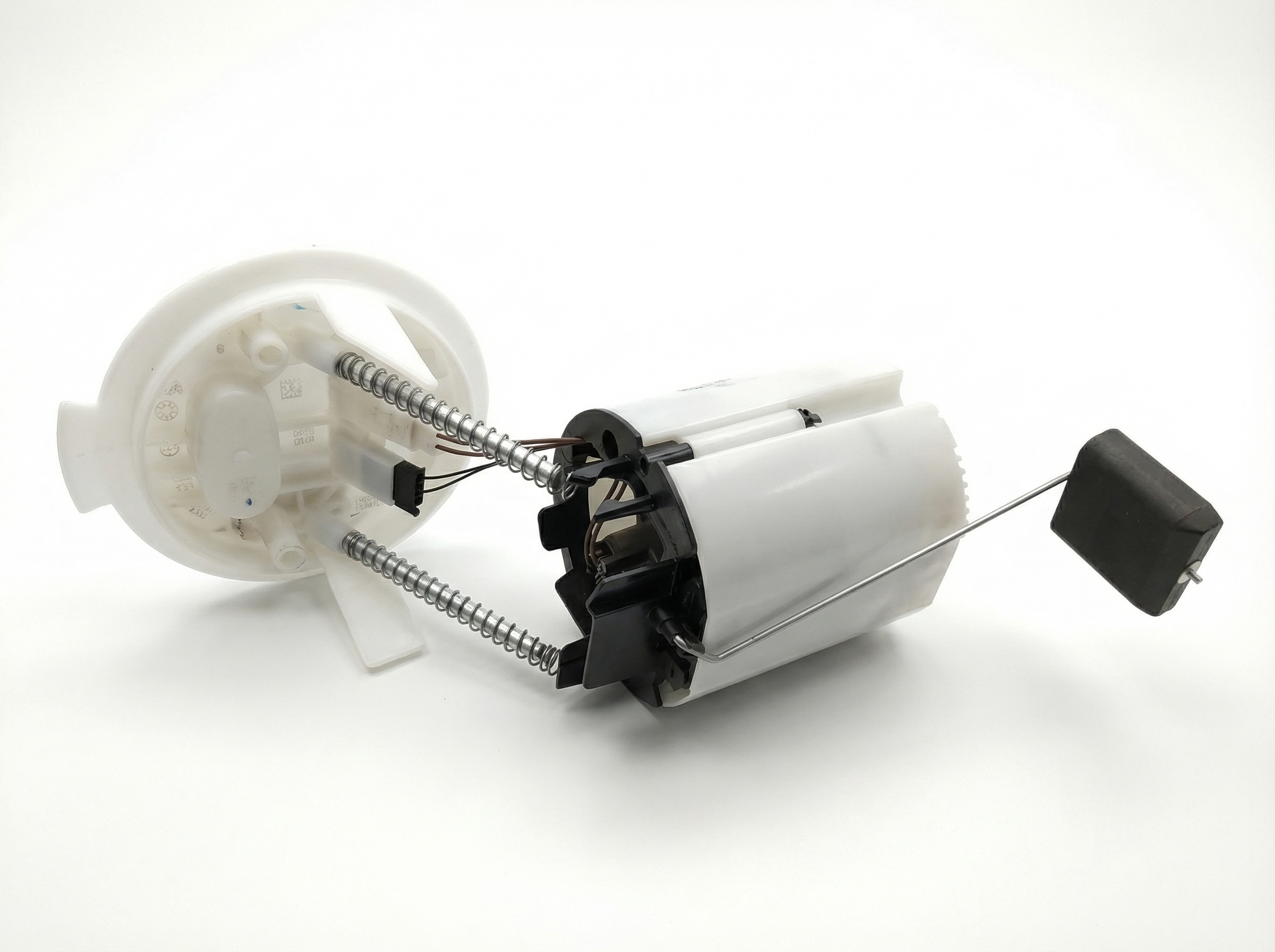

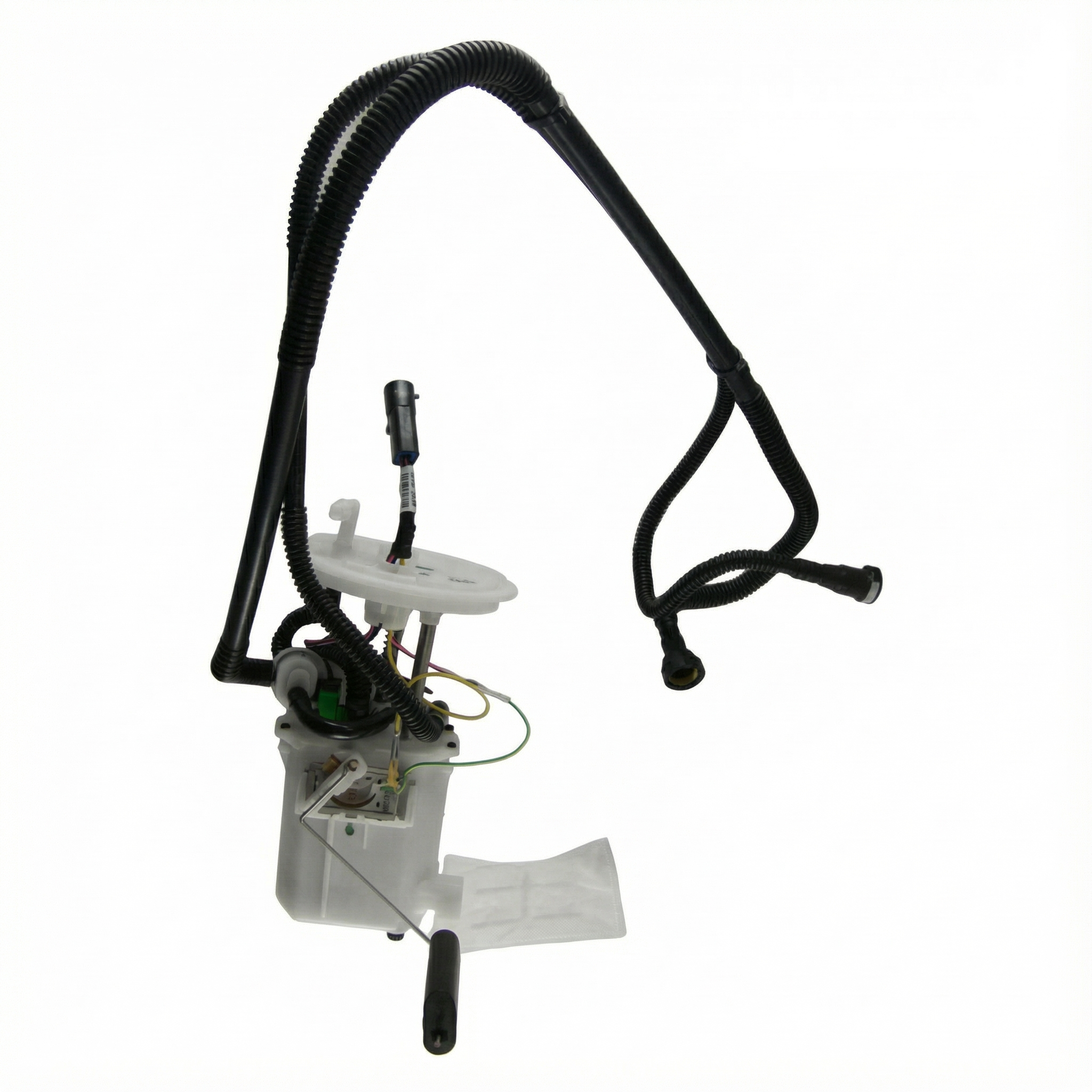

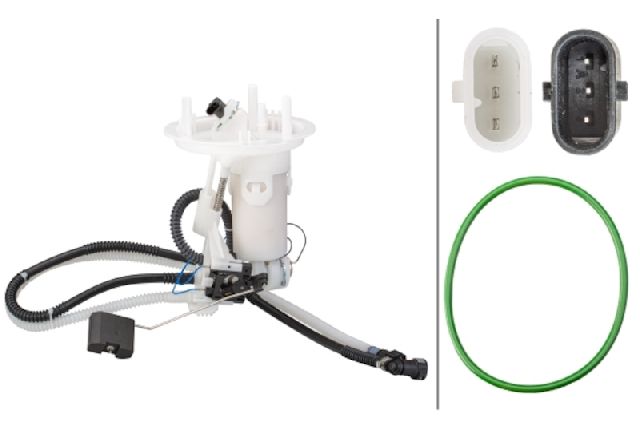

• Fuel Pump and Sending Unit Assembly (Right Side) (OEM #A2184700094 (Varies by specific model/year, always verify with VIN)) — This is the most common failure. The fuel level sensor is integrated into this assembly and is not sold separately by Mercedes-Benz. 🎬 Learn how Mercedes-Benz in-tank fuel modules operate
  Trusted brands: VDO (often the OEM supplier), Bosch, Genuine Mercedes-Benz
  OEM price range: $450-$600
  Aftermarket price range: $250-$400

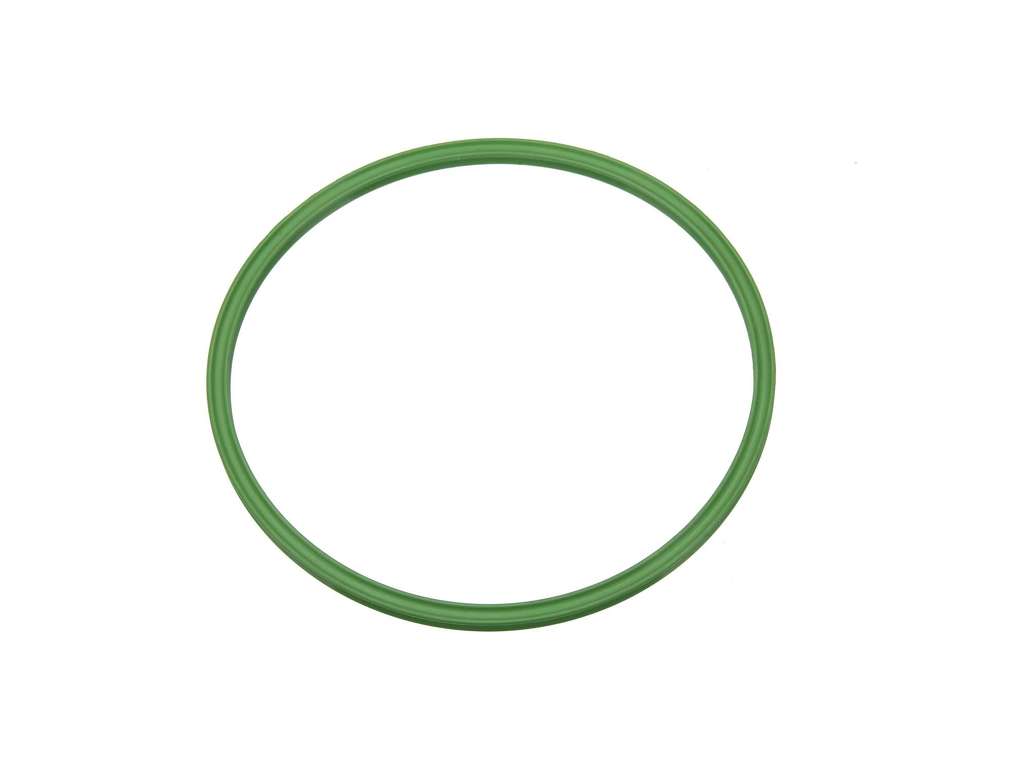

• Fuel Tank Seal / Gasket (OEM #A2114710579 (Verify with VIN)) — The seal is a one-time-use part and must be replaced anytime the fuel pump assembly is removed to prevent dangerous fuel leaks and vapor smells.
  Trusted brands: Elring, Genuine Mercedes-Benz
  OEM price range: $20-$30
  Aftermarket price range: $10-$20
• Fuel Tank Lock Ring (OEM #A2114710241 (Verify with VIN)) — The plastic locking ring can become brittle with age and may crack or break during removal, especially if the correct tool is not used.
  Trusted brands: Genuine Mercedes-Benz
  OEM price range: $15-$25

Platform-Specific Known Issues

• Sudden Failure After Refueling: A very common owner complaint found on forums is that the fuel gauge was working perfectly until they filled the tank. Immediately after starting the car post-refueling, the gauge drops to zero, the low fuel light comes on, and the P0463 code is triggered. This suggests the float mechanism or sensor contacts fail at the very top of their travel range.
• DIY Repair Story: An owner on MBWorld documented their DIY replacement of the right-side fuel pump assembly on a W212 E350. They confirmed the P0463 code with a basic scanner, then removed the rear seat bench to access the pump. The most difficult part was removing the large plastic locking ring without the special tool. After replacing the unit (VDO brand) and the seal, the code was cleared and the fuel gauge returned to normal operation. The total cost was under $400 for parts.
🎬 Watch this step-by-step W212 fuel pump replacement walkthrough

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor 'A' (Right Side) Resistance — expected: A smooth sweep of changing resistance as the float arm is moved. While exact OEM specs are not published, typical European sensors operate in a 0 Ohms (empty) to 190 Ohms (full) range. Some general sensors operate from 40 Ohms (empty) to 250 Ohms (full).. Failure: A reading of infinite resistance (OL - Open Loop) indicates a broken internal circuit, which is the most common failure mode for P0463. A reading that does not change when the float is moved also indicates failure.
• Fuel Level Sensor 'A' Signal Voltage at Rear SAM — expected: A range between approximately 0.5V (empty) and 4.5V (full).. Failure: A voltage reading consistently above 4.5V, or near 5V, indicates a 'Circuit High' condition, triggering the P0463 code.
• Sensor Ground Circuit Resistance — expected: Less than 1 Ohm from the ground pin on the sensor connector to a clean chassis ground point.. Failure: Resistance greater than 5 Ohms indicates a poor ground connection, which could potentially cause erratic readings, though it's a less common cause for P0463 than sensor failure.

Scan Tool Commands That Help

• XENTRY/DAS (Mercedes Dealer Tool): Actual Values check in Rear SAM (N10/2) — This is the primary diagnostic step. A technician would navigate to the Rear SAM, select 'Actual Values,' and monitor the live data for both the left and right fuel level sensors. For a P0463, the right sensor's value will be clearly out of specification (e.g., showing maximum resistance or voltage), confirming the fault is in that sensor's circuit.
• XENTRY/DAS or advanced bidirectional scanner: Reset of mixture adaptation values — This is generally unrelated to a P0463 code but is an example of a specific reset function available in Mercedes diagnostic tools. No specific adaptation or coding is required after replacing the fuel level sensor; the new sensor's readings should be recognized by the Rear SAM automatically after clearing the fault code.

Wiring & Ground Locations

• N10/2 Rear SAM (Signal Acquisition Module) — Located in the trunk/luggage compartment, on the right (passenger) side, behind a trim panel. You may need to remove the spare tire and surrounding trim to gain full access to the module and its connectors.. The Rear SAM is the control unit that receives the voltage signal from the fuel level sensor, interprets it, and sets the P0463 code. Any wiring checks for continuity or shorts will be performed between the connector at the fuel tank and the corresponding input pins at the Rear SAM.
• Fuel Pump/Sender Connector — On top of the right-side fuel pump assembly, accessed by removing the rear passenger-side seat cushion and a round metal access cover.. This is the primary connection point to inspect for corrosion, moisture, or pushed-out pins. Resistance tests of the sensor itself are performed at the pins on the fuel pump assembly side of this connector.
• Chassis Ground Points (e.g., W9, W70) — Various locations in the vehicle, typically brown wires bolted to the chassis. A key ground point for many rear components is located in the trunk area near the SAM or under the rear seat.. While the sensor has a dedicated ground wire returning to the SAM, a poor main chassis ground for the SAM itself could theoretically cause issues. Verifying a clean, tight ground connection for the SAM is a good practice during advanced diagnostics.

Real Owner Repair Stories

• MBWorld.org Forums User (2010 E550 4MATIC, 93k miles) — Had fuel pressure issues and a false fuel level reading of empty.
  ❌ Tried (didn't work) The owner replaced both the left and right fuel pump/sender units. Initially, the gauge worked correctly for a day. Then, it began showing the correct level at startup but would drop to zero after a few seconds. The owner re-checked harnesses, pulled instrument cluster fuses, and opened the fuel cap, none of which resolved the issue.
  ✅ What actually fixed it The user did not post a final resolution, highlighting a complex case where simply replacing the common-failure parts did not solve the problem. This suggests a potential intermittent wiring issue or a rare fault in the Rear SAM or instrument cluster that was not immediately apparent.

OEM Part Supersession History

• A218470009428 → A2184700094 — Standard part number update by Mercedes-Benz. The '28' suffix often denotes a remanufactured or specific packaging version, which is consolidated into the main part number.
  Heads up: These part numbers are interchangeable. Always confirm the correct part number for your specific vehicle's VIN before ordering.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• 7G-Tronic (722.9) Transmission Conductor Plate Failure 🔴 High — Common after 80,000-120,000 miles. Affects speed sensors, causing harsh shifting, getting stuck in gear, or entering limp mode.
• Airmatic Suspension Failure 🟠 Medium — Common on models equipped with air suspension, typically after 80,000 miles. Leaks in the air springs (especially rear) or compressor failure cause the vehicle to sag.
• M272/M273 Intake Manifold Swirl Flap Lever Failure 🟠 Medium — Affects earlier V6 (M272) and V8 (M273) models. A plastic lever on the intake manifold breaks, causing poor performance and check engine light with codes like P2004, P2005, P2006.
• M276 Engine Timing Chain Tensioner Rattle on Startup 🟠 Medium — Common on the later M276 V6 engines. A brief rattle on cold start is caused by oil pressure bleed-down in the timing chain tensioners. An updated check valve TSB was issued to address this. (Ref: LI05.10-P-056435 (Check Valve TSB))
• OM651 Diesel Engine Oil/Coolant Leaks 🟠 Medium — The 4-cylinder diesel (E250 BlueTEC) can suffer from oil leaks from the oil filter housing/cooler assembly and coolant leaks from the water pump or thermostat housing.
• Faded or Cracked Interior Wood Trim 🟡 Low — Very common across the model range. The wood trim, particularly on the center console and doors, is prone to fading from UV exposure and developing hairline cracks over time.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used fuel pump assembly is generally not recommended. While it may save money initially, the fuel pump motor has a finite lifespan, and the level sensor is a known high-failure item. The labor to replace it is significant enough that installing a used part with unknown history is a major risk. It only makes sense if the part is from a very low-mileage donor vehicle and is significantly cheaper than a new aftermarket unit.

Donor-vehicle mileage cap: roughly under 40000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the part number matches exactly.
• Inspect the electrical connector pins for any signs of corrosion, melting, or damage.
• Ensure the plastic housing has no cracks, especially around the hose connections.
• Ask for the donor vehicle's mileage and history if possible.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', using a Genuine Mercedes-Benz part or one from the OEM supplier (like VDO) is highly recommended for the Fuel Pump and Sending Unit Assembly. Cheap, unbranded aftermarket units have a high rate of premature failure.

Aftermarket brands forum-validated for this vehicle:

• VDO (often the original equipment manufacturer for Mercedes-Benz)
• Bosch

Brands owners have reported issues with on this vehicle:

• Unbranded, low-cost units from online marketplaces. Forum discussions often contain stories of these parts failing within months, leading to repeated labor costs.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.
