P0463 on 2015-2021 Subaru WRX: Fuel Level Sensor Circuit High Input Explained

What's Unique About the 2015-2021 Subaru WRX

Like many modern all-wheel-drive vehicles, the Subaru WRX uses a saddle-shaped fuel tank to accommodate the driveshaft. This design requires two separate fuel level sensors: a primary sensor (Sensor 'A') integrated with the fuel pump on the passenger side, and a secondary or 'sub-level' sensor on the driver's side. The P0463 code specifically points to a problem with the primary sensor or its circuit.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge is stuck on 'Full' regardless of the actual fuel level
• Fuel gauge drops to 'Empty' and the low fuel warning light flashes
• Fuel gauge fluctuates erratically
• Inaccurate distance-to-empty reading on the multi-function display

Most Likely Causes

1. Faulty Primary Fuel Level Sensor (Sending Unit) 🔴 High Probability → Shop Fuel Tank Sending Unit The variable resistor on the sensor float arm can wear out or develop an open spot over time, creating an open circuit. This break in the circuit results in a maximum voltage signal (typically near 5V) being sent to the PCM, triggering the 'High Input' code.
   How to confirm: Access the fuel pump assembly under the rear passenger seat. Disconnect the sensor and measure its resistance with a multimeter while moving the float arm. The resistance should change smoothly. An infinite resistance (OL) reading at any point indicates a failed sensor. Some forum users report Subaru sensors should read between ~0-90 ohms or ~0-100 ohms.
   Typical fix: Replace the fuel level sensor. On the WRX, this sensor is part of the main fuel pump assembly but can be purchased separately.
   Est. part cost: $80-$145
2. Damaged Wiring or Corroded Connectors 🟡 Medium Probability The wiring harness leading to the fuel tank can be susceptible to damage from road debris or corrosion, especially at the connector on top of the fuel pump assembly. This is a common point of failure after installing an aftermarket fuel pump if the pins are not seated correctly.
   How to confirm: Visually inspect the wiring harness from the PCM to the fuel tank for any breaks, chafing, or corrosion. Pay close attention to the main connector on top of the passenger-side fuel pump access plate. Check for a solid connection and for any bent or backed-out pins.
   Typical fix: Repair the damaged section of wire or clean/replace the corroded connector.
   Est. part cost: $5-$50
3. Poor Ground Connection ⚪ Low Probability The fuel tank and sensor circuit rely on a solid ground connection to the chassis. Rust or a loose connection at the ground strap can cause high resistance and trigger the code.
   How to confirm: Locate the ground strap for the fuel tank and check for corrosion or looseness. Use a multimeter to test the resistance between the ground wire at the sensor connector and a known good chassis ground; it should be less than 1 ohm.
   Typical fix: Clean the grounding point and re-secure the ground strap.
   Est. part cost: $1-$15

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is very rare. All other possibilities, especially the sensor and wiring, should be exhaustively tested before considering PCM replacement.
• Malfunctioning Instrument Cluster: → Shop Instrument Cluster While uncommon, a fault within the instrument cluster itself can sometimes cause incorrect gauge readings and may be associated with this code.
• High Ethanol Content Fuel (E85): Some owners who have converted to E85 with aftermarket fuel pumps have reported intermittently triggering P0463 after filling up with high ethanol content fuel. The exact cause is debated but may relate to the different electrical properties of the fuel affecting the sensor.

Diagnosis Steps

1. Confirm the P0463 code is present using an OBD-II scanner.
2. Use the scanner's live data function to observe the voltage from 'Fuel Level Sensor A'. A reading stuck at or near 5 volts confirms the 'High Input' condition.
3. To gain access, remove the rear seat bottom cushion by pulling up firmly on the front edge. The primary fuel pump and sensor assembly is under a metal plate on the passenger side, secured by four Phillips head screws.

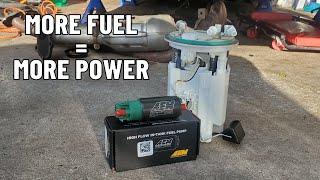

🎬 See this step-by-step WRX fuel pump removal guide
4. Depressurize the fuel system by pulling the fuel pump fuse and running the engine until it stalls.
5. Disconnect the battery.
6. Remove the access plate and disconnect the electrical connector and fuel lines from the top of the fuel pump assembly. Be prepared for minor fuel spillage and have rags ready.
7. Inspect the connector and wiring for any visible damage or corrosion.
8. Test the ground circuit using a multimeter to ensure there is good continuity to the chassis.
9. If wiring appears okay, remove the fuel pump assembly from the tank. This requires removing a large plastic lock ring, which can be difficult without a special tool. A brass punch and hammer can be used carefully to tap it loose counter-clockwise.
10. With the assembly removed, test the fuel level sensor's resistance while manually moving the float arm. A smooth change in resistance indicates a good sensor; a jump to infinite resistance (OL) indicates a failure.
🎬 Watch: How to test and replace the level sensor
11. If the sensor tests bad, replace it. Be sure to also replace the large rubber gasket for the fuel pump assembly to ensure a proper seal.
12. If the sensor tests good, the problem lies in the wiring harness or, rarely, the PCM.

Parts You'll Likely Need

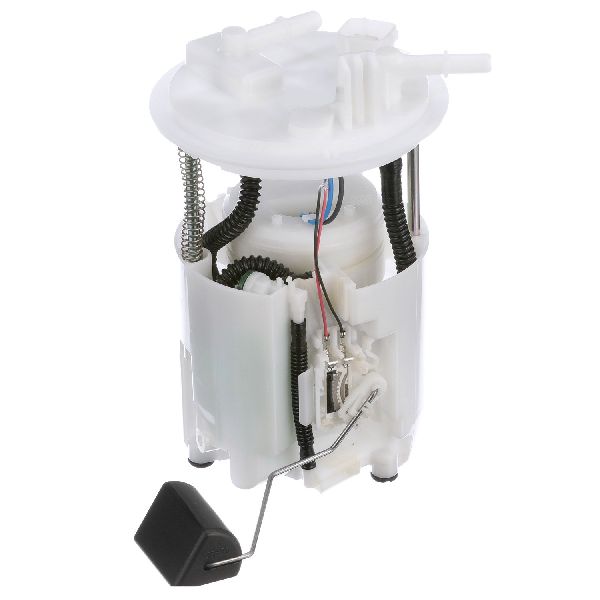

• Fuel Gauge Sending Unit (Primary) (OEM #42081VA000) — This is the most common failure point for the P0463 code on this vehicle. The internal resistor wears out, causing the high voltage signal.
  Trusted brands: Subaru (OEM)
  OEM price range: $110-$145
  Aftermarket price range: $70-$100
• Fuel Pump Gasket / Seal (OEM #42025AG070) — This large rubber gasket seals the fuel pump assembly to the tank. It is highly recommended to replace it anytime the assembly is removed to prevent fuel leaks and evaporative emissions codes.
  Trusted brands: Subaru (OEM)
  OEM price range: $15-$25
  Aftermarket price range: $10-$20

Related Codes That Often Appear With This One

• P0462 — This is the opposite code, 'Fuel Level Sensor Circuit Low Input,' which indicates a short to ground. Seeing both could suggest an intermittent wiring problem or a sensor that is failing erratically.
• P0461 — This code for 'Fuel Level Sensor Circuit Range/Performance' indicates the signal is erratic or not changing as expected, which can be a precursor to a complete failure that sets P0463.

Technical Service Bulletins (TSBs) & Recalls

• While no TSB directly addresses P0463 on the 2015-2021 WRX, Subaru did issue bulletin 18-179-15 which updated the diagnostic steps for P0463 for the related 2015 Forester with the same FA20DIT engine, indicating an awareness of potential diagnostic complexities.

Platform-Specific Known Issues

• Owner Experience: A user on Reddit with a 2018 WRX running E85 reported getting the P0463 code only after filling up with high-concentration ethanol fuel, suggesting a potential link between the fuel type and sensor behavior.
• DIY Note: Several forum members and DIY guides emphasize the difficulty of removing the fuel pump lock ring without the proper tool. Using a flathead screwdriver is discouraged as it can damage the plastic ring; a brass punch is a safer alternative to avoid sparks.
• Aftermarket Fuel Pumps: The P0463 code can sometimes appear immediately after installing an aftermarket fuel pump. This is often due to not fully seating the wiring connector for the sending unit during reassembly, or damaging the delicate float arm mechanism.

Mechanic-Grade Diagnostic Values

• Primary Fuel Level Sensor Resistance — expected: A smooth sweep between approximately 2 Ohms (Full) and 96 Ohms (Empty).. Failure: A reading of infinite resistance (OL) at any point in the float's travel, or values that are erratic or outside the specified range.
• Fuel Level Sensor Signal Voltage at PCM (Live Data) — expected: A range between approximately 0.5V (Empty) and 4.5V (Full).. Failure: A voltage reading that is stuck at or near 5.0V, which directly corresponds to the 'High Input' condition of P0463.

Scan Tool Commands That Help

• Subaru Select Monitor (SSM): Current Data Display/Save -> Fuel Level Resistance — This is the factory-level method to observe the exact resistance value the Engine Control Module (ECM) is receiving from the fuel level sensor circuit. It allows a technician to see the faulty reading in real-time without having to physically access the sensor, confirming whether the issue is present electronically before disassembly.

Wiring & Ground Locations

• R122 — This is the connector for the Fuel Pump Controller, which is located in the trunk area, typically behind the right-hand side trim piece.. While P0463 points to the sensor circuit, issues with the Fuel Pump Controller or its wiring can sometimes cause related electrical problems in the fuel system. The ground for this unit (typically a black wire at Pin 4) is a critical point to check for integrity if chasing a difficult electrical fault.
• Fuel Pump Assembly Connector Ground — At the main electrical connector on top of the fuel pump assembly, accessible under the rear passenger seat.. The fuel level sensor requires a solid ground reference to provide an accurate reading. The ground wire in this connector (typically a black wire) is the most common point for a poor connection to develop, especially after an aftermarket fuel pump installation. Verifying this ground has less than 1 ohm of resistance to the chassis is a key diagnostic step.

Real Owner Repair Stories

• Reddit user on r/WRX (2018 Subaru WRX, 56k miles, tuned for E85 with an AEM340 fuel pump.) — The car intermittently throws code P0463, and the fuel gauge goes to empty. This only happens when filling up with fuel that has a high ethanol concentration (E50 or greater).
  ❌ Tried (didn't work) Clearing the code works temporarily, but it returns on the next E85 fill-up.
  ✅ What actually fixed it The issue resolves itself when the owner fills the tank with regular 93 octane gasoline and clears the code. The user suspects the electrical properties of high-concentration ethanol fuel affect the stock sensor's resistor, or that the fuel causes the float to stick. Another user in a similar thread fixed the issue by adjusting their flex-fuel tune, which was outputting an incorrect voltage.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Clutch Throw-Out Bearing Failure 🟠 Medium — Common on earlier models (2015-2017), often manifests as a squeaking or chirping noise when the clutch pedal is depressed. Can occur at low mileage (under 30,000 miles).
• Intake Valve Carbon Buildup 🟠 Medium — A known issue for the direct-injected (DIT) FA20 engine. Can cause rough idle, misfires, and loss of performance over time, typically becoming noticeable after 60,000 miles. Requires walnut blasting to clean.
• Low-Pressure Fuel Pump Failure 🔴 High → Shop Fuel Pump — Affects certain 2018-2019 WRX models. The fuel pump can fail, leading to engine stalling while driving, which increases the risk of a crash. (Ref: NHTSA Recall 21V587000)
• Engine Knock / Pre-Ignition 🔴 High — An issue on some early 2015 models under high engine load, potentially leading to spark plug and piston damage. Subaru addressed this with a service program to reprogram the ECM. (Ref: Subaru Service Program WQW-58)
• Backup Light Switch Failure 🟡 Low — The switch can corrode and fail, preventing the backup lights and rearview camera from activating when in reverse. (Ref: NHTSA Recall 22V522000)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used OEM fuel pump assembly from a reputable salvage yard can be a cost-effective solution, as you get the entire unit (pump, housing, and sensor) for often less than a new sensor alone. This is a good option if you suspect the entire assembly is aging or if you want an OEM part without the high cost.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the donor vehicle was not in a major rear-end collision that could have damaged the fuel tank or pump assembly.
• Inspect the electrical connector on the top of the assembly for any signs of melting, corrosion, or backed-out pins.
• If possible, ask for the donor vehicle's mileage to ensure you are not getting a part with excessive wear.
• Ensure the plastic housing is free of cracks, especially around the fuel line connections.

OEM-only on this vehicle (don't cheap out):

• While aftermarket sensors are available, they can have different resistance ranges, leading to inaccurate gauge readings. For guaranteed compatibility and accuracy, the OEM Subaru sending unit is strongly recommended.

Aftermarket brands forum-validated for this vehicle:

• DeatschWerks (for fuel pumps, often requires reusing the OEM sensor assembly)
• AEM (for fuel pumps, often requires reusing the OEM sensor assembly)

Brands owners have reported issues with on this vehicle:

• Unbranded, generic 'white-box' fuel level sensors from online marketplaces are frequently reported to fail prematurely or provide inaccurate readings from day one.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0461 — Related to fuel level sensor performance; often diagnosed alongside P0463 when the sensor float arm is sticking or the variable resistor is worn.
• P0462 — The 'Low Input' counterpart to P0463; occurs when the fuel level sensor circuit has a short to ground rather than an open circuit/high voltage.
• P0171 — A lean condition code that may appear if an aftermarket fuel pump installation (a common trigger for P0463) also resulted in a fuel pressure issue or vacuum leak.
• U0140 — Lost communication with Body Control Module; may appear if the fuel level signal is not being properly transmitted from the tank to the instrument cluster or PCM.

Frequently Asked Questions
