P0602 on 2006-2010 Hummer H3: Control Module Programming Error Causes and Fixes

What's Unique About the 2006-2010 Hummer H3

The Hummer H3 is built on GM's GMT345/355 truck platform, shared with the Chevrolet Colorado and GMC Canyon. For these vehicles, a P0602 code is frequently triggered after an interrupted ECM programming attempt, often due to unstable battery voltage. However, the H3 has specific vulnerabilities that can lead to this code. It is notoriously sensitive to voltage fluctuations, and the poor quality OEM battery terminals are a common failure point that can cause a cascade of electrical issues. Furthermore, the Body Control Module (BCM) is prone to water damage from clogged sunroof drains, which can cause 🎬 Watch: How to clear clogged sunroof drains to prevent water damage. widespread communication faults that may manifest as or contribute to a P0602 code. Lastly, failures in the GM Passlock anti-theft system can also create electrical noise and no-start conditions that overlap with P0602 symptoms.

Symptoms You May Notice

• Check Engine Light is on
• Engine will not start, or is very hard to start
• Engine cranks but will not fire
• Engine stalls unexpectedly or idles roughly
• Noticeable loss of engine power and poor acceleration
• Vehicle may be stuck in 'limp mode'
• Erratic or harsh transmission shifting
• Flashing Security/Passlock light on the dashboard
• Multiple other seemingly unrelated warning lights (ABS, Traction Control) may illuminate due to network communication loss

Most Likely Causes

1. Failed or Incomplete ECM Programming 🔴 High Probability This is the most common trigger, often seen after an ECM is replaced with a new or remanufactured unit that has not yet been programmed with the vehicle's specific VIN and software. It can also happen if a dealer reflash or aftermarket tuning attempt is interrupted.
   How to confirm: Use a high-level scan tool to check the VIN stored in the ECM. If it's blank, incorrect, or shows garbage characters, it needs programming. This is the first step a professional technician will take.
   Typical fix: Reprogram the ECM with the correct GM-certified software for the vehicle's VIN. This must be done by a dealership or a qualified repair shop with the proper equipment.
   Est. part cost: $0 (if programming is the only service)
2. Low Battery Voltage or Bad Connections 🟡 Medium Probability → Shop Vehicle Battery The H3 is extremely sensitive to voltage. Control module programming can be corrupted if battery voltage drops during the process. The factory battery terminals are a known weak point and can cause intermittent voltage drops leading to multiple electronic issues, including this one. Bad ground straps are also a common culprit.

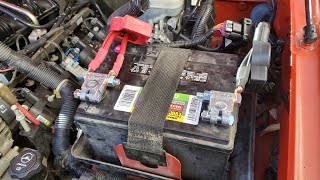

   How to confirm: Test the battery and charging system. Load test the battery. Inspect the battery terminals for corrosion or looseness; the OEM clamps are notoriously unreliable. Check and clean the main engine and chassis ground points.
   Typical fix: Stabilize the vehicle's voltage. Replace a weak battery. Crucially, replace the OEM battery terminals with quality aftermarket ones. Clean or replace 🎬 See how to replace those unreliable factory battery terminals. corroded ground straps. Then, attempt to reprogram the ECM again.
   Est. part cost: $50-$400 (for new terminals, battery, or alternator if needed)
3. Defective Engine Control Module (ECM) ⚪ Low Probability → Shop Engine Control Module (ECM) While less common than a programming issue, the ECM can fail internally due to age, heat, or electrical surges, causing memory corruption.
   How to confirm: This is a process of elimination. If the ECM will not accept programming from a certified tool, even with a stable power supply and good connections, the module itself is condemned.
   Typical fix: Replace the Engine Control Module with a new or remanufactured unit and have it professionally programmed to the vehicle. Many vendors sell pre-programmed ECMs that may only require a security relearn procedure upon installation.
   Est. part cost: $300-$800

Rare But Worth Checking

• Failing or Water-Damaged Body Control Module (BCM): The H3's BCM is located on the passenger side kick panel and is highly susceptible to water damage from clogged sunroof drains. A faulty BCM can disrupt the Class 2 data network, causing communication loss with the ECM (U-codes) and potentially triggering a P0602. If you have other strange electrical issues (dome lights, power mirrors, etc.), the BCM is a strong suspect.
• Aftermarket Performance Tune: If a non-factory performance tune was installed, it may have been done incorrectly or the file itself could be corrupt. Reverting to the factory tune is a necessary diagnostic step.
• Poor Connection or Damaged Wiring: Corroded pins or a damaged wire in the harness connecting to the ECM can interrupt communication and mimic an internal module fault. A visual inspection of the ECM connectors and main harness is worthwhile, especially checking for corrosion at the main fuse block.
• Faulty Ignition Switch / Passlock Sensor: The GM Passlock anti-theft system is a common failure point, causing no-start or start/stall issues. A failing ignition switch or Passlock sensor can create electrical noise or data errors that, while typically setting B-codes, could potentially contribute to an ECM fault 🎬 Watch: Troubleshooting and fixing common Hummer H3 Passlock security issues. under certain conditions.

Diagnosis Steps

1. Check Battery Health and Connections FIRST. Verify voltage is stable and above 12.4 volts. Critically, inspect the OEM battery terminals for any signs of corrosion or poor contact. Many owners recommend replacing them preemptively with quality aftermarket terminals.
2. Inspect for Water Intrusion. Pull the passenger side kick panel and inspect the Body Control Module (BCM) and its connectors for any signs of moisture or blue/green corrosion, which indicates water damage from a clogged sunroof drain.
3. Check Grounds. Inspect and clean the main ground points, especially the one located between the battery box and the firewall on the inner fender.
4. Connect a professional-grade scan tool capable of GM programming.
5. Attempt to read the VIN from the Engine Control Module. If it is missing or incorrect, the module requires programming.
6. Check for TSBs. GM TSB #05-06-04-060A specifically notes that P0602 can be an informational code and to check programming status before replacing parts.
7. Attempt to reprogram the ECM with the latest GM-approved software for your vehicle's VIN.
8. If the reprogramming is successful, clear all codes and perform a test drive to ensure the issue is resolved.
9. If the ECM fails to accept the new program despite a stable power supply and good connections, the ECM is faulty and must be replaced.
10. After replacing the ECM, the new module must be programmed to the vehicle and a security relearn procedure must be performed.

Parts You'll Likely Need

• Engine Control Module (ECM) (OEM #Varies by year/engine. Examples: 12597521 (2006 3.5L), 12613420 (2007 3.7L), 12590032 (2008 3.7L), 1263605 (2009-2010).) — This part is only needed if reprogramming fails, which indicates the module's internal hardware has failed. In most cases, the original ECM can be reprogrammed.
  Trusted brands: ACDelco (OEM), Cardone (Remanufactured), Flagship One, PCM of NC
  OEM price range: $400-$800
  Aftermarket price range: $200-$500

Related Codes That Often Appear With This One

• U-codes (e.g., U0100, U1064) — U-codes indicate a loss of communication on the vehicle's data network. A P0602 error can prevent the ECM from communicating, and conversely, network issues from a bad BCM can cause faults in the ECM.
• P0601, P0603, P0604 — These are all related internal control module memory errors. They often appear together with P0602, pointing to a significant problem within the ECM itself. According to TSB Bulletin #05-06-04-060A, these codes can be shared across multiple modules.
• B-codes (e.g., B3060) — Body codes, especially those related to the Passlock anti-theft system, indicate that the vehicle's electrical gremlins may stem from the ignition switch or BCM, not just the ECM.

Technical Service Bulletins (TSBs) & Recalls

• {'tsb_number': '05-06-04-060A', 'description': 'A General Motors TSB that covers P0602 and other related control module codes. It advises technicians that these can be informational codes and to verify the software and programming status of the module before proceeding with replacement, acknowledging that a programming issue is a likely cause.'}
• TSB Bulletin #05-06-04-060A: This informational bulletin communicates information to technicians on control module Diagnostic Trouble Code(s) (DTC)(s) P0601, P0602, P0603, P0604, P0606, P062F, P06F3, and P1621, which can be shared in multiple modules.

Platform-Specific Known Issues

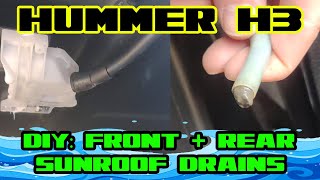

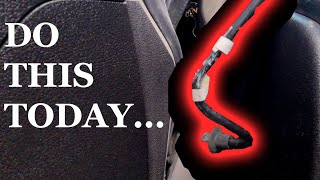

• {'title': 'BCM Water Damage from Clogged Sunroof Drains', 'description': 'A very common H3 issue. The sunroof drain tubes can clog or detach, causing water to run down the passenger-side A-pillar and directly onto the Body Control Module (BCM). This causes corrosion and shorts, leading to a hos'}

Mechanic-Grade Diagnostic Values

• Battery Voltage at Rest — expected: > 12.4V. Failure: Voltage below 12.4V indicates a weak battery that can cause module programming glitches during startup.
• Charging System Voltage (Engine Running) — expected: 13.7V - 14.7V. Failure: Voltage outside this range points to a faulty alternator or regulator, which can corrupt module memory.
• ECM Ground Circuit Resistance — expected: < 5 ohms. Failure: High resistance between the ECM ground pin and chassis ground indicates a poor ground connection, a primary cause of module faults.
• CAN Bus Terminating Resistance — expected: Approximately 60 Ohms. Failure: A reading of 120 Ohms suggests one of the two terminating resistors (often in the ECM and another module) is offline. A reading near 0 Ohms indicates a short in the CAN wiring.

Scan Tool Commands That Help

• GM Tech 2 / GDS2: Module Identification / ECU Information — Use this first to check if the ECM is reporting a valid VIN and software calibration number. A blank or incorrect VIN is a direct confirmation of a P0602 programming error.
• GM MDI / Tech 2 with TIS2Web/SPS: Service Programming System (SPS) - Reprogram ECU — This is the primary repair procedure used to flash the ECM with the correct vehicle software. It's required after replacing an ECM or if the original software is corrupt.
• GM Tech 2 / GDS2: Crankshaft Position Variation Learn (CASE Relearn) — This procedure should be performed after replacing or reprogramming the ECM to synchronize it with the crankshaft position sensor, preventing misfire codes and ensuring smooth engine operation.

Wiring & Ground Locations

• G100 — In the engine compartment, mounted to the left front inner fender, behind the battery.. This is a primary chassis ground. A poor connection here can cause a wide range of electrical issues, including low voltage to control modules.
• G102 / G103 / G104 / G110 — All located on the lower left side of the engine block. G104 is in front of the starter.. These are the main engine block grounds. The ECM and many of its critical sensors ground through the engine block. Corrosion or looseness at these points can directly cause ECM faults and communication errors.
• BCM Location — Behind the right front (passenger side) kick panel.. This location makes the BCM highly vulnerable to water damage from clogged sunroof drains, a very common H3 problem that leads to CAN bus communication failures and can trigger a P0602 in the ECM.
• ECM Location — In the right rear corner of the engine compartment.. Knowing the physical location is necessary for inspecting the module and its connectors for corrosion, damage, or loose connections.
• Data Link Connector (DLC) Power — Pin 16 (Orange wire) of the OBD-II port.. This pin provides power to the scan tool. On the H3, it shares a fuse with the front auxiliary power outlet (cigarette lighter). If the scan tool won't power on, check the outlet for a short and the corresponding fuse before suspecting a major network failure.

Real Owner Repair Stories

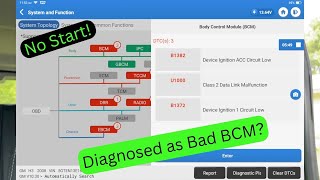

• YouTube channel 'Rainman Rays Repairs' (2008 Hummer H3) — No crank, no start. No communication with the ECM. Multiple other modules setting communication loss codes (U-codes).
  ❌ Tried (didn't work) The customer had requested the BCM be replaced or repaired, suspecting it was the cause., Initial scans showed no communication with the ECM, making direct diagnosis difficult.
  ✅ What actually fixed it A broken wire in the high-speed GMLAN (CAN bus) harness was found. The technician diagnosed this by checking for the 60-ohm terminating resistance between pins 6 and 14 at the DLC and finding it was incorrect. After locating and repairing the broken wire, communication with the ECM was restored and the vehicle started and ran correctly.
• Hummer Forums user (2007 Hummer H3) — Multiple random electrical issues, including non-functional chimes and lights, after previous owner installed an LPG system and aftermarket stereo.
  ❌ Tried (didn't work) Replacing a corroded fuse box provided some improvement but did not solve all issues.
  ✅ What actually fixed it The root cause was a combination of issues stemming from poor aftermarket installations. A key fix was discovering the BCM was wet. After drying the BCM, many functions returned. The owner noted that if the BCM is wet and then dries, the short may no longer be present, but the underlying water leak from the sunroof drain must be fixed to prevent recurrence.

OEM Part Supersession History

• 12628911, 12625453 → 1263605 — Standard part updates and revisions by the manufacturer.
  Heads up: While part numbers may supersede, the critical factor is the model year split between 2007 and 2008 due to major electronic architecture changes. An ECM for a 2008 will not work in a 2007 without extensive rewiring.

Model Year Variations Within This Range

• 2006-2007 vs 2008-2010: The 2006-2007 models use a single Powertrain Control Module (PCM) to manage both the engine and transmission. Starting in 2008, GM switched to a separate Engine Control Module (ECM) and Transmission Control Module (TCM). This change involved different wiring harnesses, sensors (notably camshaft sensors), and control strategies. An engine or ECM from a 2008+ cannot be directly swapped into a 2007 or vice-versa without significant modification.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used ECM or BCM from a junkyard can be a cost-effective option, but ONLY if you have access to a professional with the correct GM programming tools (Tech 2 with TIS2000 for older models, or MDI/MDI2 with a Techline Connect subscription for newer ones). Without the ability to reprogram the VIN and security information, a used module is a paperweight.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the part number exactly matches the required part for your model year (especially the 2007 vs. 2008 split).
• Inspect all connector pins for corrosion, especially on BCMs, which are prone to water damage.
• Ask the salvage yard if the donor vehicle had electrical issues or was wrecked due to a non-electrical failure.
• If possible, get the VIN from the donor vehicle. This can sometimes help the programmer, although modern tools can often overwrite it.

OEM-only on this vehicle (don't cheap out):

• Engine Control Module (ECM)
• Body Control Module (BCM)

Aftermarket brands forum-validated for this vehicle:

• ACDelco (OEM/Remanufactured)
• Cardone (Remanufactured)
• PCM of NC (Pre-programmed services)
• Flagship One (Pre-programmed services)

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name modules from online marketplaces with no warranty or programming support. The programming is more critical than the hardware itself.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0562 — System Voltage Low. This code often appears with P0602 because low battery voltage or bad connections are a primary cause of the ECM programming corruption that triggers P0602 on the H3.
• U0100 — Lost Communication With ECM/PCM. This is a direct companion code, as the conditions that cause P0602 (bad programming, low voltage, internal ECM fault) will also cause the ECM to stop communicating properly on the vehicle's network.
• U0101 — Lost Communication with TCM. Often set alongside P0602, as network communication loss frequently affects multiple modules. This would explain the symptom of erratic or harsh transmission shifting.
• U0140 — Lost Communication With Body Control Module. This is highly relevant for the H3 due to the common issue of water damage to the BCM from clogged sunroof drains, which can cause a cascade of network and programming codes like P0602.
• B2960 — Security System Sensor Data Incorrect. This code is related to the Passlock anti-theft system. A flashing security light is a key symptom of P0602, and a fault in the Passlock system can cause communication errors with the ECM.

Frequently Asked Questions
