P0720 on 2012-2016 Porsche Cayman: PDK Output Speed Sensor Fault Explained

What's Unique About the 2012-2016 Porsche Cayman

The 2012-2016 Cayman (981 generation) uses the ZF 7DT45 PDK dual-clutch transmission. For years, Porsche dealers did not service the internal components of these transmissions, making a complete and very expensive replacement (often over $15,000) the only official solution for a failed internal sensor. However, the aftermarket has responded robustly, and it's now well-established that independent Porsche specialists can open the transmission and replace the faulty speed sensor, often as part of a larger sensor and solenoid bundle, offering a much more affordable repair. 🎬 Watch: How independent shops repair these PDK failures This has shifted the repair from a catastrophic expense to a manageable, albeit still significant, service item.

Symptoms You May Notice

• "Gearbox Fault" or "Transmission Emergency Run" message on the dashboard
• Vehicle enters 'limp mode,' often stuck in a single gear
• Harsh, delayed, or erratic shifting
• Inability to select any gear after the vehicle has been stopped
• Check Engine Light is illuminated
• "Start/stop operation deactivated" message may appear concurrently
• "Fault engine control. Possible to drive on" message may appear

Most Likely Causes

1. Internal PDK Transmission Speed Sensor Failure 🔴 High Probability → Shop Transmission Assembly The speed sensor is an electronic component located inside the transmission, subject to constant heat cycles, vibration, and immersion in transmission fluid. Over its service life, the internal electronics or wiring can degrade, leading to failure. It is a known and relatively common failure point on the 7DT45 transmission.
   How to confirm: A professional scan tool (like Porsche PIWIS) is needed to read the manufacturer-specific fault codes. The presence of P0720, sometimes accompanied by other transmission-related codes (like P1731-P1735 for position sensors or P0711/P172D for temperature sensors), strongly points to an internal sensor failure. An oscilloscope can also be used to monitor the sensor's output signal for dropouts or erratic behavior.
   Typical fix: The transmission must be removed from the vehicle and partially disassembled to access and replace the internal speed sensor. This sensor is often part of a larger assembly that includes the distance/position sensors. It is best practice to replace the entire sensor unit. The transmission fluid and filter are also replaced during this service. A full transmission calibration with a PIWIS tool is required after reassembly.
   Est. part cost: $450-$800 for an aftermarket sensor kit.

Rare But Worth Checking

• Wiring Harness or Connector Issue: While less common than internal sensor failure, damage to the transmission wiring harness or corrosion at the main connector could theoretically cause a P0720 code. A thorough inspection of the external wiring for cracks, corrosion, or loose pins should be performed before transmission removal.
• Transmission Control Module (TCM) Failure: → Shop Transmission Assembly It is very rare for the TCM itself to be the cause of this specific code. The speed sensor and its wiring should always be diagnosed and ruled out first. A faulty TCM typically presents with a wider range of communication errors.
• Valve Body Solenoid Failure: → Shop Transmission Valve Body While not a direct cause of P0720, failing solenoids in the valve body (mechatronic unit) can cause similar shifting symptoms. However, these failures usually trigger different, more specific fault codes related to gear engagement or pressure control.

Diagnosis Steps

1. Connect a Porsche-specific diagnostic tool (like PIWIS) to read the fault codes from the Transmission Control Module (TCM). Confirm P0720 is present and note any other codes, especially P1731-P1735.
2. Review live data from the transmission sensors. Observe the output shaft speed sensor reading while driving (if possible) or while turning the wheels with the vehicle raised. Look for an erratic signal or a signal that drops to zero.
3. Check the transmission fluid level and condition. While unlikely to be the direct cause, low or contaminated fluid can indicate other transmission problems that warrant investigation.
4. Visually inspect the main transmission wiring harness and the large round connector at the transmission case for any signs of physical damage, corrosion, fluid leaks, or loose pins.
5. If wiring appears intact and sensor data confirms a fault, the diagnosis is an internal sensor failure. The next step is to schedule the removal of the transmission for sensor replacement.

Parts You'll Likely Need

• PDK Transmission Speed & Distance Sensor Assembly (OEM #0501325775 (Reference for sensor assembly)) — This is the component that fails and directly causes the P0720 and related P17xx codes. It's an integrated electronic sensor unit inside the transmission that measures the output shaft's speed and the position of the shift rods.
  Trusted brands: T-Design, SequParts, PopoRacing, MLREng
  OEM price range: Not sold separately by Porsche.
  Aftermarket price range: $450-$800
• PDK Transmission Pan and Filter (OEM #9G132102501 or similar) — The transmission fluid must be drained and the pan removed to service the transmission. It is standard procedure to replace the pan (which has an integrated filter) and the fluid.
  Trusted brands: Porsche (OEM), Vaico
  OEM price range: $250-$400
  Aftermarket price range: $150-$250
• PDK Transmission Fluid — The transmission must be refilled with the correct specification fluid after the repair. A full drain and refill requires approximately 6-7 liters.
  Trusted brands: Pentosin FFL-3, Porsche (OEM)
  OEM price range: $40-$60 per liter
  Aftermarket price range: $25-$40 per liter

Related Codes That Often Appear With This One

• P1731 - P1735 — These codes relate to the shift rod displacement (position) sensors. The speed sensor and position sensors are often integrated into a single replaceable unit within the transmission. It's extremely common for these sensors to fail around the same time, and they are almost always replaced as a set.
• P0711 / P172D — These codes point to a failure of the clutch fluid temperature sensor. This is another common electronic failure point within the PDK that can cause a 'Gearbox Emergency Operation' message.

Technical Service Bulletins (TSBs) & Recalls

• While no TSB directly addresses P0720 sensor failure as a repairable item, TSB AMC0 (NHTSA ID 10208612) involved reprogramming the DME and transmission control unit, which could be relevant for ruling out software issues during diagnosis.

Mechanic-Grade Diagnostic Values

• Output Speed Sensor Signal (Oscilloscope) — expected: A clean digital square wave signal that increases in frequency as the wheel speed increases. The amplitude should remain constant and equal to the sensor's supply voltage.. Failure: The waveform is missing, shows gaps, has inconsistent amplitude, or is irregular and does not correspond to wheel speed.
• PIWIS Live Data - 'Output Shaft Speed' — expected: A smooth, steady increase in RPM that directly correlates with the vehicle's road speed.. Failure: The value is stuck at zero while the vehicle is moving, jumps erratically, or drops out intermittently.

Scan Tool Commands That Help

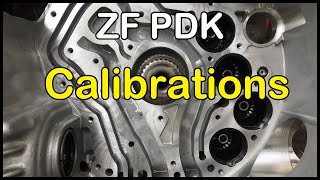

• Porsche PIWIS: PDK Calibration (complete process) — This is mandatory 🎬 Watch: PDK calibration process and common pitfalls after replacing internal transmission components like the speed/distance sensor. The procedure allows the TCM to relearn shift rod travel, hydraulic pressures, and clutch bite points. Failure to perform this can result in poor shifting or continued faults.
• Porsche PIWIS: Oil filling mode — This function must be activated after replacing the transmission fluid and pan/filter. It cycles the solenoids and pump to ensure all air is purged from the hydraulic circuits and allows for an accurate final fluid level check. This must be done before calibration.
• Porsche PIWIS: Engine torque loss adaptation — This procedure should be performed before the main PDK calibration. It allows the DME and PDK control units to synchronize their understanding of engine torque output, which is critical for smooth clutch engagement.

Wiring & Ground Locations

• Main PDK Transmission Connector — A large, round, multi-pin electrical connector located on the side of the PDK transmission case.. This is the primary external access point for testing the internal speed sensor's circuit without removing the transmission. A technician can use an oscilloscope or multimeter at the specific pins for the speed sensor on this connector to check for a valid signal, power, and ground, helping to rule out an external wiring issue before condemning the internal sensor.

Real Owner Repair Stories

• Rennlist user 'FOBioPatel' (2014 Porsche Cayman 981 with 104,000 miles) — While reversing, power to the wheels suddenly disappeared. After a restart, the check engine light was on, and the car sometimes didn't know what gear it was in, particularly reverse. It also revved slightly high.
  ❌ Tried (didn't work) The owner first went to a Porsche dealership.
  ✅ What actually fixed it The dealership diagnosed a faulty 5v sensor inside the transmission and quoted $17,000 for a full transmission replacement. The owner sought a second opinion from an independent specialist who had experience repairing two other 981 transmissions. The community feedback strongly supported that an independent shop could perform the internal sensor replacement for a fraction of the dealer's quote, which is the established and successful repair for these symptoms and codes.

OEM Part Supersession History

• 0501325775 (ZF Part Number) → Not applicable (Not sold by Porsche) — Porsche does not sell this internal sensor as a separate part. The repair is enabled by aftermarket manufacturers who have reverse-engineered or sourced the component.
  Heads up: The key is to ensure the aftermarket sensor kit is specified for the ZF 7DT45 transmission used in the 981 Cayman. Reputable aftermarket brands have a high success rate.

Model Year Variations Within This Range

• 2012-2016: There were no significant changes to the core ZF 7DT45 PDK transmission internals within the 981 Cayman generation that would affect the diagnosis or repair of a P0720 code. The issue and repair procedure are consistent across all model years.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Warping or Delaminating Interior Door Panels 🟠 Medium — Very common, especially in warmer climates. The adhesive fails, causing the upper section of the door card to lift and separate.
• Sagging Headliner 🟠 Medium — Common issue where the foam backing of the headliner material deteriorates over time, causing the fabric to detach from the backing board.
• High-Pressure Fuel Pump (HPFP) Failure 🔴 High — Less common than interior issues but a known potential failure. Symptoms include long crank times, engine hesitation, stalling, and loss of power.
• Sticking Sport Exhaust (PSE) Actuators 🟡 Low — The vacuum-actuated valves on the optional sport exhaust can seize due to carbon buildup and corrosion, preventing them from opening or closing.
• Failing Dynamic Engine Mounts 🟠 Medium — The fluid-filled active engine mounts, part of the Sport Chrono package, can leak and fail, requiring expensive replacement.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A complete used PDK transmission from a low-mileage, verified donor car can be a viable, though risky, alternative if the cost of an internal repair is prohibitive or if there is other significant damage to your transmission. A used sensor assembly should never be considered, as it carries the same risk of failure as the original part.

Donor-vehicle mileage cap: roughly under 40000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the donor vehicle's VIN to confirm mileage and history.
• Ask for service records, specifically looking for a recent PDK fluid and filter change.
• Inspect the transmission case for any signs of leaks, cracks, or damage.
• If possible, get a warranty from the dismantler or salvage yard.

OEM-only on this vehicle (don't cheap out):

• While the sensor itself is not available from Porsche, using the specified OEM-equivalent transmission fluid (Pentosin FFL-3) is absolutely critical for the health and longevity of the PDK.

Aftermarket brands forum-validated for this vehicle:

• T-Design
• LN Engineering
• Xemodex
• Jumps

Brands owners have reported issues with on this vehicle:

• Unbranded, low-cost sensors from online marketplaces have a high failure rate and may not calibrate correctly, leading to wasted labor and repeated repairs.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P1731 — Distance/position sensor fault that often accompanies P0720 because the speed sensor is part of the same internal sensor assembly.
• P1732 — Distance/position sensor fault frequently seen alongside speed sensor failures in the 7DT45 PDK transmission.
• P1735 — Internal PDK position sensor code that points to the same internal electronic degradation as P0720.
• P0711 — Transmission temperature sensor code that may appear concurrently with P0720 due to failure of the internal sensor unit.
• P172D — Manufacturer-specific temperature sensor fault often found when the internal PDK electronics fail.
• P1765 — Transmission-related fault code cited by owners experiencing PDK failure symptoms similar to P0720.
