P0730 on 2009-2014 Ford E-Series: Incorrect Gear Ratio Causes and Fixes

What's Unique About the 2009-2014 Ford E-Series

For the heavy-duty E-Series vans (E-250, E-350, E-450) equipped with the TorqShift® 5R110W (typically 2009-2010) or 6R140 (typically 2011-2014) transmission, this code is not just a generic slip code. Ford has issued a Technical Service Bulletin (TSB 16-0057) that directly links P0730 (often with P0751 and P2700) to a specific, well-documented mechanical failure of the coast clutch cylinder due to a stress fracture in a weld. This means the problem is often a known design flaw, making diagnosis more direct but the repair more involved. Lighter duty vans like the E-150 typically use the 6R80 transmission, where P0730 is overwhelmingly caused by a failed molded lead frame, another well-documented but entirely different issue.

Symptoms You May Notice

• Check Engine Light is on
• Flashing Tow/Haul or Overdrive "O/D OFF" light
• Transmission slipping (engine RPMs rise without an increase in speed)
• Harsh, erratic, or delayed shifting
• Vehicle enters "limp mode" (stuck in one gear, often 2nd or 3rd)
• Complete loss of forward or reverse gears, sometimes suddenly
• Inability to start, with no gear selection (PRNDL) displayed on the dash (common with 6R80 lead frame failure)

Most Likely Causes

1. Internal Coast Clutch Failure (5R110W/6R140) 🔴 High Probability Ford TSB 16-0057 specifically identifies a faulty weld on the coast clutch cylinder as the root cause for P0730 on TorqShift® transmissions built on or before 12/15/2015. This failure causes a catastrophic loss of hydraulic pressure in that circuit. It was common enough to also be part of Safety Recall 19S20 for certain ambulance and bus chassis.
   How to confirm: This is a diagnosis of exclusion that becomes a near certainty with companion codes. After verifying fluid level/condition, the presence of P0730 with P0751 and/or P2700 strongly points to this TSB-documented failure. A transmission specialist can perform an air pressure test at the coast clutch port on the case; a loud hissing sound confirms the internal leak from the cracked drum.
   Typical fix: The transmission must be removed from the vehicle and partially disassembled to replace the coast clutch cylinder and the coast 🎬 See this video for a breakdown of coast clutch failure. one-way clutch assembly. An updated part (BC3Z-7D044-B was a prior part number, the latest TSBs may point to newer revisions) with a proper weld is used. Aftermarket companies also offer reinforced, fully welded drums.
   Est. part cost: $200-$500
2. Failed Molded Lead Frame (6R80 Transmission) 🔴 High Probability → Shop Transmission Valve Body On lighter-duty E-150 models equipped with the 6R80 transmission, the molded lead frame which houses the speed sensors and range sensor is a widely documented high-failure part. The issue was so prevalent on platform mates (like the F-150) that Ford issued Customer Satisfaction Program 19N01 (and others) extending the warranty to 10 years/150,000 miles.
   How to confirm: A high-end scan tool will show erratic or no readings from the transmission speed sensors (TSS/OSS) or the transmission range sensor. Symptoms often include sudden harsh downshifts, a missing PRNDL display on the dash, and a no-start condition because the vehicle doesn't know it's in Park.
   Typical fix: The transmission pan and valve body must be removed to replace the internal molded lead frame assembly and the connector 🎬 Watch: Step-by-step guide to replacing the 6R80 molded lead frame. sleeve. It is highly recommended to use the OEM Motorcraft part (e.g., AL3Z-7G276-D) as some owners report premature failure of aftermarket versions.
   Est. part cost: $150-$400
3. Low or Dirty Transmission Fluid 🟡 Medium Probability → Shop Transmission Assembly Leaks from the bulkhead connector sleeve O-rings are common on both 6R80 and TorqShift models, leading to low fluid levels. High-mileage work vans often have degraded fluid if not serviced regularly, which can cause sticking valves or overheating.
   How to confirm: Check the transmission fluid level and condition via the dipstick (if equipped) with the engine running and transmission warm. The fluid should be at the correct level, bright red, and not smell burnt. A low level indicates a leak that must be found.
   Typical fix: If low, top off with the correct Motorcraft MERCON LV (for 6R80/6R140) or MERCON SP (for 5R110W) fluid and inspect for leaks. If dirty or burnt, perform a fluid and filter change. This will not fix a mechanical failure like a cracked drum but is a critical first step.
   Est. part cost: $75-$200
4. Failed Shift Solenoid or Solenoid Body ⚪ Low Probability → Shop Transmission Valve Body While solenoids can fail, on the TorqShift® transmissions in these vans, the coast clutch failure is a more common cause for P0730. On the 6R140, a faulty solenoid body can be a cause if the TSB for the coast clutch does not apply. On the 5R110W, replacing the solenoid body is often a misdiagnosis when the TSB applies.
   How to confirm: An advanced scan tool can command individual solenoids on and off to test their function and monitor for pressure changes. Resistance checks can also be performed on the solenoids.
   Typical fix: Replace the specific faulty solenoid or the entire solenoid body assembly. This requires removing the transmission pan and sometimes the valve body.
   Est. part cost: $300-$900

Rare But Worth Checking

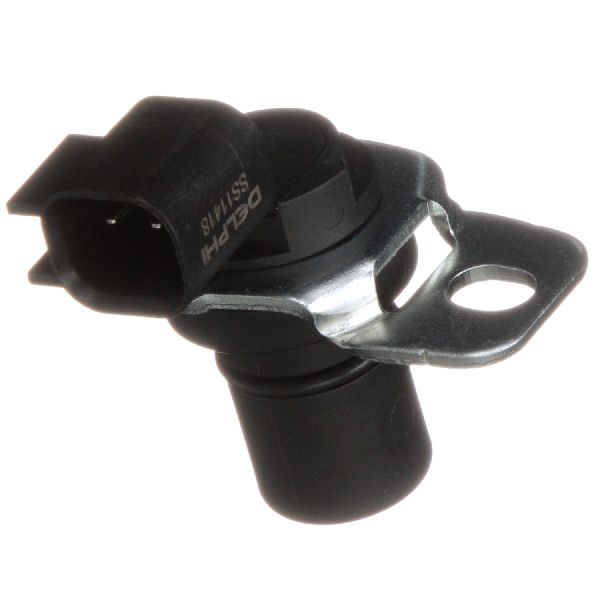

• Faulty Transmission Speed Sensor (TSS/OSS): → Shop Transmission Assembly If the vehicle has a 6R80 transmission, the speed sensors are part of the molded lead frame and are a common failure. On TorqShift transmissions where they are separate, a sensor failure is possible but less likely to be the sole cause of P0730 without other sensor-specific codes (like P0720, P0722).
• Damaged Wiring Harness: Corrosion at the transmission's main electrical connector or physical damage to the harness can disrupt signals between the TCM and transmission, leading to various codes including P0730. Wires breaking near the column shifter can also cause erratic behavior.
• Faulty Transmission Control Module (TCM): → Shop Transmission Assembly A TCM failure is very rare and should only be considered after all mechanical, hydraulic, and wiring issues have been completely ruled out by a professional.

Diagnosis Steps

1. Verify the P0730 code with an OBD-II scanner. 🎬 Watch: A quick overview of the P0730 fault code. Check for other related transmission codes (like P0751, P2700 for TorqShift, or P0720, P0722 for 6R80).
2. With the engine running and transmission warm, check the transmission fluid level and condition. Note if it is low, dark, or smells burnt. Use the correct fluid (MERCON LV or SP).
3. Inspect the transmission case, pan, and electrical connector for any signs of fluid leaks, paying close attention to the round bulkhead electrical connector sleeve.
4. Use an advanced scan tool to monitor live data, including input speed (TSS), output speed (OSS), commanded gear, and slip data.
5. Identify the transmission model (6R80 for E-150, 5R110W/6R140 for E-250+).
6. If TorqShift, review Ford Technical Service Bulletin 16-0057. If P0730 is present with P0751 and/or P2700, the coast clutch failure is highly probable.
7. If 6R80, investigate the molded lead frame as the primary cause, especially if OSS codes are present or the PRNDL display is malfunctioning.
8. If the coast clutch failure is suspected, a transmission specialist may perform a line pressure test or an air test on the coast clutch port to confirm the internal leak.
9. If the diagnosis points to an internal failure, the transmission must be removed for inspection and repair.

Parts You'll Likely Need

• Coast Clutch Cylinder/Hub Assembly (OEM #BC3Z-7D044-B) — This is the specific updated internal component identified in Ford TSB 16-0057 as the fix for the P0730 code on many TorqShift® transmissions. The 'B' suffix indicates the revised part.
  Trusted brands: Motorcraft
  OEM price range: $150-$300
  Aftermarket price range: $100-$250
• Molded Lead Frame (OEM #AL3Z-7G276-D) — This is the most common cause of P0730 on E-150 models equipped with the 6R80 transmission. It contains the failure-prone speed sensors and range sensor.
  Trusted brands: Motorcraft, Dorman
  OEM price range: $250-$400
  Aftermarket price range: $150-$300
• Transmission Fluid — Required for any repair, whether topping off a leak or refilling after a component replacement. MERCON LV is typically used for 6R80/6R140, and MERCON SP for 5R110W.
  Trusted brands: Motorcraft
  OEM price range: $10-$15 per quart
  Aftermarket price range: $8-$12 per quart
• Transmission Filter Kit (OEM #FT-187 (for some 6R140)) — Should be replaced whenever the transmission pan is removed for service, such as for a lead frame or solenoid replacement.
  Trusted brands: Motorcraft
  OEM price range: $30-$60
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• P0751 — Stands for 'Shift Solenoid 'A' Performance/Stuck Off'. This code is explicitly mentioned alongside P0730 in TSB 16-0057, pointing to the same root cause of coast clutch failure in the 5R110W/6R140. The TCM flags the solenoid because the mechanical failure prevents the gear change.
• P2700 — Stands for 'Transmission Friction Element 'A' Apply Time Range/Performance'. This is also cited in TSB 16-0057 and relates to the clutch application time, consistent with the coast clutch hydraulic leak.
• P0720 / P0722 — These codes point to a fault in the Output Speed Sensor (OSS) circuit. On a 6R80 transmission, this is a strong indicator that the molded lead frame, which houses the OSS, has failed.

Technical Service Bulletins (TSBs) & Recalls

• TSB 16-0057: The primary TSB for TorqShift transmissions (5R110W/6R140) built on or before 12/15/2015. It links P0730, P0751, and P2700 to a required replacement of the coast clutch cylinder and one-way clutch due to a failed weld. A manufacturer service bulletin, TSB Bulletin #TSB160057, specifically notes that vehicles equipped with a TorqShift transmission may exhibit a MIL with DTCs P0751, P0730 and/or P2700.
• Safety Recall 19S20: Related to TSB 16-0057, this recall was issued for certain E-Series ambulance/bus chassis due to the risk of sudden power loss from the coast clutch weld failure.
• Customer Satisfaction Program 19N01 / 16N02: These programs extended the warranty on the 6R80 molded lead frame to 10 years or 150,000 miles for various vehicles, including the F-150, due to high failure rates causing speed sensor and range sensor faults.

Platform-Specific Known Issues

• Sudden Loss of All Gears on Heavy-Duty Models: Multiple owner accounts on forums for vehicles with the 5R110W transmission describe a sudden and complete loss of both forward and reverse gears, accompanied by a P0730 code. This is a classic symptom of the catastrophic coast clutch weld failure mentioned in TSB 16-0057. Manufacturer Bulletin #16-0057 confirms that vehicles built on or before 12/15/2015 may exhibit these symptoms alongside DTCs P0751, P0730, and P2700.
• No-Start Condition on Light-Duty Models: For E-150s with the 6R80, a common symptom of the molded lead frame failure is the loss of the gear selector indicator (PRNDL) on the dashboard. Because the transmission range sensor is part of the lead frame, the vehicle's computer does not know the van is in Park or Neutral, preventing the engine from starting.
• Misdiagnosis is Common and Costly: Technicians unfamiliar with TSB 16-0057 may mistakenly replace the solenoid body on a TorqShift transmission for a P0730 code, which will not fix the underlying mechanical failure of the coast clutch drum. This results in a costly and ineffective repair.

Mechanic-Grade Diagnostic Values

• 5R110W Shift/TCC Solenoid Resistance (at ~70°F) — expected: 4.1 - 4.7 Ω. Failure: A reading outside this range indicates a faulty solenoid coil.
• 5R110W EPC (Pressure Control) Solenoid Resistance (at ~70°F) — expected: 5.1 - 5.8 Ω (late model). Failure: A reading outside this range indicates a faulty solenoid coil.
• 6R140 Line Pressure & TCC Solenoid Resistance — expected: 4.8 - 5.4 Ohms. Failure: Resistance outside this range points to a bad solenoid.
• 6R80 VFS Solenoid (Orange, Blue, or Yellow Cap) Resistance — expected: 5 - 6 Ohms at 68°F. Failure: Resistance outside this range indicates a faulty coil. This does not test for mechanical sticking.
• 6R80 On/Off Shift Solenoid (SSE) Resistance — expected: ~10.5 ohms (before 11/4/2010) or ~18 ohms (after 11/3/2010). Failure: Incorrect resistance for the build date. These are not interchangeable.

Scan Tool Commands That Help

• Ford IDS (or equivalent high-end scanner): Solenoid Body Strategy Data Download — This procedure is required after replacing the PCM or, in some cases, the solenoid body on a 6R80/6R140 to program the unique 13-digit calibration ID from the new component into the control module.
• Ford IDS (or equivalent high-end scanner): Output State Control / Command Solenoids On/Off — To individually test the electrical function of each shift solenoid while the vehicle is stationary. A solenoid that doesn't respond with an audible click or fails to change state may be faulty. This is a key step in differentiating a solenoid failure from a wiring or mechanical issue.

Wiring & Ground Locations

• C175T — This is a major 50+ pin connector at the Powertrain Control Module (PCM).. This connector contains the circuits for the transmission speed sensors (TSS, OSS), transmission range sensor, and all shift and pressure control solenoids. Probing for voltage and resistance at these pins is a key diagnostic step to isolate faults between the PCM, wiring harness, and transmission.
• G101 — Right front of the engine compartment, at the upper radiator support.. This is a primary chassis and engine ground point. A corroded or loose G101 can cause erratic behavior in the PCM and transmission control systems, leading to intermittent and difficult-to-diagnose codes like P0730.
• G104 — On the left side of the engine compartment, sometimes near the battery junction box.. This serves as another critical ground point for the PCM and other engine control sensors. Ensuring this ground is clean and tight is essential before condemning expensive electronic modules.

OEM Part Supersession History

• AL3Z-7G276-A, AL3Z-7G276-B → AL3Z-7G276-D — This is the molded lead frame for the 6R80 transmission. The 'D' revision is the most current replacement for the earlier, failure-prone versions. Later designs may include a foam barrier to better protect the sensors.
  Heads up: While the 'D' version replaces 'A' and 'B', it is critical to use the OEM Motorcraft part. Forum users and mechanics report high failure rates with aftermarket lead frames for the 6R80.
• 7C3Z-7G387-B (Coast Clutch Cylinder), 7C3Z-7A089-A (Coast OWC) → Updated parts are specified in TSB 16-0057, though the numbers may have been revised further. Aftermarket offers fully welded drums. — The original coast clutch cylinder in the 5R110W was prone to a weld failure. The replacement parts specified in the TSB correct this manufacturing defect. Aftermarket solutions like those from Sonnax or Warren Diesel offer drums that are fully welded as a preventative measure.

Model Year Variations Within This Range

• 2009-2010: Heavy-duty E-Series vans in these years were typically equipped with the 5R110W TorqShift transmission. P0730 on these models is most commonly associated with the TSB-documented coast clutch failure.
• 2011-2014: Around 2011, Ford began phasing in the 6R140 TorqShift transmission to replace the 5R110W in heavy-duty applications. While the 6R140 is a different transmission, it was also included under TSB 16-0057 for the same coast clutch weld failure issue.
• 2009-2014 (E-150): Lighter duty E-150 vans used the 6R80 transmission. For these models, the cause of P0730 is almost always the molded lead frame, not the coast clutch issue seen in the heavy-duty vans.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For a major internal component failure like the coast clutch drum in a 5R110W/6R140, a used part is not recommended due to the known design flaw. However, sourcing an entire used transmission from a lower-mileage, later-model-year donor vehicle (built after 12/15/2015) could be a cost-effective alternative to a full rebuild, as it would likely have the updated internal parts.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the transmission build date; for TorqShift models, it should be after December 2015 to avoid the coast clutch flaw.
• Check the color and smell of the fluid from the donor transmission. It should be bright red and not smell burnt.
• Inspect the electrical connector pins for corrosion or damage.
• Ask for any available service history of the donor vehicle, specifically regarding transmission maintenance.

OEM-only on this vehicle (don't cheap out):

• Molded Lead Frame (6R80): Due to extremely high reported failure rates of aftermarket units, only a genuine Motorcraft (Ford OEM) part (AL3Z-7G276-D) should be used for this repair.

Aftermarket brands forum-validated for this vehicle:

• Sonnax: Offers upgraded internal components for the 5R110W, including improved direct clutch piston kits and other valve body components.
• Warren Diesel: Provides fully welded coast clutch drums for the 5R110W, which directly addresses the OEM weld failure point.

Brands owners have reported issues with on this vehicle:

• Generic/unbranded molded lead frames for the 6R80 transmission sold on marketplaces are frequently cited as failing shortly after installation.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0751 — Shift Solenoid 'A' Performance/Stuck Off. On TorqShift models, this code frequently appears with P0730 and P2700, strongly indicating the coast clutch weld failure described in TSB 16-0057.
• P2700 — Transmission Friction Element 'A' Apply Time Range/Performance. This is another companion code that, when present with P0730 on a TorqShift transmission, points directly to the internal coast clutch failure.
• P0720 — Output Speed Sensor (OSS) Circuit Malfunction. On E-150 models with the 6R80 transmission, this code points to a failure of the molded lead frame, which is the most common cause of P0730 on that specific powertrain.
• P0722 — Output Speed Sensor (OSS) Circuit No Signal. Similar to P0720, this code indicates a problem with the OSS housed in the 6R80's molded lead frame, a known high-failure part that also causes P0730.

Frequently Asked Questions
