P0730 on 2008-2010 Saturn Vue 3.6L: Incorrect Gear Ratio and Wave Plate Failure

What's Unique About the 2008-2010 Saturn Vue

The 2008-2010 Saturn Vue with the 3.6L engine uses a GM 6T70 automatic transmission that is notorious for a specific failure. A component called the 3-5-R (3rd, 5th, and Reverse) clutch wave plate is prone to fracturing. The original wave plates were not properly stress-relieved during manufacturing, causing them to become brittle and break over time. When it breaks, it sends metal debris throughout the transmission, causing loss of gears, catastrophic damage to the pump, valve body, and torque converter, and triggering the P0730 code. This issue was so widespread that GM issued a special warranty extension (TSB 14404B), though it has since expired for all vehicles.

Symptoms You May Notice

• Check Engine Light is on
• Transmission slipping between gears, often described as a 'flare' where RPMs jump during a shift
• Harsh or delayed shifting, particularly into 3rd, 5th, or Reverse
• Loss of Reverse, 3rd, and/or 5th gears
• Engine RPMs are high but vehicle speed is low
• Vehicle enters 'limp mode' (stuck in one gear)
• A complete failure to move in Drive or Reverse

Most Likely Causes

1. Broken 3-5-R Clutch Wave Plate 🔴 High Probability The original wave plates in the GM 6T70 transmission were of a flawed design that was susceptible to stress fractures over time. This was a known manufacturing and design defect acknowledged by GM in TSB 14404B.
   How to confirm: Confirmation requires transmission disassembly to visually inspect the 3-5-R clutch pack. A technician may also find significant metallic debris ('glitter') in the transmission pan and filter. This is the definitive diagnosis.
   Typical fix: The transmission must be removed and completely disassembled. The broken wave plate is replaced with an updated, stronger part. The Sonnax Drum Saver Kit (Part #124555K) is a popular and robust aftermarket solution that uses a toothless, stress-relieved wave plate and a custom steel plate to prevent future failures and can even salvage damaged drums. The entire transmission, including the valve body, solenoids, and torque converter, must be meticulously cleaned of all metal debris. In many cases, a complete transmission rebuild or replacement with a remanufactured unit is the most practical solution.
   Est. part cost: $2000-$4500 for a remanufactured transmission
2. Low or Burnt Transmission Fluid ⚪ Low Probability → Shop Transmission Assembly
   How to confirm: Check the transmission fluid level and condition via the dipstick. The fluid should be at the correct level, red in color, and not have a burnt smell. Dark, burnt fluid with metal particles ('glitter') is a strong indicator of the internal mechanical failure of the wave plate.
   Typical fix: If the fluid is just low, top it off with the correct fluid (DEXRON-VI) and check for leaks. If the fluid is dark or burnt, a fluid and filter change is needed, but this will not fix the internal damage that has already occurred from the wave plate failure.
   Est. part cost: $100-$200 for fluid and filter

Rare But Worth Checking

• Faulty Shift Solenoid or Valve Body: → Shop Transmission Valve Body While possible, these are much less common than the wave plate failure. Debris from a broken wave plate can clog and damage the solenoids and valve body, making them a secondary failure rather than the root cause. Worn accumulator dampeners in the channel casting can also cause shifting issues like flares and harsh engagement.

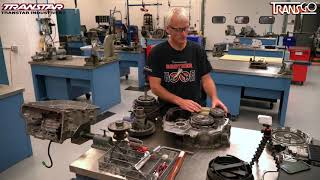

🎬 Watch: Common 6T70 product issues and valve body wear
• Failed Torque Converter: → Shop Automatic Transmission Torque Converter The torque converter can fail, but it's often a result of contamination from a broken wave plate, not the initial point of failure. GM noted in TSB 09-07-30-012F that in most cases, debris does not pass the filter to damage the torque converter, but thorough cleaning is still essential.

Diagnosis Steps

1. Scan for all diagnostic trouble codes (DTCs) to see if other gear-specific or solenoid codes are present, such as P0776, P0733, or P0735.
2. Check the transmission fluid level and condition. Look for signs of metal shavings ('glitter') in the fluid, which is a strong indicator of wave plate failure.
3. If possible, have a professional use a scan tool to monitor transmission slip data and command individual gears to isolate the fault.
4. Drop the transmission pan to inspect for metal fragments. The presence of wave plate pieces (often looking like a broken clock spring) confirms the diagnosis.
🎬 Watch: Visualizing a broken 3-5-Reverse wave plate during teardown
5. Given the high probability, the diagnosis often defaults to assuming a wave plate failure unless fluid level/condition checks reveal a simpler issue.

Parts You'll Likely Need

• Remanufactured 6T70 Automatic Transmission — This is the most common and often most cost-effective long-term solution, as it replaces all potentially damaged components and typically comes with a warranty.
  Trusted brands: ACDelco (OEM), Jasper, Certified Transmission
  OEM price range: $3500-$5000
  Aftermarket price range: $2500-$4000
• 3-5-R Drum Saver Kit (Upgraded Wave Plate) (OEM #Original GM P/N: 24254103) — This is the specific part that fails. It is only replaced as part of a complete transmission overhaul. The Sonnax kit is the preferred repair to prevent recurrence.
  Trusted brands: Sonnax (P/N: 124555K)
  OEM price range: $10-$20
  Aftermarket price range: $40-$60 for the kit
• Transmission Overhaul Kit (OEM #GM P/N: 24269586 (2009 models), 24269587 (2008 models)) — Required for a full rebuild, this kit includes all necessary seals, gaskets, and clutches.
  Trusted brands: Transtar, Precision International, ACDelco
  OEM price range: $300-$500
  Aftermarket price range: $200-$400
• DEXRON-VI Automatic Transmission Fluid — The required fluid for refilling the transmission after service. A full rebuild requires 10-12 quarts.
  Trusted brands: ACDelco, Valvoline, Castrol
  OEM price range: $10-$15 per quart
  Aftermarket price range: $8-$12 per quart

Related Codes That Often Appear With This One

• P0700 — Transmission Control System Malfunction. This is a general code indicating the TCM has requested the Check Engine Light to be turned on. It will almost always be present with P0730.
• P0776 — Pressure Control Solenoid 'B' Stuck Off. This code is also directly associated with the 3-5-R clutch circuit and is a very strong indicator of a broken wave plate.
• P0733 — Incorrect Gear Ratio in 3rd Gear. This is a more specific code that directly points to the 3-5-R clutch circuit affected by the wave plate failure.
• P0735 — Incorrect Gear Ratio in 5th Gear. This is another specific code related to the 3-5-R clutch circuit.

Technical Service Bulletins (TSBs) & Recalls

• GM 14404B: Special Coverage Adjustment – Transmission Clutch Wave Plate - This bulletin details the condition of a cracked or fractured wave plate resulting in the loss of 3rd, 5th, and reverse gears and outlines the repair procedure. It covered a wide range of GM vehicles.
• GM 09-07-30-012F: No Reverse, Slip/Flare or Harsh Shifts in 3rd and/or 5th, DTC P0776 Set - This technical bulletin provides diagnostic and repair information, noting the updated wave plate part number (24254103) and stressing the need for complete transmission cleaning.

Platform-Specific Known Issues

• GM issued Technical Service Bulletin (TSB) 14404B, which superseded 14404A, acknowledging the fractured wave plate issue and providing a special coverage adjustment for 10 years/120,000 miles. This coverage is now expired for all affected vehicles.
• The failure is specific to the 3-5-R clutch drum in the 6T70/6T75 transmission family.
• Owner experiences show that dealers sometimes denied warranty claims if the Reverse gear was still functional, even if other symptoms were present, leading to frustration.

Mechanic-Grade Diagnostic Values

• Shift Solenoid (On/Off type) Resistance — expected: 20-40 ohms. Failure: Reading outside of the expected range indicates a faulty solenoid coil.
• Pressure Control Solenoid (PWM VBS type) Resistance — expected: 4-7 ohms. Failure: Reading outside of the expected range indicates a faulty solenoid coil. Note that these values vary with temperature.
• 3-5-R Clutch Pack Clearance — expected: .020–.060 inches. Failure: Excessive clearance after a rebuild can indicate a distorted or incorrect style piston is installed, which will lead to premature failure.

Scan Tool Commands That Help

• GM Tech 2 / GDS2: Transmission Fast Learn Procedure — This procedure must be performed after replacing the TEHCM or rebuilding the transmission. It allows the TCM to learn the clutch fill volumes and apply pressures for smooth shifting.
• GM Tech 2 / GDS2: Solenoid Cleaning Process — A scan tool can command the TCM to cycle the solenoids while the system is pressurized with air. This can sometimes clear minor debris from a solenoid, but it will not fix a mechanically failed part or damage from a broken wave plate.

Wiring & Ground Locations

• TEHCM (Transmission Control Module) — Inside the transmission, bolted to the valve body, accessible after removing the side cover.. The TEHCM is the brain of the transmission. While rarely the primary cause of P0730, it can be damaged by debris from the wave plate failure. It must be removed and the valve body thoroughly cleaned during a rebuild.
• G107 (Engine Ground) — At the rear of the engine block for the 3.6L V6.. A poor engine or chassis ground can cause erratic behavior in all electronic modules, including the TEHCM. While unlikely to be the root cause of a mechanical code like P0730, verifying grounds are clean and tight is a fundamental diagnostic step.
• Ignition Coil Ground — A ground wire for the rear bank of ignition coils (cylinders 1, 3, 5) is known to break near the power steering pump reservoir.. This does not directly cause P0730, but it is a known wiring failure point on the LY7 engine in this vehicle. It's a useful detail for mechanics working in this area of the engine bay and highlights the potential for brittle wiring.

Real Owner Repair Stories

• GM Forum user (2008 Chevy Malibu LTZ 3.6L V6 (same 6T70 transmission)) — Engine flaring on 2-3, 4-5, and 6-5 shifts.
  ✅ What actually fixed it The user identified the issue as the classic 3-5-R wave plate failure. The final fix was a complete transmission rebuild to replace the plate and clean out all the metal debris.

OEM Part Supersession History

• Multiple, e.g., 24237552, 24239083, 24240298 → Multiple, e.g., 24261875, 24275870 — Updates to internal components and software to improve reliability and performance.
  Heads up: The TEHCM (TCM) is VIN-specific and must be programmed. A used module from another vehicle will not work without being reprogrammed by a specialized service. Gen 1 (pre-2013) and Gen 2 (2013+) TEHCMs are not interchangeable.
• Original 3-5-R Wave Plate (untempered) → GM P/N 24254103 (shot-peened) and aftermarket kits like Sonnax 124555K — The original plate was not stress-relieved and was prone to fatigue fractures. The updated GM part is stronger, but the Sonnax kit redesigns the plate to be toothless, eliminating the primary stress risers that cause failure.

Model Year Variations Within This Range

• 2008-2012 (Gen 1 6T70): These models use a TEHCM with pressure switches, which are a known failure point (ruptured laminate discs). They also use variable bleed style (VBS) solenoids.
• 2013+ (Gen 2 6T70): The Gen 2 design, not applicable to the 2008-2010 Vue, eliminated the pressure switches in the TEHCM and switched to a 'clutch pulse learning' system. It also uses variable feed style (VFS) solenoids. Components between Gen 1 and Gen 2 are generally not interchangeable.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Premature Timing Chain Stretch 🔴 High — Very common, typically between 80,000-150,000 miles. Triggers codes like P0008, P0016, P0017, P0018, P0019. (Ref: GM Special Coverage #11340C (expired); TSB 12-06-01-009D provided updated parts information.)
• Power Steering Loss / Erratic Assist 🟠 Medium — Common complaint, can be intermittent. Often related to power steering pump, lines, or fluid contamination.
• Ignition Coil Failure (Rear Bank) 🟠 Medium — The rear three ignition coils (cylinders 1, 3, 5) are prone to failure and are labor-intensive to replace as the intake manifold must be removed.
• Stabilitrak / ABS Light Activation 🟡 Low — Can be caused by a variety of issues, but a known cause is the EBCM wire harness chafing on a transmission mount or bracket. (Ref: TSB #PIT-4756)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific P0730 failure, a used transmission from a junkyard is an extremely high-risk, generally inadvisable choice. The wave plate failure was so common that a donor unit from the same year range (2008-2010) is highly likely to have the same defect or be on the verge of failure. A used unit only makes sense if it is from a later model year (2012+) where the issue was resolved from the factory AND you can verify compatibility, or if you have definitive proof it has already been rebuilt with the updated parts.

Donor-vehicle mileage cap: roughly under 40000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Ask for the VIN of the donor vehicle to verify it's from a later model year (2012+).
• Demand a detailed service history. Look for receipts for a transmission rebuild that specifically mentions the wave plate.
• Inspect the fluid from the donor transmission. If it's dark, burnt, or has any metallic sheen, reject it immediately.
• Check the warranty. Most reputable yards offer a 30-90 day warranty; for this part, a longer warranty is much preferred.

OEM-only on this vehicle (don't cheap out):

• Transmission Overhaul Gasket & Seal Kit: For a full rebuild, using a high-quality OEM (ACDelco) or reputable aftermarket (Transtar, Precision) kit is critical to prevent leaks.

Aftermarket brands forum-validated for this vehicle:

• Sonnax: Their 3-5-R Drum Saver Kit (124555K) is considered a superior fix to the OEM updated part because it eliminates the failure-prone teeth on the wave plate.
• Transgo: Their PSR-5 kit is a known-good solution for repairing the TEHCM pressure switch laminate discs, which is a common edge-case failure.

Brands owners have reported issues with on this vehicle:

• Unbranded/white-box internal transmission components. The cost of labor for a transmission rebuild is too high to risk using unproven, low-quality internal parts.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0776 — Pressure Control Solenoid 2 Performance/Stuck Off — specifically cited in TSB 09-07-30-012F as appearing alongside wave plate failures.
• P0733 — Gear 3 Incorrect Ratio — a gear-specific code that often accompanies P0730 when the 3-5-R clutch pack fails.
• P0735 — Gear 5 Incorrect Ratio — a gear-specific code triggered by the failure of the 3-5-R clutch wave plate.
• P0008 — Engine Position System Performance — related to the common timing chain stretch issue on the LY7 engine, which may be present alongside transmission codes.
• P0016 — Crankshaft Position - Camshaft Position Correlation — another common code for the timing chain stretch issue known to affect this specific vehicle.
