P0740 on 1999-2006 Volvo S80: Torque Converter Clutch Circuit Causes and Fixes

What's Unique About the 1999-2006 Volvo S80

The first-generation Volvo S80 (5-cylinder models) uses an Aisin-Warner AW55-50/51SN automatic transmission. This gearbox is notoriously prone to issues with its valve body and the linear solenoids that control gear shifts and torque converter lock-up. Over time, aging transmission fluid becomes contaminated with metallic debris, which can cause the solenoids (which are electromagnetic) to stick or fail. Consequently, a P0740 code on this S80 is far more likely to be an internal transmission component failure, specifically the TCC (SLU) solenoid, rather than a simple external wiring problem.

Symptoms You May Notice

• "Transmission Service Required" message on the dashboard
• Check Engine Light is on
• Vehicle enters 'limp mode' (often stuck in 3rd or 4th gear)
• Harsh or delayed gear shifts, especially when the transmission is hot
• Shuddering or vibration, especially during light acceleration at cruising speeds (30-40 MPH)
• Engine RPMs fluctuate or flare while driving at a steady speed
• A sensation of the transmission slipping
• Reduced fuel economy

Most Likely Causes

1. Faulty Torque Converter Clutch (TCC) Lock-Up Solenoid 🔴 High Probability → Shop Automatic Transmission Torque Converter The Aisin AW55-50SN transmission used in this S80 has a known weakness in its valve body solenoids, which can stick from fluid contamination or fail electrically over time. It is the most common point of failure for this code.
   How to confirm: A mechanic can test the solenoid's resistance with a multimeter after accessing the valve body. A good TCC/SLU solenoid should measure between 5.0 and 7.0 ohms. A Volvo-specific scan tool (VIDA) can also command the solenoid to activate, checking for a response and monitoring slip and current draw, which should be close to 1 amp when activated.
   Typical fix: Replace the TCC (SLU) solenoid. This is often done as part of a complete linear solenoid kit replacement 🎬 Watch: Step-by-step AW55-50SN shift solenoid replacement guide (Rostra is a popular aftermarket brand).
   Est. part cost: $100-$200
2. Worn Transmission Valve Body 🟡 Medium Probability → Shop Transmission Valve Body Debris in old transmission fluid acts like sandpaper, wearing the soft aluminum bores in the valve body where the solenoids actuate. This wear causes hydraulic pressure loss, preventing the solenoids from functioning correctly even if they are electrically sound. Early (2000-2002) models were particularly known for valve body wear.
   How to confirm: This is difficult to confirm without disassembly and inspection. It's often diagnosed after a new solenoid fails to fix the issue. Visible scoring or wear on the valve body bores is a clear sign. A tell-tale sign is if shifting problems are significantly worse when the transmission fluid is hot.
   Typical fix: Replace the valve body with a new or remanufactured unit. Sonnax makes kits to re-sleeve worn bores, which is a specialist repair.
   Est. part cost: $600-$1000
3. Low, Burnt, or Incorrect Transmission Fluid 🟡 Medium Probability → Shop Transmission Assembly This transmission is very sensitive to fluid type and condition. The wrong fluid or fluid that is old and contaminated with clutch material can cause solenoids to stick and accelerates wear. Many owners report issues beginning after 100k miles on the original 'lifetime' fluid.

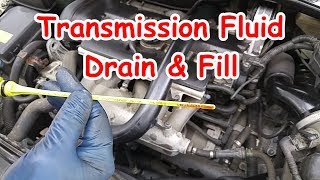

   How to confirm: Check the transmission fluid dipstick. The fluid should be reddish-pink and clear, not dark brown, black, or smell burnt. The level must be checked at a specific temperature (using VIDA or an infrared thermometer) as per the Volvo procedure. Must be JWS 3309 specification fluid.

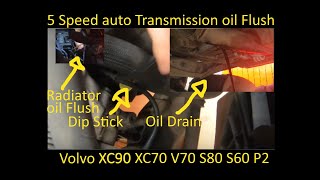

   Typical fix: Perform a series of drain-and-fills or a full fluid exchange using a cooler line with JWS 3309 specification fluid. 🎬 See how to perform a transmission fluid drain and fill This is often a first step but may not fix a component that has already failed due to the old fluid.
   Est. part cost: $80-$160

Rare But Worth Checking

• Damaged Wiring or Connectors: While less common than internal issues on this platform, the wiring harness leading to the transmission can become damaged. It's worth a visual inspection for any obvious corrosion or breaks before condemning the transmission. A continuity test from the TCM to the transmission connector can verify the circuit.
• Faulty Transmission Control Module (TCM): → Shop Transmission Assembly In very rare cases, the TCM itself can fail, sending an erroneous P0740 code. This should be considered a last resort after all other possibilities have been exhausted.
• Worn B4 Servo Cover: This is another known weak point in the AW55-50SN. A failing B4 servo cover typically causes a harsh 2-3 shift or a 'neutral' condition between shifts, but its failure is related to the same hydraulic integrity issues that can contribute to other codes like P0740.

Diagnosis Steps

1. Verify the code with an OBD-II scanner. If possible, use a Volvo-specific scanner (like VIDA/DiCE) to check for the corresponding TCM-002F code and monitor live data like transmission temperature and torque converter slip RPM.
2. Check the transmission fluid level and condition. The level must be checked at the correct operating temperature 🎬 Watch: How to diagnose and fix a P0740 code (usually 65-110°C / 150-230°F). If it is low, dark, or smells burnt, a fluid change is warranted. Ensure ONLY JWS 3309 specification fluid is used.
3. Inspect the transmission's main electrical connector and wiring harness for any visible damage, corrosion, or loose connections.
4. If the above steps do not resolve the issue, the next step is to access the transmission valve body by removing the side cover.
5. Once the valve body cover is removed, the TCC (SLU) solenoid can be identified and its electrical resistance tested with a multimeter. It should be between 5.0 and 7.0 ohms. An open circuit (infinite resistance) or shorted solenoid (zero resistance) needs replacement.
6. While the valve body is accessible, inspect it for signs of scoring or wear in the solenoid bores. Also inspect the B4 servo cover for cracks or damage.
7. If the solenoid tests good and the wiring is intact, the issue may lie with a worn valve body or, in rare cases, the TCM.

Parts You'll Likely Need

• Torque Converter Clutch (TCC/SLU) Solenoid (OEM #30681205) — This is the most common failure point for code P0740 on the AW55-50SN transmission.
  Trusted brands: Rostra, Aisin
  OEM price range: $150-$250
  Aftermarket price range: $80-$150
• Transmission Valve Body — If the solenoid bores are worn, replacing the entire valve body (which typically includes new solenoids) is the only reliable fix.
  Trusted brands: Rostra, Sonnax (remanufactured/improved), Aisin (OEM)
  OEM price range: $1000-$1500
  Aftermarket price range: $600-$900
• Automatic Transmission Fluid (JWS 3309) (OEM #1161540) — The correct fluid is required for any repair. Old, contaminated fluid is a primary cause of the failure.
  Trusted brands: Volvo (OEM), Aisin T-IV, Idemitsu TLS, Mobil ATF 3309
  OEM price range: $18-$25/quart
  Aftermarket price range: $8-$15/quart

Related Codes That Often Appear With This One

• P0700 — P0700 is a generic code that simply means the Transmission Control Module (TCM) has stored a fault code. It will almost always appear alongside a more specific transmission code like P0740.

Technical Service Bulletins (TSBs) & Recalls

• While no TSB is specifically for P0740, Volvo TSB 43-0043 addresses harsh shifting complaints related to the AW55-50SN, which stems from the same valve body and solenoid issues. There is also a technical note for the 2003 XC90 (which uses the same transmission) regarding a TCM software update to correct this code.

Platform-Specific Known Issues

• The Aisin AW55-50/51SN transmission is known for premature valve body and solenoid failure, leading to a variety of shifting problems, with P0740 being a common trouble code. Symptoms are often exacerbated by heat.
• Volvo initially marketed the transmission fluid as 'lifetime' fill, which led to many vehicles running on old, contaminated fluid that accelerated wear on internal components like solenoids and the valve body.

Mechanic-Grade Diagnostic Values

• TCC (SLU) Linear Solenoid Resistance — expected: 5.0 - 7.0 Ohms. Failure: Open circuit (infinite resistance) or short circuit (zero ohms).
• On/Off Shift Solenoids (S1-S5) Resistance — expected: 11 - 16 Ohms. Failure: A reading outside this range indicates a faulty solenoid.
• TCC (SLU) Solenoid Current Draw (Live Data) — expected: Approx. 1.0 Amp when commanded ON. Failure: No current draw when commanded on, or erratic readings.
• TCM-002F Fault Trigger Condition — expected: Slip between torque converter input and transmission speed is less than 100 RPM for 12 seconds when lock-up is active.. Failure: A deviation of more than 100 RPM for more than 12 seconds.

Scan Tool Commands That Help

• Volvo VIDA/DiCE: Resetting adaptation / Control Module Adaptation — Required after replacing the valve body, solenoids, or the entire transmission to make the TCM quickly re-learn shift points and pressures. Failure to do this can result in harsh shifts, flares, or harsh engagement even with new parts.
• Volvo VIDA/DiCE: Resetting the oil counter — Should be performed any time the transmission fluid is changed so the TCM can properly calculate fluid life and adjust parameters accordingly.
• Volvo VIDA/DiCE: Live Data Monitoring (Solenoid Status & Current) — To actively monitor the commanded state and current draw of the TCC (SLU) solenoid during a test drive to see if it is being commanded on and if it is drawing the correct amount of electrical current.

Wiring & Ground Locations

• Transmission Main Connector — On the top/front of the transmission housing, where the main vehicle harness connects to the transmission.. This is the primary electrical interface for all transmission solenoids. Corrosion or damage to the pins for the TCC (SLU) solenoid circuit in this connector can cause a P0740 code. A visual inspection and continuity test from here to the TCM is a key diagnostic step.
• TCM (Transmission Control Module) — On the 1999-2006 S80, the TCM is typically located inside the main engine computer box (CEM/ECM box) in the engine bay, near the base of the windshield on the driver's side.. This is the source of the command signal for the TCC solenoid. All wiring tests for the circuit originate or terminate here. The grounds for the TCM are also critical for its operation.
• Volvo Wiring Diagram Manual TP 3939202 — N/A - Service Document. This is the specific service manual containing the wiring diagrams for the 1999 Volvo S80, which is essential for tracing the TCC solenoid circuit from the TCM to the transmission connector to find breaks or shorts. A similar manual for model year 2000 is TP 3944202.

Real Owner Repair Stories

• Volvo Forums user 'simon' (Volvo S80 (year not specified, but in the correct generation)) — P0740 / TCM-002F code, transmission slipping.
  ❌ Tried (didn't work) Initial diagnosis pointed to solenoid or valve body.
  ✅ What actually fixed it The solenoid and valve body were found to be in good condition. The ultimate cause was worn internal clutch plates. A full overhaul including a new clutch plate set resolved the slipping and the code.
• volvoXC.com user 'jaipal2004' (2004 Volvo XC90 D5 (uses same AW55-50/51 transmission)) — TCM-002f fault code, 'Transmission Service Required' message, going into limp mode when decelerating from highway speeds.
  ❌ Tried (didn't work) Partial transmission fluid drain and fill.
  ✅ What actually fixed it A Volvo dealer performed a TCM software upgrade. A technical note existed for 2003 models for this code, and applying it to the 2004 vehicle resolved the issue.
• volvoXC.com user 'mrb' (2003 Volvo XC70 with 193k miles) — TCM-002F, limp mode only when driving above 50 mph, specifically after shifting into 5th gear. Manually holding it in 4th gear prevented the issue.
  ❌ Tried (didn't work) Clearing codes with a Volvo-specific scanner.
  ✅ What actually fixed it The user did not post a final resolution, but the symptoms strongly point to a hydraulic leak or solenoid issue specific to the 5th gear and lock-up circuit, which is a classic presentation for this fault.

OEM Part Supersession History

• Early Valve Body ('No Letter' or 'A' casting) → Later Valve Body ('B' or 'C' casting) — Design improvements to address wear and shifting issues.
  Heads up: Early valve bodies (no letter or 'A' cast near the S4 solenoid) have SLS and SLT solenoid connectors that face up. Later 'B' and 'C' casting valve bodies have different solenoid configurations and are not directly interchangeable without ensuring compatibility.

Model Year Variations Within This Range

• 1999-2002: These early models are noted to be more prone to valve body bore wear, particularly in the SLT solenoid bore which controls line pressure. They use a 'no letter' or 'A' casting valve body.
• 2003-2006: Later models often use an updated 'B' or 'C' casting valve body with design improvements. A TCM software update was also made available for some models around 2003-2004 to address erroneous TCM-002F codes.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Electronic Throttle Module (ETM) Failure 🔴 High — Extremely common on 1999-2002 models. A warranty extension to 10 years/200,000 miles was issued in the US. Failure can occur as early as 60,000 miles. (Ref: Volvo Extended Warranty Program in US/Sweden)
• ABS/TRACS Control Module Failure 🟠 Medium — Very common across this Volvo generation. Caused by cracked solder joints inside the module, often manifesting as intermittent ABS/TRACS lights, especially when hot.
• Premature Front Suspension Wear 🟠 Medium — Commonly reported around 80,000-100,000 miles. Issues include worn strut mounts, control arm bushings, and sway bar end links, leading to clunking noises.
• GM 4T65E Transmission Failure (T6 Models) 🔴 High → Shop Transmission Assembly — Specific to the twin-turbo T6 models (2.8L/2.9L), which used a GM-sourced 4T65E transmission known to be a weak point and prone to failure, unlike the Aisin unit in 5-cylinder models.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used valve body from a low-mileage donor car can be a cost-effective option if you can verify the donor vehicle's history and mileage. It is a gamble, as the used part may have the same wear issues. It is generally not recommended unless the budget is extremely tight.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the casting letter ('A', 'B', 'C', or none) matches your original valve body.
• Ask for the VIN of the donor car to check its year and mileage.
• Inspect the electrical connectors for any damage or corrosion.
• If possible, check the fluid condition from the donor car; if it was dark and burnt, avoid the part.

Aftermarket brands forum-validated for this vehicle:

• Sonnax (for remanufactured/upgraded valve bodies and repair kits)
• Rostra (for replacement solenoid kits)
• Aisin (OEM manufacturer for solenoids and valve bodies)

Brands owners have reported issues with on this vehicle:

• Unbranded, generic valve bodies and solenoids from online marketplaces should be treated with caution, as quality control can be poor and they may be used parts sold as new.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• TCM-002F — This is the direct Volvo-specific manufacturer code that corresponds to the generic OBD-II P0740 code.
• P0700 — A general transmission control system malfunction code that often accompanies P0740 when the TCM detects a solenoid or valve body failure.
• P0741 — Related to torque converter clutch performance or stuck off; shares the same root causes such as a faulty SLU solenoid or worn valve body bores.
• P0730 — Incorrect gear ratio code that may trigger alongside P0740 when the vehicle enters 'limp mode' or experiences the 'flare' and slipping sensations described.
