P0755 on 2006-2012 Toyota RAV4: Shift Solenoid 'B' Malfunction Causes and Fixes

What's Unique About the 2006-2012 Toyota RAV4

While P0755 is a generic code, the preceding 2001-2003 RAV4 generation had a notorious and well-documented issue where the Engine Control Module (ECM) itself would fail, causing false solenoid codes, including P0755, P0750, and P0758. This was so common that Toyota issued a warranty extension for the ECM on those models. While this specific widespread ECM failure doesn't apply to the 2006-2012 generation, the history makes it a point of awareness. For the 2006-2012 models, the issue is far more likely to be the solenoid itself, fluid condition, or wiring. However, a control module fault should not be entirely dismissed, especially if multiple solenoid codes appear together or if all other diagnoses are exhausted.

Symptoms You May Notice

• Check Engine Light is on
• Harsh, erratic, or delayed shifting, sometimes described as a 'jerk' or 'bang' when changing gears

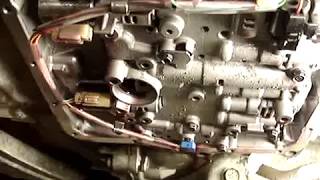

🎬 Watch: Fixing a RAV4 hard shifting issue by replacing Solenoid B
• Transmission getting stuck in a single gear (limp mode), often 3rd gear
• Vehicle has difficulty shifting or won't shift gears
• Decreased fuel economy
• Transmission overheating
• Sluggish acceleration or loss of power

Most Likely Causes

1. Failed Shift Solenoid 'B' 🔴 High Probability → Shop Transmission Valve Body Solenoids are electro-mechanical parts that operate in a high-temperature fluid environment. Over tens of thousands of cycles, the internal coil windings can short or break, or the mechanical plunger can get stuck due to debris or wear.
   How to confirm: After dropping the transmission pan, test the solenoid's resistance with a multimeter. 🎬 Watch: How to test a Toyota shift solenoid with a multimeter For many Toyota transmissions of this era, the specified resistance is between 11 and 15 ohms. A reading outside this range (e.g., open circuit or short) confirms a bad solenoid. You can also apply 12V power to the solenoid terminals; a healthy solenoid will produce an audible 'click'. Lack of a click indicates a mechanical failure.
   Typical fix: Replace the faulty shift solenoid. This requires draining the fluid, removing the oil pan, and accessing the valve body where the solenoid is mounted. 🎬 See this step-by-step SL2 solenoid replacement walkthrough
   Est. part cost: $50 - $150
2. Low or Dirty Transmission Fluid 🟡 Medium Probability → Shop Transmission Assembly The RAV4's transmission is not immune to issues from neglected maintenance. Old, burnt fluid loses its hydraulic properties and can lead to varnish buildup, while low fluid levels cause pressure drops and overheating, both of which can impede solenoid function.
   How to confirm: Check the transmission fluid dipstick (if equipped) or service plug. The fluid should be at the correct level, bright red/pink, and not smell burnt. Dark brown or black fluid, especially with metal shavings, indicates a serious problem.
   Typical fix: Perform a transmission fluid drain-and-fill and replace the filter. Using only the specified Toyota Genuine ATF WS (World Standard) is critical.
   Est. part cost: $75 - $200 for fluid and filter
3. Damaged Wiring or Connectors ⚪ Low Probability The wiring harness leading to the transmission is exposed to engine heat and road debris. Over time, wires can become brittle, frayed, or corroded, and the main connector can accumulate moisture, leading to poor electrical contact.
   How to confirm: Visually inspect the wiring harness from the ECM/TCM to the transmission case for any signs of damage. Unplug the main connector and check for corrosion, moisture, or bent/broken pins. Use a multimeter to check for continuity on the wire for Solenoid 'B' between the main harness connector and the TCM connector.
   Typical fix: Repair the damaged section of wiring or clean/replace the faulty connector.
   Est. part cost: $20 - $100

Rare But Worth Checking

• Clogged Transmission Filter or Passages: → Shop Transmission Assembly If the fluid is old and full of clutch material or metal debris, it can clog the internal filter or the fine hydraulic passages within the valve body. This can starve the solenoid of the pressure it needs to function, even if the solenoid itself is electrically sound.
• Faulty Transmission Control Module (TCM) or Engine Control Module (ECM): → Shop Engine Control Module (ECM) While less common on this generation than the 2001-2003 models, a faulty control module can still be the culprit. As noted in NHTSA ODI #10574598, a dealership confirmed a P0755 code and recommended replacing the ECM along with the transmission. Similarly, NHTSA ODI #10543049 suggests that for certain RAV4 models, the P0755 code may stem from an ECM/ECU malfunction rather than the solenoid itself.
• Internal Transmission Failure: → Shop Transmission Assembly A mechanical failure of clutches, bands, or the valve body can create excessive debris that clogs solenoids or cause hydraulic pressure losses that mimic a solenoid fault. Finding significant metal shavings in the transmission pan is a strong indicator of this more severe problem.

Diagnosis Steps

1. Check the transmission fluid level and condition. Address any low or dirty fluid first, as this is a simple and common cause.
2. Use an OBD-II scanner to check for any other pending or stored codes. Note any other solenoid or transmission-related codes.
3. Inspect the external transmission wiring harness and connectors for any visible damage, corrosion, or loose connections.
4. If the fluid and wiring appear okay, the next step is to gain access to the solenoid by draining the transmission fluid and removing the transmission oil pan.
5. Identify Shift Solenoid 'B' (often labeled SL2) using a service manual diagram for your specific transmission (U140F/U241E for 4-cyl, U151F for V6).
6. Test the solenoid's resistance with a multimeter. The expected range is typically 11-15 Ohms. An out-of-spec reading indicates a faulty solenoid.
7. Perform an actuation test by applying 12V power directly to the solenoid. You should hear a distinct click. No click means it's mechanically stuck.
8. If the solenoid tests good, check for proper voltage and ground at the solenoid's connector in the internal wiring harness. This will verify the integrity of the wiring from the main connector to the solenoid.
9. If the solenoid and all wiring are confirmed to be good, the issue may lie within the valve body or the TCM/ECM, which may require professional diagnosis.

Parts You'll Likely Need

• Automatic Transmission Shift Solenoid 'B' (OEM #35220-21010 (for U140/U240 series, verify with VIN)) — This is the most common component to fail, triggering the P0755 code directly.
  Trusted brands: Toyota (OEM), Aisin, Rostra, Beck/Arnley
  OEM price range: $150-$250
  Aftermarket price range: $50-$150
• Automatic Transmission Fluid (OEM #00289-ATFWS) — The fluid must be drained to access the solenoid and should be replaced with new fluid. Use only Toyota Genuine ATF WS (World Standard) or a fully certified equivalent. Using the wrong fluid can cause shifting problems and damage.
  Trusted brands: Toyota, Idemitsu TLS-LV, Valvoline MaxLife ATF
  OEM price range: $12-$20 per quart
  Aftermarket price range: $8-$15 per quart
• Automatic Transmission Pan Gasket (OEM #35168-21020 (verify with VIN)) — This is a required replacement part whenever the transmission oil pan is removed to prevent fluid leaks.
  Trusted brands: Toyota (OEM), Fel-Pro, Mahle
  OEM price range: $25-$40
  Aftermarket price range: $10-$20

Related Codes That Often Appear With This One

• P0750 — This code is for Shift Solenoid 'A'. If both codes appear, it strongly suggests a shared electrical problem (like a bad ground or power feed), a widespread fluid contamination issue, or a failing ECM/TCM rather than two separate solenoids failing simultaneously.
• P0700 — This is a general Transmission Control System Malfunction code. It's an informational code indicating that the TCM has stored a specific fault, like P0755. It acts as a 'heads-up' from the TCM to the main ECM.
• P0753 — This code indicates an electrical fault (short or open) in the Shift Solenoid 'A' circuit. Seeing it with P0755 (Solenoid 'B' Malfunction) points towards a potential electrical issue affecting multiple solenoid circuits.
• P0758 — This code indicates an electrical fault in the Shift Solenoid 'B' circuit. It is more specific than P0755 and often appears alongside it, reinforcing the diagnosis of an electrical problem with the solenoid or its wiring.

Platform-Specific Known Issues

• Forum Discussion on RAV4World: A user with a 2007 RAV4 V6 experienced harsh shifting and codes P0755 and P0758. After replacing the Shift Solenoid B (SL2), the problem was resolved. The thread highlights the location of the solenoid on the valve body and the importance of correctly identifying it. URL: https://www.rav4world.com/threads/p0758-shift-solenoid-b-electrical.299893/
• Owner Experience with Multiple Codes: In a YouTube video, a mechanic diagnoses a Toyota with multiple shift solenoid codes including P0755. The video emphasizes that multiple codes often point to a computer (ECU) issue rather than multiple simultaneous solenoid failures, a lesson learned from the previous RAV4 generation. URL: https://www.youtube.com/watch?v=5g21ag4gT8g

Mechanic-Grade Diagnostic Values

• Shift Solenoid 'B' (SL2) Resistance (V6 Models with U151E/F Transmission) — expected: 5.0 - 5.6 Ohms at 20°C (68°F). Failure: A reading outside this range (open or shorted) indicates a faulty solenoid coil.
• Shift Solenoid 'B' (SL2) Resistance (4-Cyl Models with U241E Transmission) — expected: 5.1 - 5.5 Ohms at 20°C (68°F). Failure: A reading outside this range points to a defective solenoid.
• Shift Solenoid 'B' (SL2) Voltage (4-Cyl Models with U140F/U241E) — expected: Approximately 5-6 volts in 1st and 2nd gear, dropping to 0 volts upon shifting to 3rd gear.. Failure: Voltage that does not change as expected during shifts points to a problem with the ECM or the wiring, not necessarily the solenoid itself.

Scan Tool Commands That Help

• Toyota Techstream: Active Test: Control the Shift Solenoid SL2 — This bidirectional command allows a technician to manually turn the Shift Solenoid 'B' (SL2) on and off with the key on. An audible 'click' from the transmission pan confirms the solenoid is mechanically functioning and the wiring to it is intact. This is a definitive way to isolate a faulty solenoid from a wiring or ECM/TCM issue.

Wiring & Ground Locations

• Transmission Case Connector — On the exterior of the transmission housing where the main vehicle harness connects.. This is the primary point for testing the solenoid circuit externally. A wiring diagram for the specific transmission (U140/U241E or U151F) is needed to identify the correct pins for SL2 to check for voltage from the ECM/TCM and continuity through the internal harness to the solenoid.
• ECM/TCM Ground Points — Typically located on the cylinder block or chassis near the control module. For the 2GR-FE (V6), a key ground is on the valve cover.. A poor ground connection for the engine or transmission control module can cause erratic behavior and false solenoid codes. Verifying that the main grounds are clean and tight is a crucial step in diagnosing any electronic fault code.

Real Owner Repair Stories

• Aggregated from multiple forum discussions (2007 Toyota RAV4 V6) — Check engine light with P0755, harsh shifting, and getting stuck in gear.
  ❌ Tried (didn't work) Replacing the Shift Solenoid 'B' (SL2) with a new part.
  ✅ What actually fixed it The owner discovered a broken wire in the internal transmission wiring harness that led to the SL2 solenoid. The wire had become brittle from heat and vibration over time and failed. Repairing the broken wire inside the transmission resolved the code permanently.
• NHTSA ODI #10354984 — An owner reported that shifting from Drive to Reverse caused violent and loud clunking, with a scanner retrieving code P0755.
• NHTSA ODI #10303380 — One owner noted that using code P0755 to repair the car did not initially fix the problem, highlighting the complexity of diagnosing this fault.

OEM Part Supersession History

• 35220-21010 → N/A — This is the long-standing part number for the SL2 solenoid in the U140/U240 series transmissions used in the 4-cylinder models.
  Heads up: Ensure this part number is correct for your VIN, as there can be variations. This part is specific to the 4-speed automatic and will not work in the V6 model's 5-speed transmission.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Excessive Oil Consumption (2.4L 2AZ-FE Engine) 🔴 High — Very common, particularly in 2006-2008 models. Can start as early as 60,000 miles. (Ref: TSB ZGZ (Warranty Enhancement), T-SB-0094-11, T-SB-0030-15)
• Steering Intermediate Shaft Clunk/Noise 🟠 Medium — Common across the generation. A clunking or popping noise is heard/felt in the steering wheel when turning at low speeds. (Ref: T-SB-0318-08, T-SB-0033-11)
• Water Pump Failure (3.5L 2GR-FE V6 Engine) 🟠 Medium — A known issue, particularly on earlier 2006-2009 models, but can occur on later years as well. Often presents as a coolant leak or grinding noise.
• Rear Differential Coupling Growl (4WD Models) 🟡 Low — Some 4WD models may develop a growling noise from the rear due to contamination of the front bearing in the differential coupling. (Ref: T-SB-0080-13)
• Sticking Accelerator Pedal / Floor Mat Interference 🔴 High — Part of a massive Toyota recall. The accelerator pedal could get stuck due to an incompatible all-weather floor mat or a sticky pedal mechanism. (Ref: NHTSA Campaign ID: 11V112000 (Recall))

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used OEM shift solenoid from a reputable salvage yard can be a cost-effective option, especially if it comes from a lower-mileage, accident-damaged vehicle. Given that the solenoid is an internal transmission part, it's protected from the elements. A used valve body assembly can also be considered if a major internal issue is suspected, as it's often cheaper than a new unit.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the donor vehicle's mileage and ensure it's reasonably low.
• Ask for a short warranty period (e.g., 30-90 days) from the salvage yard.
• Inspect the electrical connector pins for any signs of corrosion or damage.
• If possible, test the resistance of the used solenoid with a multimeter before purchase to ensure it's within spec.

OEM-only on this vehicle (don't cheap out):

• Transmission Control Module (TCM/ECM): Due to programming and security integration with the vehicle (immobilizer), a new or professionally refurbished and VIN-programmed unit is strongly recommended if the module is diagnosed as faulty.

Aftermarket brands forum-validated for this vehicle:

• Aisin: Aisin is the original equipment manufacturer (OEM) for Toyota transmissions, so their solenoids are identical to the genuine Toyota part, often at a lower price.
• Rostra
• Standard Motor Products (SMP)

Brands owners have reported issues with on this vehicle:

• Unbranded, 'white-box' solenoids from online marketplaces should be avoided. They often have inconsistent coil resistance and lower quality materials, leading to premature failure and the code returning.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0758 — Shift Solenoid 'B' Electrical — often appears alongside P0755 in RAV4 models, sometimes indicating a shared electrical circuit issue or a faulty ECU.
• P0753 — Shift Solenoid 'A' Electrical — a companion solenoid code that may trigger if there is a broader electrical failure in the transmission wiring harness or internal valve body wiring.
• P0751 — Shift Solenoid 'A' Performance — related to the same shift control system where debris or fluid degradation affects solenoid operation.
• P0741 — Torque Converter Clutch Circuit Performance — can occur alongside solenoid codes when dirty or low transmission fluid (ATF WS) affects overall hydraulic pressure.
