P0841 on 2013-2022 Chevrolet Spark: Transmission Pressure Sensor Causes and Fixes

What's Unique About the 2013-2022 Chevrolet Spark

The Chevrolet Spark uses a Jatco-sourced CVT7 (also known as the JF015E), which is known for specific failure points across several manufacturers. For this code, General Motors issued a Technical Service Bulletin (TSB 19-NA-231) that directly points to the transmission fluid pressure switch as the likely culprit for a range of performance issues, including setting code P0841. This makes the diagnosis more straightforward than on other vehicles. The repair is complicated by the fact that the sensor is internal to the transmission on the valve body. The transmission also has no dipstick, making fluid level checks and refills difficult for a DIYer.

Generation note: This range covers the third generation (2013-2015, M300) and fourth generation (2016-2022, M400) Spark. Both use a Jatco CVT7 (RPO codes M4M or MR8). The 2014-2015 models are also subject to a separate Special Coverage program (N192271110) for potential failure of the transmission's drive pulleys and belt, which is a more severe issue that can also cause pressure-related codes.

Symptoms You May Notice

• Check Engine Light is on
• Vehicle enters 'limp mode' with reduced power
• Poor or sluggish acceleration
• Harsh, erratic, or delayed shifting
• Transmission slipping, jerking, or shuddering
• Failure to pass emissions/smog check

Most Likely Causes

1. Faulty Transmission Fluid Pressure Sensor/Switch 🔴 High Probability → Shop Transmission Assembly GM issued TSB 19-NA-231 specifically identifying this part as the cause for this code and related symptoms on the Spark's CVT. Another TSB (19-NA-053) for related codes notes the switch can become contaminated by debris from the valve body.
   How to confirm: A technician will use a scan tool to monitor sensor data. If the code returns immediately after clearing and the fluid level is correct, the sensor is condemned per the TSB. The sensor is located inside the transmission pan on the valve body.
   Typical fix: Replace the transmission fluid pressure sensor. This requires draining the fluid, removing the transmission pan and filter, replacing the sensor on the valve body, and refilling with new, correct-spec CVT fluid. 🎬 See this walkthrough for a CVT fluid and filter change
   Est. part cost: $100-$150
2. Low or Dirty Transmission Fluid 🟡 Medium Probability → Shop Transmission Assembly CVTs are highly sensitive to fluid level and condition. The Jatco CVT7, in particular, can generate fine metal particles that contaminate the fluid and clog components like pressure sensors and valves.

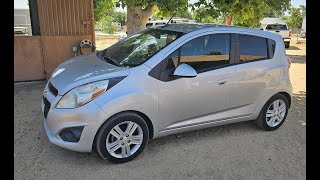

   How to confirm: The fluid level and condition must be checked by a professional, as there is no dipstick. This involves putting the vehicle on a lift, bringing it to a specific temperature (122–176°F / 50–80°C), and opening a check plug. 🎬 Watch: How to check the transmission fluid on a Spark
   Typical fix: Perform a transmission fluid drain and fill using the correct specification CVT fluid (ACDelco CVT Fluid #19352974 or equivalent). If the fluid is very dirty, a valve body or transmission replacement may be necessary.
   Est. part cost: $60-$120
3. Wiring or Connector Issue ⚪ Low Probability The wiring harness connector for the transmission is located under the vehicle and is exposed to moisture and road debris, which can cause corrosion or damage over time.
   How to confirm: Visually inspect the wiring harness and connector leading to the transmission for damage, corrosion, or loose pins. A multimeter can be used to check for proper voltage and ground at the sensor connector.
   Typical fix: Repair the damaged section of wiring or clean/replace the corroded connector.
   Est. part cost: $10-$50

Rare But Worth Checking

• Faulty Transmission Control Module (TCM) or Valve Body: → Shop Transmission Assembly While the sensor is the most common failure point, some owner reports indicate that the issue was deeper within the valve body, requiring a more expensive replacement. In a Reddit thread, one user noted that in Korea, this code on the Spark more often leads to a valve body replacement than just the sensor. A faulty TCM is also possible but very rare. Additionally, manufacturer bulletin #PIP6018 (regarding the Camaro) notes that an incorrectly machined fluid passage in the valve body can cause DTC P0841, suggesting that internal valve body defects can mimic sensor failure.

Diagnosis Steps

1. Verify the code with an OBD-II scanner. Note any other accompanying codes like P0700.
2. Have a professional mechanic check the transmission fluid level and condition. This is critical and requires a vehicle lift and specific procedure at a fluid temperature of 122–176°F (50–80°C).
3. If the fluid level and condition are good, inspect the transmission wiring harness and main connector for any signs of corrosion, moisture, or physical damage.
4. Using an advanced scan tool (like GM's GDS2), monitor the live data from the Transmission Fluid Pressure Sensor 'A'. Check if the voltage reading is erratic, stuck, or does not change as expected with engine RPM and gear changes.
5. If the wiring is good and the fluid is correct, the most likely cause is a faulty pressure sensor, as indicated by GM TSB 19-NA-231.

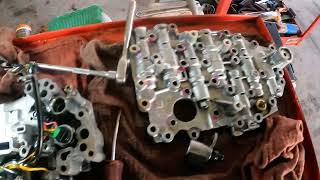

6. Proceed with replacing the transmission fluid pressure sensor, which is located inside the transmission pan.

Parts You'll Likely Need

• Transmission Fluid Pressure Switch (OEM #25205266) — This is the component identified as the primary failure point in GM's own Technical Service Bulletin (19-NA-231) for this code.
  Trusted brands: ACDelco
  OEM price range: $100-$150
  Aftermarket price range: $70-$120
• CVT Fluid (OEM #19352974) — The transmission must be drained to access the pressure switch, so a fluid replacement is a mandatory part of the job. Using the correct OEM fluid is critical for CVT longevity.
  Trusted brands: ACDelco
  OEM price range: $20-$30 per quart
  Aftermarket price range: $15-$25 per quart
• Transmission Pan Gasket (OEM #24260843) — The gasket should always be replaced when the transmission pan is removed to prevent leaks. Aftermarket options like Fel-Pro TOS 18783 are also available.
  Trusted brands: ACDelco, Fel-Pro
  OEM price range: $25-$45
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0700 — P0700 is a generic code that means the Transmission Control Module (TCM) has requested the Check Engine Light to be turned on. It will almost always be present alongside a more specific transmission code like P0841.
🎬 Watch: Quick diagnosis and DIY fix for the P0700 code
• P0868 — This code indicates 'Transmission Fluid Pressure Low'. It can appear with P0841 if the root cause is low fluid level or a failing transmission pump, affecting overall line pressure.

Technical Service Bulletins (TSBs) & Recalls

• TSB 19-NA-231: Addresses transmission operation concerns and various DTCs, including P0841, and recommends replacing the transmission fluid pressure switch.
• TSB 19-NA-053: While for codes P0871 and P2714, it is highly relevant as it states the cause is a pressure switch contaminated with debris from the valve body, pointing to a common failure pattern in this transmission.
• Bulletin #PIP6018: A manufacturer service bulletin notes that an incorrectly machined fluid passage in the valve body can cause DTC P0841.

Platform-Specific Known Issues

• Special Coverage N192271110: For 2014-2015 models, GM extended the warranty to 10 years/120,000 miles for failures of the transmission's internal drive pulleys and belt. While not directly for the P0841 code, such a failure would create debris and pressure issues, potentially triggering this code as a symptom of a larger problem.

Mechanic-Grade Diagnostic Values

• Secondary Pulley Pressure Sensor Voltage at Idle in Neutral — expected: 0.88V - 0.94V. Failure: Voltage outside this range, stuck at a specific value, or erratic readings.
• General Transmission Fluid Pressure Sensor 'A' Voltage Range — expected: ~0.5V (low pressure) to ~4.5V (high pressure). Failure: A reading of 0V, a fixed voltage that doesn't change with RPM, or a reading above 4.7V for more than 5 seconds.
• Scan Tool Live Data (Secondary Pressure) — expected: Around 0.7V at low pressure, jumping to over 3.0V under load.. Failure: Erratic voltage or voltage that doesn't elevate sufficiently under load, suggesting pump or leak issues.

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): Transmission Configuration Fast Learn Adaptive Procedure — This procedure is required after replacing the transmission or valve body to allow the TCM to learn the characteristics of the new components. Failure to perform this can result in poor shift quality even with new parts.
• GDS2 (GM Global Diagnostic System 2): GDS2 Session Log — GM requires technicians to capture and submit a GDS2 session log showing the fault occurring during a road test before authorizing the replacement of major components like the transmission assembly, valve body, or TCM under warranty or parts restriction programs.

Wiring & Ground Locations

• Transmission Case Connector — External connector on the transmission housing, under the vehicle.. This is the main connection point for all internal transmission electronics, including the pressure sensor. It is exposed to road salt and moisture, making it a primary suspect for corrosion and wiring issues that can cause P0841.
• Pin 16 (Case Connector) — Within the main transmission case connector.. According to a Nissan-based pinout for the identical Jatco JF015E, Pin 16 provides the 5-volt power supply to the secondary pulley pressure sensor. A loss of voltage on this pin would cause the sensor to stop reporting, triggering a fault.
• Pin 25 (Case Connector) — Within the main transmission case connector.. According to a Nissan-based pinout for the identical Jatco JF015E, Pin 25 is the shared ground for the secondary pulley pressure sensor and the fluid temperature sensor. A bad ground on this pin would cause incorrect readings for both.

Real Owner Repair Stories

• Reddit user UK_Kim in r/chevyspark (2014 Chevrolet Spark) — Jumping and trouble shifting gears, check engine light on.
  ❌ Tried (didn't work) The user was asking for advice before attempting a repair.
  ✅ What actually fixed it The expert comment advised that while the pressure switch is a possible fix, it's often a sign of wider CVT issues from metal particle contamination. The provided fix was to access the valve body, replace the pressure switch (PN 25205266), and ideally other wear items like gaskets and seals at the same time. The user provided detailed diagrams and a link to the service manual showing the location on the valve body.
• NHTSA ODI #11718767 — An owner reported that the vehicle failed to accelerate as intended and the transmission was shifting hard. Diagnostic trouble codes P0700 and P0841 were retrieved after the failure.

OEM Part Supersession History

• 25202299 → 25205266 — Standard part revision by the manufacturer. The new part is the correct service replacement.

Model Year Variations Within This Range

• 2013-2015: These models use the Jatco CVT7 designated by RPO code M4M. GM placed this specific transmission assembly (P/N 25184064) on a parts restriction in 2013, requiring extra diagnostics before replacement.
• 2016-2022: These models use the Jatco CVT7 designated by RPO code MR8. GM also placed this transmission assembly (P/N 24274647) and its valve body (P/N 25194692) on a parts restriction in 2015, requiring GDS2 logs before replacement.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Premature CVT Transmission Failure 🔴 High → Shop Transmission Assembly — Common, especially in 2013-2015 models. Can occur at relatively low mileage (under 100k miles). Symptoms include shuddering, slipping, or complete failure. (Ref: N192271110 (Special Coverage for 2014-2015 models))
• Excessive Oil Consumption 🟠 Medium — Reported by numerous owners, particularly in the 2013 model year, requiring frequent oil top-offs between changes.
• Engine Stalling 🔴 High — Complaints of the engine stalling unexpectedly at idle or low speeds, potentially due to faulty ignition coils or ECM issues.
• HVAC System Malfunction (A/C Not Cooling) 🟡 Low — A common complaint where the A/C system stops blowing cold air, often due to refrigerant leaks or compressor failure at low mileage.
• Secondary Hood Latch Corrosion/Failure 🟠 Serious — Sufficiently widespread to trigger a recall. The latch can corrode and fail, potentially allowing the hood to open while driving. (Ref: Recall 22V640000)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For a P0841 code, sourcing a complete used valve body from a low-mileage donor vehicle could be a cost-effective alternative to a new one, as it often comes with the sensors pre-installed. A complete used transmission is a last resort and only makes sense if the cost is significantly lower than a remanufactured unit and comes with a warranty.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the donor vehicle's mileage and check its history for accidents, especially front-end collisions.
• If possible, inspect the color and smell of the transmission fluid from the donor; it should be reddish and not have a burnt odor.
• Look for external damage to the transmission case or connectors.

OEM-only on this vehicle (don't cheap out):

• Transmission Fluid Pressure Switch: Given the high labor cost to access this internal part, using a new OEM (ACDelco) part is strongly recommended to avoid premature failure.
• CVT Fluid: Only use the specified fluid, such as ACDelco CVT Fluid (P/N 19352974). Using incorrect fluid can quickly destroy a CVT.

Aftermarket brands forum-validated for this vehicle:

• Fel-Pro: A well-regarded brand for transmission pan gaskets (e.g., TOS 18783) if an OEM gasket is not used.

Brands owners have reported issues with on this vehicle:

• Unknown/No-Name Sensors: Avoid unbranded, cheap online pressure sensors. The risk of early failure is high, and the labor to replace it again negates any initial savings.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0700 — This is a general Transmission Control Module (TCM) fault code. It frequently appears alongside P0841 to indicate that the TCM has detected a specific fault and has requested the Check Engine Light to be turned on.
• P0871 — Transmission Fluid Pressure Sensor/Switch 'C' Circuit. TSB 19-NA-053 links this code to the same root cause as P0841: a pressure switch becoming contaminated with debris from the valve body in the Spark's CVT.
• P2714 — Pressure Control Solenoid 'D' Performance. This code is also mentioned in TSB 19-NA-053 as being caused by valve body debris, indicating a shared failure pattern within the same hydraulic control system as the P0841 sensor.
• P0846 — Transmission Fluid Pressure Sensor/Switch 'B' Circuit. Since P0841 refers to sensor 'A', this code for sensor 'B' is directly related. It points to a similar component in the same system that is susceptible to the same common failures like fluid contamination or wiring issues.

Frequently Asked Questions
