P1890 on 2011-2018 Porsche Cayenne: Tiptronic Signal Wire Fault Causes and Fixes

What's Unique About the 2011-2018 Porsche Cayenne

The 2011-2018 Cayenne (958 generation) shares its 8-speed Tiptronic S automatic transmission (Aisin 0C8) with the Audi Q7 and Volkswagen Touareg. A Technical Service Bulletin (TSB) for the Audi Q7, which uses the identical transmission, explicitly states that the original TCM software was too sensitive and could trigger this fault erroneously. Because of this shared platform, the primary fix for the Cayenne is often a software update, rather than an immediate hardware replacement, which is a common and expensive misdiagnosis.

Symptoms You May Notice

• "Gearbox malfunction: You can continue driving" message on the instrument cluster.
• Tiptronic manual shift function is inoperative.
• Check Engine Light is illuminated.
• Gear indicator lights on the console may behave erratically or flash.
• In some cases, the ignition key may not be released because the system cannot confirm the vehicle is in Park.
• The fault may be intermittent, appearing and disappearing during drives.

Most Likely Causes

1. Outdated Transmission Control Module (TCM) Software 🔴 High Probability → Shop Transmission Assembly A TSB for the identical transmission in the Audi Q7 states the original software's diagnostic threshold is too sensitive, causing false positives. This is the most widely acknowledged cause for this specific code on this platform.
   How to confirm: A Porsche dealer or specialist with a PIWIS tester can check the current software version on the TCM (address word 02) and see if an update is available by cross-referencing it with Porsche's service database.
   Typical fix: Update the TCM to the latest software version using the PIWIS tool.
   Est. part cost: $0
2. Wiring Harness or Connector Fault 🟡 Medium Probability The wiring runs from the center console to the transmission. Spilled liquids in the center console are a known cause of corrosion on the shifter module's connector pins. Chafing or pinching can also occur along the transmission tunnel.
   How to confirm: Visually inspect the wiring harness and connectors between the gear selector module and the TCM. A technician may perform a continuity or pin-out test to check for breaks 🎬 Watch: Diagnosing and fixing a Tiptronic signal wire error. or shorts in the signal wire. Water ingress at the main transmission block connector is another possibility.
   Typical fix: Repair the damaged section of the wire or clean/re-seat the connector. In cases of liquid damage, the connector may need to be replaced.
   Est. part cost: $5-$50
3. Faulty Gear Selector Module ⚪ Low Probability The internal circuit board or magnetic position sensors within the shifter assembly (also known as J587) can fail over time, though it's less common than software or wiring issues. Liquid spills are a primary cause of premature failure.
   How to confirm: This is typically diagnosed after confirming the software is up-to-date and the wiring is intact. A diagnostic tool may show erratic or no signal data from the selector module.
   Typical fix: Replace the entire gear selector module assembly. Used units are widely available.
   Est. part cost: $100-$700

Rare But Worth Checking

• Poor Ground Connection: A forum user on a similar VAG platform reported that a failing ground point in the center console caused a voltage deviation that triggered the P1890 code. This is worth checking during electrical diagnosis, as it can cause erratic behavior in multiple console components.

Diagnosis Steps

1. Connect a Porsche-compatible diagnostic tool (e.g., PIWIS, advanced Autel/Launch, or Durametric) to read the fault codes from the Transmission Control Module (TCM).
2. Confirm that P1890 is present. Note any other related codes like P1893 or P1891.
3. Using the diagnostic tool, check the installed software version on the TCM. Contact a Porsche dealer or specialist to determine if a newer version is available.
4. If a software update is available, perform the update. Clear codes and test drive, using the Tiptronic function extensively. This is the most likely fix.
5. If the code returns, gain access to the gear selector module by removing the center console trim.
🎬 Watch: How to remove the center console trim safely.
6. Visually inspect the wiring harness and connectors for any signs of damage, corrosion (especially from spilled liquids), or loose pins.
7. Check the ground connection for the gear selector module and other center console electronics for integrity and proper voltage.
8. If wiring appears intact, perform a continuity test on the Tiptronic signal wire between the selector module connector and the TCM connector to rule out an internal break.
9. If available, use an oscilloscope to monitor the signal from the Tiptronic wire to check for a clean, consistent signal when the shifter is operated.
10. If the software, wiring, and grounds are all confirmed to be good, the fault lies within the gear selector module itself, which will require replacement.

Parts You'll Likely Need

• Transmission Control Module (TCM) Software Update — The most common cause is an overly sensitive diagnostic threshold in the factory software, which is corrected by an update.
  Trusted brands: Porsche (Dealer/Specialist Service)
  OEM price range: $150-$350
  Aftermarket price range: N/A
• Gear Selector Lever Module (OEM #7P5713025S, 95842603311, 95842609310) — If software and wiring are ruled out, the internal electronics of the shifter assembly are the next likely cause, often due to liquid damage or age.
  Trusted brands: Porsche (OEM)
  OEM price range: $700-$925
  Aftermarket price range: $100-$400 (Used)

Related Codes That Often Appear With This One

• P1893 — This code, for 'Signal wire for gear display in selector lever Electrical error,' often appears with P1890 as they both relate to the gear selector's electrical circuits. The same Audi TSB addresses both codes as being caused by sensitive software.
• P1891 — This code for 'Signal wire for Tiptronic Implausible signal' is a related fault. P1890 indicates a general electrical error (like a short or open), while P1891 suggests the signal received is out of its expected range, but both point to a problem with the Tiptronic signal circuit.

Technical Service Bulletins (TSBs) & Recalls

• Audi TSB 2036826/1 (37 14 21) - While for an Audi Q7, it directly addresses P1890 and P1893 on the same 0C8 transmission, identifying the cause as sensitive TCM software 🎬 See a technician explain the P1890 and P1891 software faults. and the fix as an update. This is the key document for understanding this fault.

Platform-Specific Known Issues

• Owner Experience on 6SpeedOnline: A user with a 2012 Cayenne V6 reported P1890 among other codes. After a long road trip and a car wash, the check engine light turned off on its own, though the code remained stored as passive in the system, indicating the intermittent nature of the fault.

Hidden / Shadow Codes Worth Checking

• P189000: This is the full code as it often appears in OEM diagnostic tools like PIWIS or VCDS. The '00' suffix is a fault type or symptom byte that specifies a general electrical error, confirming the definition. Its presence indicates a more detailed fault record than a standard OBD-II reader provides. (see via Porsche PIWIS Tester, VCDS (on VW/Audi platform), or other advanced European vehicle scan tools.)

Scan Tool Commands That Help

• Porsche PIWIS Tester: Software Version Management (SVM) Update — This is the first and most critical diagnostic step. The PIWIS tester connects to the Porsche Partner Network (PPN) to check if the TCM software is outdated. If a newer version is available to fix the sensitive diagnostic threshold, the SVM function is used to flash the TCM with the new software.
• Porsche PIWIS Tester / Launch X431: Transmission Adaptation Reset — After replacing a major component like the gear selector module or valve body solenoids, the transmission's learned adaptive values should be reset. This forces the TCM to relearn shift points and clutch engagement with the new hardware. Note that the Durametric tool is reported to NOT support this function on the 958 Cayenne.
• Porsche PIWIS Tester: Automatic Coding / Programming — If the gear selector module is replaced, the new unit may need to be coded to the vehicle. The PIWIS tester's automatic programming function will code the new module to ensure it communicates correctly with the TCM and other vehicle systems.

Wiring & Ground Locations

• Selector Lever Sensor System Control Module (J587) — Inside the center console, as part of the gear shifter assembly.. This is the module that generates the Tiptronic signal. The fault is in the wiring originating from this module or within the module itself.
• Transmission Control Module (TCM / J217) — Under the right front passenger's seat, beneath the carpet.. This module receives the signal from the shifter. The signal wire runs from the shifter (J587) to this module. A continuity test would be performed between the connectors of these two components.
• Main Chassis Ground Point — A primary ground point is located in front of the driver's seat, accessible via a small carpet door on the floor.. A poor ground can cause floating voltages and erratic electronic behavior. While the shifter has its own local ground, checking this main ground is crucial if multiple, seemingly unrelated electrical issues are present.

Real Owner Repair Stories

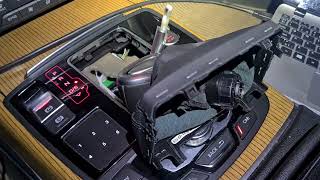

• Kennedy's garage (YouTube) (Audi A6 (with similar Tiptronic shifter and fault codes P1890/P1891)) — Gearbox malfunction message on the dash, Tiptronic function not working, fault codes P1890 and P1891 stored in the TCM.
  ❌ Tried (didn't work) Initial inspection of the main transmission block connector showed no obvious corrosion., Clearing codes resulted in them returning after a short drive while using the Tiptronic function.
  ✅ What actually fixed it The entire gear selector module was replaced. The technician diagnosed it as the final possible cause after ruling out the software and external wiring. After replacement, the codes were cleared and did not return.

OEM Part Supersession History

• 7P5713025S → N/A - This is the most commonly referenced number, but other numbers are compatible. — Part interchangeability across different vehicle options and model years.
  Heads up: According to parts vendors, part number 7P5713025S can be interchanged with 7P5713265E, 95842603301, and 95842609300. Always verify the part number with the vehicle's VIN before ordering.

Model Year Variations Within This Range

• 2011-2014 (958.1): The Audi TSB that identifies overly sensitive software as the root cause specifically lists model years 2011-2014. This strongly suggests that vehicles in this range (the pre-facelift 958.1 generation) are the most likely candidates to be fixed with a simple TCM software update. While the fault can occur on later 2015-2018 models, it is less likely that software is the primary cause, as they were more likely to have the updated software from the factory.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Transfer Case Failure 🔴 High → Shop Transfer Case Motor — Very common, can occur at any mileage but more frequent after 50,000 miles. Symptoms include shuddering or jerking on light acceleration. (Ref: Porsche issued service actions to change transfer case fluid and install a revised vent, but failures are still common.)
• Camshaft Adjuster Bolt Failure 🔴 High — Affects V8 models, primarily from 2011-2012. The aluminum bolts can shear, potentially causing catastrophic engine failure. (Ref: Porsche Recall AH08 was issued to replace the aluminum bolts with steel ones.)
• Coolant Pipe Leaks 🟠 Medium — Common on V8 models where glued-in coolant pipes in the engine 'V' can fail, causing leaks. Also affects diesel models at the EGR cooler. (Ref: No recall, but updated aluminum replacement pipes are available.)
• Timing Cover Oil Leak 🟠 Medium — Common on both V6 and V8 engines. The aluminum timing cover bolts can stretch or break, causing oil to leak from the front of the engine. (Ref: No recall, but a Porsche-approved repair process exists to replace the bolts, sometimes without engine removal. Upgraded steel bolts are the fix.)
• Water Ingress from Clogged Drains 🔴 High — Sunroof and cowl drains can clog with debris, causing water to overflow into the cabin, typically into the passenger footwell, damaging sensitive electronics like the amplifier and various control modules.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, a used Gear Selector Module is a very smart choice. The OEM new part is expensive, and since the failure is often electronic or due to liquid damage, a tested, guaranteed part from a reputable dismantler offers significant savings with relatively low risk.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Ask for photos of the connectors to check for any pin corrosion or discoloration.
• Inspect for any signs of liquid spills, such as sticky residue or staining on the housing.
• Ensure the seller offers a warranty or guarantee that the part has been tested and is functional.
• Verify the part number from the donor vehicle matches one of the compatible numbers for your Cayenne.

OEM-only on this vehicle (don't cheap out):

• TCM Software Update - This is a service, not a part, and must be performed by a dealer or specialist with access to Porsche's network.

Brands owners have reported issues with on this vehicle:

• No-name or unbranded electronic components from online marketplaces are not recommended due to the potential for immediate failure or the need for complex coding that they may not support.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P1893 — This code is frequently associated with P1890. The key Audi TSB (2036826/1) for the shared transmission addresses both P1890 and P1893 with the same fix: a TCM software update due to overly sensitive diagnostics.
• P1891 — Mentioned as a code to check for during diagnosis of P1890. Its presence would suggest a fault within the same Tiptronic function or gear selector module circuit.
