P2008 on 2010-2013 Kia Forte 2.0L/2.4L: Intake Runner Control Circuit Fixes

What's Unique About the 2010-2013 Kia Forte

While P2008 is a generic code, its cause on the Theta II engine in the Kia Forte is highly consistent. The issue is almost always an internal electrical failure within the IMRC actuator motor itself, rather than a wiring problem in the harness or stuck runner flaps. This makes diagnosis more straightforward than on other vehicles where the cause can be more varied. The actuator is a known failure point on this platform and its Hyundai platform mates.

Symptoms You May Notice

• Check Engine Light is on
• Reduced engine power and torque, especially at low RPMs
• Hesitation or stumbling during acceleration
• Rough or uneven idle
• Decreased fuel economy by 2-5 MPG
• Failure to pass an emissions test

Most Likely Causes

1. Failed Intake Manifold Runner Control (IMRC) Actuator 🔴 High Probability → Shop Engine Intake Manifold The actuator motor on the Theta II engine is a common failure item, typically due to an internal open circuit developing from heat and vibration over time. This is a well-documented issue across both Kia and Hyundai vehicles using this engine.
   How to confirm: Use a scan tool's 'Active Test' function to command the IMRC solenoid on and off. If you hear no 'click' from the actuator, it's likely failed. Alternatively, use a multimeter to check for voltage and ground at the actuator's electrical connector with the key on. If power is present but the actuator doesn't work, it is faulty. The actuator is located on the side of the plastic intake manifold and can be accessed for testing.
   Typical fix: Replace the IMRC actuator assembly. It is mounted to the side of the intake manifold with three bolts.
   Est. part cost: $70-$150
2. Damaged Wiring or Loose Connector ⚪ Low Probability Wiring near the engine is exposed to heat and vibration. A common scenario is the connector not being plugged back in securely after previous service near the intake manifold. Rodents can also chew on wires, causing an open circuit.
   How to confirm: Visually inspect the wiring harness and 5-pin connector leading to the IMRC actuator. Look for any signs of breaks, corrosion, melting, or chewed wires. Check that the connector is securely plugged in. Use a multimeter to check for continuity from the PCM to the connector if a break is suspected.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the connector.
   Est. part cost: $5-$50

Rare But Worth Checking

• Stuck Intake Manifold Runner Flaps: → Shop Engine Intake Manifold This is rare for a P2008 code, which is electrical. This issue usually sets a P200A (Performance) or P2006 (Stuck Closed) code. However, if the flaps are severely carboned up and stuck, it could put stress on the actuator. You can test this by manually moving the actuator's linkage arm on the manifold; it should move with slight resistance.
• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is extremely rare. The PCM's output driver can fail, but this should only be considered after all other possibilities, including the actuator and wiring, have been exhaustively tested and ruled out.

Diagnosis Steps

1. Read the fault codes with an OBD-II scanner and note any other codes present, especially P200A or P2017.
2. Visually inspect the IMRC actuator, its electrical connector, and the surrounding wiring. It is located on the side of the intake manifold. Check for obvious damage, loose connections, or signs of rodent activity.
3. If you have a capable scan tool, perform an 'Active Test' on the IMRC circuit. Command the actuator on and off while listening for a distinct clicking sound from the actuator.
4. If no click is heard, test the circuit with a multimeter. Disconnect the actuator and turn the ignition to the 'ON' position (engine off). Check for battery voltage at the power pin on the harness connector. On the 5-pin connector, pins 4 & 5 typically control the motor.
5. If voltage is present, the wiring is likely good and the IMRC actuator has failed. Replace the actuator.
6. If no voltage is present at the connector, there is a problem in the wiring harness or the PCM itself. Inspect the wiring harness back to the PCM for breaks or shorts. A PCM failure is very rare.
7. After replacing the part, clear the codes and perform a test drive to ensure the problem is resolved. Some technicians recommend running the engine at 2500 RPM for 5 seconds, then shutting it off, and repeating this cycle five times to help the system relearn.

Parts You'll Likely Need

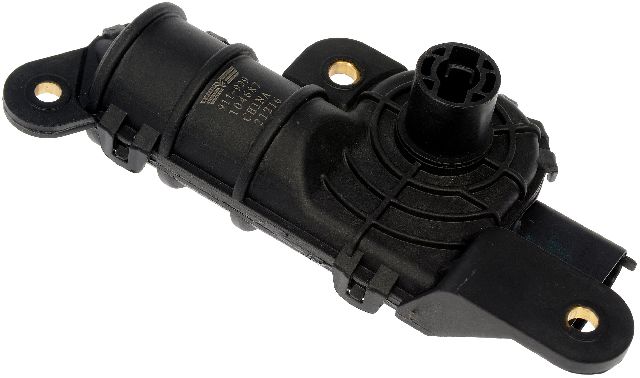

• Intake Manifold Runner Control Actuator / Solenoid (OEM #28321-2G000 (For 2.4L MPI Theta II)) — This is the most common failure point for code P2008 on the Theta II engine due to internal electrical faults. This part is also sometimes referred to as an 'Actuator-Vis' or 'Variable Charge Motion (VCM) Actuator'.
  Trusted brands: Kia (OEM), Hyundai (OEM), Dorman, Standard Motor Products
  OEM price range: $120-$180
  Aftermarket price range: $70-$150

Related Codes That Often Appear With This One

• P200A — P200A means 'Intake Manifold Runner Performance'. It often appears with P2008 because the electrical failure (P2008) prevents the actuator from moving the flaps, leading to a performance error (P200A) when the PCM sees the flaps are not in the commanded position. Kia issued a service action (SA152) for some 2012 Forte 2.4L models to update the ECM software to address a P200A code.
🎬 Watch: Diagnostic walkthrough for the related P200A code
• P2017 — P2017 means 'Intake Manifold Runner Position Sensor Circuit High'. The position sensor is often part of the actuator assembly. An internal failure in the actuator can cause faults in both the motor control circuit (P2008) and the position sensor circuit.

Technical Service Bulletins (TSBs) & Recalls

• SA152: For some 2012 Forte/Koup 2.4L vehicles, Kia released an ECM software update to address MIL illumination with DTC P200A, which is often related to P2008.

Platform-Specific Known Issues

• DIY Repair without Manifold Removal: Multiple owner accounts and videos confirm that the IMRC actuator can be replaced without removing the entire intake manifold, which saves significant time and effort. Access is tight, but it is held on by three 10mm bolts and can be removed by first taking off the engine cover 🎬 See this step-by-step VCM motor replacement walkthrough and air intake ducting for better visibility.

Mechanic-Grade Diagnostic Values

• IMRC Actuator Motor Bench Test — expected: The actuator arm should rotate when 12V DC is applied to the two motor pins on the 5-pin connector. Reversing the polarity should cause it to rotate in the opposite direction.. Failure: No movement when 12V is applied indicates a failed internal motor.

Scan Tool Commands That Help

• Kia GDS (Global Diagnostic System): Actuation Test > VCM Motor — This is the primary bidirectional test to command the actuator motor to move. It allows a technician to audibly and visually confirm if the motor is functioning, if the linkage moves, and to check for binding without manual testing.
• Kia GDS (Global Diagnostic System): Vehicle S/W Management > Resetting adaptive values — This function can be used after replacing the IMRC actuator to clear any learned values in the PCM related to the old, faulty part, ensuring the system operates correctly with the new component.

Wiring & Ground Locations

• IMRC Actuator Connector — Bolted to the driver's side of the plastic intake manifold.. This 5-pin connector provides power and control signals to the actuator motor and receives position data back. A loose or corroded connection here is a common cause for an open circuit code. The two motor pins can be used to directly test the actuator.
• Intake Manifold Ground — There is typically a grounding point on the intake manifold itself.. A poor or corroded ground connection at the manifold could potentially affect the IMRC circuit, contributing to an open circuit fault. This should be checked for cleanliness and tightness during diagnosis.

Real Owner Repair Stories

• YouTube - 'Do This: Kia P200A / Testing / replacement / no special tools / 2012 Forte in video' by Mil-usos Miller (2012 Kia Forte 2.0L) — Check Engine Light with code P200A (performance code, but diagnosis involved testing the P2008 electrical components).
  ❌ Tried (didn't work) The user went directly to diagnosing the actuator, no other parts were replaced first.
  ✅ What actually fixed it The IMRC actuator was found to be physically broken (a plastic piece had severed). The user demonstrated a successful bench test of the motor itself using a 12V battery, but the physical damage required replacement of the entire actuator. The part was replaced without removing the intake manifold, which fixed the issue.
• YouTube - '2011 Kia Forte P200A' by Vector Mobile AutoWorks (2011 Kia Forte) — Check Engine Light with code P200A.
  ❌ Tried (didn't work) Manually checked intake runner flaps with pliers to ensure they were not stuck; they moved freely.
  ✅ What actually fixed it The scan tool's actuation test failed to move the original actuator. A new actuator was bench-tested with the scan tool and worked correctly. Replacing the actuator and clearing the codes resolved the problem.

OEM Part Supersession History

• 28321-2G000 → 28321-2G000 — No supersession found. This part number appears to be stable for the specified vehicle range.
  Heads up: This actuator is used across a wide range of Hyundai/Kia vehicles with the Theta II engine, including Optima, Sorento, and Sportage. Always verify fitment with VIN, but it is the correct part for the 2010-2013 Forte.

Model Year Variations Within This Range

• 2010-2013: While the actuator part is the same, the intake manifold itself can differ. Kia produced separate manifolds for Federal emissions (28310-2G200) and California emissions (28310-2G210). If misdiagnosing the issue leads to manifold replacement, using the wrong one will cause a persistent Check Engine Light.
• 2012 (specifically 2.4L): Kia issued a service action (SA152) for some 2012 Forte 2.4L models involving an ECM software update to address the related P200A code. This suggests a logic-related issue that was addressed via software for this specific year/engine, though actuator failure remains the primary cause.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Theta II Engine Failure 🔴 High — Widespread across millions of 2.0L and 2.4L Theta II engines from 2011-2019 model years. Failures can occur at various mileages, often before 100,000 miles. (Ref: Multiple recalls (e.g., NHTSA 20V750000, Kia SC200) and a major class-action lawsuit settlement led to lifetime warranties and a Knock Sensor Detection System (KSDS) software update for affected vehicles.)
• Airbag Control Unit (ACU) Short Circuit 🔴 High — Affects 2010-2013 Forte models. The ACU can short circuit in a crash, preventing frontal airbags and seatbelt pretensioners from deploying. (Ref: NHTSA Recall 18V363000 (Kia Recall SC165).)
• Hydraulic Electronic Control Unit (HECU) Fire Risk 🔴 High — Affects 2010-2013 Forte models. An electrical short in the HECU can cause an engine compartment fire while parked or driving. (Ref: NHTSA Recall 23V652000 (Kia Recall SC284). Owners are advised to park outside and away from structures until the repair is complete.)
• Failing Clock Spring 🟠 Medium — Common failure leading to an illuminated airbag warning light and loss of steering wheel controls. While recalls existed for some years, Kia also issued a warranty extension for the clock spring on 2014-2015 models to 15 years/unlimited miles. This indicates a high failure rate extending beyond the original warranty. (Ref: Warranty Extension Program (e.g., TSB GEN 063) for some model years.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: Buying a used IMRC actuator is generally not recommended due to its high failure rate from heat and vibration. It should only be considered if the donor vehicle has very low mileage (<50,000 miles) and the part is significantly cheaper than a new aftermarket unit, and the buyer accepts the risk of premature failure.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check the plastic housing for any cracks, melting, or signs of extreme heat exposure.
• Manually move the actuator arm; it should move smoothly with slight resistance and no grinding.
• If possible, perform a bench test by applying 12V to the two motor pins to confirm the motor operates in both directions.

OEM-only on this vehicle (don't cheap out):

• No parts related to this specific repair are strictly 'OEM-only'. The actuator is available from reputable aftermarket brands.

Aftermarket brands forum-validated for this vehicle:

• Dorman
• Standard Motor Products

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P200A — Often appears alongside P2008; Kia released a software update (TSB SA152) specifically to address this related intake manifold runner performance code.
• P2017 — A companion code mentioned in diagnosis steps that may be present when the IMRC circuit or sensor is failing.
• P2006 — A related code where the intake manifold runner flaps become physically stuck, which can occur on the same Theta II intake system.
