P2111 on 2010-2012 Lexus HS250h: Throttle Stuck Open Causes and Fixes

What's Unique About the 2010-2012 Lexus HS250h

On this specific vehicle, P2111 is rarely a simple case of a dirty or failed throttle body. Lexus identified a specific problem and issued a Technical Service Bulletin (L-SB-0012-16) for the 2010-2012 HS250h. The bulletin states that some vehicles may exhibit an engine stall when stopped, accompanied by DTC P2111. The root cause was identified as a combination of faulty logic in the Hybrid Vehicle ECU and related PCV system components. Therefore, the primary fix is to replace the PCV valve and hose with improved parts and update the ECU software, not to replace the throttle body itself.

Symptoms You May Notice

• Check Engine Light is on
• Vehicle enters 'limp mode' with drastically reduced engine power
🎬 Watch: Learn more about limp mode causes and symptoms.
• Poor or no acceleration
• Engine may stall when the vehicle is stopped
• Idle may drop below 500 RPM just before stalling or entering limp mode
• In some cases, the car may surge or maintain speed after letting off the accelerator

Most Likely Causes

1. Outdated Hybrid Vehicle ECU Software & Faulty PCV System 🔴 High Probability This is a documented issue addressed by Lexus TSB L-SB-0012-16 for this specific model and year range. The bulletin states the 'Hybrid Vehicle ECU... logic has been modified... to reduce the possibility of this condition occurring.' This indicates a factory-acknowledged flaw.
   How to confirm: A Lexus dealership or a qualified independent shop can check the vehicle's VIN in the TIS (Technical Information System) to see if TSB L-SB-0012-16 has been performed. You can also visually check for an 'Authorized Modifications Label' (P/N 00451-00001-LBL) which is affixed by the technician in the engine bay after the TSB is completed.
   Typical fix: Replace the PCV valve and ventilation hose with the updated parts, then reprogram the Hybrid Vehicle (HV) ECU with the updated calibration file using Techstream software. The TSB specifies this repair should take approximately 0.8 labor hours.
   Est. part cost: $30-$60 for the OEM PCV valve and hose.

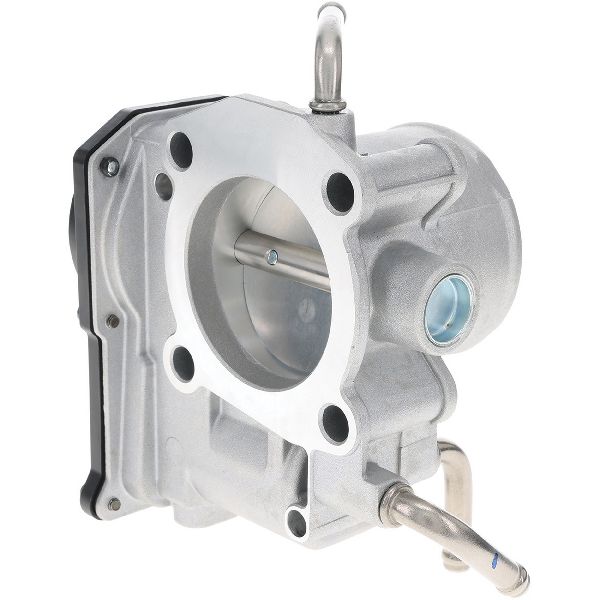

2. Dirty or Sticking Throttle Body 🟡 Medium Probability → Shop Fuel Injection Throttle Body The 2AZ-FXE engine, like many engines, can accumulate carbon and oil deposits in the intake system via the PCV system. This buildup can cause the throttle plate to bind or stick, preventing it from closing smoothly. While the TSB is the primary cause, a dirty throttle body can still trigger the code, especially if the TSB has already been performed.
   How to confirm: Remove the air intake hose from the throttle body and visually inspect the throttle plate and bore for a ring of black carbon deposits that could restrict movement. With the ignition off, manually push the plate to feel for any binding or sticking; it should move smoothly.
   Typical fix: Thoroughly clean the throttle body bore and plate with a dedicated throttle body cleaner and a soft cloth or small brush. 🎬 See this walkthrough on how to clean a Toyota throttle body. An idle relearn procedure may be necessary afterward, which can sometimes be as simple as disconnecting the battery for a few minutes and then letting the car idle.
   Est. part cost: $5-$15 for a can of throttle body cleaner.
3. Failed Throttle Body Assembly ⚪ Low Probability → Shop Fuel Injection Throttle Body The internal electronic motor or position sensor within the throttle body can fail over time, though this is less common than the TSB-related issue for this specific vehicle. On the HS250h, the throttle position sensor is integrated into the assembly and cannot be replaced separately.
   How to confirm: This is a diagnosis of exclusion. If TSB L-SB-0012-16 has been performed and a thorough cleaning of the throttle body does not resolve the code, the assembly itself is the next likely culprit. A mechanic can test the motor's resistance when hot; a reading outside the 0.3-100 ohm specification indicates failure.
   Typical fix: Replace the entire throttle body assembly.
   Est. part cost: $200-$600

Rare But Worth Checking

• Wiring or Connector Issue: Corrosion, moisture, or loose pins in the connector at the throttle body can interrupt power or signals between the ECM and the throttle body, directly causing P2111.
• Foreign Object Obstruction: In rare cases, a piece of debris can become physically lodged in the throttle body, preventing the plate from closing. A ClubLexus forum member reported a small piece of plastic causing a P2111 code.

Diagnosis Steps

1. Verify if Lexus Technical Service Bulletin L-SB-0012-16 has been performed by checking dealer records or looking for the 'Authorized Modifications Label' in the engine bay. This is the most critical first step.
2. If the TSB has not been completed, perform the specified repair: replace the PCV valve (12204-28050) and hose (12261-28191) with updated parts and reprogram the HV ECU.
3. If the TSB has been completed or does not resolve the issue, inspect the throttle body for carbon buildup.
4. Clean the throttle body thoroughly if it is dirty.
5. If the code persists, inspect the wiring harness and connector at the throttle body for damage, corrosion, or loose pins.
6. If all other steps fail, the throttle body assembly itself may have failed and require replacement. This should be the last resort.

Parts You'll Likely Need

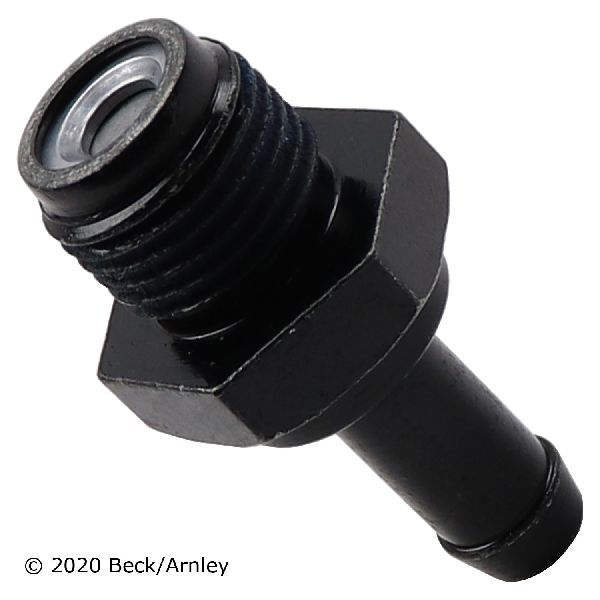

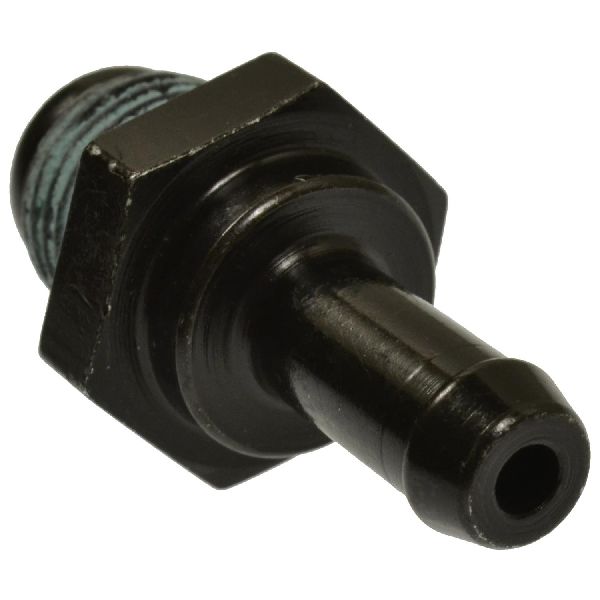

• Ventilation Valve Sub-Assembly (PCV Valve) (OEM #12204-28050) — This is the updated part required by Lexus TSB L-SB-0012-16 to fix the root cause of the P2111 code on this vehicle. It supersedes the previous part number 12204-28030.
  Trusted brands: Lexus OE
  OEM price range: $15-$30
  Aftermarket price range: $5-$15
• Ventilation Hose (OEM #12261-28191) — This is the updated hose required alongside the PCV valve by Lexus TSB L-SB-0012-16. It supersedes the previous part number 12261-28190.
  Trusted brands: Lexus OE
  OEM price range: $15-$30
  Aftermarket price range: $10-$20
• Throttle Body Assembly (OEM #22030-28070 (or superseding P/Ns 22030-0H031, 22030-28071)) — This is only needed if the primary TSB fix and cleaning do not resolve the issue, indicating a mechanical or electrical failure of the unit itself.
  Trusted brands: Aisin, Denso, Dorman (977-339)
  OEM price range: $400-$600
  Aftermarket price range: $150-$300

Technical Service Bulletins (TSBs) & Recalls

• L-SB-0012-16: MIL "ON" - Code P2111 - Throttle Actuator Control System - Stuck Open. This TSB details the procedure to replace the PCV valve and hose and recalibrate the HV ECU to fix the issue.
• T-SB-0012-16: A related TSB for the 2007-2011 Toyota Camry Hybrid with the same 2AZ-FXE engine. It also addresses P2111 and stalling but only requires replacing the PCV valve, highlighting a key difference in the required fix for the Lexus.
• Bulletin #LSB001216: Confirms the MIL "ON" condition for Code P2111 specifically regarding the Throttle Actuator Control System being stuck open.
• Bulletin #L-SB-0021-15: While for the RX 450h, this bulletin notes that P2111 and/or P0A0F may occur after a "cold soak," suggesting environmental factors can trigger throttle sticking in other Lexus hybrid models.
• Bulletin #L-SB-0032-25: Notes that on other Lexus engines, P2111 may be accompanied by P0505 (Idle Control System) and may require modified ventilation hoses and throttle body assemblies.

Platform-Specific Known Issues

• This vehicle is subject to Lexus TSB L-SB-0012-16, which identifies an HV ECU logic flaw as the primary cause for code P2111, often leading to an engine stall when stopped.
• The repair for the TSB was covered under the Lexus Federal Emission Warranty for 96 months or 100,000 miles, which has likely expired for most of these vehicles.

Mechanic-Grade Diagnostic Values

• Throttle Control Motor Resistance — expected: 0.3 - 100 Ω at 20°C (68°F). Failure: A reading outside this range indicates a faulty internal motor.
• Fail-Safe Throttle Plate Angle — expected: Approximately 16 degrees open. Failure: When the ECM cuts power to the motor in fail-safe mode, the return spring should force the plate to this specific angle to allow for minimal 'limp home' drivability. If the plate is stuck at a different angle, it indicates a mechanical binding or a broken return spring.

Scan Tool Commands That Help

• Toyota Techstream: Active Test: Control the Throttle Actuator — This bidirectional command allows a technician to manually order the throttle plate to open and close while the engine is off. It is used to verify if the motor is physically capable of moving and to check for any binding or hesitation, helping to isolate a mechanical vs. electrical failure.
• Toyota Techstream: Utility: Learning Value Reset — After cleaning or replacing the throttle body, the ECU's learned values for idle and throttle position may be incorrect, causing a high or unstable idle. This function resets those learned values, forcing the ECU to relearn the new baseline positions. This is often required to complete the repair after a physical part is serviced.

Wiring & Ground Locations

• Hybrid Vehicle Control ECU — Located in the engine compartment on the left side (driver's side).. This is the main computer that directly controls the throttle actuator motor. Any diagnosis of a persistent P2111 that is not resolved by the TSB or throttle body replacement would eventually require checking the wiring harness and connector integrity at this ECU.
• Body Electronic Control Unit (BECU) — Located under the driver's side of the dashboard, attached to the right side of the dash fuse box.. The BECU manages various body-related electrical systems and communicates with the main HV ECU. While not in direct control of the throttle, a fault here could potentially disrupt communication or power distribution affecting the engine control systems.

OEM Part Supersession History

• 22030-28070 → 22030-0H031, 22030-28071 — Standard part revision and improvement over time by the manufacturer.
• 12204-28030 (PCV Valve) → 12204-28050 — Updated part designed to work with the new HV ECU logic as specified in TSB L-SB-0012-16.
  Heads up: Using the old part number may not fully resolve the P2111 issue even after the ECU is reprogrammed.
• 12261-28190 (Ventilation Hose) → 12261-28191 — Updated part required by TSB L-SB-0012-16 to accompany the new PCV valve.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used throttle body can be a cost-effective option ONLY if the TSB has been performed and cleaning the original throttle body did not resolve the code. This points to a failure of the throttle body itself, and a used OEM unit is often more reliable than a new, non-OEM aftermarket part.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check for a clean throttle plate and bore; heavy, caked-on carbon suggests a hard life.
• Inspect the electrical connector for any signs of corrosion, bent pins, or heat damage.
• Manually (with power off) push the throttle plate to feel for smooth movement; any binding or gritty feeling is a red flag.
• If possible, get the VIN of the donor car to check its history.

OEM-only on this vehicle (don't cheap out):

• PCV Valve (P/N 12204-28050)
• Ventilation Hose (P/N 12261-28191)

Aftermarket brands forum-validated for this vehicle:

• Aisin
• Denso

Related OBD-II Codes

• P2112 — Throttle Actuator Control System - Stuck Closed. This is the logical counterpart to P2111. A dirty or failing throttle body assembly, which is a potential cause for P2111, could just as easily get stuck in the closed position, triggering this code.
• P2102 — Throttle Actuator Control Motor Circuit Low. A potential, though less common, cause for P2111 is the failure of the throttle body's internal electronic motor. This code points directly to an electrical fault within that motor's circuit.
• P2135 — Throttle/Pedal Position Sensor/Switch 'A'/'B' Voltage Correlation. The throttle position sensor is integrated into the throttle body on the HS250h. A failure of this sensor is a possible cause for P2111, and P2135 is a common code when the redundant sensors inside the assembly disagree, indicating a fault.
• P0507 — Idle Air Control System RPM Higher Than Expected. A documented symptom of P2111 is the car surging or maintaining speed after the accelerator is released. This is caused by the throttle plate being stuck open, which the ECU can interpret as an idle control fault, leading to P0507.
