U0001 on 2006-2010 Hyundai Elantra: High-Speed CAN Bus Failure Causes and Fixes

What's Unique About the 2006-2010 Hyundai Elantra

For the 2006-2010 Elantra (covering the end of the XD and the entire HD generation), there isn't one single, widely documented design flaw known to cause the U0001 code. Unlike some newer models with specific module failure patterns, the causes on this generation are typically general CAN bus issues like wiring damage from age or chafing, corroded connectors, or a failing control module bringing down the network. Notably, the ABS module on this generation was subject to a recall for an electrical short issue, and a failing ABS module can disrupt the entire CAN network, making it a key component to investigate. Diagnosis requires a fundamental, systematic approach rather than targeting a single known weak spot.

Generation note: This range covers the end of the second generation (XD, up to 2006) and the full fourth generation (HD, 2007-2010). No significant differences in the diagnosis or common causes for a U0001 code have been noted between these two generations, though the HD generation has a documented recall for ABS modules that could potentially cause network issues.

Symptoms You May Notice

• Multiple warning lights on the dashboard simultaneously (Check Engine, ABS, Airbag, etc.)
• Engine may stall or fail to start
• Transmission may be stuck in one gear ('limp mode') or shift harshly
• Gauges on the instrument cluster may stop working or behave erratically
• Inability for a standard OBD-II scanner to communicate with the vehicle
• Random electrical failures, like power windows or locks not working
• Loss of power steering assist

Most Likely Causes

1. Wiring Harness or Connector Fault 🔴 High Probability Over time, wiring insulation can become brittle and crack, or harnesses can chafe against chassis components. Connectors, particularly those exposed to the elements in the engine bay or under the vehicle, can also suffer from corrosion due to moisture intrusion.
   How to confirm: Perform a detailed visual inspection of major wiring harnesses, especially around the engine, transmission, and behind the dashboard. Check for chafed wires, loose pins, and corrosion in connectors. A multimeter is needed to check for continuity and shorts in the CAN High and CAN Low wires.
   Typical fix: Repairing the damaged section of the wiring harness or cleaning/replacing the faulty connector.
   Est. part cost: $10-$100
2. Weak Battery or Poor Ground Connection 🟡 Medium Probability → Shop Vehicle Battery Modern electronics are highly sensitive to voltage. A weak battery or corroded terminals/grounds can cause voltage drops that disrupt communication between modules. Key ground points to check are the main battery-to-chassis strap and the engine-to-chassis ground strap.
   How to confirm: Test the battery voltage with a multimeter; it should be above 12.4V with the engine off. Perform a load test. Inspect all battery terminals and main chassis/engine ground straps for corrosion and tightness. A resistance check from the ground strap to the chassis should show less than 0.1 Ohms.
   Typical fix: Clean or tighten battery terminals and ground connections. 🎬 Watch: How to clean and repair ground connections If the battery fails a load test, it needs to be replaced.
   Est. part cost: $150-$250
3. Faulty Control Module (Especially ABS) 🟡 Medium Probability Any single control module (ECM, TCM, BCM, ABS) on the network can fail internally and either stop communicating or flood the network with bad data, causing a total bus failure. The ABS module for 2006-2011 Elantras was recalled for a potential internal short circuit, which could not only be a fire risk but also disrupt CAN communication. This makes it a higher-probability suspect than other modules.
   How to confirm: This is a process of elimination. A technician will use a scan tool to see which modules are not communicating. They may then disconnect modules one by one (starting with the ABS module due to the known issues 🎬 Watch: How to remove the ABS module) to see if communication on the network is restored.
   Typical fix: Replacing the faulty control module and programming it to the vehicle.
   Est. part cost: $400-$1200

Rare But Worth Checking

• Aftermarket Electronics Interference: A poorly installed remote starter, alarm, or stereo system that is improperly tapped into the CAN bus can introduce electrical noise or shorts, bringing the network down.

Diagnosis Steps

1. Check the battery. Ensure it is fully charged (12.4V+) and that the terminals and main grounds are clean and tight.
2. Connect a professional-grade scan tool. Attempt to communicate with all modules on the network. Note which modules are responding and which are not. A failure to communicate with any module is a key symptom.
3. Perform a thorough visual inspection of the main wiring harnesses between the ECM, TCM, ABS module, and firewall. Look for any signs of physical damage, chafing, or corrosion.
4. If a wiring diagram is available, locate the CAN bus wires (CAN High and CAN Low). With the battery disconnected, measure the resistance between the two CAN lines at the OBD-II port (Pin 6 and Pin 14). A healthy network should read approximately 60 ohms.
🎬 See this guide on troubleshooting CAN communication faults
5. A reading of 120 ohms suggests an open circuit or a missing terminating resistor (one of the main modules is disconnected or has failed internally). A reading near 0 ohms indicates a short between the CAN lines.
6. Check for proper voltage on the CAN lines with the key on, engine off. CAN High (Pin 6) should be ~2.6V to 3.5V and CAN Low (Pin 14) should be ~2.4V to 1.5V. The sum of both should be approximately 5V.
7. If wiring and resistance tests are inconclusive, begin isolating modules. Disconnect the ABS module first, due to the recall, and re-check the CAN bus resistance. If the resistance returns to 120 ohms (indicating the rest of the bus is okay minus the ABS module's terminating resistor), the ABS module is likely the fault. If not, continue disconnecting other modules one by one until the bus communication is restored.

Parts You'll Likely Need

• Battery — A weak or failing battery is a common cause of network communication codes due to unstable system voltage.
  Trusted brands: Hyundai OE, Interstate, DieHard
  OEM price range: $200-$300
  Aftermarket price range: $150-$250
• ABS Control Module (OEM #Example: 58920-2H300 (Part numbers vary by year and specific options, always verify with VIN)) — This module is a known failure point and was subject to a safety recall for potential internal short circuits that can disrupt the entire CAN network. Its failure is a more probable cause for U0001 on this platform than other modules.
  Trusted brands: Hyundai OE (Genuine), Mando (OEM supplier)
  OEM price range: $600-$1000
  Aftermarket price range: $300-$600 (Remanufactured)

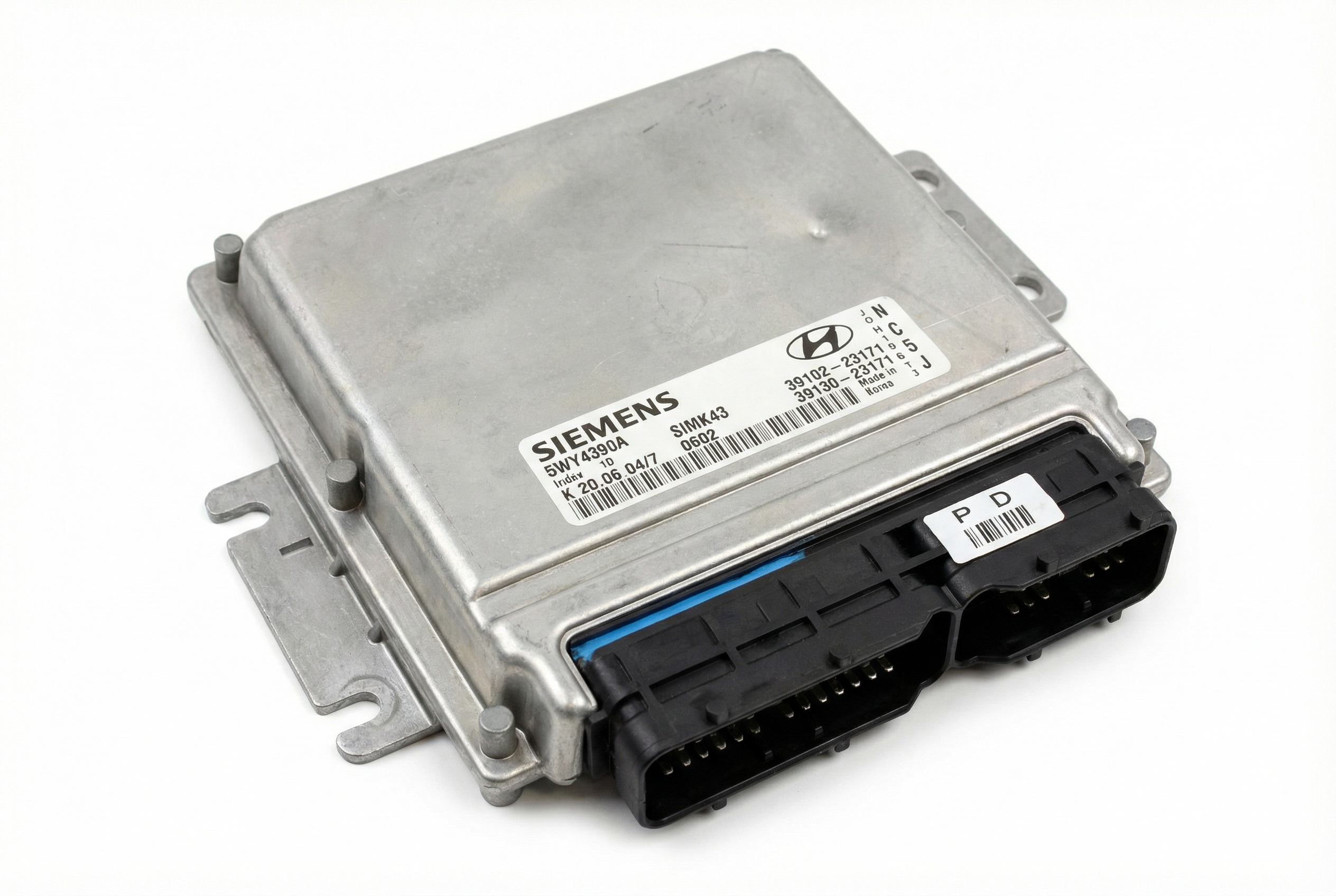

• Engine Control Module (ECM) — If all wiring and power/ground checks pass, and other modules have been ruled out, the ECM itself can fail internally, disrupting the entire network. This is a last resort replacement.
  Trusted brands: Hyundai OE (Genuine), Bosch
  OEM price range: $800-$1200
  Aftermarket price range: $400-$700 (Remanufactured)

Related Codes That Often Appear With This One

• U0100 — Indicates 'Lost Communication with ECM/PCM'. This often appears with U0001 as the ECM is a primary node on the high-speed CAN bus.
• U0101 — Indicates 'Lost Communication with TCM'. This often appears with U0001 as the TCM is also a critical node on the high-speed CAN bus.
• U0121 — Indicates 'Lost Communication with ABS Control Module'. This is a significant code to watch for, given the known issues and recalls with the ABS module on this platform.

Technical Service Bulletins (TSBs) & Recalls

• NHTSA Recall 20V061000: This is a critical safety recall for 2006-2011 Elantras concerning the ABS module. An electrical short can develop inside the module, creating a fire risk even when the car is off. This internal short can also be a direct cause of a U0001 code by disrupting CAN bus communications.

Platform-Specific Known Issues

• A user on a Hyundai forum reported that their 2008 Elantra with a U0001 code was traced to a faulty ABS module. After disconnecting the module, the car started and ran, and replacing the ABS module resolved all communication issues.
• Another owner on Reddit mentioned that after months of chasing a U0001 code, the issue was found to be a corroded ground strap between the engine and the chassis, which was causing intermittent voltage drops and disrupting the network.

Mechanic-Grade Diagnostic Values

• CAN Bus Resistance (Battery Disconnected) — expected: ~60 Ohms. Failure: A reading of ~120 Ohms indicates an open circuit or a module disconnected. A reading near 0 Ohms indicates a short between CAN High and Low wires.
• CAN Bus Voltage (Key On, Engine Off) — expected: CAN High (Pin 6 to Ground): ~2.5V to 3.5V. CAN Low (Pin 14 to Ground): ~1.5V to 2.5V.. Failure: A line stuck at 0V, 5V, or battery voltage indicates a short to ground or power.
• Module Ground Pin Voltage Drop — expected: < 100 mV (0.1V). Failure: A reading over 100-200 mV under load indicates excessive resistance in the ground circuit, a common cause of communication faults.

Scan Tool Commands That Help

• Hyundai GDS (Global Diagnostic System): Fault Code Searching / Module Status Check — This is the first step with a professional tool. It performs a network sweep to see which modules are responding and which are not, helping to isolate the source of the communication breakdown.
• Hyundai GDS (Global Diagnostic System): Reset Adaptive Values — After replacing a major module like the ECM or TCM, this function should be used to clear learned values and ensure the new module integrates correctly with the rest of the vehicle's systems.
• Hyundai GDS (Global Diagnostic System): Flight Record — For intermittent U0001 codes, the flight record function can capture data leading up to the fault, which is invaluable for diagnosing issues that don't appear during a standard test.

Wiring & Ground Locations

• Engine Control Module (ECM) — In the engine compartment, bolted to the side of the air filter housing, near the battery.. The ECM is a primary terminating resistor for the CAN bus. Its connectors are a key point for testing CAN line voltage, resistance, and checking for corrosion or damage.
• Engine-to-Chassis Ground Strap — A braided strap or thick cable typically running from the lower part of the engine block or transaxle housing to the vehicle's frame or firewall.. This is a critical ground for the powertrain. Corrosion or looseness here is a very common cause of voltage instability that can disrupt the entire CAN network, leading to a U0001 code.
• ETACM (Electronic Time Alarm Control Module) — For the 2006 (XD generation) model, this module is located in the center console, behind the A/C controls.. The ETACM is a node on the communication network. While less common than an ABS or ECM fault, a failure here can disrupt the bus, and its location makes it susceptible to damage from liquid spills.

Model Year Variations Within This Range

• 2006 (XD) vs. 2007-2010 (HD): The 2006 model is the last year of the XD generation, while 2007-2010 are the HD generation. While the U0001 diagnostic approach is similar, there are differences in component locations and some electronics. For example, the PCM on a 2006 model is noted to be above the driver's kick panel, whereas on the 2007-2010 models it's in the engine bay. The critical ABS module recall specifically applies to the 2007-2010 HD generation models within this range.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Electronic Power Steering (EPS) Failure 🔴 High — Common enough to trigger a recall. Can result in a sudden loss of power assist, making the vehicle difficult to steer at low speeds. (Ref: NHTSA Campaign Number: 15V-100.)
• Faulty Brake Light Switch 🔴 High — Very common, subject of a major recall. Can cause brake lights to fail, ESC warning light to illuminate, and prevent shifting out of Park. (Ref: Hyundai Recall 092 / NHTSA Campaign 09V-122.)
• ABS Module Electrical Short (Fire Risk) 🔴 High → Shop ABS Control Module — Widespread issue leading to a recall. An internal short in the ABS module can occur, posing a fire risk even with the vehicle turned off. (Ref: NHTSA Campaign Number: 20V-061.)
• Premature Wear of Lower Control Arm Bushings 🟠 Medium — Frequently reported by owners, typically after 60,000-80,000 miles. Results in clunking noises from the front suspension, especially over bumps.
• Failing Crankshaft Position Sensor 🟠 Medium — A common cause for intermittent stalling or a crank-no-start condition.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For a U0001 code, sourcing a used ABS module or Engine Control Module (ECM) from a reputable salvage yard can be a cost-effective option, especially given the age of the vehicle. These parts are generally robust if they come from a vehicle that was not involved in a front-end collision or flood.

Donor-vehicle mileage cap: roughly under 120000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the part number on the used module EXACTLY matches the original. Mismatched part numbers will not communicate correctly.
• Inspect connectors for any signs of corrosion, bent pins, or heat damage.
• Ask for the VIN of the donor car to check its history for flood damage or major electrical issues.
• Prefer parts from vehicles in dry climates to minimize the risk of corrosion.

OEM-only on this vehicle (don't cheap out):

• While used OEM is an option, it's strongly recommended to stick with genuine Hyundai parts (new or used) for critical control modules like the ABS and ECM. Aftermarket or 're-flashed' modules from unknown sources can have compatibility and longevity issues.

Aftermarket brands forum-validated for this vehicle:

• For control modules, reputable remanufacturers like Cardone or Blue Streak Industries are generally considered reliable if a new OEM part is unavailable or too expensive.

Brands owners have reported issues with on this vehicle:

• Avoid no-name, unbranded electronic modules from online marketplaces. These often lack proper quality control and may fail prematurely or not be programmed correctly for the vehicle.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• U0121 — Lost Communication With Anti-Lock Brake System (ABS) Control Module — directly related to the U0001 code when the ABS module internal short (Recall 20V061000) disrupts the CAN bus.
• U0100 — Lost Communication with ECM/PCM — often occurs alongside U0001 when wiring harness damage or power/ground issues prevent the engine computer from talking to the network.
• U0101 — Lost Communication with TCM — a companion code that may trigger 'limp mode' or harsh shifting when the CAN bus is disrupted.
• C1200 — Wheel Speed Sensor/ABS related — may appear if the ABS module is failing internally or experiencing the electrical short mentioned in NHTSA Campaign 20V-061.
