U0100 on 2012-2019 Volkswagen Passat TDI: Lost ECM Communication Causes and Fixes

What's Unique About the 2012-2019 Volkswagen Passat

The 2012-2015 North American Passat (NMS) TDI models are specifically prone to electrical issues that can trigger a U0100 code. Owners have reported sudden engine shutdown on the highway, accompanied by ESC and tire pressure warning lights. While the code applies to all engines, the TDI's complex engine management system makes diagnosing the root cause critical. It is important to note that the TDI engine was only offered in the Passat from model years 2012 through 2015 due to the diesel emissions scandal.

Generation note: The 2012-2019 Passat is the North American Market (NMS) generation. It received a major facelift for the 2016 model year, creating two versions: pre-facelift (2012-2015) and post-facelift (2016-2019). However, the TDI engine was only available in the 2012-2015 pre-facelift models.

Symptoms You May Notice

• Engine will not start or 'crank-no-start'
• Engine stalls or shuts down while driving, sometimes after hitting a bump
• Check Engine Light is on
• Electronic Stability Control (ESC) or traction control warning light is on
• Glow plug light does not illuminate or flashes
• Pulsing Tire Pressure Monitoring System (TPMS) light
• Transmission may not shift correctly or may be stuck in one gear ('limp mode')
• With a VW-specific scanner, fault code '01314 - Engine Control Module: No Communication' may be present

Most Likely Causes

1. Weak or Faulty Battery 🔴 High Probability → Shop Vehicle Battery Modern VWs have high electrical demands. Low system voltage from a weak or failing battery is a leading cause of communication module dropouts.
   How to confirm: Test the battery voltage with the car off. A healthy battery should read at least 12.6 volts. Have the battery load-tested at an auto parts store, as a battery can show good voltage but fail under load.
   Typical fix: Recharge or replace the battery. Ensure terminals are clean and tight.
   Est. part cost: $150-$300
2. Poor ECM Power or Ground Connection 🟡 Medium Probability Ground straps can corrode or become loose over time, interrupting the stable voltage the ECM needs to communicate. Key locations include the main battery-to-body ground, the engine/transmission-to-chassis ground strap, and smaller grounds on the firewall and fenders.
   How to confirm: Locate the main ECM ground points. On the Passat, check the ground strap from the battery to the body (1), the main engine/transmission ground (652), and the ground connection on the cylinder head (15). Check that they are clean, tight, and free of corrosion. A ground connection should have less than 0.1 ohms of resistance to the negative battery terminal. Visually inspect the ECM power and ground wires for any signs of damage.
   Typical fix: Clean the grounding point with a wire brush and secure the connection. Repair any damaged wires.
   Est. part cost: $5-$20
3. Damaged CAN Bus Wiring or Connectors 🟡 Medium Probability The CAN bus wiring harness, a twisted pair of wires, can be susceptible to damage from vibrations, chafing against other components, or rodent damage.
   How to confirm: Visually inspect the wiring harness leading to the ECM for any signs of physical damage, corrosion on the connector pins, or loose connections. A multimeter can be used to check for continuity and resistance between the CAN High and CAN Low wires (should be ~60 ohms across the bus with the battery disconnected).
   Typical fix: Repair the damaged section of the wiring harness or replace the affected connector. This can be a complex repair.
   Est. part cost: $50-$500
4. Blown Fuse for the ECM ⚪ Low Probability
   How to confirm: Locate the fuse box(es) and identify the fuse(s) that supply power to the Engine Control Module. On the Passat B6/B7 platform, relevant fuses can be in the engine bay fuse box (e.g., F23, F29) and the interior fascia panel. Pull the fuse and visually inspect if it is blown or test for continuity with a multimeter.
   Typical fix: Replace the blown fuse with a new one of the correct amperage. If the fuse blows again, there is an underlying short circuit that must be diagnosed.
   Est. part cost: $1-$5
5. Failed Engine Control Module (ECM) ⚪ Low Probability → Shop Engine Control Module (ECM) While not the most common cause, internal failure of the ECM due to voltage spikes, water damage, or age can occur. This is particularly suspected if the failure is intermittent and temperature-related.
   How to confirm: This is typically the last resort after all other possibilities (power, ground, wiring) have been exhaustively ruled out by a professional using advanced diagnostic tools.
   Typical fix: Replace the ECM. The new module must be programmed specifically to the vehicle's VIN and options. Some vendors sell pre-programmed units.
   Est. part cost: $800-$1500

Rare But Worth Checking

• Failed CAN Gateway Module (J533):
• Failed ECM Power Supply Relay (J271 / 'Terminal 30' Relay):

Diagnosis Steps

1. Check Battery Health: Ensure the battery is fully charged (12.6V+) and load test it. A weak battery is the most common cause of communication faults.
2. Scan for All Codes: Use a VW-compatible scanner (like VCDS) to read codes from all available modules (ABS, TCM, BCM, CAN Gateway), not just the engine. Note all U-codes and VAG-specific codes like 01314.
3. Check Fuses: Inspect all fuses related to the ECM (J623) and CAN Gateway (J533) in both the engine bay and interior fuse panels. Perform a voltage drop test across the fuse terminals if a bad connection is suspected.
4. Inspect ECM Connections: Visually inspect the large ECM connectors in the engine bay for corrosion, pushed-out pins, or damage. Ensure they are fully seated.
5. Inspect ECM Ground Wires: Locate and verify the main engine and ECM ground straps are clean, tight, and free of corrosion. Key points are the battery-to-chassis strap (point 1), the transmission-to-chassis strap (point 652), and the ground point on the cylinder head (point 15).
6. Inspect Wiring Harness: Carefully examine the wiring harness around the engine bay, near the battery, and under the airbox for any signs of chafing, melting, or rodent damage.
7. (Advanced) Test CAN Bus Resistance: Disconnect the battery. Use a multimeter to measure the resistance between Pin 6 (CAN-H) and Pin 14 (CAN-L) on the OBD-II port. A healthy network should read approximately 60 ohms. A reading of 120 ohms indicates a break in the circuit or a failed terminating resistor (often inside the ECM or another module). A reading near 0 ohms indicates a short between the CAN wires.
8. (Professional) Verify ECM Power and Relay: A technician must verify that the ECM is receiving proper power on all its supply pins from the ECM Power Supply Relay (J271) using a wiring diagram and multimeter before condemning the module.

Parts You'll Likely Need

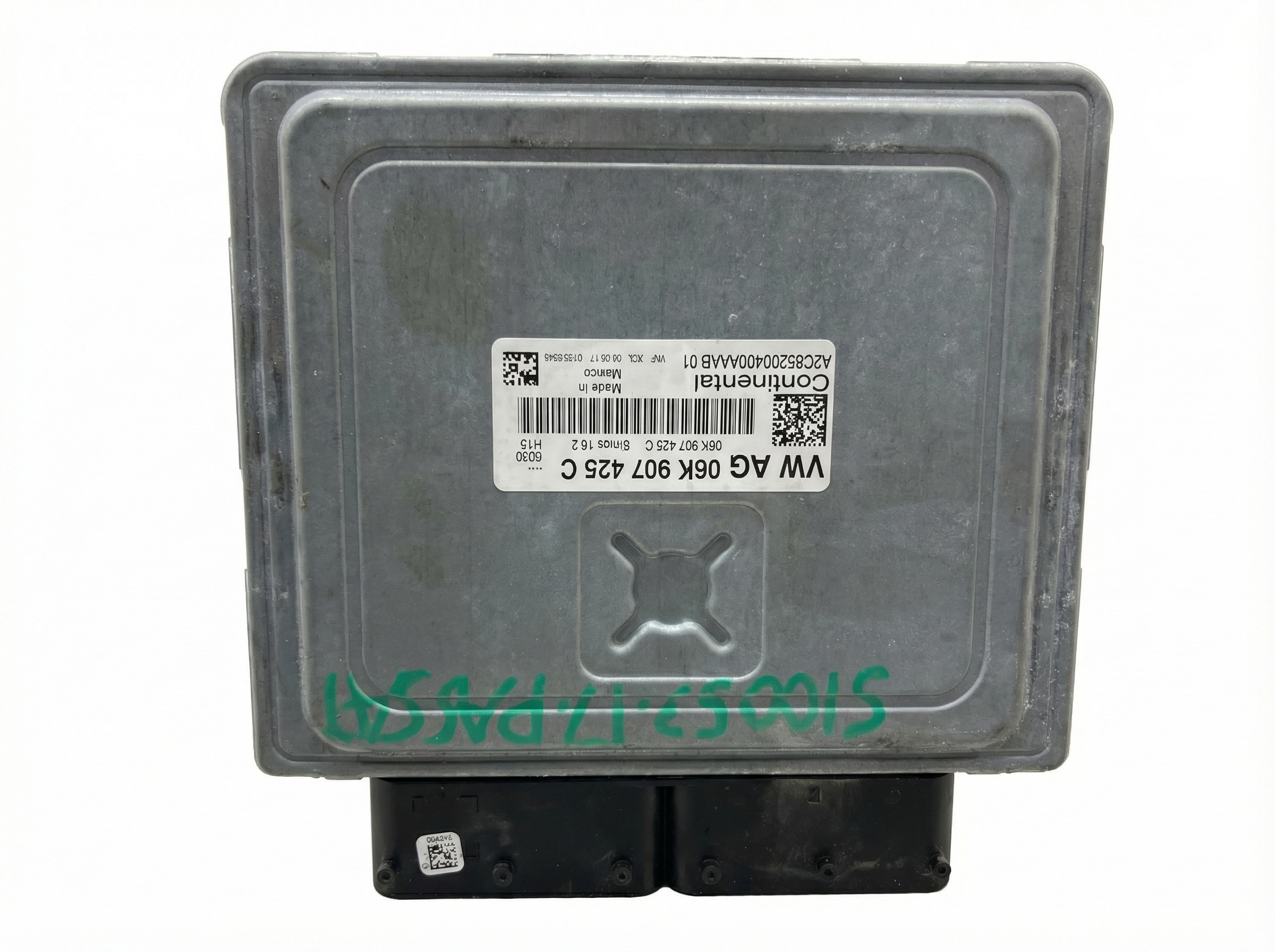

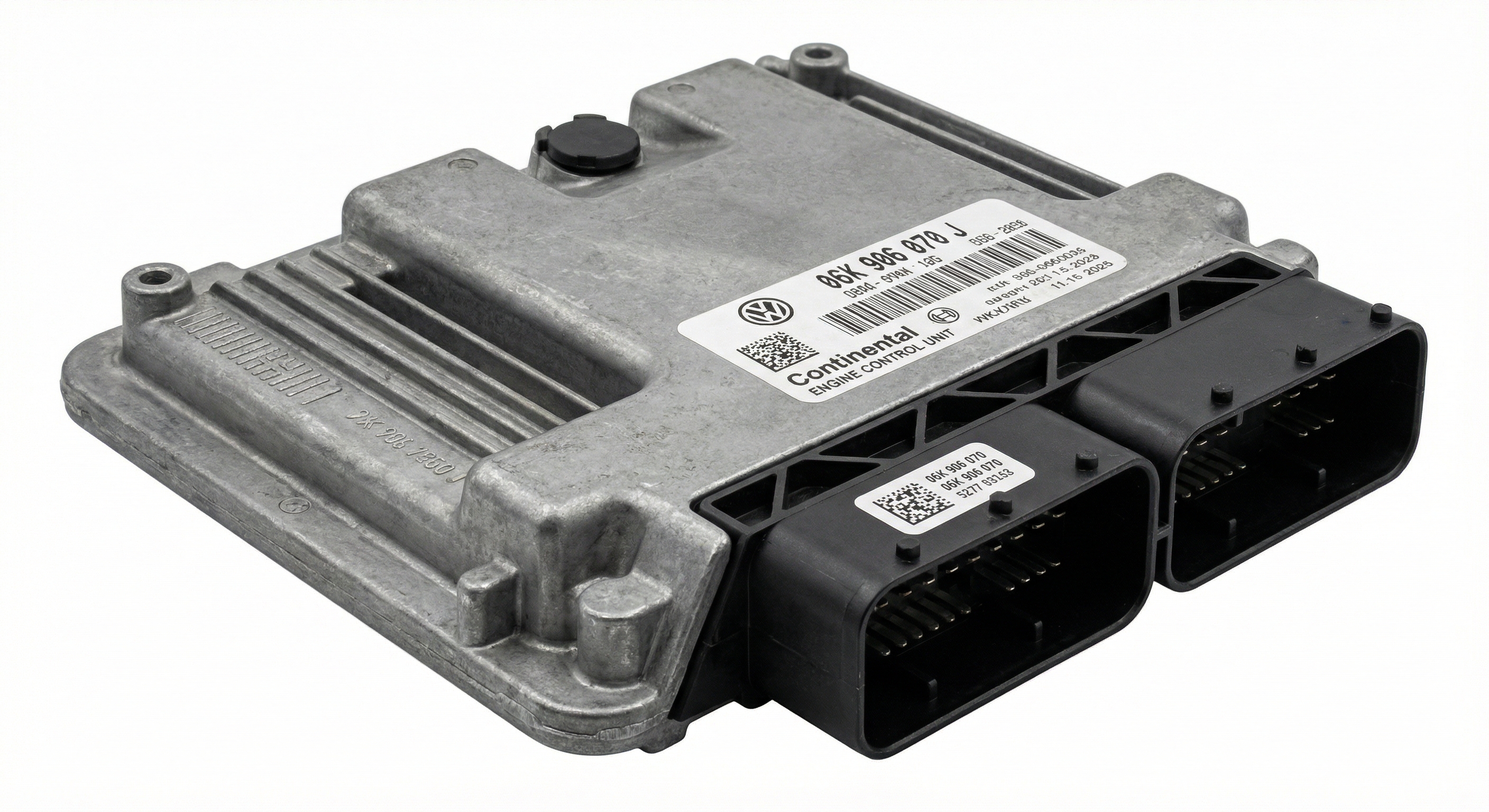

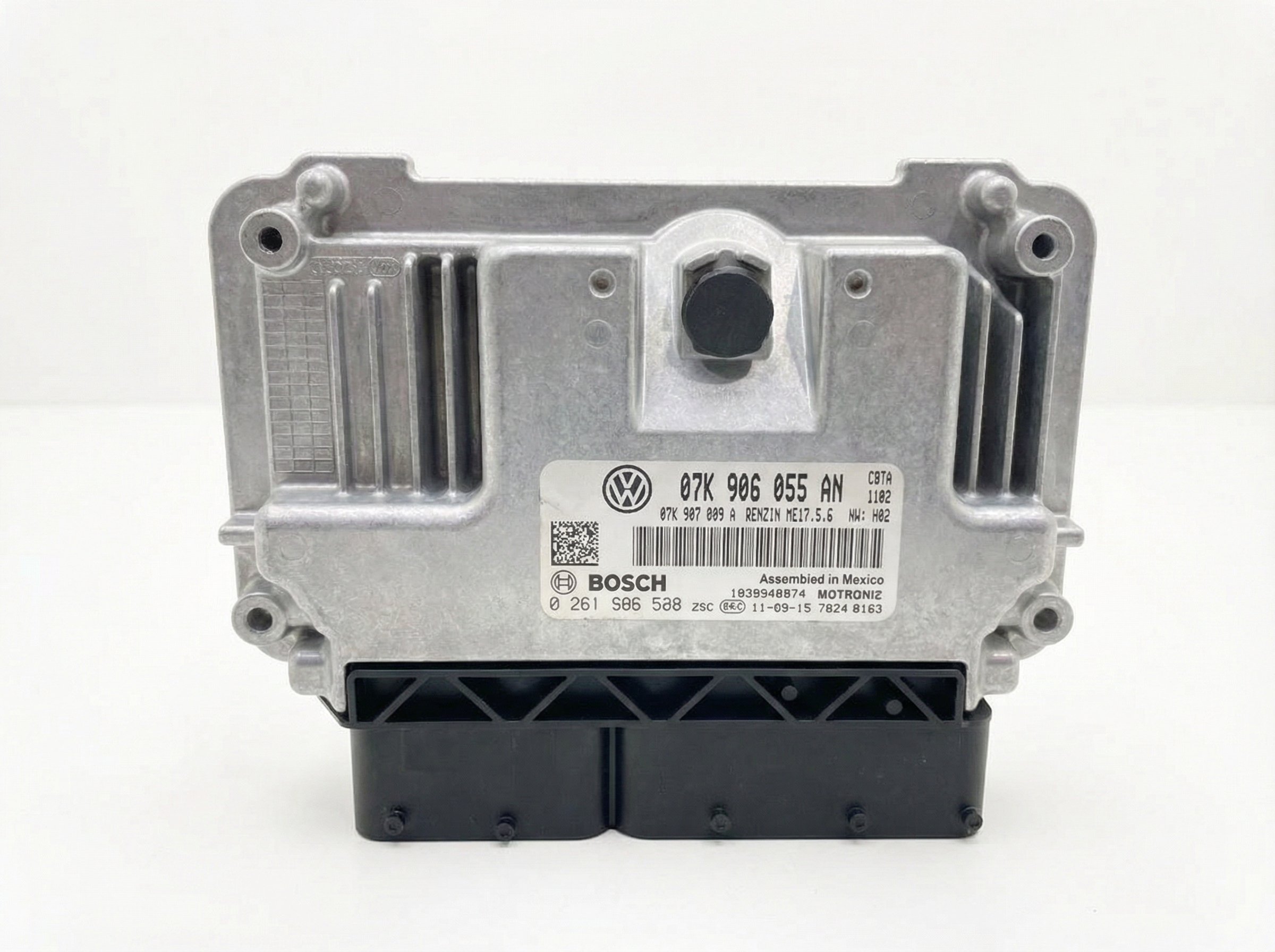

• Engine Control Module (ECM) (OEM #03L906012BN, 03L997009J (Verify with VIN, for CKRA engine)) — This is the part to replace only after all wiring, power, and ground issues have been ruled out. It is the source of the communication.
  Trusted brands: Bosch, Genuine VW
  OEM price range: $1000-$1500
  Aftermarket price range: $600-$900 (Refurbished/Programmed)

Related Codes That Often Appear With This One

• U0101 — Lost Communication with TCM. If the entire CAN bus network is unstable or the ECM is failing, communication with the Transmission Control Module is often lost at the same time.
• U0073 — Control Module Communication Bus 'A' Off. This is a more general code indicating the entire communication bus is down, whereas U0100 is specific to the ECM. Seeing both points to a widespread network wiring or power issue.

Technical Service Bulletins (TSBs) & Recalls

• VW TSB 01-12-35 (2030455): While not directly for U0100, this TSB addresses updating ECM software on 2013 Passat TDIs (CKRA) for other stored faults (P0606 - Control Module Processor Defect), indicating a history of ECM software sensitivity on this platform.
• VW Tech Tip TT 01-19-05: Issued for similar platforms, this document notes that a 'crank, no start' condition with U0100 is often caused by a blown fuse (specifically SB9) due to improper battery service, not a failed ECM.

Platform-Specific Known Issues

• Sudden Highway Shutdown: Multiple owners of 2012-2015 Passat and Jetta TDIs have reported the engine shutting off completely while driving at highway speeds. This is often preceded by the ESC and TPMS lights illuminating and is diagnosed with code U0100. The cause is often intermittent, making it difficult to diagnose, but points to a critical failure in the ECM's power, ground, or communication lines.

Mechanic-Grade Diagnostic Values

• CAN Bus Resistance — expected: ~60 Ohms. Failure: 120 Ohms indicates an open circuit or faulty terminating resistor. ~0 Ohms indicates a short between CAN High and CAN Low wires.
• ECM Ground Connection Resistance — expected: < 0.1 Ohms. Failure: Higher resistance indicates a poor ground connection, which can cause module communication errors.
• Battery Voltage (Key Off) — expected: 12.6V or higher. Failure: A reading below 12.4V indicates a discharged or failing battery, a common cause of communication codes.
• Voltage Drop at ECU Fuse — expected: < 0.1V (ideally close to 0V). Failure: A significant voltage drop (e.g., 0.5V) across the fuse holder terminals under load indicates high resistance in the fuse panel connections, starving the ECM of power.

Hidden / Shadow Codes Worth Checking

• 01314: Engine Control Module: No Communication. This is the VAG-specific equivalent of U0100, often reported by other modules like the CAN Gateway or ABS controller. (see via VW-specific scan tool like VCDS or OBDeleven.)
• P1640 / 01314: Engine control unit defective / ECM (EEPROM) Component defective. This fault points more directly to an internal hardware or memory failure within the ECM itself. (see via VW-specific scan tool like VCDS, often seen when diagnosing a faulty ECM.)

Scan Tool Commands That Help

• VCDS (VAG-COM): Gateway Installation List — When accessing the CAN Gateway (Address 19), this list shows all modules the gateway expects to see on the network. If a module is incorrectly coded (checked when not installed, or unchecked when installed), it can cause communication faults. This is critical after replacing a module or the gateway itself.
• VCDS (VAG-COM): Advanced Measuring Values — For all 2012-2015 Passat models which use the UDS protocol, this function replaces the older 'Measuring Blocks'. It is used to view live data from any control module, including the CAN Gateway, to check for activity and reported statuses from other modules.
• VCDS (VAG-COM): CAN-Bus Activity Test — This is a specific test within the CAN Gateway module on some platforms to verify if the bus is active and communicating, helping to distinguish a module failure from a total network failure.

Wiring & Ground Locations

• 15 — A designated ground stud on the cylinder head.. Provides a primary ground path for engine-mounted sensors and components. A poor connection here can cause erratic sensor data and module issues.
• 652 — The main engine-to-chassis or transmission-to-chassis ground strap, typically a thick braided cable underneath the vehicle.. This is the main current return path for the entire engine block. Corrosion or looseness here can cause widespread electrical havoc, including no-start and communication faults.
• 1 — The main ground strap connecting the negative battery terminal to the vehicle's chassis/body, usually near the battery.. Establishes the ground reference for all electronic modules. If this is loose or corroded, no module in the car will function correctly.
• J533 (CAN Gateway) — On similar VW platforms (B6/B7), it is located high up in the driver's footwell, above the pedals, requiring removal of the lower dash trim panel.. As the central network router, any damage to its wiring or connectors (often from being kicked or from water ingress) can bring down the entire network.
• J271 (ECM Power Relay) — Located in the main fuse/relay box in the engine compartment.. This relay supplies the main operating power to the ECM. If it fails or its socket has a poor connection, the ECM cannot power on to communicate.

Real Owner Repair Stories

• Ross-Tech Forums User (VW Beetle 1.8T (similar VAG electronics and fault logic)) — Cranks but no start, multiple fault codes including 17069 - ECM Power Relay Control Circuit Open Circuit.
  ❌ Tried (didn't work) Replaced ignition switch, Cleaned all vehicle grounds, including those in the plenum chamber next to the ECU, Replaced Secondary Air Injection pump relay, Tested ECU relay (J271) and confirmed it was functional, Verified wiring continuity between relay and ECU
  ✅ What actually fixed it The user performed a loaded voltage drop test on the ECU fuse (Fuse 29) and discovered a 0.482V drop. The high resistance was in the fuse panel's contacts for that fuse. Cleaning the fuse holder contacts did not work; the ultimate fix required repairing the connection within the fuse panel itself.
• Reddit user 'DevNov' (VW Golf (similar VAG CAN bus architecture)) — TCM communication error codes (similar to U0100 for the ECM).
  ❌ Tried (didn't work) Visual inspection did not reveal the problem.
  ✅ What actually fixed it Using a wiring diagram and VCDS, the user performed a continuity test on every individual pin of the TCM connector. They found a broken wire for pin 47, which was supposed to connect to the transmission range sensor. Repairing this single broken wire resolved the communication fault.

"I Checked Everything" — The Actual Cause

• In a case involving a related ECM power fault code, a technician had visually inspected and cleaned all major ground points and tested the relevant relays, finding no obvious faults. The root cause was only found after performing a voltage drop test across the main ECU fuse holder, which revealed a high-resistance connection hidden within the fuse panel itself. This highlights that simply checking a fuse for continuity is not enough; the connection quality of its terminals is also critical.

Model Year Variations Within This Range

• 2012-2015: These models use the UDS (Unified Diagnostic Services) protocol for all control modules. When using diagnostic tools like VCDS, a technician must use the 'Advanced Measuring Values' function instead of the older 'Measuring Blocks' function to read live data. This is a key procedural difference from older VW models.

Diagnostic Flowchart

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0606 — Control Module Processor Defect. Addressed in VW TSB 01-12-35 for the 2013 Passat TDI (CKRA), indicating ECM software sensitivity that can relate to module communication faults.
• P00AF — Turbocharger Boost Control 'A' Module Performance. Often diagnosed on the CKRA engine by checking wiring continuity directly back to the ECM T60 connector pins, utilizing the same diagnostic steps required for U0100 wiring faults.
• P2563 — Turbocharger Boost Control Position Sensor 'A' Circuit Range/Performance. Appears alongside P00AF on the Passat TDI platform and requires identical ECM harness continuity testing to rule out wiring damage.
• U0073 — Control Module Communication Bus 'A' Off. Frequently appears alongside U0100 when the CAN bus wiring harness (CAN High/CAN Low) is physically damaged, chafed, or shorted.
• U0101 — Lost Communication with TCM. Related to the 'limp mode' symptom where the transmission gets stuck in one gear due to the same CAN bus dropouts affecting the ECM.
