U0121 on 2018 Ram 2500: Lost ABS Communication Causes and Fixes

What's Unique About the 2018-2018 Ram 2500

The 2017-2018 Ram HD trucks are subject to a major safety recall for the ABS module, specifically the Hydraulic Control Unit (HCU) supplied by ZF North America. The failure is so common that NHTSA launched a formal investigation after receiving thousands of complaints, with FCA acknowledging over 53,000 warranty claims potentially related to the issue as of late 2024. The root cause is often a defect within the ABS pump motor, where internal components fail, causing a loss of function and communication. While generic wiring or power issues can cause a U0121 code, on this specific truck, the ABS/HCU assembly itself is the overwhelmingly probable culprit.

Symptoms You May Notice

• ABS warning light is on
• "Service ABS System" message on the dash
• Traction control or Electronic Stability Control (ESC) light is on
• Cruise control is disabled
• Brakes may lock up during hard braking
• A buzzing or humming noise from the ABS pump motor, which may run continuously
• In some cases, an intermittent or non-functioning speedometer if the module fails to process rear wheel speed data.
• 4x4 system may be disabled.

Most Likely Causes

1. Failed ABS Module / Hydraulic Control Unit (HCU) 🔴 High Probability → Shop ABS Control Module A widespread defect in the ABS pump motor led to a recall (NHTSA 24V-896 / FCA C4B) for 2017-2018 models. The motor's internal components are known to fail, causing an open circuit and complete loss of communication.
   How to confirm: Check your VIN on the NHTSA website for open recalls. A professional scan tool will show no communication with the ABS module. Owners have confirmed a dead motor by disconnecting the module, accessing the two motor lead prongs 🎬 Watch: How to test and repair the motor for $0, and finding an open circuit with a multimeter or by applying 12V directly and getting no response.
   Typical fix: The official fix is to have a Ram dealer replace the entire HCU assembly under the recall. However, parts have been on national backorder with an estimated availability in the first quarter of 2025. Due to delays, many owners opt for a DIY repair by replacing just the pump motor (a compatible motor from a 2007-2011 GM or Ram vehicle has been cited) or sending the electronic module to a third-party 🎬 Watch: Step-by-step guide to ABS module repair and replacement for rebuilding.
   Est. part cost: $0 (if fixed under recall), $100-$150 for a used donor ABS motor, $800-$1500+ for a new HCU assembly otherwise.
2. Poor Power or Ground to the ABS Module 🟡 Medium Probability → Shop ABS Control Module All modules require stable power and ground. Given the truck's working environment, corrosion on ground points or at the main connector under the driver's side frame rail can occur, interrupting power and causing communication loss.
   How to confirm: Using a multimeter, check for 12V+ power and good ground continuity at the appropriate pins on the ABS module's electrical connector. A wiring diagram is essential for this step. The connector is located on the HCU, mounted to the driver's side frame rail, and has a gray lever-lock mechanism.
   Typical fix: Clean and secure the ground connection. Repair any corroded or broken wires in the harness leading to the ABS module. Ensure the connector is fully seated and the lock is engaged.
   Est. part cost: $5-$20 for wiring repair supplies.
3. Low Battery Voltage or Failing Alternator ⚪ Low Probability → Shop Vehicle Battery
   How to confirm: Test the battery voltage with the engine off; it should be above 12.4V. Test the alternator output with the engine running; it should be between 13.7V and 14.7V. Many auto parts stores will test your battery and charging system for free. Intermittent ABS faults can sometimes be triggered by low voltage before a complete module failure.
   Typical fix: Recharge or replace the battery. Replace the alternator if it is not charging correctly.
   Est. part cost: $150-$400 for a new battery, $300-$600 for an alternator.

Rare But Worth Checking

• CAN Bus Wiring Fault: While less common than the module failure on this truck, a break or short in the CAN bus wiring harness can mimic a failed module. This can be caused by chafing against the frame or rodent damage. A resistance check between the two CAN bus pins at the module connector should read approximately 60 ohms if the network is intact (with battery disconnected).

Diagnosis Steps

1. Check for Recalls: Before any other step, enter your truck's VIN on the NHTSA website (nhtsa.gov/recalls) to see if it is covered by recall C4B / 24V-896. If it is, contact your dealer to schedule the free repair, but be prepared for significant parts delays.
2. Scan for All Codes: Use an advanced OBD-II scanner capable of reading codes from all vehicle modules (ABS, BCM, ECM). Confirm that U0121 is the primary active code and note any other codes, especially C2200 or C0020, which strongly indicate HCU failure.
3. Check Battery and Fuses: Ensure the battery is fully charged (above 12.4V) and the charging system is working correctly. Inspect all fuses related to the ABS system in the under-hood fuse box. The ABS pump motor fuse is typically a high-amperage fuse (e.g., 40A).
4. Inspect the ABS Module Connector: Locate the ABS module on the driver's side frame rail. Disconnect the main electrical harness by pushing in the black tab and rotating the gray lever. Inspect the pins and connector for any signs of corrosion, moisture, or backed-out pins. Clean with electrical contact cleaner if necessary. Some owners have fixed the issue temporarily just by cleaning debris from this connector.
5. Test Power and Ground: Using a multimeter and a wiring diagram, verify that the ABS module is receiving battery voltage and has a solid connection to chassis ground at the connector pins. This confirms the module has the power it needs to operate.
6. Test the ABS Pump Motor Circuit: With the module's electrical connector unplugged, use a multimeter to measure resistance between the two large spade prongs for the pump motor. On a failed unit, this will often read as an open loop (OL). A known-good motor will have resistance. You can also apply 12V directly to these prongs; a good motor will spin.
7. Isolate the Module: If all wiring, power, and grounds are good, the ABS module/HCU assembly is the point of failure, consistent with the known recall issue. At this point, the options are waiting for the recall part or attempting a DIY motor replacement.

Parts You'll Likely Need

• Anti-Lock Brake System (ABS) Hydraulic Control Unit (HCU) (OEM #68347098AC (supersedes 68347098AB, 68347098AA)) — This is the complete assembly that fails and is the subject of recall C4B. The original part number often ended in 'AA' and has been superseded multiple times.
  Trusted brands: Mopar
  OEM price range: $800-$1500
  Aftermarket price range: N/A, though rebuild services exist for ~$200-$500.
• ABS Pump motor (Salvaged) — Due to the HCU backorder, a popular DIY fix is to replace only the failed motor. Forum users have successfully used motors from older GM (e.g., 2007 Chevy Equinox) or Ram (e.g., 2008 Ram 1500) ABS units, as they share the same motor design. This is an unofficial repair.
  Trusted brands: Used/Salvage
  OEM price range: N/A
  Aftermarket price range: $100-$150 for a complete used ABS assembly to harvest the motor from.

Related Codes That Often Appear With This One

• C2200-49 — This code for 'Anti-lock Brake Module Internal' often appears with U0121, directly pointing to an internal electronic or mechanical failure within the ABS module itself.
• C0020 — This code indicates an 'ABS Pump Motor Control' failure. It is frequently seen with U0121 on these trucks and confirms the problem lies within the HCU's motor circuit, which is the subject of the recall.
• U0415 — This code for 'Invalid Data Received From ABS Control Module' may be logged by other modules (like the ECM or BCM) as a result of the ABS module going offline.

Platform-Specific Known Issues

• Recall C4B / NHTSA 24V-896: A recall was issued for 2017-2018 Ram 2500/3500/4500/5500 trucks for a defective HCU that can disable ABS and ESC.
• National Parts Backorder: As of early 2025, many owners report that the replacement HCU needed for the recall repair is on an indefinite backorder, with FCA estimating availability in Q1 2025, leaving them without a fix for months.
• DIY Pump Motor Repair: Due to the parts shortage, a common DIY fix documented in forums and videos involves either replacing just the ABS pump motor or disassembling the motor to free up stuck internal brushes.

Technical Service Bulletins (TSBs) & Recalls

• Recall C4B / NHTSA 24V-896: A recall was issued for 2017-2018 Ram 2500/3500/4500/5500 trucks for a defective HCU that can disable ABS and ESC.
• Bulletin #08-037-21: While specifically referencing the Ram 1500, this manufacturer bulletin notes that U0121-00 (Lost Communication With ABS Control Module) can occur alongside other communication codes like U0140-00 and U1818-00.

Mechanic-Grade Diagnostic Values

• CAN Bus Network Resistance — expected: Approximately 60 Ohms. Failure: A reading of 120 Ohms indicates a missing terminating resistor or a break in the circuit. A reading near 0 Ohms indicates a short between the CAN High and CAN Low wires.
• ABS Pump Motor Resistance — expected: A low resistance value (specific Ohms not documented, but not an open circuit).. Failure: An open loop (OL) reading on a multimeter indicates a failed motor, which is the common failure for this recall.
• ABS Module Power Supply — expected: 12V+ (Battery Voltage) at the appropriate power pin(s) on the main connector with key on.. Failure: Low or no voltage indicates a problem with the fuse, relay, or wiring harness leading to the module, not necessarily the module itself.

Scan Tool Commands That Help

• AlfaOBD / wiTECH: ABS Bleed Procedure — This is a required step after replacing the Hydraulic Control Unit (HCU). The scan tool activates the ABS pump and solenoids to purge air from the internal passages of the new unit, which cannot be done with a manual bleed alone.
• AlfaOBD / wiTECH: Initialize ECU / Static ECU Initialization — After replacing the electronic ABS control module (or the full HCU assembly), this function is used to configure the new module to the vehicle's VIN and options. It may also include calibration routines for sensors.
• Advanced Scan Tool (e.g., Autel MaxiSys): Active Test: Hydraulic Pump Motor — This bidirectional command allows the technician to manually turn the ABS pump motor on and off to verify its operation without driving the vehicle. If the command is sent and the motor does not run, it helps confirm a failed motor or circuit.

Wiring & Ground Locations

• ABS Module / HCU Assembly — On the driver's side frame rail, located behind the front wheel well liner.. This is the location of the failing component. Access requires removing the driver's side front wheel and the plastic wheel well liner.
• CAN C and CAN IHS Hubs/Connectors — Under the dash, near the steering wheel shaft and gauge cluster.. These hubs are central junction points for the CAN bus network. A loose connection or corrosion here could potentially cause communication issues with multiple modules, including the ABS. This is a rare cause but a valid diagnostic point if the module and its direct wiring check out.
• ABS Module Main Connector — Plugs directly into the electronic side of the HCU assembly. It has a large gray lever-lock mechanism.. This is the single point for all power, ground, and communication signals to the module. Checking for power, ground, and CAN bus resistance is done at this connector's pins. Some owners have reported fixing the issue simply by unplugging, cleaning, and reseating this connector.

Real Owner Repair Stories

• Diesel Truck Resource Forums user (2018 Ram 2500, 36,000 miles) — "Service ABS/Braking System" light was on for over a year. Lights would come on and off or stay on constantly.
  ❌ Tried (didn't work) Contacting the dealer, who confirmed the part was on indefinite national backorder.
  ✅ What actually fixed it The owner performed a DIY repair by replacing only the ABS pump motor. After confirming the original motor was open-circuit with a multimeter, they sourced a used ABS unit from a 2007 Chevy Equinox, harvested its identical motor, and installed it into the Ram's HCU. The most difficult part was using feeler gauges to hold back spring-loaded plungers inside the HCU during motor installation. This immediately cleared the lights.

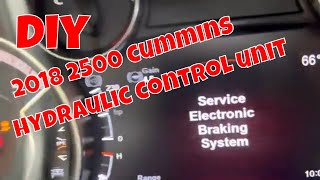

• YouTube user Hasemeyer Family (2018 Ram 2500) — Intermittent "Service Electronic Braking System" and "Service ABS System" alerts, especially when pressing the brake pedal. Constant chiming.
  ❌ Tried (didn't work) Received a dealer quote of $1,600 with a long wait time for the part.
  ✅ What actually fixed it The owner fixed the issue for $0 by cleaning the main electrical connector to the ABS module. After removing the driver's side wheel well liner, they disconnected the large gray lever-lock connector, found it full of sand and debris, vacuumed it out, and reconnected it securely. This completely resolved the symptoms.
• YouTube user Farmer MD (2017-2018 Ram 2500) — Intermittent ABS and traction control lights flashing.
  ❌ Tried (didn't work) Waiting for the official recall part which was unavailable.
  ✅ What actually fixed it The owner replaced only the ABS pump motor with one from a 2008-2011 Ram 1500 sourced from eBay for around $100. The video confirms this is a known fix from forum discussions and that the issue stems from a poor quality motor in the 2017-2018 models.
• NHTSA ODI #11594639 — An owner reported that ABS, traction control, and brake lights illuminated along with a U0121 code. The failure resulted in no speedometer and no power steering, with other codes like C2200-47 and C2209-49 also present.

OEM Part Supersession History

• 68347098AA → 68347098AB, then 68347098AC — The 'AA' version is widely cited as the original, problematic part. The subsequent revisions 'AB' and 'AC' are the updated replacements intended to fix the defect.
  Heads up: A remanufactured part number R8347098AC also exists, which replaces all previous versions.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Death Wobble 🔴 High — Common on solid front axle trucks, especially after hitting a bump at highway speeds. Caused by worn steering/suspension components like the track bar, ball joints, or steering stabilizer.
• 68RFE Transmission Failures 🔴 High → Shop Transmission Assembly — Issues like overheating, torque converter shudder, and premature clutch wear are common, particularly in trucks used for heavy towing or with performance tunes. Failures can occur under 100,000 miles.
• DEF System Faults ('Service DEF System' Message) 🟠 Medium — Commonly caused by failure of the DEF pump, heater, or level sensor, which are often integrated into the DEF tank assembly. Can lead to speed limitation or a no-start condition if ignored. (Ref: An extended emissions warranty (XQ1) may cover some repairs.)
• Cracked Exhaust Manifold Bolts 🟠 Medium — The bolts securing the exhaust manifold to the cylinder head are prone to breaking due to heat cycles, causing exhaust leaks and a ticking noise, especially when the engine is cold.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used part is the primary workaround for this issue due to the extreme backorder on new OEM HCU assemblies for the recall. Specifically, buying a complete used ABS assembly from a compatible donor vehicle *just to harvest the electric pump motor* is a well-documented, successful DIY repair.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify donor vehicle compatibility: Forum users report success with motors from 2007-2011 GM vehicles (like Chevy Equinox) and 2008-2011 Ram 1500s.
• Test the donor motor BEFORE installation: Disconnect the motor from the donor HCU. Using a multimeter, check for resistance across the two large spade terminals; it should not be an open circuit (OL).
• Bench test with 12V: Apply 12V power directly to the two motor terminals. The motor should spin immediately. If it doesn't, it is faulty.

OEM-only on this vehicle (don't cheap out):

• Complete HCU Assembly: While the motor can be swapped, the electronic control module and hydraulic block are precisely calibrated. If replacing the entire unit, OEM (Mopar) is the only reliable choice, though it is subject to the recall backorder.

Aftermarket brands forum-validated for this vehicle:

• XeMODeX: Mentioned by users as a reputable company that rebuilds the original electronic module to the latest standards with a lifetime warranty, providing a faster alternative to the dealer backorder.
• Circuit Board Medics: Offers a similar mail-in repair service for the TRW EBC-440 module, specifically addressing the common failure points.

Brands owners have reported issues with on this vehicle:

• No specific brands are cited as poor, but caution is advised for non-reputable eBay/Amazon sellers offering complete 'new' aftermarket units, as these are complex safety components.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C2200 — This code for an internal ABS module failure is frequently stored with U0121 and strongly points to the defective Hydraulic Control Unit (HCU) that is covered by recall 24V-896.
• C0020 — This code indicates an ABS pump motor control circuit failure. It is a very specific companion code to U0121 on these trucks, as the failed motor is the direct cause of the communication loss.
• U0415 — Invalid Data Received From ABS Control Module. This code may be set in other modules, like the Transfer Case Control Module (TCCM) or Powertrain Control Module (PCM), because they can no longer receive wheel speed data from the failed ABS module, leading to disabled 4x4 and cruise control systems.
• P0501 — Vehicle Speed Sensor 'A' Range/Performance. The PCM may set this code if the speedometer becomes intermittent or non-functional, a symptom that occurs when the ABS module fails to process and send rear wheel speed data to the rest of the truck.

Frequently Asked Questions
