U0140 on 2011-2016 Hyundai Elantra: Lost Communication With Body Control Module Causes and Fixes

What's Unique About the 2011-2016 Hyundai Elantra

On the 2011-2016 Elantra, the Body Control Module (BCM) is not a separate, standalone box but is integrated into the main interior fuse panel, also known as the Smart Junction Box (SJB). This can simplify locating the module but also means that diagnosing issues requires checking the integrity of this entire unit. The most critical takeaway for owners is that replacing this module is not a simple swap; the new BCM/SJB must be professionally programmed to the car's VIN and key information, making DIY replacement impractical for most, especially for models with a push-button start (Smart Key) system.

Symptoms You May Notice

• Erratic or non-functioning power windows, door locks, and interior lights.
• Headlights, taillights, or wipers behaving unpredictably or not working at all.
• Parasitic battery drain that causes the battery to die, often overnight.
🎬 Watch: How to diagnose a parasitic battery drain on your Hyundai.
• The engine will not crank or start, or it starts and immediately stalls.
• Multiple, unrelated warning lights appearing on the instrument cluster (ABS, traction control, etc.).
• The key fob remote for locks and the alarm stops working.
• Radio, navigation, or clock display is dead.
• Alarm sounding randomly or dome lights staying on.
• Power steering warning light may illuminate along with other network-related lights.

Most Likely Causes

1. Low Battery Voltage or Charging System Fault 🔴 High Probability → Shop Vehicle Battery Modern electronic modules are highly sensitive to voltage. A weak battery or failing alternator can cause modules to drop off the communication network, and alternator failure is a known issue on this platform.
   How to confirm: Test the battery with a multimeter. A healthy, fully charged battery should read approximately 12.4-12.6 volts with the engine off. With the engine running, the voltage should be around 13.7-14.7 volts. A reading below 12.4V at rest or below 13.5V while running indicates a problem.

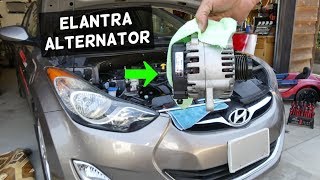

   Typical fix: Recharge or replace the battery. If the charging voltage is low, the alternator may need replacement. 🎬 Watch: Step-by-step DIY alternator replacement for 2011-2016 models.
   Est. part cost: $120-$350
2. Blown Fuses 🟡 Medium Probability Electrical spikes or shorts can blow fuses that supply power to the BCM/SJB. Fuses labeled 'Module', 'Memory', or 'BCM' are critical.
   How to confirm: Visually inspect and test all fuses related to the BCM, SJB, and memory functions in both the interior and engine compartment fuse boxes. 🎬 See this guide to find all Elantra fuse box locations. Pay special attention to fuses that provide constant power for memory functions.
   Typical fix: Replace any blown fuses. If a fuse blows repeatedly, it indicates an underlying short circuit that needs to be found.
   Est. part cost: $1-$10
3. Poor Ground Connection 🟡 Medium Probability Corrosion or a loose connection at the BCM's chassis ground point can interrupt its power supply and cause communication loss.
   How to confirm: Locate the main ground points for the BCM/SJB (a common one is behind the driver's side A-pillar kick panel) and inspect for corrosion or looseness. Test for high resistance (should be < 0.1 Ω) between the ground pin at the BCM connector and the chassis.
   Typical fix: Clean the ground connection point and terminal with a wire brush and ensure it is securely fastened.
   Est. part cost: $0-$5
4. Faulty Body Control Module (BCM) / Smart Junction Box (SJB) ⚪ Low Probability → Shop Body Control Module Internal failure of the BCM/SJB can occur from vibration, age, or internal shorts, sometimes caused by water intrusion from a leaking windshield seal. Some owners report that reseating the connectors on the back of the SJB temporarily resolves the issue, pointing to internal solder joint failures.
   How to confirm: This is a process of elimination. If all power, ground, and network wiring tests come back good, the module itself is the likely culprit. A professional diagnosis with an advanced scan tool is needed to confirm if the module is truly offline and not responding.
   Typical fix: Replace the BCM/SJB. The new module MUST be programmed by a Hyundai dealer or a qualified locksmith/shop with Hyundai-specific software.
   Est. part cost: $250-$500

Rare But Worth Checking

• CAN Bus Wiring Fault: A short or open in the CAN bus wiring harness can take the BCM offline. This can be caused by chafing, rodent damage, or corrosion in a connector. Diagnosis requires advanced tools like a multimeter or oscilloscope to check for proper resistance (around 60 ohms between CAN High and CAN Low) and voltage signals on the network.
• Aftermarket Accessory Interference: Improperly installed remote starters, alarms, or stereo systems are a known cause of this code. They can introduce electrical noise onto the CAN bus or be wired incorrectly, disrupting communication and triggering a U0140 code.

Diagnosis Steps

1. Check Battery Health: Ensure the battery has a full charge (12.4V+ engine off) and that the terminals are clean and tight. Start the engine and verify the alternator is charging correctly (13.7-14.7V).
2. Inspect Fuses: Check all fuses related to the BCM, SJB, 'Module', and 'Memory' in both the interior and engine bay fuse panels.
3. Scan for All Codes: Use a quality OBD-II scanner that can read codes from all vehicle modules, not just the engine. Note any other 'U' codes that are present, as this can help isolate a network-wide fault versus a single module issue.
4. Visual Inspection: Visually inspect the Smart Junction Box (interior fuse panel) and its connectors for any signs of water damage, corrosion, or loose pins. Water intrusion from a bad windshield seal is a possibility.
5. Check Grounds: Locate and inspect the main chassis ground connections for the dashboard and BCM, often found behind the driver's side kick panel. Ensure they are clean and tight.
6. Test CAN Bus (Advanced): If basic checks pass, a professional may need to test the CAN bus wiring for proper resistance (should be ~60 Ohms between CAN High and CAN Low pins at the OBD-II port with the battery disconnected) and check for shorts or opens.
7. Condemn the BCM (Last Step): Only after ruling out all power, ground, and wiring issues should the BCM/SJB itself be considered faulty.

Parts You'll Likely Need

• Body Control Module (BCM) / Smart Junction Box (SJB) (OEM #91950-3X011 (supersedes 91950-3X010, for 2011-2013 models, verify by VIN)) — This is the part that fails if all power, ground, and wiring issues have been ruled out. It is the brain for the vehicle's body electronics. Part number varies based on year and options like push-button start.
  Trusted brands: Hyundai (OEM)
  OEM price range: $250-$500
  Aftermarket price range: $150-$350 (Used/Remanufactured)
• Automotive Battery — A weak or failing battery is a very common cause of communication codes, as modules require stable voltage to operate.
  Trusted brands: Bosch, ACDelco, DieHard
  OEM price range: $180-$250
  Aftermarket price range: $120-$200

Related Codes That Often Appear With This One

• U0073 — This code means 'Control Module Communication Bus A Off'. Seeing it with U0140 points to a wider network failure affecting multiple modules, not just the BCM.
• U0100 — This code means 'Lost Communication with ECM/PCM'. If the engine computer is also offline, it's a major red flag for a network-wide power, ground, or wiring problem.

Technical Service Bulletins (TSBs) & Recalls

• TSB 23-01-014H-3: While not for a U0140 fault, this TSB details a software update for the BCM related to the anti-theft system on vehicles without a factory immobilizer. This shows the BCM is a software-driven component and that updates are sometimes available.

Platform-Specific Known Issues

• A recall for a potential short circuit in the ABS module was issued for some 2013 Elantra GT and Coupe models (NHTSA 23V651000), highlighting the sensitivity of the electrical systems in this platform. While not a direct cause of U0140, it underscores the importance of checking for any open recalls.
• A user on hyundai-forums.com with a 2013 Elantra traced a U0140 code and significant parasitic battery drain to a faulty BCM/SJB. The drain disappeared when the 'Module 1' fuse was pulled, confirming the SJB as the source of the short. The repair involved replacing the SJB and having it programmed by the dealer.

Mechanic-Grade Diagnostic Values

• CAN Bus Network Resistance — expected: ~60 Ω. Failure: A reading of ~120 Ω indicates an open in the circuit or a missing terminating resistor. A reading near 0 Ω indicates a short between the CAN High and CAN Low wires.
• CAN Bus Voltage (Key On, Engine Off) — expected: CAN High (Pin 6): ~2.6V to 3.5V, CAN Low (Pin 14): ~1.5V to 2.4V. In a recessive (idle) state, both lines should be near 2.5V.. Failure: Voltages stuck near 0V or battery voltage indicate a short to ground or power. Abnormal readings on one line can help isolate the fault.
• BCM/SJB Ground Circuit Resistance — expected: < 0.5 Ω. Failure: High resistance indicates a corroded or loose ground connection, which can cause the module to drop offline intermittently.

Scan Tool Commands That Help

• Hyundai GDS (Global Diagnostic System): Actuation Test — Use this function to force-activate outputs controlled by the BCM, such as door lock relays, wipers, and lights. If an actuator responds to the GDS command but not the cabin switch, it confirms the wiring from the BCM to the component is good and points to an input (switch) or BCM processing issue. If it doesn't respond, it helps isolate the fault to the BCM output driver or the wiring to the component.
• Hyundai GDS (Global Diagnostic System): Current Data — Use this to monitor the live status of all inputs to the BCM (e.g., door latch switches, light switches) and its output commands. This is crucial for seeing if the BCM is receiving the correct signals from switches and sensors around the vehicle. For example, you can see if the BCM registers a 'door open' signal when the door is physically opened.

Wiring & Ground Locations

• Smart Junction Box (SJB) — Integrated into the main interior fuse panel, located under the left side of the dashboard, near the driver's kick panel.. This is the physical location of the Body Control Module. All power, ground, and communication wires for the BCM connect here.
• GM01 — Bolted to the chassis on the left top side of the dash panel structure.. This is a primary dashboard area ground point. A loose or corroded connection here can affect multiple dash-mounted modules, including the BCM/SJB.
• GE07 — Located in the driver's side left kick panel area.. This is another critical ground point for components in the driver's side dash area. It is a likely candidate for the BCM's main ground path and should be inspected for corrosion and tightness.
• OBD-II Data Link Connector (DLC) — Under the driver's side dashboard, typically to the left of the steering column.. Pins 6 (CAN High) and 14 (CAN Low) are the primary diagnostic points for testing the entire CAN bus network's resistance and voltage without having to access individual modules.

OEM Part Supersession History

• 91950-3X010 → 91950-3X011 — Standard part revision by the manufacturer, likely for minor hardware or firmware improvements.
  Heads up: These parts are for the 2011-2013 pre-facelift models. They are not compatible with 2014-2016 models, which use a different part number. Part numbers are also specific to options like conventional key vs. smart key. Always verify the exact part number from the original module before ordering a replacement.

Model Year Variations Within This Range

• 2011-2013 vs. 2014-2016: The vehicle underwent a facelift for the 2014 model year, which included cosmetic and potential electrical changes. The primary BCM/SJB part number (91950-3X011) is specified for 2011-2013 models only, indicating that 2014-2016 models use a different, non-interchangeable BCM/SJB. It is critical to source a replacement BCM for the correct year range.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Flexible Steering Coupler Wear 🟠 Medium — Extremely common. A clicking or clunking noise develops in the steering wheel, typically noticeable at low speeds or when stationary. Usually occurs after 50,000 miles. (Ref: TSB 17-ST-002-1 extended the warranty for this part to 10 years/100,000 miles. The part itself is inexpensive, but labor can be a few hundred dollars.)
• 1.8L Nu Engine Ticking / Piston Slap 🔴 High — Widespread issue, particularly noticeable on cold starts. Can lead to increased oil consumption and, in some cases, engine failure. (Ref: A class-action lawsuit (Brown v. Hyundai Motor America) resulted in an extended powertrain warranty (10 years/120,000 miles) for this specific issue.)
• Alternator Failure 🟠 Medium — Failures are commonly reported, sometimes at relatively low mileage (under 100,000 miles). Symptoms include a battery warning light and subsequent electrical issues or stalling.
• ABS Module Short Circuit Fire Risk 🔴 High — Affects a significant number of vehicles, though the failure rate is low. An internal short can occur even when the car is off. (Ref: NHTSA Recall 23V-651000 (Hyundai Recall 251). The fix involves installing a new fuse with a lower rating.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used BCM/SJB from a salvage yard is a very smart and common choice for this repair, as the OEM part can be expensive. Since it is an electronic module without major mechanical wear parts, a used unit from a donor vehicle is often just as reliable as a new one, provided the part number is an exact match.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Exact Part Number Match: This is the most critical factor. Do not rely on year/model compatibility lists; physically verify the number on your original module matches the donor part.
• No Water Damage: Inspect the donor module and its connectors for any signs of corrosion, water marks, or a chalky residue, which indicates it was exposed to moisture.
• Intact Connectors: Ensure all plastic connector housings and metal pins on the donor module are straight and undamaged.

OEM-only on this vehicle (don't cheap out):

• Body Control Module (BCM) / Smart Junction Box (SJB): While you can buy it used, it will always be a part originally manufactured by or for Hyundai. There are no third-party aftermarket manufacturers for the BCM itself.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• U0001 — High Speed CAN Communication Bus fault; often appears when the BCM or other modules drop off the network due to voltage drops or wiring shorts.
• U0121 — Lost Communication with ABS Control Module; related through the shared CAN bus and the known short-circuit risks in the ABS module on this platform.
• B1325 — Device Voltage Network fault; triggered when BCM/SJB voltage drops below critical levels, often caused by the high-probability battery or alternator failures cited.
• U0155 — Lost Communication with Instrument Panel Cluster (IPC) Control Module; frequently occurs alongside U0140 when the BCM fails to relay data to the dashboard.
