Spark Plug Guide for 1980-2000 Ford E-350 Econoline
Choosing the right spark plugs for your van's specific engine is critical, especially for the later Triton V8 models known for plug-related issues.
- For 1997-2000 E-350s with the 5.4L Triton V8, be aware of the high risk of spark plugs breaking on removal or blowing out of the head.
- Always let the engine cool completely before attempting to change spark plugs, especially on Triton engines, to reduce the risk of thread damage.
- Use high-quality aftermarket brands like NGK, Autolite, or Denso, which are often identical to the more expensive OEM Motorcraft plugs.
- Accessing the spark plugs requires removing the interior engine cover, or "doghouse".
Engine Generations and Spark Plug Issues
The 1980-2000 Ford E-350 Econoline used two main families of gasoline engines, and they have very different considerations for spark plugs.
- 1980-1996 Pushrod Engines (4.9L I6, 5.0L V8, 5.8L V8, 7.5L V8): These engines are generally straightforward. Spark plug replacement is a standard maintenance job with few surprises. The biggest challenge is often physical access to the plugs 🎬 Watch a walkthrough for replacing plugs on the 7.5L engine. in the tight van engine bay. Using standard copper or platinum plugs from a quality brand is a reliable choice.
- 1997-2000 Triton V8 Engines (5.4L V8): These newer overhead cam engines have a well-documented, specific set of spark plug problems. The original factory plugs had a two-piece design that could separate during removal, leaving the lower part seized in the cylinder head. Additionally, these early Triton engines had fewer threads in the spark plug holes of the aluminum heads, making them prone to "blowing out" a spark plug if not torqued correctly. This can strip the threads, requiring a special insert to repair the cylinder head.
Known Issues for 1997-2000 5.4L Triton V8
Owners of E-350s with the 5.4L Triton engine must be aware of two major issues: spark plugs breaking during removal and spark plugs blowing out of the cylinder head. Ford issued a Technical Service Bulletin (TSB 08-7-6) with a specific procedure to minimize breakage, which involves letting the engine cool completely and using a solvent to loosen carbon deposits. If a plug blows out, it often strips the threads in the head, requiring a thread repair kit like a Time-Sert or Calvan. 🎬 See how to diagnose and repair a blown out spark plug. Due to these risks, many owners prefer to have a professional mechanic perform this job.
Choosing the Right Aftermarket Spark Plug
For your E-350, sticking with brands known for quality and OEM-compatibility is your best bet. Motorcraft is Ford's own brand, and many owners prefer to use them to avoid any potential issues. However, brands like NGK and Autolite are often the original manufacturers for Motorcraft plugs and are considered high-quality alternatives.
- Economy Tier (Skyward): These are basic replacement plugs that will get the job done at the lowest cost. They may have a shorter lifespan than premium options.
- Standard/OEM-Quality Tier (Autolite, NGK, Denso, Bosch, Champion): These brands offer excellent performance and durability. For most E-350s, a standard copper or platinum plug from one of these manufacturers is a perfect choice. Many forum users and mechanics have good experiences with NGK and Autolite in Ford trucks.
- Performance Tier (Accel, MSD): These brands are geared towards high-performance applications. While they may offer benefits in modified engines, they are generally not necessary for a stock E-350 work van and may not provide a noticeable difference for the extra cost.
Pro Tip: Use Anti-Seize and Dielectric Grease
When installing new plugs, especially on Triton engines, applying a small amount of high-temperature nickel anti-seize to the plug threads (not the electrode) can help prevent them from getting stuck in the future. Also, putting a dab of dielectric grease inside the spark plug boot helps seal out moisture and makes future removal easier.

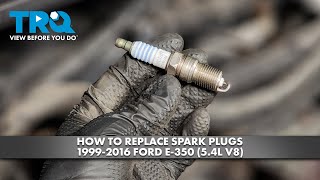

🎬 Get expert tips on replacing spark plugs and ignition coils.Cost of New Aftermarket Spark Plugs
The cost for a set of spark plugs for your E-350 will vary based on the brand, material (copper, platinum, iridium), and your specific engine.
| Part | Price Range (Set of 6 or 8) |
|---|---|
| New Aftermarket Spark Plugs | $28 - $100 |
Note: Prices are estimates and can vary by brand and retailer. The provided inventory price range is $3.50 - $96.59 for individual plugs or sets.
Frequently Asked Questions
How often should I change the spark plugs on my E-350?
For older engines with standard copper plugs, every 30,000 miles is a good interval. For newer engines with platinum or iridium plugs, the interval can be up to 100,000 miles. However, for the 5.4L Triton engines, many mechanics recommend changing them earlier, around 60,000 miles, to reduce the risk of them seizing in the head.
Should I use OEM Motorcraft plugs or are aftermarket ones okay?
High-quality aftermarket brands like NGK, Autolite, and Denso are excellent choices and are often the original manufacturer for Motorcraft. The key is to use the correct plug specified for your engine. Some Fords can be sensitive to plug choice, so using a direct OEM-equivalent is a safe bet.
Is replacing the spark plugs a DIY job?
For 1980-1996 models, it is a feasible DIY job, though access can be tight. For 1997-2000 models with the 5.4L Triton engine, the job is much more difficult due to the risk of breaking plugs or stripping threads. It requires patience, the right tools, and careful adherence to the proper procedure. Many owners opt for a professional for Triton engines.
Do I need to gap the new spark plugs?
Most modern platinum and iridium plugs come pre-gapped. While it's always a good idea to verify the gap with a feeler gauge, you should not attempt to gap fine-wire iridium plugs as you can easily damage the delicate electrode. Always check the manufacturer's instructions.
Helpful Videos
Technical Specifications
Spark plug type varies significantly by engine. Pre-1997 pushrod engines typically use a standard tapered seat plug. The 1997-2000 5.4L Triton V8 uses a specific long-reach, two-piece design plug that is prone to issues. Common materials include copper, platinum, and iridium.
