A Guide to Spark Plugs for the 1992-1993 GMC Typhoon
Keep your high-performance turbocharged V6 running strong by choosing the right spark plugs.
- Use high-quality copper spark plugs from ACDelco (R43TS) or NGK (BPR6FS) for best performance on stock or lightly modified engines.
- Always gap new spark plugs to 0.025"-0.028" to prevent spark blow-out under boost, regardless of the factory 0.035" spec.
- Replacement is difficult due to poor access; the job is made easier by removing the inner fender wells.
- Carefully route spark plug wires away from the turbo downpipe to prevent them from melting.
Signs of Failing Spark Plugs
The turbocharged engine in the Typhoon is sensitive to ignition health. Worn spark plugs will cause noticeable problems. The most common symptom is the engine breaking up or sputtering when under boost. Other signs include a rough idle, difficulty starting, a drop in fuel economy, and sluggish acceleration. A Check Engine Light may also turn on, with codes indicating a misfire, such as P0300, P0301, P0302, P0303, P0304, P0305, or P0306.
Choosing the Right Aftermarket Spark Plugs
When it comes to spark plugs for a Syclone or Typhoon, sticking to what works is key. The original equipment plug was a standard copper ACDelco. For a stock or lightly modified truck, high-quality copper plugs remain the top recommendation from owners and specialists.
Plug Material: Copper vs. Iridium/Platinum
- Copper Plugs (Recommended): Brands like ACDelco and NGK offer excellent performance for the Typhoon. Copper is a fantastic conductor of heat and electricity, which is ideal for a turbocharged application. The trade-off is a shorter lifespan; they should be checked often and replaced as part of a regular tune-up, sometimes as often as every two years depending on mileage and use. The most commonly cited OEM part is the ACDelco R43TS, with the NGK BPR6FS being a popular alternative.
- Iridium & Platinum Plugs: Brands like Denso and NGK offer long-life iridium plugs. While they can last much longer than copper plugs, they may not offer any performance benefit on a stock engine and cost significantly more. For a daily-driven, stock Typhoon, they are a reasonable choice if you want to extend the time between changes, but the performance community generally prefers copper.
The Importance of the Spark Plug Gap
The single most important detail when replacing plugs on a Typhoon is setting the correct gap. While the factory specification is 0.035 inches, the overwhelming consensus in the owner community is to use a smaller gap between 0.025" and 0.028". This smaller gap helps prevent the spark from being "blown out" by the high cylinder pressures under boost, reducing the chance of misfires. Always check and set the gap on new plugs before installation; do not trust them to be correct out of the box.
🎬 See this walkthrough on how to gap a spark plug.Aftermarket Brand Quality
For the Typhoon, brand choice is straightforward. You can't go wrong with the OEM-supplier or a trusted performance name.
- Tier 1 (Highly Recommended): ACDelco and NGK are the most trusted and widely used brands for these trucks. They offer consistent quality and performance that works well with the factory ignition system.

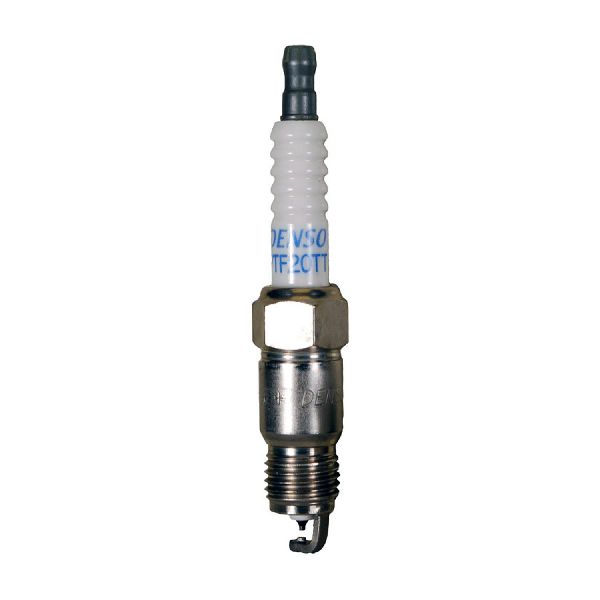

- Tier 2 (Good Alternatives): Autolite and Denso also produce quality plugs that are compatible with the Typhoon. While less commonly discussed in owner forums, they are reputable brands.

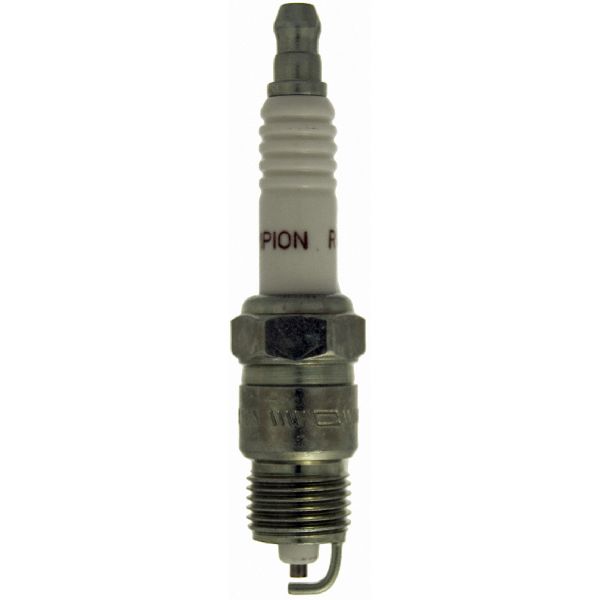

- Tier 3 (Use with Caution): While brands like Champion and MSD are available, most owner discussions center around ACDelco and NGK. For a specialized engine like this, it's best to stick with what is proven to work.
Spark Plug Replacement Cost
The cost for a set of six spark plugs can vary based on the material. Labor costs are higher than on a typical V6 due to poor access.
| Item | Price Range |
|---|---|
| Aftermarket Copper Spark Plugs (Set of 6) | $21 - $45 |
| Aftermarket Iridium Spark Plugs (Set of 6) | $60 - $100+ |
| Estimated Shop Labor | $171 - $251 |
Known Issues & Installation Tips
Replacing spark plugs on a Typhoon is known to be a difficult job due to tight spaces. Access is best gained by removing the front inner fender liners. The #3 cylinder (driver's side, middle) is the hardest to reach because the steering shaft is in the way. After installation, it is critical to route the spark plug wires carefully to ensure they do not touch the hot turbo downpipe, which can melt the wires and cause a severe misfire. 🎬 Watch: See a real-world spark plug change on a Syclone. No recalls or technical service bulletins (TSBs) have been issued by GMC or the NHTSA specifically for spark plug issues on the 1992-1993 Typhoon.
Frequently Asked Questions (FAQ)
What is the best spark plug gap for a 1992-1993 GMC Typhoon?
While the factory spec is 0.035", it is strongly recommended to gap plugs between 0.025" and 0.028". This helps prevent misfires under boost.
How often should I change the spark plugs on my Typhoon?
If using recommended copper plugs, inspect them annually and plan to replace them every 25,000-30,000 miles, or every couple of years, as they are considered a regular maintenance item on these trucks. The ignition system is known to wear, and fresh plugs are key to performance.
Are expensive iridium spark plugs worth it for my Typhoon?
For a stock or near-stock engine, most owners agree that inexpensive copper plugs from ACDelco or NGK perform best. Iridium plugs offer a longer service life but typically do not provide a noticeable performance increase to justify the higher cost.
Can I use spark plugs from a regular GMC S-10 or Jimmy?
While a standard 4.3L V6 may use a similar plug, the Typhoon's turbocharged engine has specific requirements. It is best to use the recommended heat range and part numbers (like ACDelco R43TS or NGK BPR6FS) and the tighter gap setting (0.025"-0.028") to ensure proper performance under boost.
Helpful Videos
Technical Specifications
OEM Part Numbers: R43TS CR42TS
Socket Size: 5/8 inch. Recommended Gap: 0.025" - 0.028". Seat Type: Tapered.
