Lexus SC400 A/C Receiver Drier Guide for 1992-2000 Models
Keep your classic SC400's air conditioning blowing ice-cold by understanding and choosing the right A/C receiver drier.
- The receiver drier MUST be replaced any time the A/C system is opened for service, such as a compressor or condenser replacement.
- Denso is the original equipment supplier and a top-tier choice for fit and reliability on your SC400.
- Symptoms of failure include poor cooling, rattling noises, and visible leaks around the component.
- While the part itself is inexpensive, professional service is required to safely evacuate and recharge the refrigerant.
Is Your SC400's A/C Showing Signs of a Bad Receiver Drier?
A failing A/C receiver drier can cause several noticeable issues. Because its job is to filter refrigerant and remove moisture, a clog or failure directly impacts cooling performance. If you notice your A/C isn't as cold as it used to be, or if it's blowing warm air altogether, a blocked drier could be the culprit.
Don't Ignore the Symptoms
Ignoring a failing receiver drier can lead to much more expensive repairs. A saturated or clogged drier can't protect the rest of your A/C system, putting the compressor at serious risk of damage.
Choosing the Right Aftermarket Receiver Drier for Your SC400
For a vehicle like the 1992-2000 Lexus SC400, the aftermarket offers several quality options for A/C components. Since Denso was the original equipment manufacturer (OEM) for many Lexus parts, choosing a Denso-branded receiver drier is often the safest bet for guaranteed fit and performance. However, other brands provide reliable alternatives at different price points.

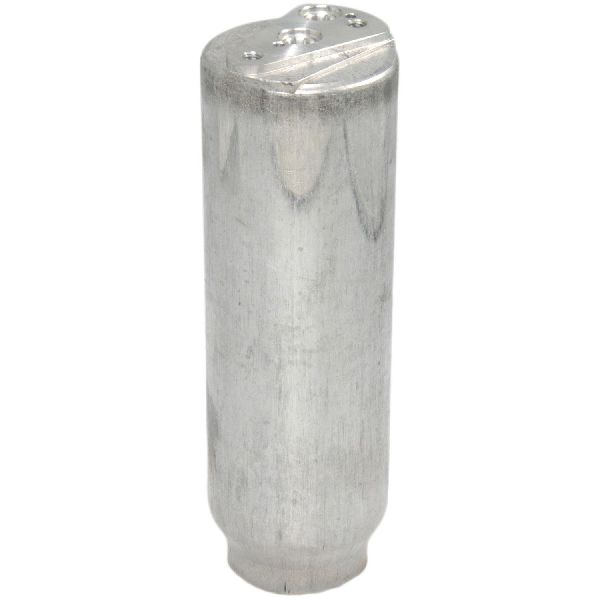

- Top-Tier (OEM-Equivalent): Denso is a trusted name and likely the original supplier for your SC400. Their products are built to factory standards and are a direct-fit replacement, ensuring new-car performance.

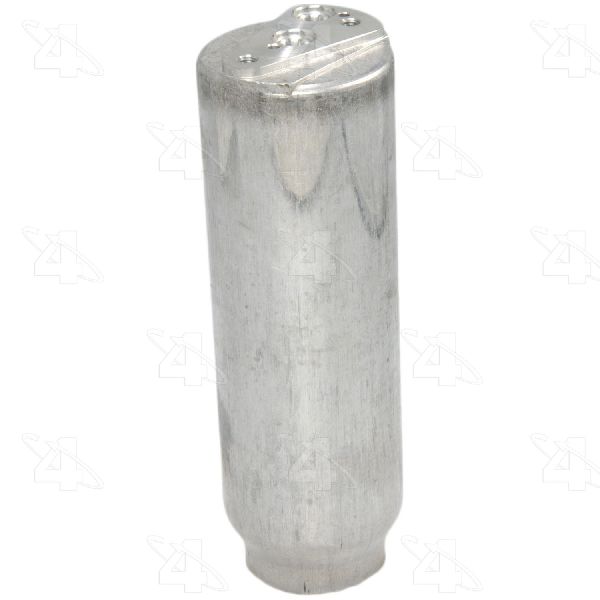

- Mid-Tier (Reliable Aftermarket): Brands like Four Seasons and Nissens are well-regarded in the aftermarket. They offer a good balance of quality and cost, with features like quality welds and high-grade desiccant material.
- Budget-Friendly: Brands such as ACDelco, and Global Parts (GPD) offer functional replacements at a lower cost. These are viable options, especially for budget-conscious repairs, but may not have the same longevity or exact finish as higher-tiered brands.
Pro Tip: Always Replace, Never Reuse
It is a non-negotiable rule in A/C repair: anytime the system is opened to the air, the receiver drier must be replaced. The desiccant inside instantly absorbs moisture from the atmosphere, and once exposed, it cannot be dried out. Failing to replace the drier during a compressor, condenser, or hose replacement will introduce moisture into the system, leading to premature failure of the new parts.
Cost of Replacing an SC400 A/C Receiver Drier
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Receiver Drier | $18.25 - $45.44 |
| Shop Labor | $150 - $250 |
Frequently Asked Questions (FAQ)
Do I have to replace the receiver drier when I replace my A/C compressor?
Yes, absolutely. Most compressor warranties require the replacement of the receiver drier and expansion valve. A failed compressor often releases metal debris into the system, which will be trapped by the old drier. Not replacing it will cause that debris to circulate and destroy the new compressor.
Can I replace the SC400 receiver drier myself?
While the physical replacement can be a DIY job for those comfortable working in tight spaces, handling refrigerant requires special equipment and certification. The A/C system must be professionally evacuated before opening it and then properly vacuumed and recharged after the new part is installed. For this reason, the full job is best left to a qualified mechanic.
Where is the receiver drier located on a 1992-2000 Lexus SC400?
The receiver drier is a metal canister located in the front of the engine bay, typically near the condenser. On the SC400, it can be accessed by reaching through the front bumper area. It will have two A/C lines connected to the top and a clamp holding it in place.
Are there any recalls or TSBs for the SC400 A/C system?
Searches of the National Highway Traffic Safety Administration (NHTSA) database and for Technical Service Bulletins (TSBs) did not reveal any specific recalls or widespread service campaigns for the A/C receiver drier on the 1992-2000 Lexus SC400. Any issues are typically related to age and normal wear.
Technical Specifications

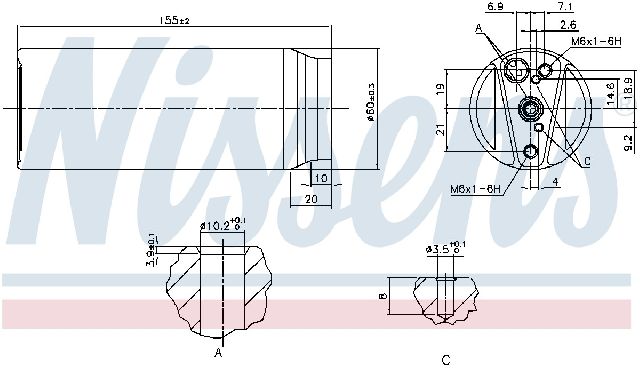

The receiver drier for the 1992-2000 Lexus SC400 is a canister-style filter containing a desiccant bag. It is located on the high-pressure side of the A/C system. Some aftermarket models, like one from ACDelco, specify an inlet fitting diameter of 0.375 inches.
