Dodge Ram 2500 (2000-2010) Cummins Fuel Injector Replacement Guide
Everything you need to know before replacing the fuel injectors on your 2nd or 3rd Gen Ram 2500 Cummins.
- Bosch is the original equipment manufacturer (OEM); choosing new or remanufactured Bosch injectors is the safest option for reliability.
- You MUST match injectors to your specific engine year (2000-02, 2003-04.5, 2004.5-07, 2007.5-10) as they are not interchangeable.
- Always replace the fuel connector tubes with the injectors on common rail models (2003+) to prevent leaks.
- Fuel in your engine oil is a critical symptom. If you see this, stop driving immediately to prevent catastrophic engine damage.
Understanding Fuel Injectors in Your 2000-2010 Ram 2500
The fuel injectors in your Ram 2500 are critical, but they are not all the same. The 2000-2010 model years span three distinct fuel systems for the Cummins engine, and the injectors are specific to each system. Ordering the wrong part is a common and costly mistake.

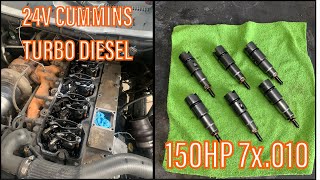

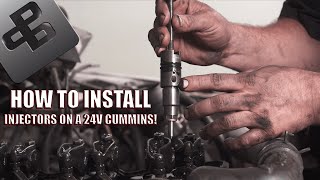

- 2000-2002 (5.9L 24v ISB): These trucks use a VP44 injection pump. The injectors are mechanically controlled but triggered electronically. 🎬 Watch: Detailed 2000-2002 24v injector installation guide Problems with the VP44 pump can often be misdiagnosed as injector failure.
- 2003-2004.5 (5.9L Common Rail): This was the first generation of the high-pressure common rail system. These injectors are known for being robust but are sensitive to fuel quality.
- 2004.5-2007 (5.9L Common Rail): An updated common rail system with revised injectors. 🎬 See the full replacement procedure for 2003-2007 5.9L engines
- 2007.5-2010 (6.7L Common Rail): The introduction of the 6.7L engine brought new injectors designed to work with advanced emissions systems. 🎬 Watch: Step-by-step 6.7L Cummins fuel injector replacement These are also very sensitive to fuel contamination.
Critical Part Matching
You must order injectors that match your specific year and engine. Injectors are not interchangeable between these groups. Always verify fitment using your truck's VIN.
Common Failure Symptoms
A failing fuel injector can cause a range of problems, from annoying to engine-destroying. If you notice any of these signs, it's time to get your fuel system checked.
- Rough Idle: The engine shakes or stumbles, especially when cold.
- Hard Starting: The engine cranks longer than usual before starting, or won't start at all.
- White or Black Smoke: Excessive white smoke at idle or black smoke under acceleration is a common sign.
- Fuel in Oil: A leaking injector can dump fuel into the crankcase, thinning your oil and causing a rise on the dipstick. This is a critical condition that can lead to engine failure.
- Loss of Power & Poor Fuel Economy: The truck may feel sluggish, especially when towing, and you'll notice you're filling up more often.
- Engine Knocking: A sound like a hammer tapping on the engine can indicate a faulty injector.
Choosing the Right Aftermarket Injector
When it comes to fuel injectors for your Cummins, quality is everything. A cheap, poorly made injector can fail prematurely and even cause catastrophic engine damage. Here’s a breakdown of the brands available.
Brand Tiers
Tier 1: OEM & Premium Remanufactured
- Bosch: Bosch is the Original Equipment Manufacturer (OEM) for Cummins fuel injectors. Choosing a new or factory-remanufactured Bosch injector is the safest bet for stock reliability and performance. They are built to the original specifications and are known for their durability, often lasting over 100,000 miles with proper maintenance.
- BD Diesel: Known for quality remanufacturing, BD Diesel often uses new Bosch nozzles and control valves in their rebuilt injectors. They are a trusted name in the diesel community for both stock replacement and performance applications.
Tier 2: Reputable Aftermarket
- Delphi: A major OEM supplier for many vehicle brands, Delphi produces reliable aftermarket injectors. They are known for robust engineering, particularly in diesel systems.
- Standard Ignition (Standard Motor Products): A long-standing aftermarket manufacturer that offers a range of quality replacement parts.
- Continental: Another major OEM supplier that also provides high-quality aftermarket components.
Tier 3: Budget-Focused
- Dorman: Dorman offers remanufactured injectors that are often a more affordable solution. While they are a popular budget choice, quality can sometimes be inconsistent compared to premium brands. Their "OE Fix" line sometimes improves on the original design.
- Crown Automotive, GBR Fuel Injection, Replacement, Skyward: These brands typically fall into the budget or private-label category. While they offer a low initial cost, they may not have the same longevity or rigorous testing as higher-tier brands. Use caution and consider them primarily for short-term fixes or non-critical applications.
A Note on "New" vs. "Remanufactured"
In the diesel world, "remanufactured" doesn't always mean lower quality. Reputable companies like Bosch and BD Diesel remanufacture injectors to exacting standards, often using new, updated components. These can be just as reliable as brand-new units. The key is choosing a trusted brand.
Cost of Replacing Dodge Ram 2500 Fuel Injectors
The cost can vary widely based on the brand you choose and whether you do the work yourself. It's highly recommended to replace all six injectors at once, as they tend to fail around the same time.
| Part | Estimated Cost (Per Injector) |
|---|---|
| New Aftermarket (Premium) | $350 - $725 |
| New Aftermarket (Budget) | $150 - $300 |
| Remanufactured (Premium) | $250 - $500 |
| Shop Labor | $600 - $1,200 (for all 6) |
Frequently Asked Questions
Do I have to replace all six injectors at once?
It is strongly recommended. Fuel injectors are wear items that have a similar lifespan. If one has failed due to high mileage, the others are likely not far behind. Replacing them all at once saves you from repeated labor costs and potential future breakdowns.
What causes fuel injectors to fail?
The number one cause of injector failure is contaminated fuel. Dirt, debris, and water can damage the extremely fine tolerances inside the injector. High mileage, heat, and internal wear are also common causes. Using high-quality fuel filters and maintaining your fuel system is the best prevention.
Do I need to program the new injectors?
For 2007.5 and newer 6.7L Cummins engines, yes. Each new injector comes with a unique Injector Quantity Adjustment (IQA) code that must be programmed into the engine computer (ECM) with a capable scan tool. Failure to do this will result in poor engine performance. 5.9L models do not typically require this step.
Should I replace the injector connector tubes?
Yes. On common rail engines (2003-2010), it is critical to replace the fuel connector tubes (also called feed tubes) when you replace the injectors. They are a one-time-use part, and reusing them can cause high-pressure fuel leaks that will damage the new injector and can be a fire hazard.
Helpful Videos
Technical Specifications
Varies significantly by engine year. Key types include VP44 (2000-2002), early Common Rail (2003-2004.5), late 5.9L Common Rail (2004.5-2007), and 6.7L Common Rail (2007.5-2010). Always verify by VIN.
