Ford E-150 Throttle Body Guide: Curing Stalling and Limp Mode (2002-2014)
If your E-150 is stalling or has the wrench light on, the electronic throttle body is a likely suspect—here's what you need to know.
- The most common failure symptom is a sudden "limp mode" with an illuminated wrench light, which requires a full replacement, not just cleaning.
- This is a well-documented issue acknowledged by Ford through a TSB and an expired warranty extension program (13N03).
- Replacement is a simple DIY task for most owners, typically taking less than an hour with basic tools.
- A throttle "relearn" procedure, usually done by disconnecting the battery for a minute, is essential after installation for proper idle and performance.
Is Your E-150 Stalling or Losing Power? It Could Be the Throttle Body.
A failing throttle body is a very common issue on Ford trucks and vans from this era. The most alarming symptom is when the van suddenly loses power, the accelerator pedal does nothing, and a wrench-shaped warning light appears on the dash. This is known as "limp mode" or "fail-safe mode." It's a safety feature that protects the engine, but it can be dangerous if it happens in traffic. Other signs of a bad throttle body include a rough or fluctuating idle, stalling when you come to a stop, and a lit Check Engine Light.
A Known Ford Issue: TSBs and Warranty Extensions
This problem was so widespread that Ford issued Technical Service Bulletin (TSB) 10-21-6 for 2010 E-150 models with the 4.6L engine that experienced fluctuating idle or trouble codes P2111 and P2112, recommending a full replacement. Ford also created Customer Satisfaction Program 13N03, which extended the warranty on the throttle body to 10 years or 150,000 miles for many vehicles due to contamination causing electrical issues. While this program has expired, it confirms the part has a high failure rate.
Choosing the Right Aftermarket Throttle Body
When replacing your E-150's throttle body, you don't have to buy an expensive OEM part from the dealer. Quality aftermarket brands offer reliable alternatives that often include design improvements over the original.
- Premium Aftermarket (Hitachi, Standard Ignition): Hitachi is often an OEM supplier for many brands, so their quality is typically on par with the original part. Standard Ignition (Standard Motor Products) is a well-respected brand known for producing parts that meet or exceed OE standards. These are excellent choices for reliability.
- Reliable Mid-Tier (Dorman): Dorman is a popular aftermarket brand that often engineers its parts to fix common failure points of the original design. For their throttle bodies, they sometimes use upgraded non-contact sensors or improved seals to prevent the contamination that caused the original part to fail. They offer a good balance of quality and price.
- Budget-Friendly (Cardone, Global Parts): Cardone is well-known for remanufactured parts, which can be a cost-effective, eco-friendly option. They disassemble, clean, and replace worn components to restore the part to OE function. However, they also offer new units. Be sure to check which you are buying. Brands like Global Parts fall into a more budget-oriented category.
Pro Tip: Clean or Replace?

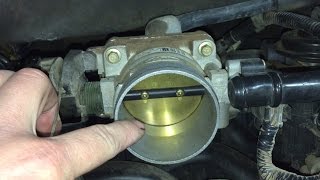

Sometimes, symptoms like a rough idle can be caused by carbon buildup inside the throttle body. Cleaning it can be a cheap first step. However, for the common Ford electronic failure that causes limp mode, cleaning will not help. 🎬 See how to properly clean a Ford electronic throttle body. The problem is internal to the electronics, and the entire unit must be replaced.
What to Expect for Replacement Costs
The cost depends on whether you do the job yourself or take it to a shop. The part itself is the biggest expense. Labor is relatively low, as the job is straightforward.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $130 - $330 |
| New OEM Part | $350 - $540+ |
| Shop Labor | $110 - $191 |
| Total (Shop Replacement) | $240 - $521 (Aftermarket) / $460 - $731+ (OEM) |
Frequently Asked Questions (FAQ)
Do I need to perform a "relearn" procedure after installing a new throttle body?
Yes, this is a critical step. After installing the new part, the vehicle's computer (PCM) needs to learn the new sensor's idle and throttle positions. The most common method is to disconnect the negative battery cable for about a minute to clear the computer's memory. After reconnecting, start the engine and let it idle for several minutes, then with the A/C on, and finally drive the vehicle for about 10 miles to allow the computer to fully adapt.
🎬 Watch a demonstration of the throttle body relearn procedure.Is this a difficult DIY job?
For most people with basic tools, this is a very manageable job. The throttle body is usually at the front of the engine and easy to access after removing the air intake tube. It's held on by just four bolts. The entire process can often be completed in under an hour.
🎬 Watch this step-by-step 2008 E-150 throttle body replacement guide.Can I just clean my throttle body instead of replacing it?
If your only symptom is a slightly rough or sticky idle, cleaning the carbon buildup from the throttle plate might solve the problem. However, if your van is going into limp mode with the wrench light on, this indicates an electronic failure inside the unit. Cleaning will not fix an electronic problem; replacement is the only solution.
What's the difference between the Check Engine light and the Wrench light?
The Check Engine light is for general engine and emissions-related faults. The Wrench light on Ford vehicles specifically indicates a powertrain fault detected by the onboard computer, often related to the transmission or the electronic throttle control system. When the throttle body fails, you will almost always see the Wrench light, sometimes with the Check Engine light as well.
Helpful Videos
Technical Specifications
OEM Part Numbers: 9W7Z-9E926-A 3C2Z-9E926-AA 6R3Z-9E926-AA 5M6Z-9E926-CA 7T4Z-9E926-FA

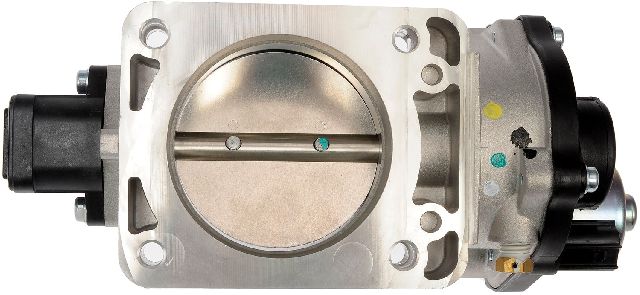

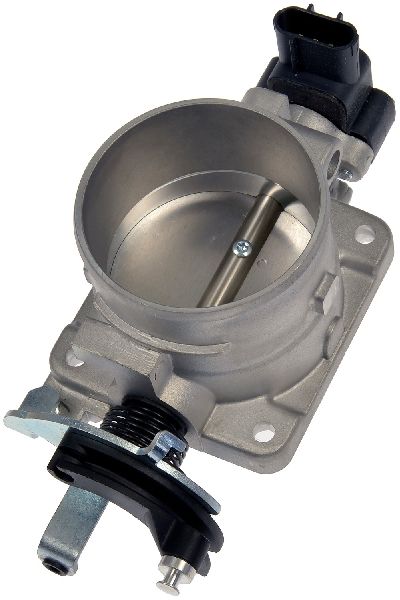

This part is an electronic throttle body (ETB) for drive-by-wire systems, primarily on 2005-2014 models. It includes an integrated throttle position sensor (TPS) and motor. Earlier models (2002-2004) may use a different design; verify your specific engine and year.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
