A Guide to Replacing Disc Brake Rotors on the 2012-2018 BMW 320i
Eliminate brake vibration and restore stopping power on your F30 320i by choosing the right aftermarket rotors.
- Always replace brake rotors in pairs per axle and install new pads and a new wear sensor at the same time.
- Verify if your 320i has standard or optional M Sport brakes, as rotor sizes differ significantly.
- For OEM-like quality and excellent rust protection, Zimmermann coated rotors are a highly-rated choice among owners.
- Owners of 2012-2014 models should verify that the brake vacuum pump recall has been performed.
Signs of a Failing Brake Rotor
When your BMW 320i's brake rotors are worn or damaged, the car will give you clear signals. Ignoring them can lead to longer stopping distances and more expensive repairs. The most common symptom is a pulsation or vibration felt through the steering wheel or brake pedal when you apply the brakes, especially from higher speeds. This is often caused by 'warped' or unevenly worn rotors. 🎬 Watch this video to understand how warped rotors cause vibrations. You might also hear a grinding or scraping noise, which can indicate the brake pads have worn down completely and are now metal-on-metal with the rotors. A visual inspection may reveal deep grooves or scoring on the rotor's surface.
Important Safety Recall Notice
A recall was issued for 2012-2014 BMW 320i models concerning a potential loss of power brake assistance. This was due to restricted oil flow to the brake vacuum pump, not a defect in the rotors themselves. However, it results in a hard brake pedal and increased stopping distance. While this is a separate issue, owners of these model years should ensure this recall work has been completed by a dealer.
Known Issues and Service Bulletins
Some owners of the F30 chassis, which includes the 2012-2018 320i, have reported premature wear on the rear brakes. This can sometimes be caused by a sticking or seized caliper piston, leading to uneven pad wear and rotor damage. Additionally, BMW issued a Technical Service Bulletin (TSB #B34 03 13) for models produced up to June 2013 regarding an error in the Condition Based Service (CBS) system, which could incorrectly calculate the remaining life of the brake pads. Other bulletins address issues like brake squeal and ticking noises from the front wheels.
Choosing the Right Aftermarket Rotors for Your 320i
When shopping for new rotors, it's crucial to know which brake system your 320i has. Most have the standard brakes, but some may be equipped with the optional M Sport brakes, which use larger rotors. Always verify your vehicle's specific setup before purchasing.
Brand Tiers
- OEM-Equivalent (Premium): For drivers who want to maintain the original feel and performance, brands like Zimmermann, Brembo, ATE, and Pagid are excellent choices. Zimmermann's 'Coat Z' rotors are highly recommended by owners for their anti-corrosion coating, which prevents rust on the hub and non-contact surfaces, keeping your wheels looking clean. These brands are often original equipment suppliers to BMW, ensuring a perfect fit and high-quality materials.
- Performance (Upgrade): If you're looking for enhanced performance, especially for spirited driving, consider brands like Powerstop, StopTech, or EBC Brakes. These brands offer drilled and/or slotted rotors. Drilled holes help dissipate heat faster, while slots help clear water and debris from the rotor surface. Be aware that these performance designs can sometimes increase brake noise and lead to faster pad wear compared to plain rotors.
- Daily Driver (Economy): For budget-conscious owners who use their 320i for daily commuting, brands like Bosch, Centric, and Raybestos offer a good balance of quality and value. While they are a solid choice for normal use, be aware that some lower-cost options may not have the advanced anti-rust coatings of premium brands.
| Rotor Tier | Typical Brands | Estimated Price Range |
|---|---|---|
| Economy / Daily Driver | Centric, Raybestos, Wagner | $110 - $200 |
| OEM-Equivalent | Zimmermann, Brembo, ATE, Pagid | $180 - $350 |
| Performance Upgrade | Powerstop, EBC, StopTech, Hawk | $250 - $500+ |

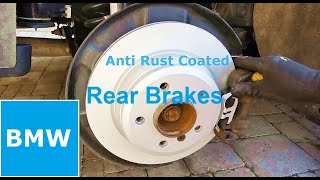

Pro Tip: Always replace brake rotors in pairs (both front or both rear) to ensure balanced braking and prevent pulling to one side. It is also mandatory to install new brake pads and at least one new brake pad wear sensor per axle 🎬 See a step-by-step walkthrough for replacing front pads and rotors. during a rotor replacement.
Frequently Asked Questions (FAQ)
Do I have to replace my brake pads when I replace my rotors?
Yes, it is essential. Installing old, worn pads on new rotors will create an uneven contact surface, leading to poor performance, noise, and premature wear of your new rotors. You must also replace the brake pad wear sensor, as it is a one-time-use part that gets worn down with the pads.
What's the difference between blank, drilled, and slotted rotors?
Blank (or plain) rotors have a smooth, solid surface and are the standard for most vehicles, offering quiet operation and good initial bite. Drilled rotors have holes to improve heat and gas dissipation during heavy braking. Slotted rotors have grooves to sweep away water and brake dust. For a daily driven 320i, high-quality blank rotors are more than sufficient. Drilled and slotted rotors are primarily for aesthetic appeal or track use and can increase noise and pad wear.
How do I know if I have standard brakes or M Sport brakes?
M Sport brakes typically feature blue-painted calipers with the 'M' logo. Standard brakes have unpainted, silver-colored calipers. The rotor diameters are also different; for example, standard rear rotors are 300mm, while M Sport rear rotors can be 345mm. It is critical to confirm your setup before ordering parts.

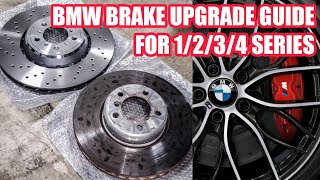

🎬 Watch this guide before upgrading your BMW F-series brake system.Can I replace just one rotor?
No. Brake rotors must always be replaced as a pair on the same axle (both front or both rear). Replacing only one can cause a dangerous braking imbalance, making the car pull to one side during braking.
Helpful Videos
Technical Specifications
OEM Part Numbers: 34116792221 34216792227 34216864899 34206797600 34216882246

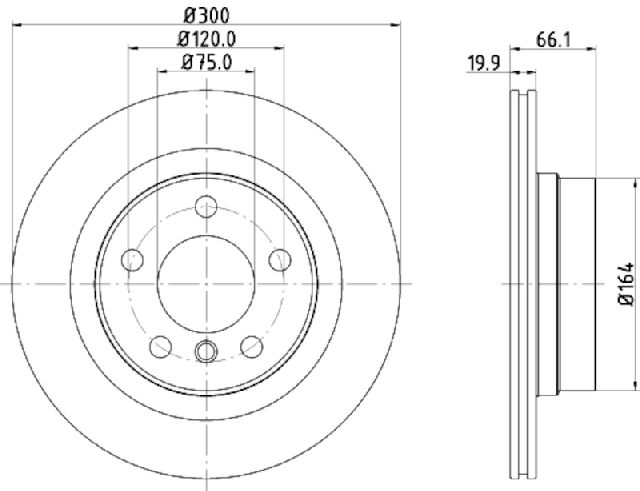

Vehicle options significantly affect rotor size. Standard brakes commonly use 312x24mm front rotors and 300x20mm rear rotors. Optional M Sport brakes use larger rotors, such as 340x30mm front and 345x24mm rear. All configurations use a 5x120mm bolt pattern. Always confirm your specific vehicle's brake package before ordering.
